CEN Racing

CQ0801 – CEN / HOBBYWING WP-1040 40A WATERPROOF BRUSHED ESC – Q / MT / F-450

CQ0801 – CEN / HOBBYWING WP-1040 40A WATERPROOF BRUSHED ESC – Q / MT / F-450

$40.00 USD
$40.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

CQ0801

Bajas existencias
SECURE CHECKOUT • SOUTHERN CALIFORNIA
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.

CQ0801 – CEN / HOBBYWING WP-1040 40A WATERPROOF BRUSHED ESC – Q / MT / F-450

The CEN Racing CQ0801 is a Hobbywing-designed WP-1040 brushed electronic speed controller rated at 40 amps. CEN lists CQ0801 in its Q / M-Series electronics catalog, while established CEN dealers identify the exact CEGCQ0801 SKU as the waterproof brushed WP-1040 used across several CEN platforms.

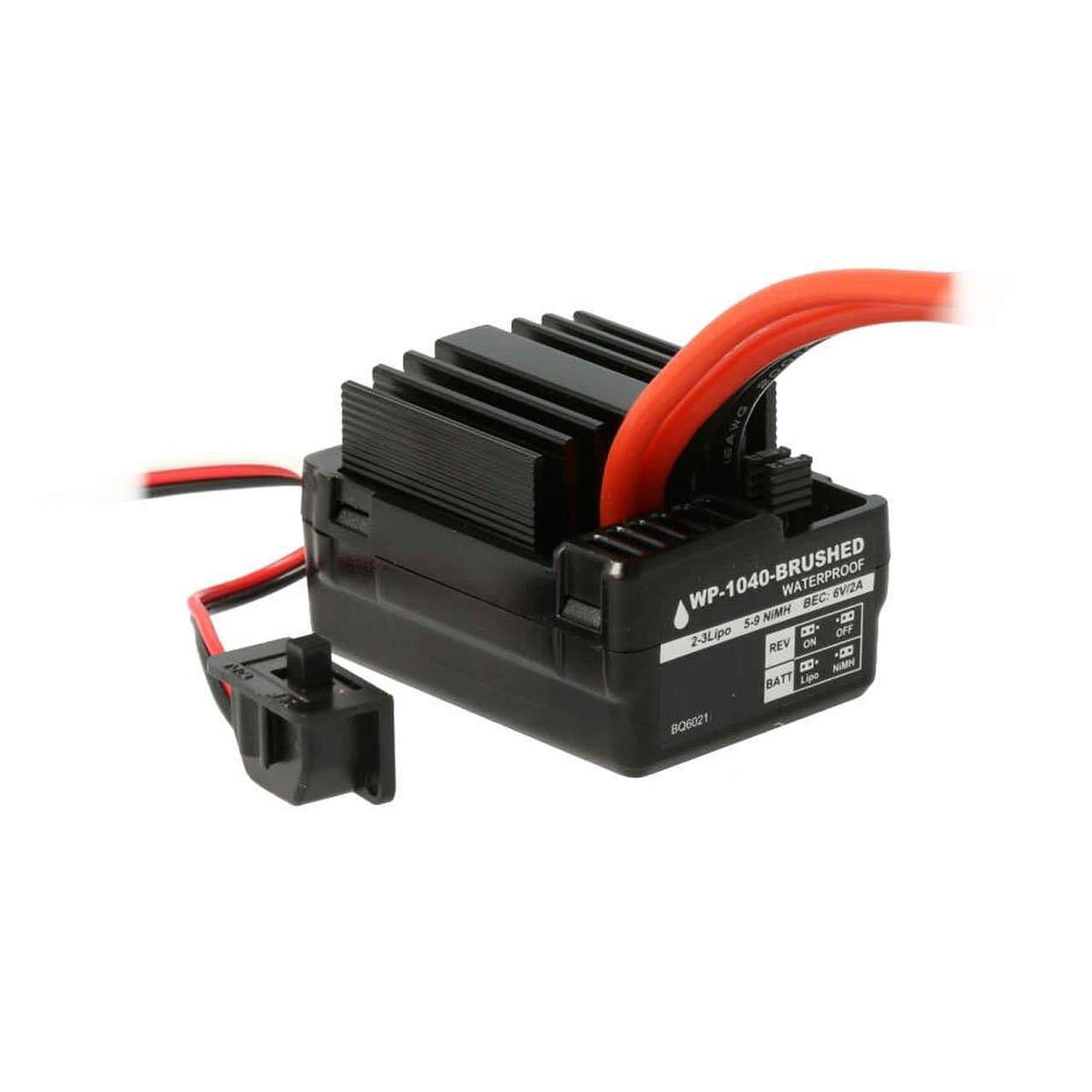

CEN Racing CQ0801 Hobbywing WP-1040 40A brushed ESC

CONFIRMED PRODUCT DETAILS

  • Manufacturer / supplier: CEN Racing / Hobbywing design
  • Part number / SKU: CQ0801 / CEGCQ0801
  • ESC model: WP-1040
  • Motor type: Brushed
  • Continuous current rating: 40A
  • Water resistance: Waterproof-rated by CEN dealers / distributor documentation
  • Published battery range: 2–3S LiPo or 5–9 cell NiMH
  • Power switch: Included on ESC harness
  • Motor connections: Standard brushed-motor connectors
  • Battery connector: Pre-soldered T-style connector

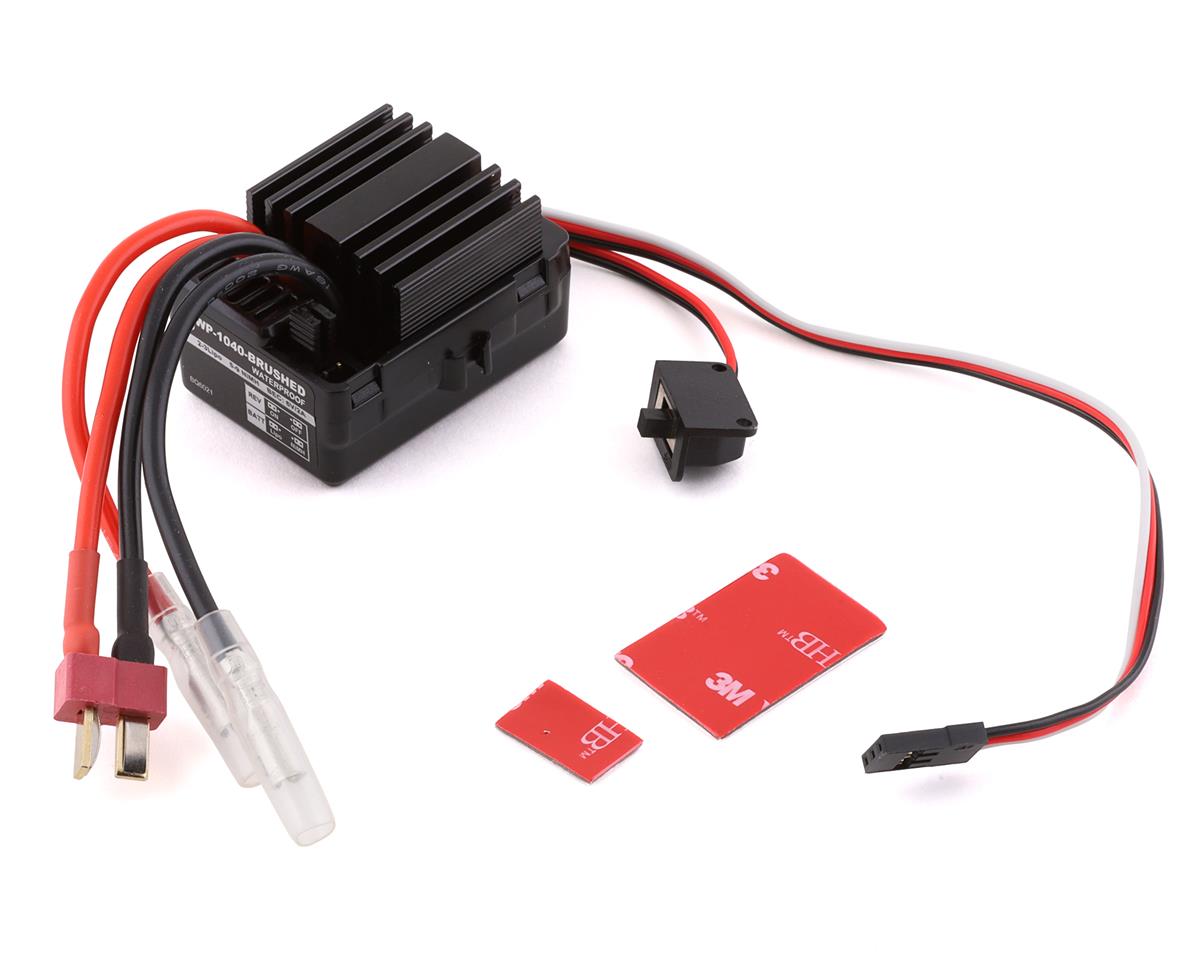

CEN Racing CQ0801 Hobbywing WP-1040 40A waterproof brushed ESC with switch and mounting pads

CONFIRMED CEN APPLICATIONS

Dealer documentation for the exact CEGCQ0801 part identifies compatibility with the following CEN brushed platforms:

  • CEN Fiat Abarth
  • CEN Ford B50
  • CEN Ford F-450
  • CEN Suzuki Jimny
  • CEN Q / MT-Series applications that specify CQ0801

PACKAGE CONTENTS

  • 1 × CEN / Hobbywing WP-1040 40A brushed ESC

Some dealer photography shows mounting pads and associated installation items, but CEN's current standalone product page does not publish a complete accessory-count breakdown. GASHEAD RC therefore guarantees only the ESC itself unless additional contents are explicitly shown with the shipped package.

INSTALLATION & SETUP NOTES

  • Use only with a compatible brushed motor system.
  • Confirm battery cell count and motor load are within the ESC's published limits before connecting power.
  • Match polarity carefully at the battery and motor leads.
  • Mount the ESC where airflow can reach the heat sink and where wiring cannot contact moving drivetrain parts.
  • Verify throttle direction, neutral position and brake/reverse operation before driving.
  • Waterproof-rated electronics should still be dried and inspected after wet operation.

MANUFACTURER DATA NOT PUBLISHED

CEN's current CQ0801 retail page does not publish a complete electrical specification sheet for this CEN-specific installation, including exact BEC output, dimensions, weight, motor-turn limit, peak current, programmable parameters or connector wire gauge. GASHEAD RC does not invent or substitute generic WP-1040 specifications where CEN has not explicitly tied them to CQ0801.
