RC4WD 5 LUG WAGON 1.9" STEEL STAMPED BEADLOCK WHEELS – BLACK / WHITE (4)

CLASSIC STEEL WAGON STYLE. TRUE INTERNAL BEADLOCK. TWO FACTORY COLORS.

Bring period-correct truck and trailer character to a 1.9-inch scale build with RC4WD’s stamped-steel 5-lug Wagon wheels. The traditional face, removable center hub and functional internal beadlock construction combine authentic looks with a serviceable tire-retention system designed by RC4WD Team UK.

This listing contains two color variants. Select the required color before adding to cart. Each selection is one set of four wheels in that color; the black and white sets are not supplied together.

FACTORY SPECIFICATIONS

• Wheel size: 1.9 in
• Outside diameter: 48.26 mm / 1.9 in
• Wheel width: 25 mm / 1.0 in
• Offset: 9 mm negative / 0.37 in
• Mounting system: pin mount, as specified by RC4WD
• Tire size: designed for 1.9-inch tires
• Construction: stamped steel
• Bead retention: internal beadlock system
• Center: removable center hub
• Engineering: RC4WD Team UK
• Certification: tested and approved as Recon G6 Certified

Setup implication: the steel construction adds useful low-mounted mass for a scale crawler, while also increasing rotating mass compared with many lightweight wheels. The stated negative offset may alter track width and body or steering clearance; the final result depends on the selected hub, axle and hex arrangement.

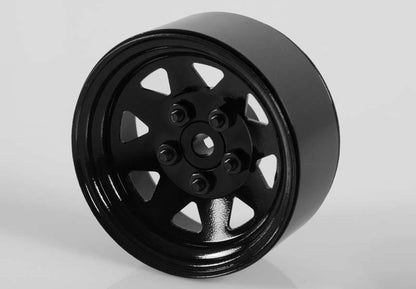

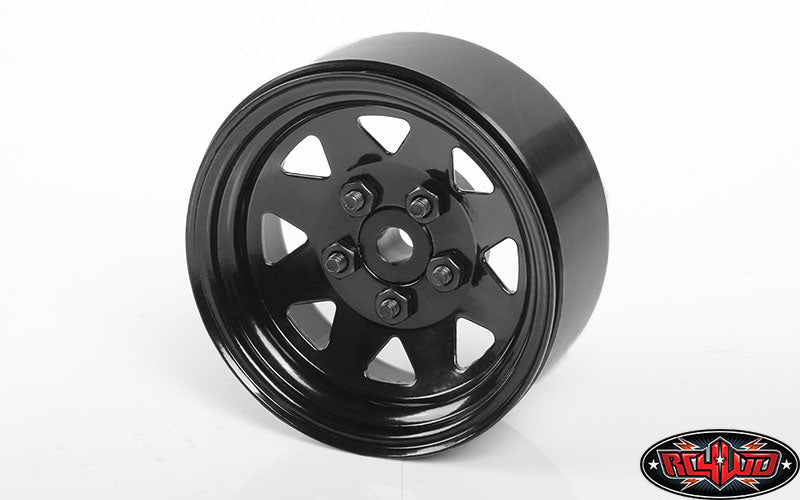

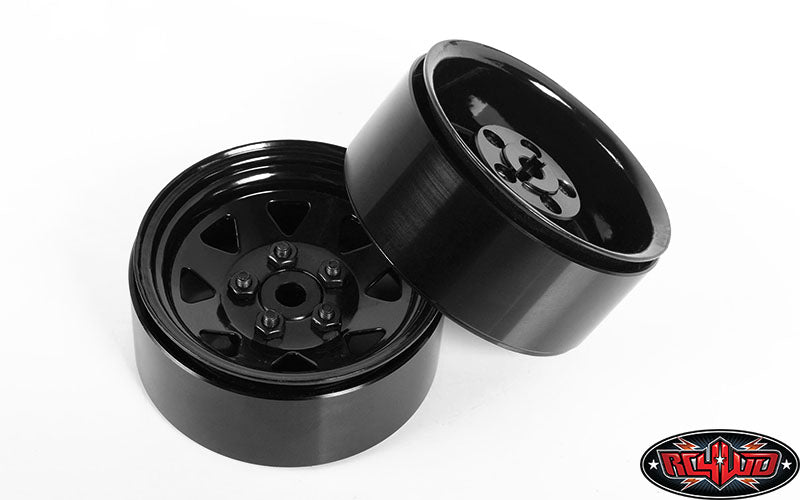

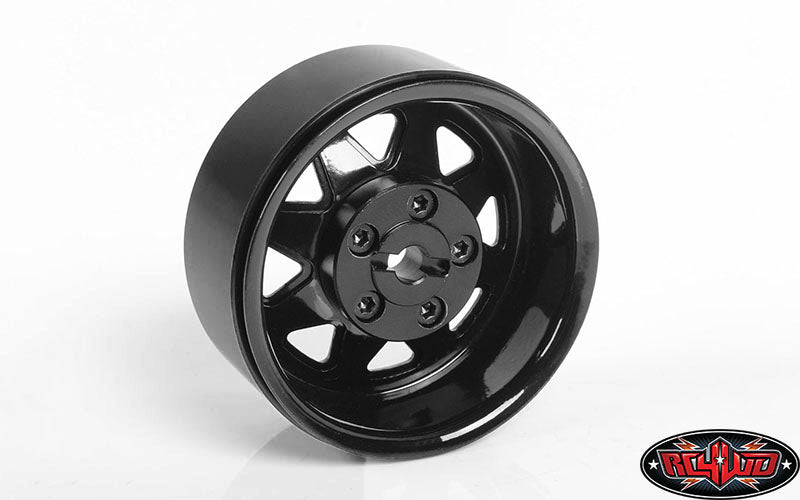

BLACK VARIANT — Z-W0129

The black finish gives the wheel a purposeful OEM and expedition appearance. RC4WD specifies 68.8 g / 2.42 oz per wheel for this version.

Stamped-steel face and internal beadlock construction

The traditional wagon face is formed in steel. Inside the wheel, the beadlock ring captures the tire beads as the wheel is assembled, providing mechanical bead retention without relying on a molded one-piece wheel.

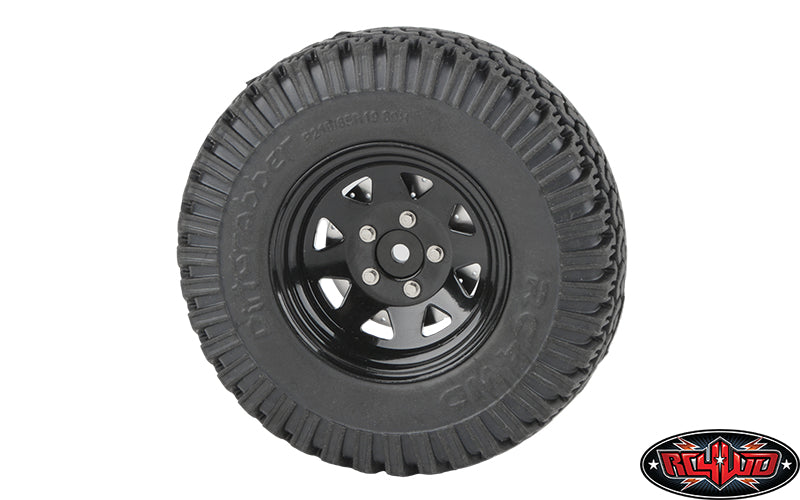

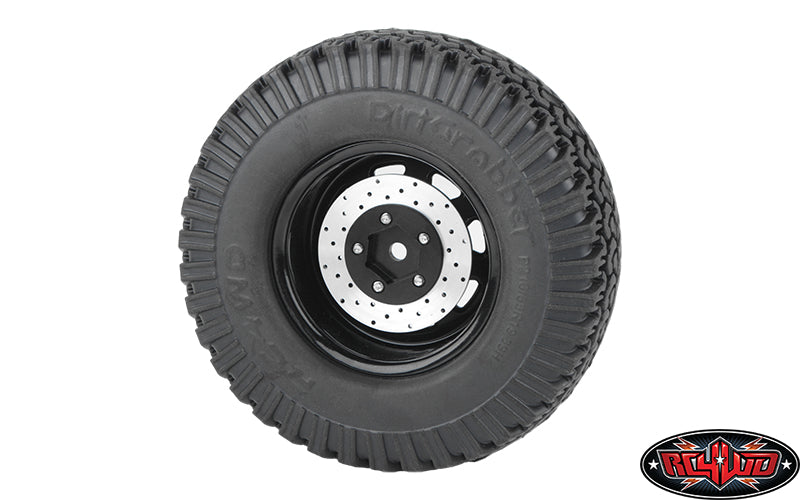

Verified RC4WD example installation

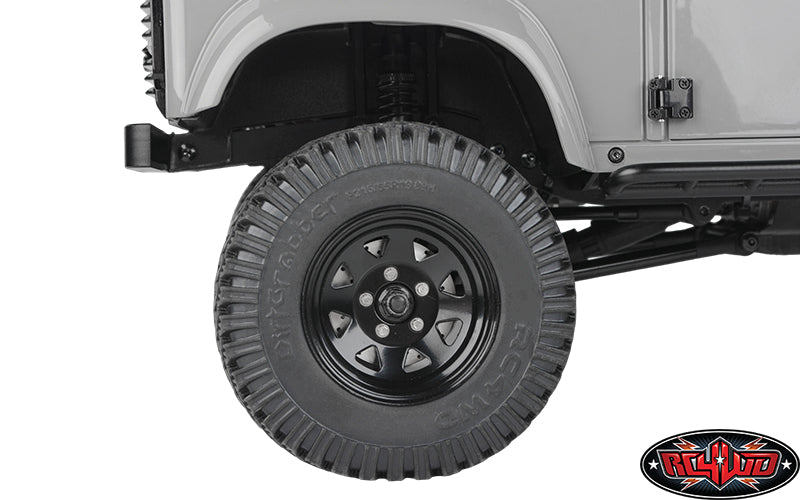

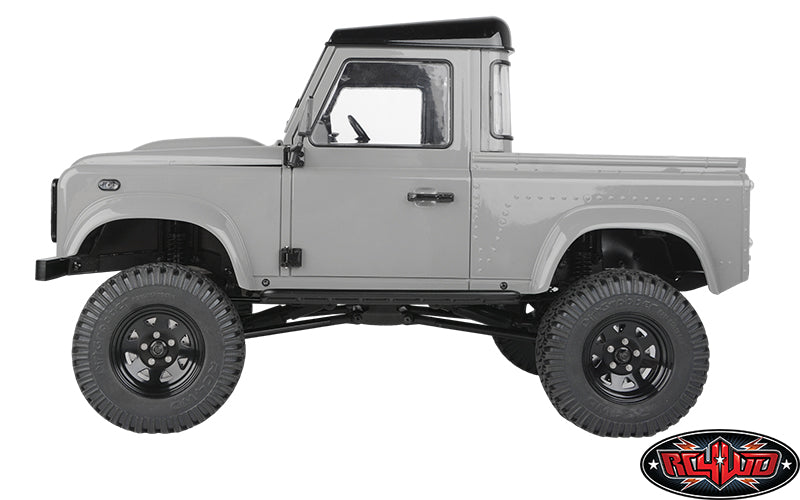

RC4WD shows the black wheels installed with the optional 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532) and Dirt Grabber 1.9 All Terrain Tires (Z-T0005). RC4WD also shows that combination on its Gelande II RTR with 2015 Land Rover Defender D90 body. These example vehicle, tire and hub components are not included.

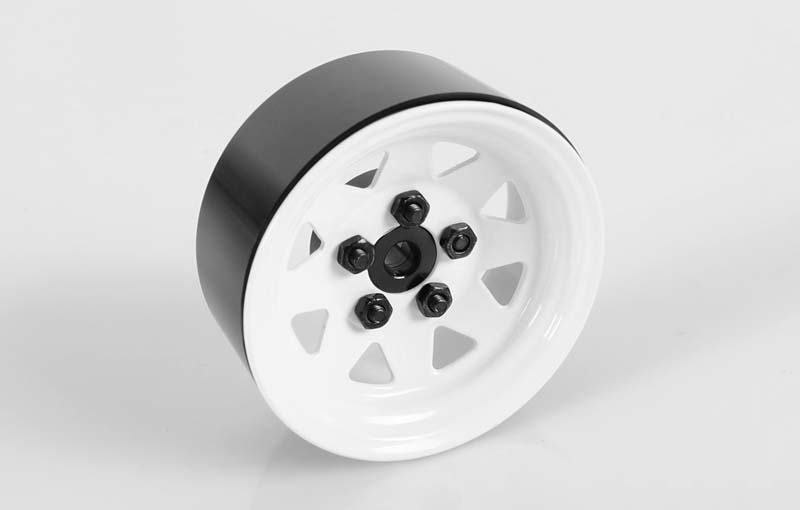

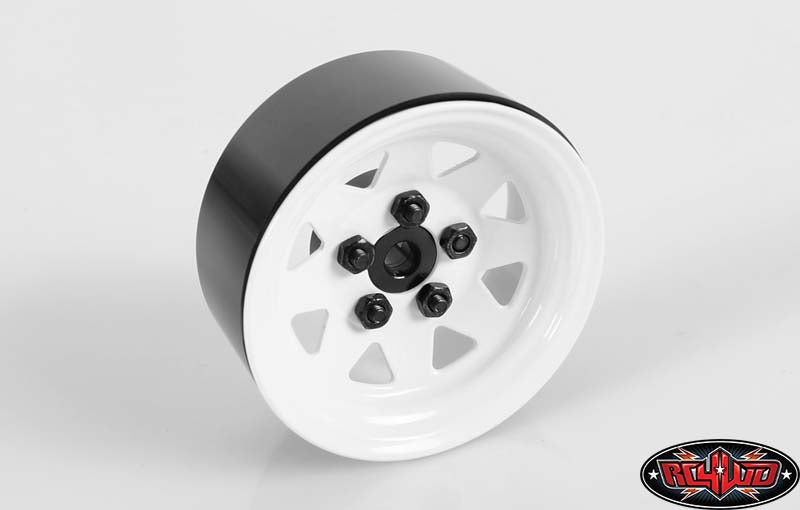

WHITE VARIANT — Z-W0127

The white finish delivers a classic utility-truck and vintage trailer look. RC4WD specifies 71 g / 2.5 oz per wheel for this version.

Same dimensions, color-specific factory set

The white variant uses the same 1.9-inch format, 25 mm width, 48.26 mm outside diameter, 9 mm negative offset, removable center hub and internal beadlock architecture. Only the selected white set is supplied.

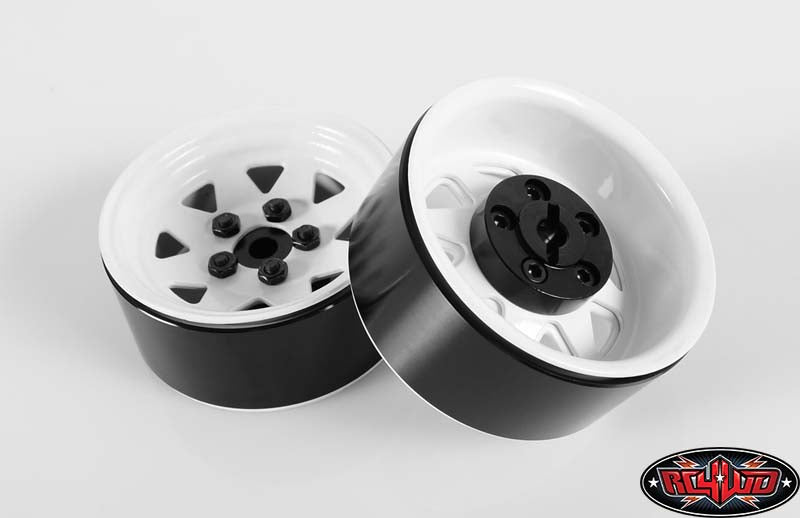

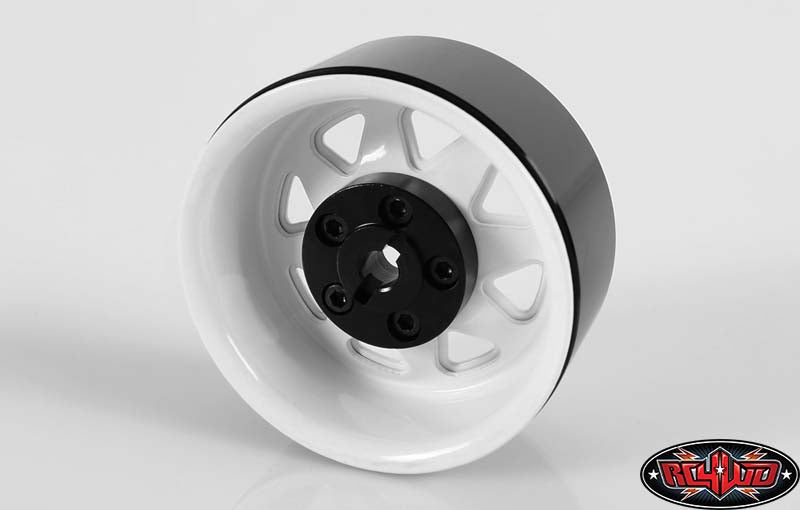

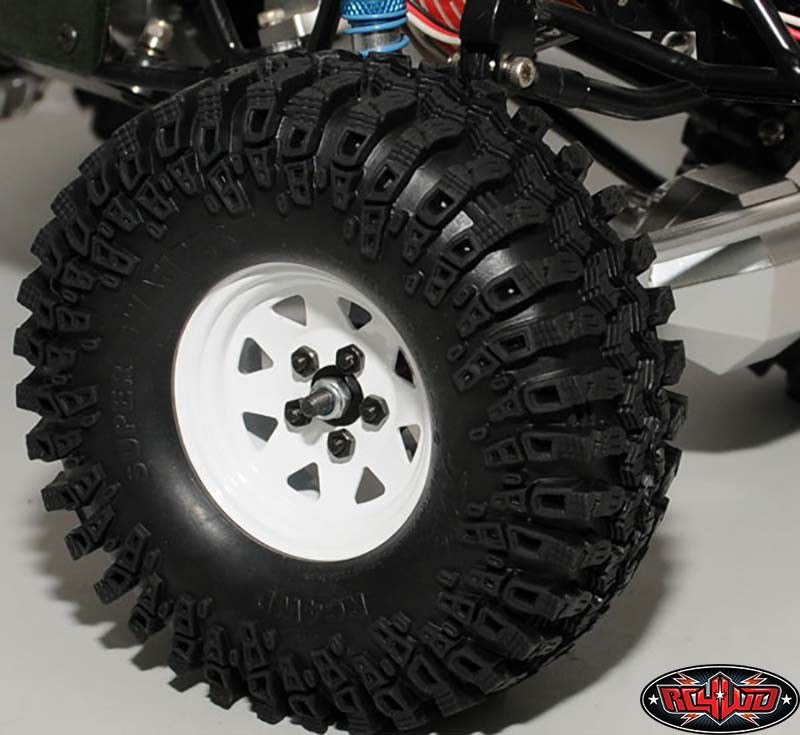

White installed examples

The following manufacturer images demonstrate the white finish in a completed scale setup. Tires, vehicle, hubs and other surrounding components shown for context are not included unless expressly listed below.

MOUNTING, HUBS AND OFFSET OPTIONS

RC4WD lists the supplied configuration as a pin mount and lists direct fitment for the Gmade Sawback. For a 12 mm hex-based setup, RC4WD identifies the following optional compatible hubs. When these optional hubs are used, RC4WD also requires its 12 mm Axle Wheel Hexes (Z-S0239).

• Z-S0734 — 1.9 5 Lug Steel Wheel Hex Hub
• Z-S0532 — 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor
• Z-S1273 — optional +3 offset hub
• Z-S1276 — optional +6 offset hub
• Z-S1278 — optional +9 offset hub
• Z-S1941 — Narrow Stamped Steel Wheel Pin Mount, 5-lug, for 1.9 wheels

Important: hub choice changes the mounting interface and may change wheel position. Confirm axle, 12 mm hex, steering-knuckle, body and suspension clearance before final assembly. Optional hubs, 12 mm axle hexes and narrow pin mounts are sold separately.

TIRE COMPATIBILITY

These wheels are intended for 1.9-inch tires. RC4WD guarantees compatibility between its own tires and wheels, but does not guarantee every mixed-brand wheel-and-tire combination because bead shapes and carcass designs vary by manufacturer.

• Verified manufacturer example: RC4WD Dirt Grabber 1.9 All Terrain Tires, Z-T0005, on the black wheel.
• Optional Z-S0846 internal beadlock rings are available specifically for compatibility with 1.9 Pro-Line tires.
• For any third-party tire, test bead seating carefully before use.

WHAT IS INCLUDED

• 4 × RC4WD 5 Lug Wagon 1.9 Steel Stamped Beadlock Wheels in the selected color
• 2 × M2.5 × 14 mm black socket-head cap screws

Not included: tires, vehicle, axles, 12 mm wheel hexes, optional hubs, brake rotors and any display or installation accessories shown in the images.

REPLACEMENT AND OPTIONAL HARDWARE

• Z-S0829 — M2.5 × 8 mm black socket-head cap screws, pack of 20
• Z-S0303 — regular M2.5 black nuts, pack of 20
• Z-S0476 — replacement hardware for OEM Steel 1.9 and Wagon wheels
• Z-S0846 — 1.9 Pro-Line tire-compatible internal beadlock rings

INSTALLATION CHECKLIST

1. Confirm the selected mounting method matches the axle: supplied pin-mount arrangement or a compatible optional RC4WD hub and required 12 mm wheel hex.
2. Inspect the tire beads and place them evenly around the internal beadlock ring.
3. Bring the wheel halves together without pinching the bead.
4. Start fasteners by hand and tighten gradually in an alternating pattern so the bead remains evenly captured. RC4WD does not publish a torque value on the product page; do not overtighten.
5. Rotate each assembled wheel by hand and verify bead seating, hardware clearance and free steering/suspension movement before driving.
6. Recheck hardware after the first run and periodically during normal maintenance.

GASHEAD RC FITMENT NOTE

A “1.9-inch” tire diameter alone does not prove compatibility. The tire bead profile, internal ring, hub, axle interface and final offset all matter. For the lowest-risk installation, use RC4WD tires and the manufacturer-listed mounting components. Mixed-brand setups should be dry-fitted and inspected before the hardware is fully tightened.

Manufacturer specifications and compatibility references are based on the official RC4WD product information for Z-W0129 and Z-W0127. Product images may show optional components for demonstration.
