RC4WD 6 LUG WAGON 2.2" STEEL STAMPED BEADLOCK WHEELS – BLACK / WHITE (4) – Z-W0190

$51.99 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

SKU:Z-W0190

Bajas existencias

Color Black White

SECURE CHECKOUT • SOUTHERN CALIFORNIA
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.

Classic stamped-steel scale styling with a functional beadlock system. RC4WD’s 6 Lug Wagon 2.2 wheels are built for trail trucks and custom rigs that need the visual weight of a full-size steel wheel plus serviceable bead retention. Choose the exact finish/SKU required for your build: the selected variant supplies one set of four wheels, not both color sets.

Critical fitment note: Black Z-W0190 and White Z-W0146 are both listed for 2.2-inch tires, but RC4WD publishes different wheel outer diameters for the two SKUs. Do not treat them as dimensionally interchangeable.

SKU-SPECIFIC SPECIFICATIONS

Specification	Black — Z-W0190	White — Z-W0146
Wheel / tire class	2.2 in	2.2 in
Published outer diameter	55.9 mm / 2.20 in	61.88 mm / 2.44 in
Width	29.5 mm / 1.16 in	29.5 mm / 1.16 in
Offset	4.85 mm / 0.19 in negative	4.85 mm / 0.19 in negative
Center-hole OD	5.2 mm / 0.20 in	Not published on the current RC4WD product page
Weight	88 g / 3.1 oz each	88 g / 3.1 oz each
Finish / construction	Stamped steel, aluminum ring and CNC aluminum mounting adapter	Stamped steel with white powder-coated finish

Calculated set weight: four wheels equal approximately 352 g / 12.4 oz before tires and foams (derived from RC4WD’s published 88 g per-wheel value). That mass can help plant a scale crawler, but it also increases rotating and unsprung weight; confirm that your steering, drivetrain and servo setup suit the intended terrain and driving style.

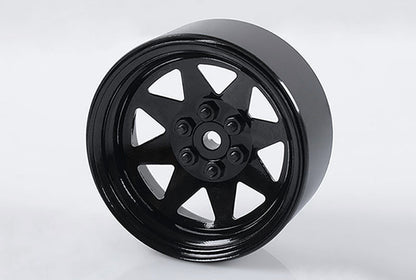

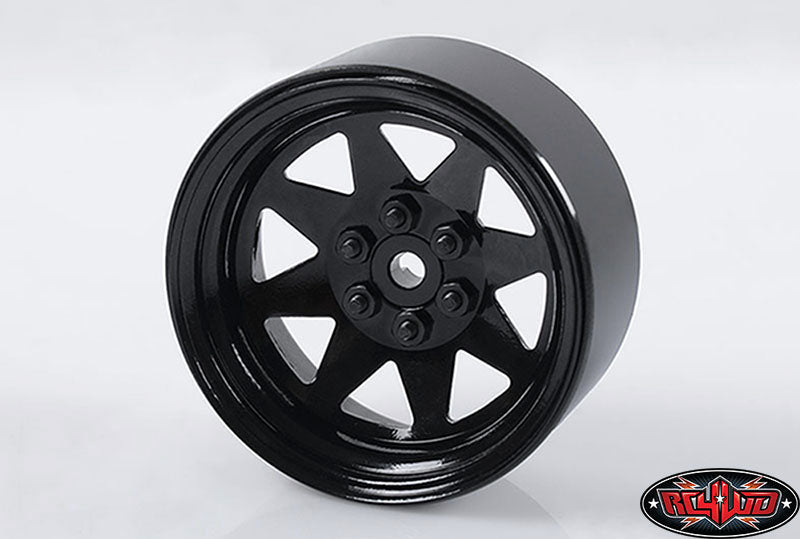

BLACK — Z-W0190

Stamped-steel wheel body with aluminum beadlock ring.
CNC-machined aluminum mounting adapter.
RC4WD shows the wheel installed with Mud Slingers 2.2 tires, part Z-T0097; tires are not included.
RC4WD confirms fitment with Pit Bull Rock Beast II Scale 2.2 RC tires.
Published outer diameter: 55.9 mm / 2.20 in.

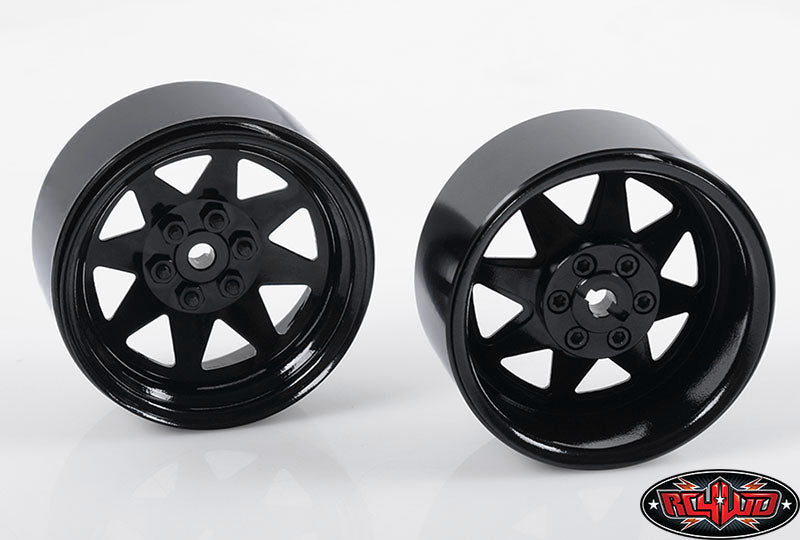

Black Z-W0190 — official beadlock and hardware detail

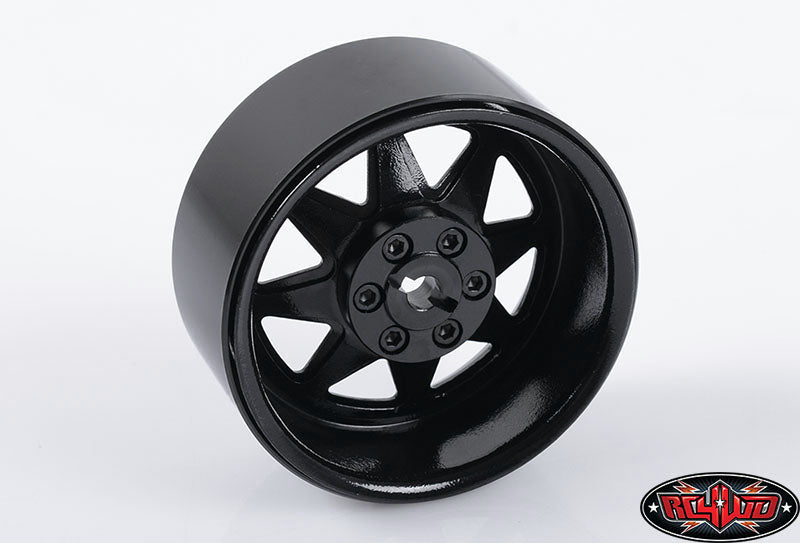

Black Z-W0190 — official rear and hub interface detail

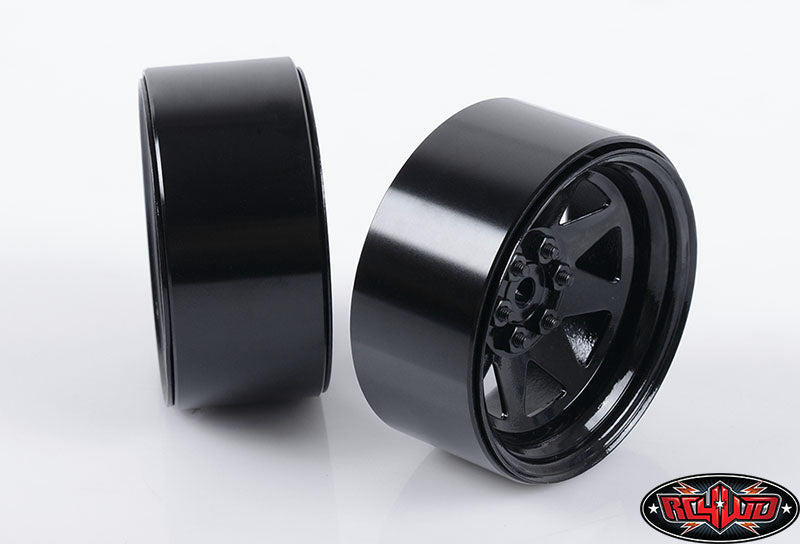

Black Z-W0190 — official dimensional and profile view

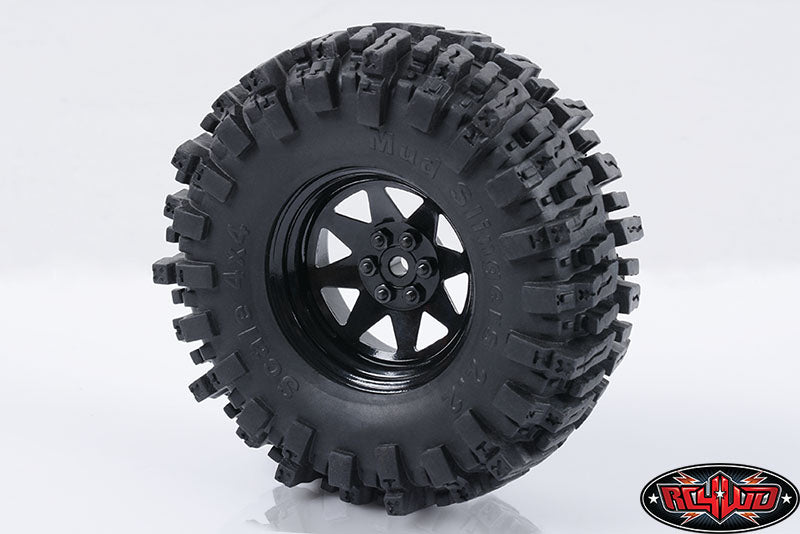

Black Z-W0190 — official installed example; accessories shown may not be included

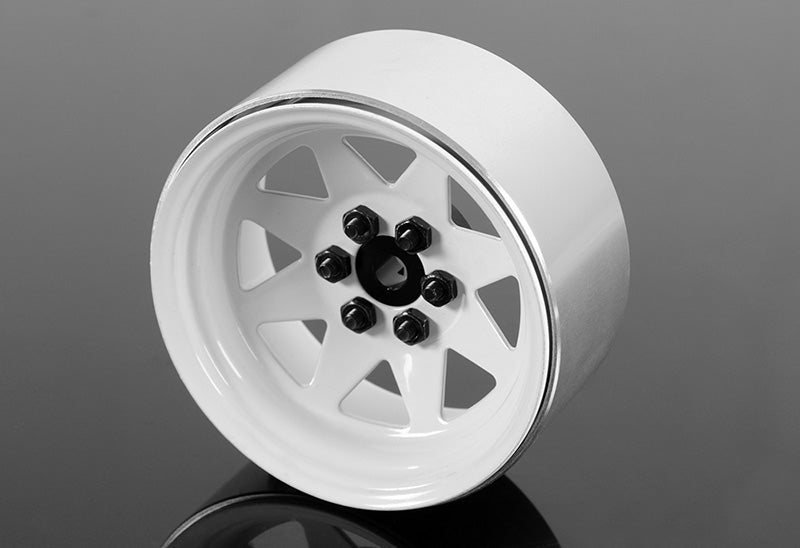

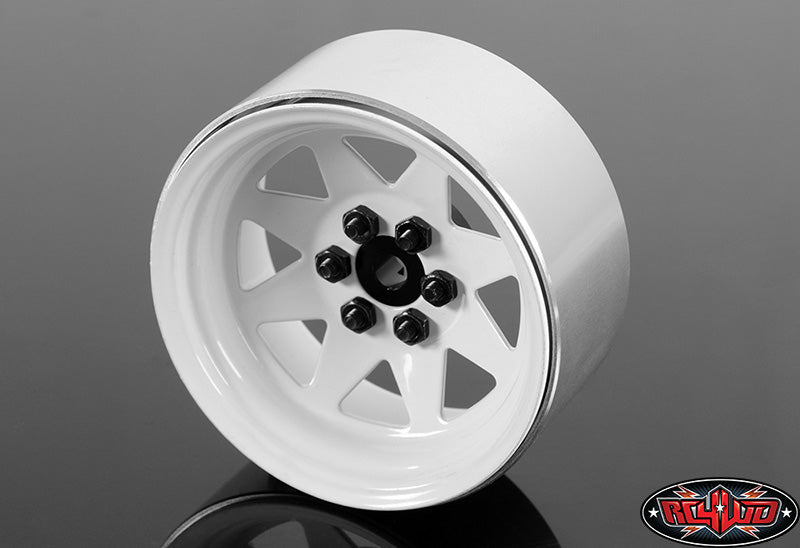

WHITE — Z-W0146

Stamped-steel construction with a white powder-coated finish.
RC4WD shows the wheel with Interco Super Swamper 2.2 TSL/Bogger Scale tires, part Z-T0055; tires are not included.
RC4WD confirms fitment with Pit Bull Rock Beast II Scale 2.2 RC tires.
Confirmed exclusion: RC4WD states that this wheel does not fit Mud Basher 2.2 Scale Tractor tires, part Z-T0129.
Published outer diameter: 61.88 mm / 2.44 in.

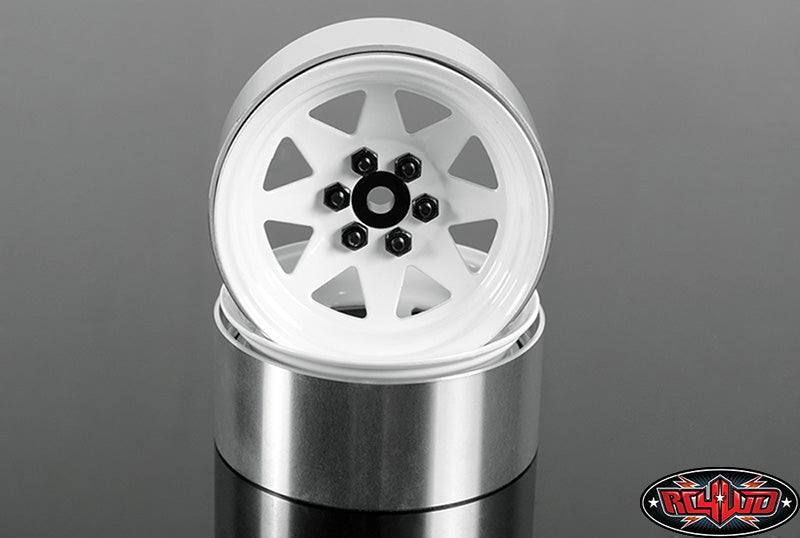

White Z-W0146 — official beadlock and hardware detail

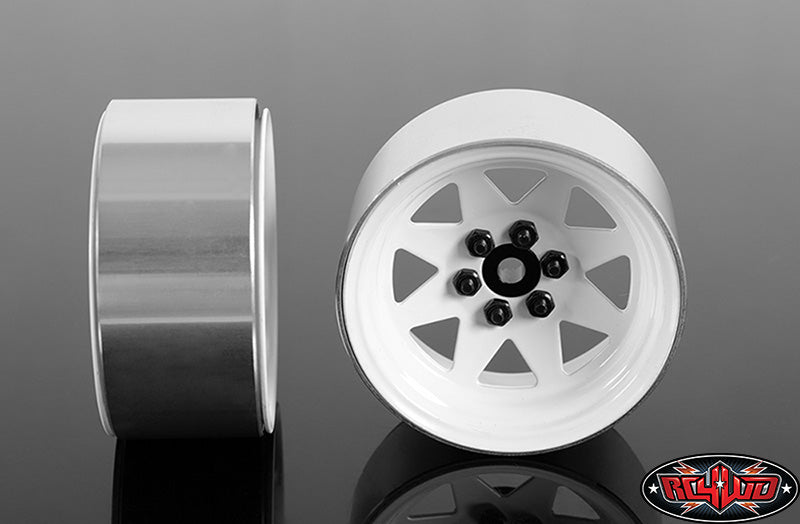

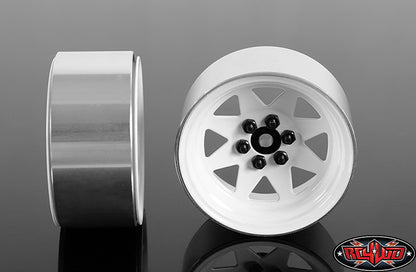

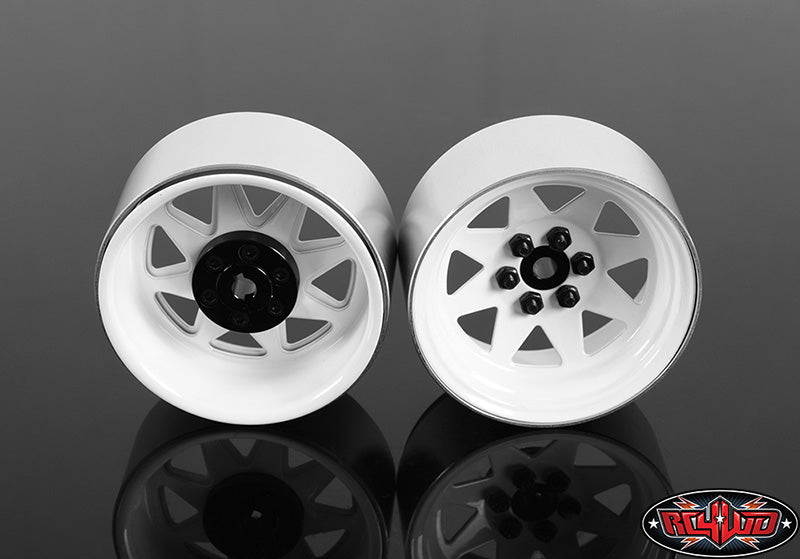

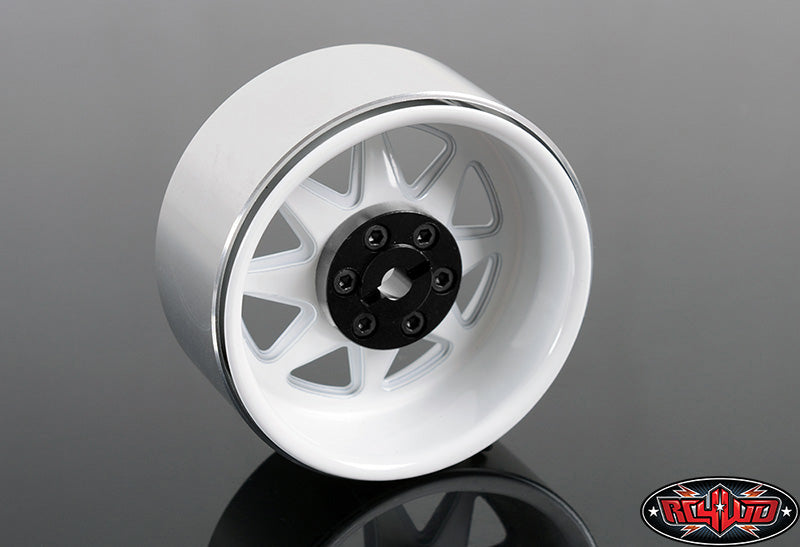

White Z-W0146 — official rear and hub interface detail

White Z-W0146 — official side-profile detail

White Z-W0146 — official wheel construction detail

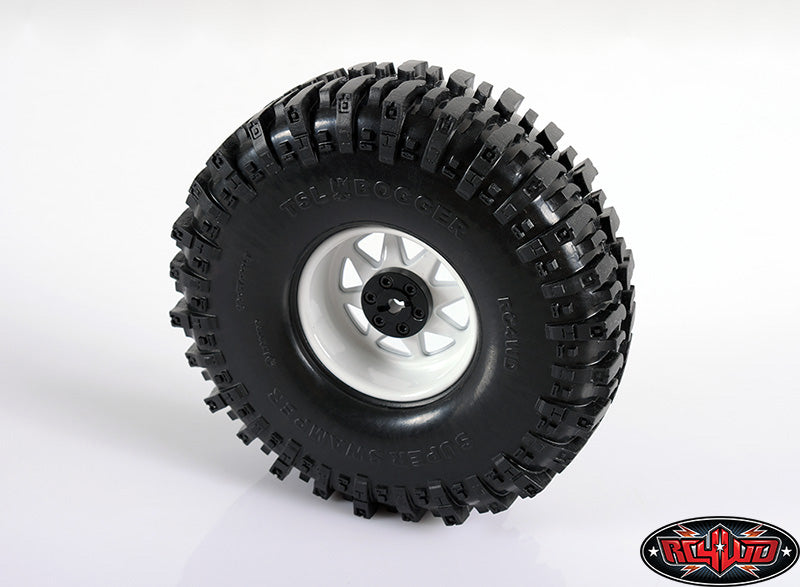

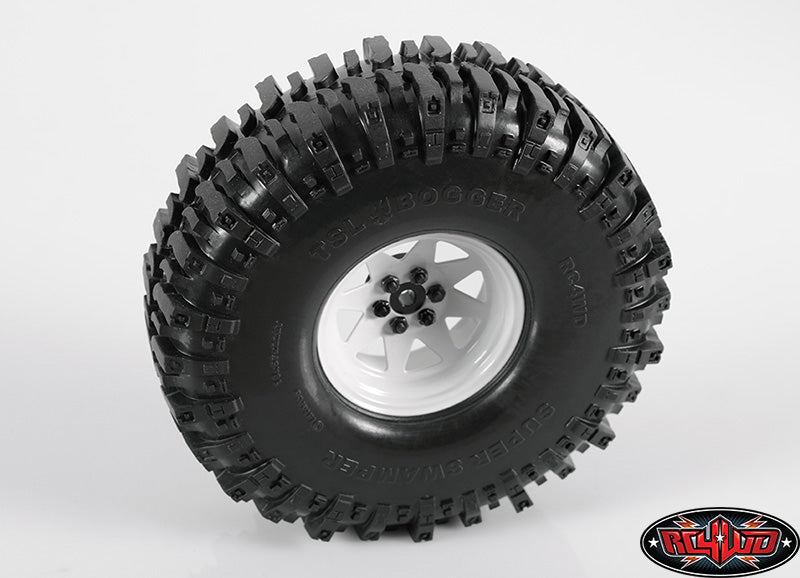

White Z-W0146 — official installed example; accessories shown may not be included

White Z-W0146 — official scale application image; vehicle, tires and accessories not included

WHY “2.2” DOES NOT MEAN IDENTICAL OUTER DIAMETER

The 2.2-inch designation identifies the tire/bead mounting class. It does not require every wheel shell, beadlock ring or stamped profile to have the same measured exterior diameter. RC4WD currently publishes 55.9 mm for Black and 61.88 mm for White—a 5.98 mm difference. Select by SKU and verify knuckle, portal, steering-link, body and tire-sidewall clearance on your specific vehicle.

HUB AND AXLE OPTIONS

RC4WD lists multiple 6-lug offset hub options for this wheel family: Z-S0530, Z-S0779, Z-S0780, Z-S0774 and Z-S0268. These manufacturer-listed hubs require RC4WD 12 mm Axle Wheel Hexes Z-S0239. RC4WD also lists the Z-S1913 narrow 6-lug pin-mount hub as an available mounting option. Hub parts and axle hexes are sold separately unless specifically stated otherwise.

Axial Yeti 1/10: RC4WD specifies Z-S0238 for front installation. Rear installation requires both Z-S0780 and Z-S0238. Confirm axle configuration and available clearance before ordering.

IN THE PACKAGE

4 × RC4WD 6 Lug Wagon 2.2 steel stamped beadlock wheels in the selected finish.
2 × M2.5 × 14 mm black socket-head cap screws.

Tires, foams, vehicle, tools and optional hubs/hexes shown in application photos are not included unless explicitly listed above.

REPLACEMENT HARDWARE

24 × M2.5 × 8 mm black socket-head cap screws — RC4WD Z-S0829.
24 × M2.5 nuts — RC4WD Z-S0303.

INSTALLATION CHECKLIST

Confirm the selected SKU, published wheel dimensions, hub system and axle interface before assembly.
Test-fit the tire bead evenly in both wheel halves; do not pinch the bead or foam.
Start all beadlock hardware by hand and tighten progressively in a cross pattern.
RC4WD does not publish a torque value on the current product pages. Use an appropriate hand tool and avoid overtightening the small fasteners.
Rotate the completed assembly by hand and inspect full steering and suspension travel for interference.
Recheck beadlock and hub hardware after the first run.

GASHEAD RC FITMENT NOTE

RC tire beads and carcass profiles vary by manufacturer. RC4WD does not guarantee compatibility with third-party tires unless a specific combination is confirmed. The tire examples above are manufacturer-published references, not a universal promise of fitment. If your build uses a different tire, axle, portal, knuckle or hub, compare actual measurements before purchase.

Technical data and compatibility references verified against the current official RC4WD pages for Black Z-W0190 and White Z-W0146. Derived values are identified as calculations. Manufacturer specifications may change.
