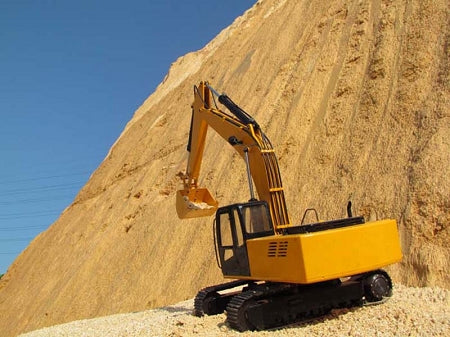

1/12 Scale Earth Digger 4200XL Hydraulic Excavator (RTR) (Version 2.0)

RC4WD 1/12 Scale Earth Digger 4200XL Hydraulic Excavator RTR – Version 2.0

The Earth Digger 4200XL is a large-format 1/12 hydraulic RC excavator engineered for serious scale construction work. Version 2.0 combines extensive CNC-machined aluminum construction, steel molded tracks, an optimized hydraulic system, independent track control and endless upper-structure rotation in a professionally assembled RTR platform.

Construction & Scale Detail

• 1/12 scale heavy-machinery platform
• 100% CNC-machined aluminum construction except track and hydraulic pump
• Optimized steel hydraulic system
• Steel molded tracks, 50 mm wide, made from 45-grade carbon steel
• Scale operator station with room for a driver figure and seat
• Yellow powder-coated finish
• Bearing-based undercarriage design
• High-intensity 3-watt work light

Hydraulic & Power System

• Reliable hydraulic valve and adjustable pump
• Heavy-duty hydraulic hoses: 4.5 mm OD / 2.5 mm ID nylon
• Steel machined oil pump: 45 x 30 x 15.5 mm
• 350KV brushless monster-torque motor, 4130 outrunner with 6 mm shaft
• 60A brushless ESC with BEC
• Neodymium magnets
• Operating hydraulic pressure: 20 bar / 290 psi
• XT60 female power connector
• LiPo cutoff

Drive & Operating Functions

• Independent left/right track control
• 360-degree endless upper-structure rotation
• Proportional hydraulic boom movement
• Proportional arm movement
• Bucket curl and dump
• Combined functions for realistic excavation sequences
• Custom 8-channel 2.4GHz radio system

Dimensions & Performance

• Scale: 1:12
• Overall length: 1.15 m / 45 in
• Overall width: 250 mm / 9.8 in
• Overall height: 840 mm / 33 in
• Digging depth: 495 mm / 19.4 in
• Cab height: 155 mm / 6.1 in
• Inside cab: 120 x 65 x 135 mm / 4.72 x 2.55 x 5.31 in
• Digging force: 15 kg / 33 lb
• Driving speed: approximately 310 m/hour
• Dead weight: 20 kg / 44 lb
• Typical runtime: approximately 40–50 minutes with a 6500mAh battery

What's Included

• 1x RC4WD/JDCustoms Earth Digger 4200XL Hydraulic Excavator RTR – Version 2.0
• Custom 8-channel 2.4GHz radio system

Required to Complete

• 3S LiPo battery, 12V-class supply with XT60 connector; RC4WD recommends 3S 25C
• Battery must fit within approximately 160 x 51 x 73 mm
• Compatible LiPo charger
• 8x AA batteries for the radio
• AW ISO 32 hydraulic oil
• Quality metric hex drivers

Service & Replacement Parts

RC4WD supports the 4200XL with replacement oil pump, brushless ESC, brushless motor, brushed ESCs, moving and turning gearbox motors, pressure relief valve, Version 2 track components and hydraulic fittings. This is an important advantage for a machine intended for repeated heavy-duty operation.

Important Operating Notes

• This model is intended for experienced RC hobbyists and is not recommended for users under 16.
• The excavator ships without hydraulic oil. Fill the reservoir before operation according to the manufacturer instructions.
• Check hardware after shipping and periodically during use.
• Use thread lock sparingly when metal screws thread into metal.
• Do not over-tighten hardware.
• Do not adjust the factory oil-pressure setting.
• Avoid overheating the hydraulic pump and electronics during extended operation.
• The HID/work light may flash under heavy electrical load.

GASHEAD RC Owner Note

This is a 44 lb hydraulic machine, not a typical hobby crawler. Plan battery access, oil service, transport and storage before purchase. After shipping, inspect track hardware, hydraulic fittings, boom pivots and accessible fasteners before the first full digging session. A stable work surface and careful warm-up of the hydraulic system will help protect the pump, hoses and electronics.

SKU: VV-JD00002
