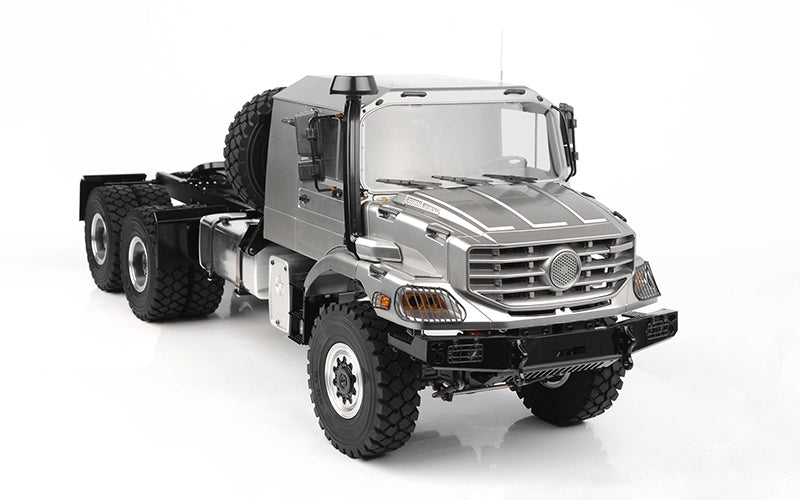

1/14 Sledge Hammer Heavy Haul 6x6 RTR Truck

RC4WD 1/14 SLEDGE HAMMER HEAVY HAUL 6X6 RTR TRUCK – VV-JD00053

The RC4WD Sledge Hammer Heavy Haul 6x6 is a professionally pre-assembled 1/14-scale transport truck built for serious scale hauling. It combines a hard-plastic European-style cab with a full-metal 2-speed transmission, billet-aluminum transfer case, remote-lockable front and rear axles, leaf-spring suspension and a 6x6 drivetrain designed to move heavy scale loads with realistic truck geometry.

HEAVY-HAUL CONSTRUCTION

• Hard-plastic European-style front cab
• Full-metal 2-speed transmission with planetary gears
• Billet-aluminum transfer case
• Stainless-steel molded fuel tanks
• Scale leaf-spring suspension
• Billet-aluminum scale rims
• Full-metal front and rear axle housings
• Steel scale driveshaft
• Painted body
• Scale wheels and tires
• Rear light guards
• Scale light buckets compatible with 3–5 mm LEDs

DRIVETRAIN & TRACTION

• 6x6 drivetrain
• Remote-lockable front and rear axles
• Locking differentials
• Axle gear ratio: 2.6:1
• First gear: 1:64
• Second gear: 1:16
• Brushed motor
• LiPo cutoff
• Basic 4-channel 2.4GHz radio system

PAYLOAD & DIMENSIONS

• Scale: 1/14
• Length: 28.8 in / 734 mm
• Width: 9.05 in / 230 mm
• Height: 10.7 in / 273 mm
• Truck weight: 6.9 kg / 15.2 lb
• Recommended payload: 10 kg / 22 lb
• Maximum load: 10 kg / 22 lb
• Total loaded mass: 17 kg / 37 lb

POWER REQUIREMENTS

• 5200mAh 11.1V 3S 25C LiPo battery with XT60 plug
• Maximum battery size: 5.59 × 1.77 × 1.57 in / 142 × 45 × 40 mm
• Compatible LiPo battery charger
• 4x AA batteries for the radio

Important: RC4WD specifically states not to use more than a 3S / 11.1V battery with this truck.

WHAT'S INCLUDED

• 1x RC4WD 1/14 Sledge Hammer Heavy Haul 6x6 RTR Truck
• 4-channel 2.4GHz radio system

OPERATING & SETUP NOTES

• Turn on the transmitter before powering the ESC.
• Inspect all hardware and screws after shipping and before first operation.
• Use quality hex drivers to reduce the risk of stripped screw heads.
• Use thread lock where appropriate on metal-to-metal fasteners.
• Use thread lock sparingly.
• Do not overtighten screws or small hardware.
• The truck is intended for experienced RC users and is not recommended for beginners or users under 16.
• Only the right side of the truck includes a blind mirror with downward view.
• This product is professionally pre-assembled.

GASHEAD RC HEAVY-HAUL NOTE

This truck is built to tow and carry meaningful scale loads, but payload alone does not tell the whole story. Trailer rolling resistance, tongue weight, grade, surface traction and locked/unlocked differential setup all affect drivetrain load. When hauling heavy equipment, start in the lower gear, verify trailer balance, keep the driveline free of binding and inspect wheel, driveshaft and axle hardware regularly.

SKU: VV-JD00053
