1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader

RC4WD 1/14 SCALE EARTH MOVER ZW370 HYDRAULIC WHEEL LOADER – VV-JD00069

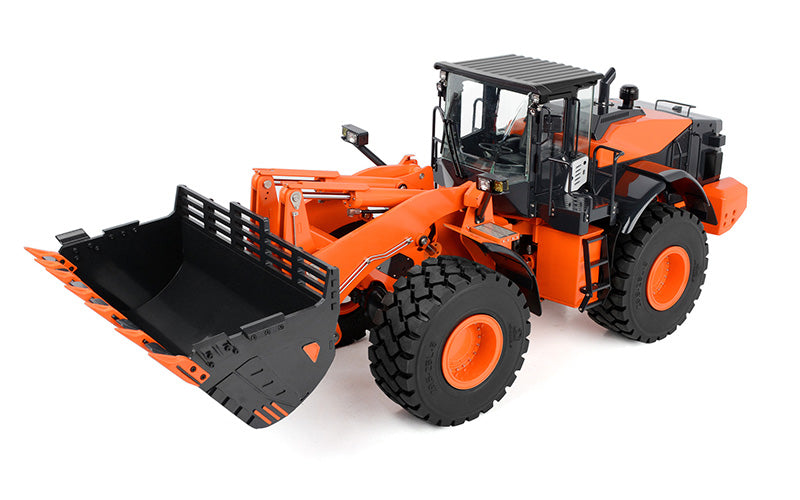

The RC4WD Earth Mover ZW370 is a professionally pre-assembled 1/14-scale hydraulic wheel loader built for experienced RC operators who want realistic heavy-equipment operation, metal construction and a fully functional hydraulic system. It combines a molded steel bucket, CNC-machined metal components, articulated loader geometry, full-metal axles and a brushless hydraulic drive system in a large-format construction machine.

HEAVY-DUTY CONSTRUCTION

• CNC-machined metal parts
• Molded steel bucket
• Optimized steel hydraulic system
• Scale operator station capable of fitting a driving figure
• 137 mm model-specific tires
• Orange powder-coated finish
• Realistic full-metal axles
• Planetary gearbox built into the wheels

HYDRAULIC SYSTEM

• Reliable hydraulic valve and adjustable pump
• Brushless hydraulic system
• 40A brushless ESC with BEC
• 270KV brushless torque motor
• High-pressure nylon hoses: 4.5 mm OD / 2.5 mm ID
• Operating oil pressure: 3.50 bar / 50.75 psi
• Hydraulic pump flow: 0.8 L/min
• Hydraulic pump rated pressure: 2.5 MPa
• Hydraulic pump ultimate pressure: 5 MPa
• Maximum bucket force: 40 kg / 88 lb

DRIVETRAIN & CONTROL

• 10-channel 2.4GHz radio system
• 2-speed full-metal transmission
• Transmission ratios: 1:64 and 1:16
• Realistic non-functional disc-brake detail
• LiPo cutoff
• Latest constant-angular-speed double transmission shaft design for smoother power delivery
• Upgraded valve system with improved response and controllability compared with the older VV-JD00031 platform

DIMENSIONS & PERFORMANCE

• Scale: 1/14
• Length: 27.9 in / 710 mm
• Width: 9.84 in / 250 mm
• Height: 10.5 in / 268 mm
• Wheelbase: 9.92 in / 252 mm
• Maximum bucket height: 18.1 in / 461 mm
• Maximum bucket up/down angle: 46–64°
• Maximum bucket left/right angle: 38°
• Maximum bucket force: 40 kg / 88 lb
• Dead weight: 16.5 kg / 36.3 lb
• Total mass load: 32 kg / 70 lb
• Theoretical boom lift: 15 kg
• Theoretical traction: 30 kg
• Approximate runtime: 30 minutes with a 5000mAh battery, per RC4WD

WHAT'S INCLUDED

• 1x RC4WD 1/14 Scale Earth Mover ZW370 Hydraulic Wheel Loader
• 10-channel 2.4GHz radio system

REQUIRED TO COMPLETE

• 5000mAh 11.1V 50C 3S1P LiPo battery with XT60 plug
• Maximum battery dimensions: 140 × 45 × 25 mm
• Compatible LiPo battery charger
• 4x AA batteries for the radio
• AW ISO 32 hydraulic oil — RC4WD Z-X0042 or equivalent suitable fluid

IMPORTANT OPERATING NOTES

• This product is intended for experienced RC hobbyists and is not recommended for users under 16.
• Inspect all hardware and screws after shipping and before first operation.
• Use quality hex drivers to reduce the risk of stripping screw heads.
• Use thread lock where appropriate on metal-to-metal fasteners.
• Do not exceed the published battery dimensions.
• Inspect hydraulic hoses, fittings and pump connections for leakage before working under load.
• Keep hydraulic operation within the manufacturer's specified pressure range.
• Do not allow the hydraulic system to overheat during extended operation.

GASHEAD RC OWNER NOTE

The ZW370 is a 36-plus-pound hydraulic RC machine with a 40 kg published bucket-force figure, so treat setup and inspection like a serious piece of scale equipment. Before operating under load, verify wheel hardware, transmission engagement, loader-arm pins, bucket linkage, hose routing, fittings and pump connections. The upgraded valve and drivetrain design improve responsiveness, but careful hydraulic maintenance and mechanical inspection remain essential.

SKU: VV-JD00069
