Trifecta Front Bumper, Sliders and Side Bars for Land Cruiser LC70 Body (Black)

RC4WD TRIFECTA FRONT BUMPER, SLIDERS & SIDE BARS FOR LAND CRUISER LC70 BODY – BLACK

The RC4WD Trifecta Front Bumper, Sliders and Side Bars (VVV-C0412) is a complete exterior protection package engineered for the RC4WD Trail Finder 2 LWB / Land Cruiser LC70 body platform. Rather than upgrading only the front bumper, this kit ties together the front protection, lower-body sliders, tubular side bars and diamond-plate trim into one coordinated system with consistent materials, finish and mounting geometry.

MULTI-MATERIAL SCALE CONSTRUCTION

RC4WD specifies a combination of ABS injection-molded components, CNC-machined parts and various steel materials. The steel structure is hand welded and finished in black powder coat. That material mix allows the structural pieces to remain rigid while smaller cosmetic or light-housing components can use molded shapes with more scale detail.

• Manufacturer: RC4WD / CCHand
• Part Number: VVV-C0412
• Application: RC4WD TF2 LWB with Land Cruiser LC70 body architecture
• Construction: ABS injection molding + CNC-machined components + steel
• Steel Fabrication: Hand welded
• Finish: Black powder-coated
• Total Weight: 14.48oz / 410.5g

FRONT BUMPER ARCHITECTURE

The front bumper uses a full-width steel structure with tubular upper protection, integrated lower bumper geometry and a central winch-mount area. The design is proportioned specifically for the LC70 front end, so the bumper wraps the grille and front corners more naturally than a narrow universal crawler bumper.

The front assembly is also designed to accept optional Trifecta accessories including the steering guard, bumper antenna and RC4WD Mini Warn 9.5cti winch. These are optional parts and are not included with VVV-C0412 unless specifically listed below.

MOUNTING & LOAD PATH

The rear view of the bumper shows the dedicated central mounting structure and side supports that transfer impact and accessory loads into the chassis mounting area instead of relying on the body shell. This is especially important when a winch is installed, because recovery loads should be carried by the bumper/chassis interface rather than by cosmetic body panels.

SIDE SLIDERS & BODY PROTECTION

The included sliders and side bars protect the lower body line while adding a full-size off-road appearance. They sit beneath the LC70 doors and extend outward enough to visually frame the rocker area. On the trail, that geometry also helps keep the hard body away from direct contact with rocks and obstacles.

DIAMOND-PLATE SIDE DETAIL

The kit includes a diamond-plate side panel that installs along the slider area. This gives the lower body a more finished expedition / utility-truck appearance and creates contrast against the black tubular steel. It is a high-visibility detail when viewed from the side, so careful alignment during installation is worth the effort.

INSTALLED SCALE APPEARANCE

RC4WD shows VVV-C0412 installed on the TF2 LWB with Land Cruiser LC70 body set. The example build also uses a roof rack, Mini Warn winch, winch pull tags, bumper antenna, metal emblems and square bumper lights. Those surrounding accessories are shown only as application examples and are not included with this kit.

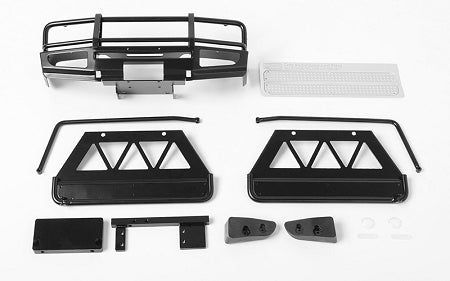

WHAT'S INCLUDED

• 1x Trifecta Front Bumper, Sliders and Side Bars for Land Cruiser LC70 Body – Black
• 2x M1.4 × 5mm cross-head self-tapping screws
• 16x M1 × 3mm cross-head cap screws
• 4x M2 × 4mm silver cross-head self-tapping screws
• 4x M3 × 6mm steel button-head cap screws
• 2x M3 × 12mm titanium flat-head socket cap screws
• 4x M3 × 8mm steel button-head cap screws
• 4x 2mm white nylon spacers with M3 hole
• 4x M2 × 9mm steel button-head cap screws
• 4x M2 black nuts

REPLACEMENT & OPTIONAL PARTS

• Replacement Side Sliders: VVV-C0417
• Optional Steering Guard: VVV-C0400
• Optional Bumper Antenna: VVV-C0401
• Optional Mini Warn 9.5cti Winch: Z-E0009

FITMENT NOTE

RC4WD lists the kit as fitting the TF2 LWB with Land Cruiser LC70 Body Set Bundle, a platform that RC4WD now marks as discontinued. For custom LC70 builds, verify chassis width, front mounting points, body position, rocker height and wheel/tire clearance before installation. Do not assume universal compatibility simply because another build uses an LC70-style body.

INSTALLATION CHECKLIST

• Dry-fit the front bumper and both slider assemblies before final tightening.
• Confirm the body is centered and square on the chassis first.
• Check tire clearance at full steering lock and full suspension compression.
• Verify slider height relative to the rocker panels before tightening mounts.
• Install diamond-plate trim only after the slider position is correct.
• If adding a winch, confirm fairlead alignment and wiring route before final assembly.
• Re-check all hardware after the first trail session.

WEIGHT & CHASSIS SETUP

At 410.5g, this is a substantial metal accessory package. Most of that mass is mounted low and along the sides/front of the chassis, which can be preferable to adding the same amount of weight high on the roof. Even so, the added sprung mass can change ride height, spring preload and front/rear balance. Re-evaluate shock setup after installation rather than assuming the previous suspension settings will remain ideal.

WHY THE COMPLETE TRIFECTA PACKAGE MAKES SENSE

The advantage of VVV-C0412 is consistency. The bumper, sliders, bars and trim are designed as a matched system, so the LC70 gets a coherent exterior protection package instead of a mix of unrelated universal accessories. That improves both fitment and the finished visual language of the truck.

GASHEAD RC NOTE: This is a serious scale-hardware package, not just cosmetic trim. The 410.5g weight, welded steel structure and chassis-mounted front bumper mean it should be treated as part of the vehicle setup. Install it square, re-set the suspension after the added mass, and use the optional winch/light hardware to build the front end around the system instead of bolting random accessories onto it.
