Thrust Front Bumper w/IPF Lights for 1985 Toyota 4Runner Hard Body

RC4WD THRUST FRONT BUMPER W/IPF LIGHTS FOR 1985 TOYOTA 4RUNNER HARD BODY – VVV-C0758

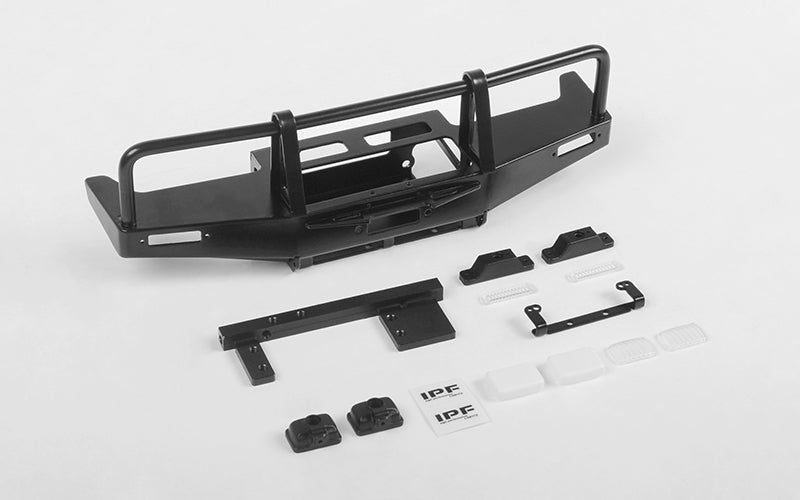

The RC4WD VVV-C0758 Thrust Front Bumper is a purpose-built front bumper assembly for the RC4WD 1985 Toyota 4Runner hard-body platform. It combines hand-welded stainless-steel construction, a black powder-coated finish, a CNC-machined billet-aluminum chassis mount, molded square headlight housings, a stainless-steel light bracket and molded IPF-style auxiliary lights in one integrated scale package.

This is not a generic universal bumper adapted to fit the truck. RC4WD engineered it around the 4Runner body dimensions and Trail Finder 2 mounting architecture, which helps preserve correct bumper width, grille relationship, front overhang and winch position.

STAINLESS-STEEL SCALE CONSTRUCTION

• Manufacturer: RC4WD / CCHand
• Part Number: VVV-C0758
• Primary Material: Stainless steel
• Construction: Hand welded
• Finish: Black powder-coated
• Mount: CNC-machined billet aluminum, black
• Light Bracket: Stainless steel
• Square Headlights: Injection-molded plastic
• IPF Lights: Injection-molded plastic
• Length: 7.59in / 192.9mm
• Width: 2.15in / 54.6mm
• Height: 2.24in / 57.0mm
• Total Weight: 6.25oz / 177.4g

WHY THE MATERIAL MIX MATTERS

The welded stainless structure provides the rigidity and scale-metal appearance expected on a premium hard-body build, while the billet-aluminum mount gives the bumper a precise chassis interface. RC4WD uses molded light housings where small-scale detail is more important than structural load. That combination keeps the bumper strong where it needs to be without sacrificing realistic lighting detail.

INTEGRATED IPF-STYLE AUXILIARY LIGHTING

The bumper includes two sets of square headlight components and two sets of IPF-style lights, supported by the dedicated stainless-steel light bracket. RC4WD recommends connecting the lighting through a multi-function control unit, Tamiya TLU-01/TLU-02, or another compatible LED-light system. Verify voltage and polarity before powering the lights.

WINCH-READY FRONT-END PACKAGE

RC4WD shows the bumper with the 1/10 Mini Warn 9.5cti Winch (Z-E0009) as an application example. The winch is not included. The bumper and mount architecture create a compact recovery-style front end that looks appropriate on the first-generation 4Runner without pushing the winch excessively far ahead of the grille.

DESIGNED AROUND THE 1985 4RUNNER BODY

The 192.9mm overall span is proportioned for the RC4WD 1985 Toyota 4Runner hard body. Installed examples show the bumper integrated with Trail Finder 2 builds using the 4Runner body, front inner fenders, quick-release body mounts and the Mini Warn winch. That application-specific fit is important because bumper height and overhang directly affect both appearance and approach angle.

WHAT'S INCLUDED

• 1x Thrust Front Bumper for 1985 Toyota 4Runner Hard Body
• 1x Black billet-aluminum mount
• 1x Stainless-steel light bracket
• 2x Sets of square headlights
• 2x Sets of IPF lights
• 2x M3 x 8mm steel button-head cap screws
• 2x M2 x 3mm steel button-head cap screws
• 2x M2 x 5mm steel button-head cap screws
• 4x M1 x 6mm black cross-head cap screws
• 2x M1.4 x 5mm black self-tapping screws
• 2x M2 black nuts
• 4x M1 silver nuts

COMPATIBILITY & OPTIONAL COMPONENTS

Designed for the RC4WD 1985 Toyota 4Runner Hard Body Complete Set (Z-B0167) and Trail Finder 2-based installations using that body architecture. RC4WD also shows the bumper alongside Front Inner Fenders VVV-C0744, Quick Release Body Mounts VVV-C0740, Retro Body Stripes VVV-C0750, Windshield Decals VVV-C0752, Tube Side Sliders VVV-C0760 and Mini Warn 9.5cti Winch Z-E0009. Those surrounding accessories are shown as examples and are not included unless specifically listed above.

INSTALLATION NOTES

• Dry-fit the billet mount and bumper before final tightening.
• Check grille, body and front-inner-fender clearance at normal ride height.
• Verify steering and tire clearance at full lock and full compression.
• Plan winch wiring and LED wiring before closing the front body area.
• Use a regulated LED power source appropriate for the lighting system.
• Re-check bumper hardware after the first trail run.

WHY THIS BUMPER WORKS ON A SCALE 4RUNNER

The Thrust bumper gives the truck the layered front-end detail that a hard-body build needs: real metal structure, correct-width mounting, integrated auxiliary lights and a realistic winch position. It looks functional because the pieces are actually arranged like a full-size recovery bumper instead of being molded into one decorative plastic part.

GASHEAD RC NOTE: On a detailed 4Runner, the bumper is one of the first places where the build can either look convincing or look toy-like. VVV-C0758 gets the proportions, material contrast and lighting layout right. Pair it with proper ride height, scale wheels and a compact winch and the entire front end comes together.
