TNK 2.2" Beadlock Wheels w/ Brake Discs (4x)

RC4WD TNK 2.2" Beadlock Wheels with Brake Discs – Set of 4

The TNK 2.2" wheel set combines CNC-machined billet-aluminum beadlock construction with detailed brake-disc hardware for large-scale crawlers and trail trucks that need both functional tire retention and a more realistic full-size wheel appearance. The black/silver anodized finish keeps the design clean while the integrated disc hardware adds visual depth behind the spokes.

Construction & Finish

• CNC-machined billet aluminum
• True beadlock wheel design
• Black and silver anodized finish
• Detailed removable brake-disc hardware
• Designed for compatible 2.2-inch RC tires

Wheel Specifications

• Wheel size: 2.2 in
• Outer diameter: 2.39 in / 60.8 mm
• Width: 1.40 in / 35.8 mm
• Center-hole OD: 0.20 in / 5.1 mm
• Positive offset: 0.11 in / 2.9 mm
• Weight per wheel: 4.47 oz / 126.8 g

Brake Disc Specifications

• Brake-disc diameter: 1.43 in / 36.5 mm
• Brake-disc hex: 0.67 in / 17.0 mm
• Weight per brake disc: 0.11 oz / 3.2 g

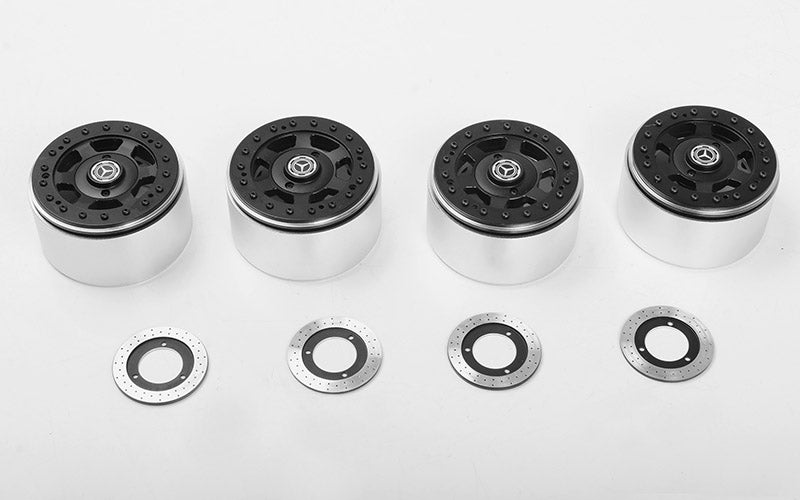

What's Included

• 4x TNK 2.2" Beadlock Wheels
• 4x brake discs
• 12x M2 x 3 mm steel button-head cap screws

Fitment & Tire Compatibility

Designed for compatible 2.2-inch tires and large-scale crawler/trail-truck applications. RC4WD shows the TNK wheel family installed on Traxxas Mercedes-Benz G-Class builds with 2.2-inch Mickey Thompson tires. Those vehicles, tires and accessories are shown for reference and are not included.

Related TNK Components

• TNK 2.2" Beadlock Wheels — 2-pack (VVV-C0988)
• TNK 2.2" Beadlock Wheels with Brake Discs — 2-pack (VVV-C0989)

GASHEAD RC Fitment Note

This is a substantial aluminum wheel set: four wheels plus brake-disc hardware add meaningful unsprung and rotating mass compared with lightweight plastic wheels. Verify servo strength, axle durability, hub/hex arrangement, steering clearance and gearing if you are moving from a much lighter wheel/tire combination. Cross-brand tire bead profiles can vary.

SKU: VVV-C0987
