Chassis Side Guard and Sliders with Switch Box for RC4WD Trail Finder 2 Truck Kit "LWB" with 1980 Toyota Land Cruiser FJ55 Lexan Body Set
Chassis Side Guard and Sliders with Switch Box for RC4WD Trail Finder 2 Truck Kit "LWB" with 1980 Toyota Land Cruiser FJ55 Lexan Body Set
SKU:VVV-C1419
Bajas existencias
No se pudo cargar la disponibilidad de retiro
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
RC4WD Chassis Side Guard & Sliders w/ Switch Box for Trail Finder 2 LWB FJ55

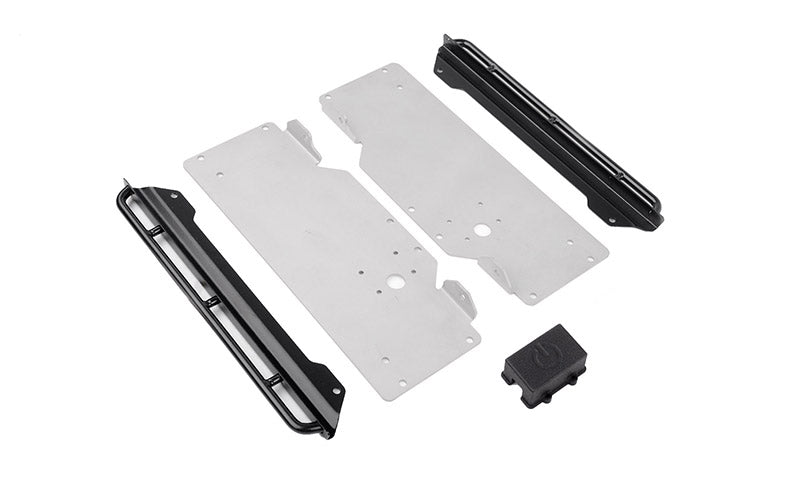

Built specifically for the RC4WD Trail Finder 2 Truck Kit “LWB” with the 1980 Toyota Land Cruiser FJ55 Lexan Body Set, this side-protection package combines stainless-steel chassis guards, dedicated sliders and an integrated switch box into one rigid assembly. It is designed to add lower-body protection, provide a cleaner electronics-switch location and visually finish the rocker area of the long-wheelbase FJ55 build.
Construction & Finish
- Stainless-steel construction
- Silver anodized finish
- Separate left and right chassis guards
- Separate left and right side sliders
- Dedicated switch box included
- Model-specific mounting hardware supplied
Guard Dimensions
- Length: 6.88 in / 175 mm
- Width: 2.67 in / 68.0 mm
- Height: 0.54 in / 13.8 mm
Slider Dimensions
- Length: 6.88 in / 175 mm
- Width: 1.29 in / 32.8 mm
- Height: 0.40 in / 10.4 mm
Switch Box Dimensions
- Length: 1.26 in / 32.1 mm
- Width: 0.98 in / 25.0 mm
- Height: 0.55 in / 14.2 mm
- Total assembly weight: 13.9 oz / 396.3 g
Fitment
Designed specifically for the RC4WD Trail Finder 2 Truck Kit “LWB” equipped with the 1980 Toyota Land Cruiser FJ55 Lexan Body Set. The geometry is body- and chassis-specific, so this should not be treated as a universal TF2 slider set.
What's Included
- 1x left chassis side guard
- 1x right chassis side guard
- 1x left side slider
- 1x right side slider
- 1x switch box
- 12x M3 x 6 mm steel button-head cap screws
- 4x M3 x 8 mm steel button-head cap screws
- 4x M3 x 12 mm steel button-head cap screws
- 4x M2 x 6 mm cross-head self-tapping screws
- 4x 3 mm black spacers with M3 hole
- 8x regular M3 black nuts
Installation & Setup Notes
The switch box sits behind the silver side guard and may be visually hidden once installed. Test-fit the switch and wiring before tightening the guards so the switch remains accessible and the wiring does not get pinched between the chassis and slider assembly.
GASHEAD RC Fitment Note
At nearly 400 g, this is a substantial metal upgrade. Re-check suspension balance and ride height after installation, especially on builds already carrying steel bumpers, roof racks or heavy wheels. The added weight is low on the chassis, which is generally favorable for stability, but total vehicle mass still increases.
SKU: VVV-C1419
