RC4WD Pressure Relief Valve for Earth Digger

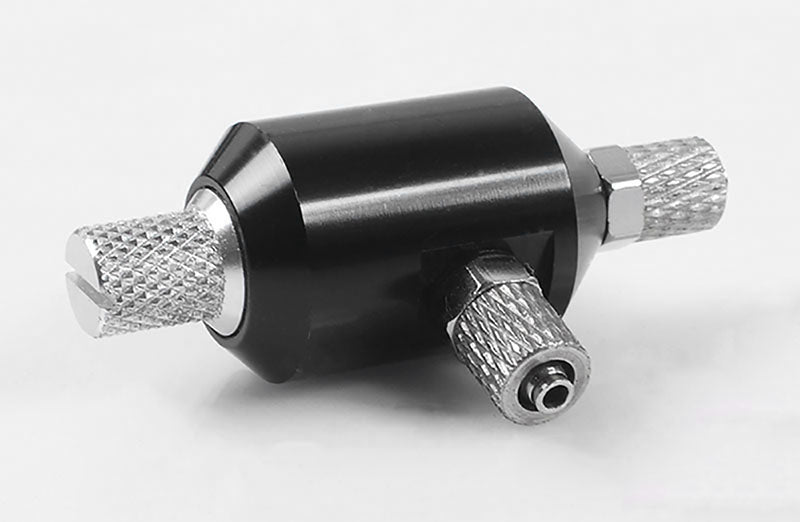

RC4WD PRESSURE RELIEF VALVE FOR EARTH DIGGER – VVV-S0041

This hydraulic pressure-relief valve is a compact service component for RC4WD Earth Digger and compatible heavy-equipment hydraulic systems. It is designed to help manage system pressure while interfacing with the tubing and fittings used across RC4WD's scale hydraulic platforms.

TECHNICAL SPECIFICATIONS

• Manufacturer: RC4WD
• Part number / SKU: VVV-S0041
• Maximum published pressure range: 0–5 MPa
• Length: 1.33 in / 34 mm
• Outer diameter: 0.70 in / 18 mm
• Compatible tubing: 4 mm OD / 2.5 mm ID
• Compatible tubing: 6 mm OD / 4 mm ID
• Weight: 0.77 oz / 22 g

COMPATIBILITY

• Fits the RC4WD Earth Digger 4200XL Oil Pump – VVV-S0005
• Fits the RC4WD Hydraulic Valve Block Version 1.5 – VVV-S0026
• RC4WD also lists VVV-S0041 among replacement parts for compatible heavy-equipment platforms using the same hydraulic architecture

WHAT'S INCLUDED

• 1x Pressure Relief Valve for Earth Digger — black
• 1x Hydraulic M5 to M4 Straight Nozzle — silver
• 1x Hydraulic Connector, straight version — silver

INSTALLATION & SERVICE NOTES

• Depressurize the hydraulic system before installation or removal.
• Confirm tubing size and fitting compatibility before assembly.
• Inspect all connections for leaks before returning the machine to full operating pressure.
• Do not assume the valve's maximum published range is the correct operating pressure for every machine; follow the host machine's specified hydraulic pressure.

GASHEAD RC HYDRAULIC NOTE

This is a pressure-management component, so matching the host machine's specified hydraulic system is more important than simply matching hose diameter. Use the correct RC4WD part number and avoid adjusting system pressure beyond the machine manufacturer's published operating range.

SKU: VVV-S0041
