RC4WD Hydraulic Connector M5 x 4mm Tube (90deg)

RC4WD HYDRAULIC CONNECTOR M5 x 4MM TUBE (90DEG) – VVV-S0069

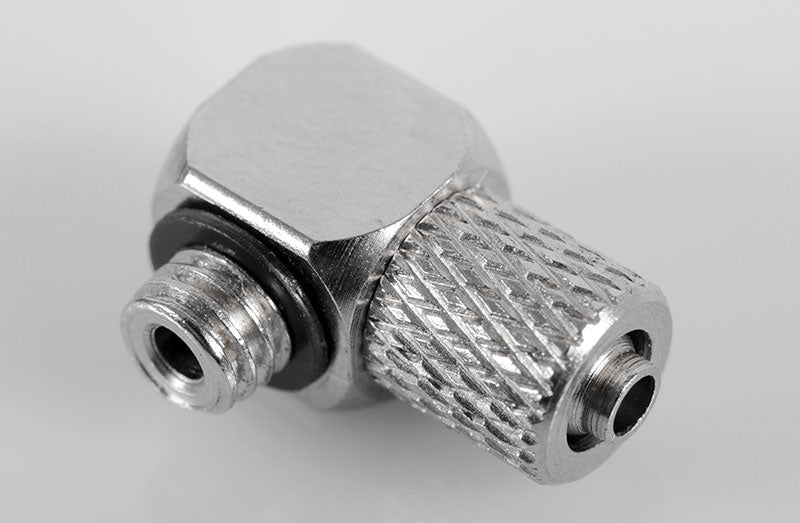

This RC4WD 90-degree hydraulic connector is designed for compact heavy-equipment plumbing where a straight fitting would create an awkward hose bend or interfere with surrounding components. It uses an M5 threaded connection and is intended for 4 mm OD hydraulic tubing.

KEY FEATURES

• 90-degree hydraulic connector
• M5 threaded fitting
• Designed for 4 mm OD tubing
• Useful for tight hydraulic routing in scale construction equipment
• Includes sealing washers for installation

TECHNICAL SPECIFICATIONS

• Manufacturer: RC4WD
• Part number / SKU: VVV-S0069
• Fitting angle: 90 degrees
• Thread: M5
• Tube size: 4 mm outer diameter

COMPATIBILITY

RC4WD lists VVV-S0069 as a replacement/compatible hydraulic fitting for:

• 1/12 Scale Earth Digger 4200XL Hydraulic Excavator RTR Version 2.0 – VV-JD00002
• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader – VV-JD00031
• 1/14 8x8 Armageddon Hydraulic Dump Truck FMX – VV-JD00017

WHAT'S INCLUDED

• 1x Hydraulic Connector M5 x 4 mm Tube (90deg)
• 2x M5 washers — 5 × 7 × 0.5 mm, black

INSTALLATION NOTES

• Depressurize the hydraulic system before removing or installing fittings.
• Confirm the tubing is 4 mm OD before assembly.
• Use the supplied washers and avoid overtightening the M5 fitting.
• Orient the elbow before final tightening so the hose can maintain a smooth bend radius.
• Inspect the connection for leakage before returning the machine to normal operating pressure.

GASHEAD RC HYDRAULIC NOTE

Small hydraulic fittings are easy to damage by overtightening. The goal is a clean, sealed connection with correct hose orientation—not maximum torque. Test the system at low load first, then inspect for seepage before full operation.

SKU: VVV-S0069
