Quick Connect Pallet Fork Attachment for 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader

RC4WD QUICK CONNECT PALLET FORK ATTACHMENT FOR 1/14 EARTH MOVER 870K – VVV-S0248

The RC4WD VVV-S0248 Quick Connect Pallet Fork Attachment converts the 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader from bucket work to scale material-handling duty. RC4WD builds the attachment from heavy-duty stamped steel and uses a dedicated quick-connect interface designed specifically around the 870K loader platform.

HEAVY-DUTY STAMPED STEEL CONSTRUCTION

RC4WD specifies the attachment as heavy-duty stamped steel. That construction gives the fork frame, carrier and tines the rigidity needed for a functional scale loader accessory rather than a display-only part.

• Manufacturer: RC4WD / JDModels
• Part Number: VVV-S0248
• Scale: 1/14
• Attachment Type: Quick-connect pallet fork
• Primary Material: Heavy-duty stamped steel
• Total Weight: 33.2oz / 944g
• Required Platform: 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader

QUICK-CONNECT COUPLER ARCHITECTURE

The orange coupler assembly forms the interface between the loader's attachment linkage and the pallet-fork carrier. The benefit of a dedicated quick-connect system is straightforward: the operator can change the machine's working tool without treating every attachment swap as a chassis-level teardown.

Because the attachment interface carries both static load and dynamic leverage from the loader arms, pin alignment and coupler engagement should be checked carefully before lifting any load.

FORK CARRIER & LOAD PATH

The pallet-fork frame transfers load from the fork tines into the quick-connect carrier and then into the loader linkage. On a functional scale machine, this load path matters: a long object or an off-center pallet creates leverage well ahead of the machine, so fork spacing, load position and machine balance all become important.

PALLET-FORK FUNCTION

Unlike a bucket, pallet forks concentrate the supported load onto two narrow tines. This makes the attachment useful for scale pallets, crates, beams, shop equipment and other loads that are better carried underneath than scooped. It also means the load should be centered across both forks whenever possible.

944G OF ATTACHMENT MASS

At 944g / 33.2oz, VVV-S0248 is a substantial steel attachment before any payload is added. That weight sits ahead of the loader's front axle when raised, so it directly affects front-end load, steering effort, hydraulic demand and machine stability.

Keep the carried load close to the fork backrest and as low as practical while traveling. Raising a heavy load high or carrying it far forward increases the overturning moment and can make the loader less stable.

COMPATIBILITY

RC4WD explicitly lists this attachment for the 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader – Yellow and White (VV-JD00031). It is not advertised as a universal pallet-fork system, so custom fitment to other loaders should not be assumed.

WHAT'S INCLUDED

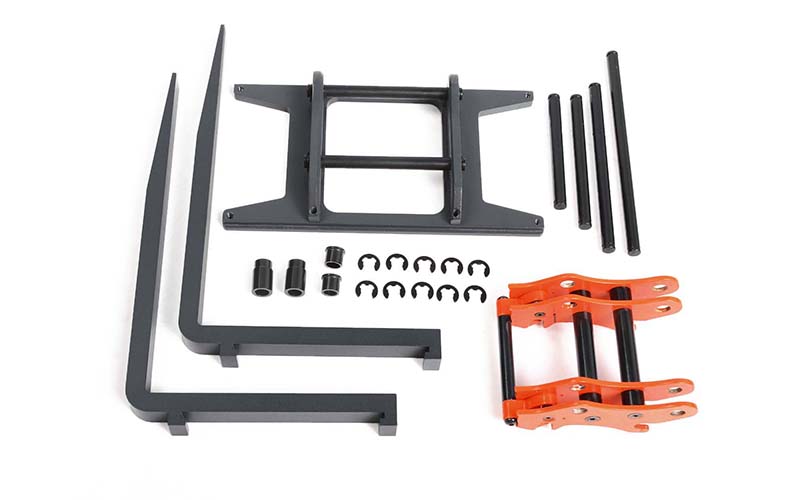

• 1x Quick Connect Pallet Fork Attachment for 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader

The RC4WD Earth Mover 870K loader shown in manufacturer imagery is an installation example and is not included.

OPERATING CHECKLIST

• Confirm the quick-connect coupler is fully seated before lifting.
• Inspect pins, clips and linkage points before each operating session.
• Keep loads centered across both fork tines.
• Position the load as close to the fork carrier as practical.
• Travel with the forks and load low to preserve stability.
• Avoid sudden steering inputs with a raised load.
• Do not use the forks as pry bars or side-load them against fixed objects.
• Monitor loader hydraulic response when handling heavier payloads.
• Re-check attachment hardware after the first operating cycles.

HYDRAULIC & MACHINE LIMITS

RC4WD does not publish a standalone lifting-capacity rating for VVV-S0248. For that reason, GASHEAD RC does not assign an unverified payload figure. The actual safe working load depends on the complete loader system: hydraulic pressure, cylinder geometry, attachment position, machine balance, tire traction, linkage condition and the location of the carried mass.

BEST USE CASES

This attachment is ideal for scale warehouse, construction-yard, loading-dock and equipment-handling scenarios where a bucket is the wrong tool for the job. It expands the 870K from earthmoving into realistic material handling and makes the machine far more versatile in a functional RC worksite.

GASHEAD RC NOTE: The fork itself already weighs almost a kilogram, so treat every payload as additional leverage on the front of the loader. Keep the load low, centered and close to the carrier. That is not just more realistic—it is the correct way to preserve steering, hydraulic performance and stability on a functional scale loader.
