RC4WD BULLY II MOA RTR COMPETITION CRAWLER – Z-RTR0027

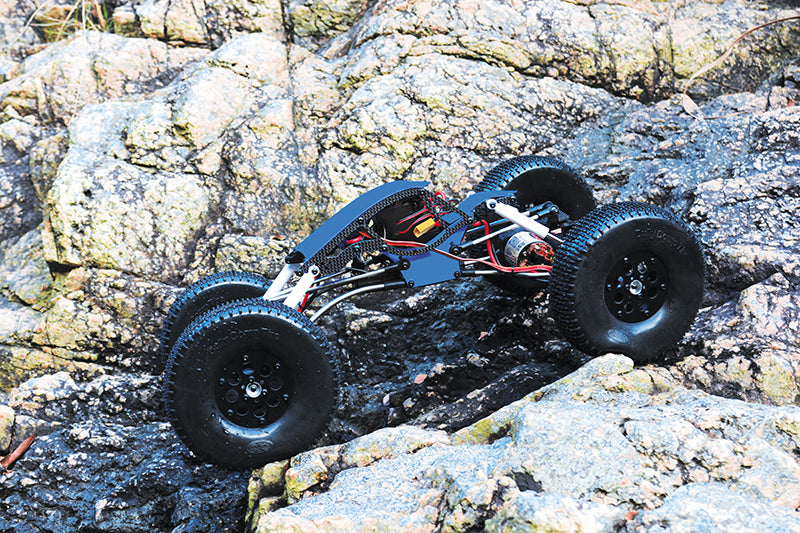

The RC4WD Bully II MOA RTR is a purpose-built competition crawler designed around a Motor-On-Axle drivetrain, CNC-machined Bully II axles, lightweight carbon-fiber chassis components and independent motor control through RC4WD's Rocker Dig II system. It arrives professionally prebuilt and is engineered for technical rock crawling rather than general trail driving.
COMPETITION-FOCUSED FEATURES
- CNC-machined aluminum Bully II Competition axles
- MOA — Motor-On-Axle drivetrain
- Dual-motor architecture for low center of gravity and precise control
- Steel heavy-duty internal gears
- Clockable C-hubs
- 4-link front and rear suspension
- Aluminum 90 mm internal-spring shocks
- Titanium links
- Carbon-fiber and Delrin chassis
- Carbon-fiber battery plate
- High-clearance competition chassis design
- Easy-to-paint Lexan body panels
AXLES & GEARING
- Final drive ratio: 40.7:1
- Pinion gear: 0.8 Mod, 14T
- Hex width: 219.5 mm
- Hardened-steel gears
- Billet-aluminum axle cases
- Full ball bearings
- XVD front axle shafts
WHEELS, TIRES & SUSPENSION
- 2.2-inch lightweight competition beadlock wheels
- Carbon-fiber and Delrin wheel construction
- Hex-type hubs
- Wheel width: 25.3 mm
- Backspacing: 15 mm
- Bully 2.2 Competition Tires in Advanced X2SS compound
- 90 mm aluminum shocks; can be oil-filled
DIMENSIONS
- Wheelbase: 306 mm / 12 in
- Width: 254 mm / 10 in
- Height: 190 mm / 7.5 in
- Ground clearance: 97 mm / 3.8 in
- Weight: 1.99 kg / 4.38 lb

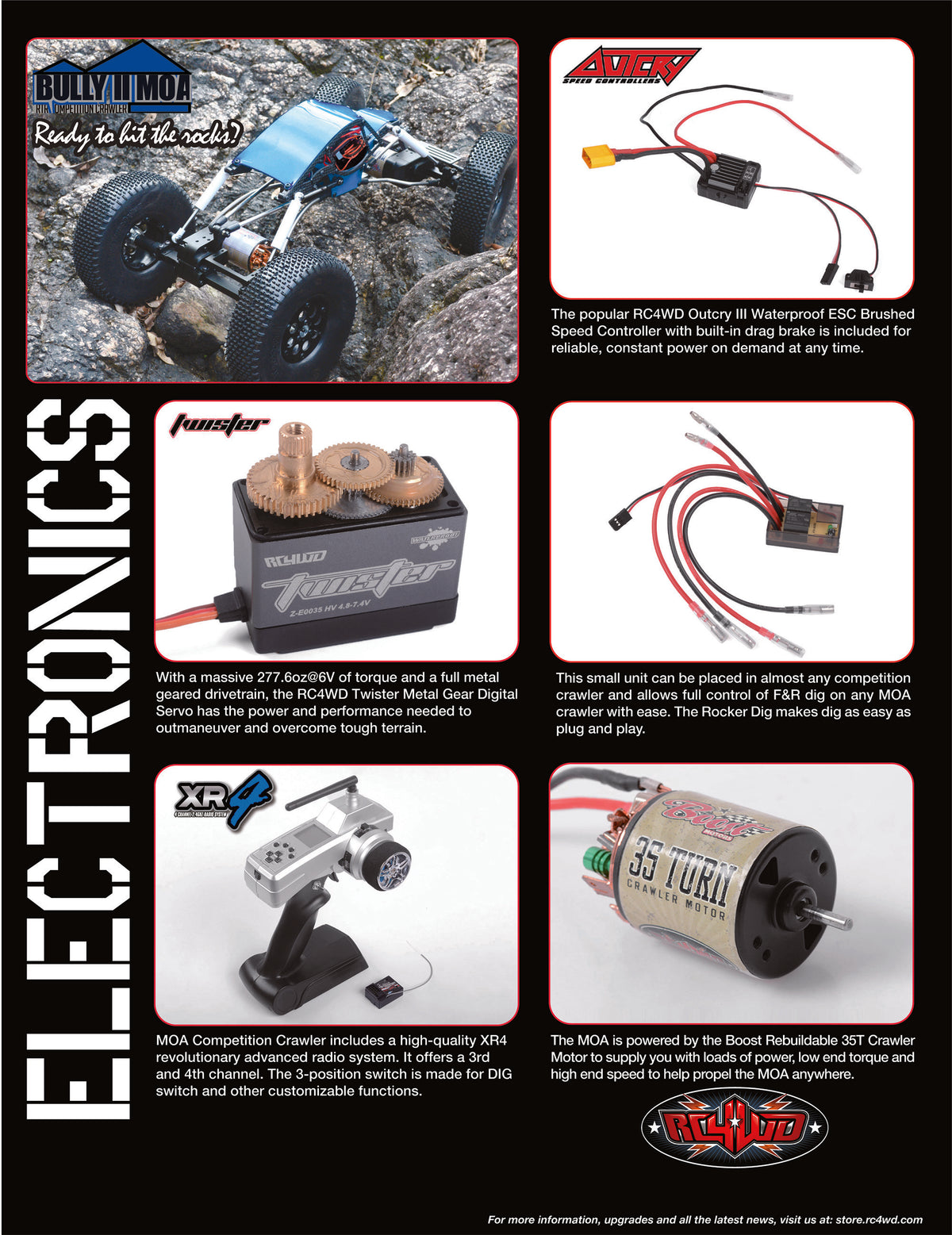

ELECTRONICS
- RC4WD Twister Metal Gear Digital Servo
- Servo torque: 277.6 oz-in @ 6V
- RC4WD Outcry III waterproof brushed ESC with drag brake
- Rocker Dig II electronic dig controller for independent front/rear motor control
- XR4 4-channel 2.4GHz transmitter/receiver
- 3-position switch for DIG and other channel functions
- Dual RC4WD Boost rebuildable 35T crawler motors
WHAT'S INCLUDED
- 1x RC4WD Bully II MOA RTR Competition Crawler
REQUIRED TO COMPLETE
- Compatible battery per ESC requirements
- 2S–3S LiPo supported by RC4WD's recommended setup
- Suggested compact battery footprint: approximately 57 mm long × 22 mm wide
- Compatible battery charger
KEY REPLACEMENT PARTS
- Bully II front axle — Z-A0012
- Bully II rear axle — Z-A0084
- Rocker 2.2 Competition Beadlock Wheels — Z-W0178
- Bully 2.2 Competition Tire — Z-T0134
- Rocker Dig II — Z-E0028
- XR4 4-Channel Radio — Z-R0006
- Twister Metal Gear Digital Servo — Z-E0035
- 35T Boost Rebuildable 540 Motor — Z-E0045
- Bully II MOA Titanium Link Set — Z-S1801
SETUP NOTES
- Inspect all installed hardware before first competition or practice session.
- Use thread lock sparingly on metal-to-metal fasteners where appropriate.
- Hand-painted body panels may show minor cosmetic variations.
- MOA/dig operation requires more driver setup and practice than a conventional single-motor crawler.
- Battery placement has a major effect on center of gravity and weight bias; keep the pack compact and securely mounted.
GASHEAD RC COMPETITION NOTE
The Bully II is not designed around trail realism — it is designed around line choice, breakover, independent axle control and low center of gravity. The Rocker Dig II and dual-motor MOA drivetrain are central to how this platform performs. Spend time learning front/rear dig behavior, axle loading and tire placement before changing parts; the stock architecture is already highly specialized.
