RC4WD 1/10 Bed Mounted Tire Carrier

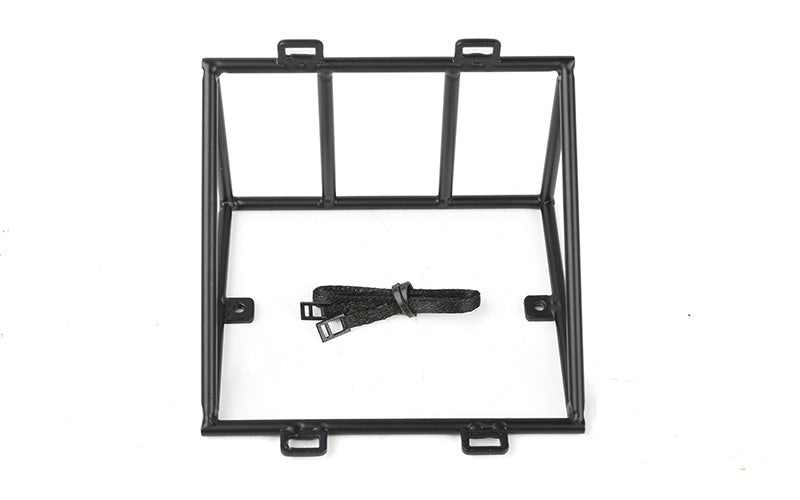

This bed-mounted spare-tire carrier is a welded stainless-steel accessory designed for scale pickup, trail-truck and expedition builds. The angled cage-style structure secures the spare in the bed while preserving a clean competition/off-road appearance, and the included tie-down straps add both realism and functional retention.
Construction & Finish
- Stainless-steel construction
- Hand-welded assembly
- Black powder-coated finish
- Integrated tie-down points
- Scale bed-mounted spare-tire design
Dimensions & Weight
- Length: 3.85 in / 98.0 mm
- Width: 3.51 in / 89.3 mm
- Height: 2.50 in / 63.5 mm
- Weight: 3.08 oz / 87.6 g
What's Included
- 1x 1/10 Bed Mounted Tire Carrier
- 2x black tie-down straps with metal latch
- 2x M2.5 x 8 mm button-head self-tapping screws — Z-S1572
Fitment
RC4WD documents fitment with the Marlin Crawler Trail Finder 2 RTR with Mojave II Crawler Body Set (Z-RTR0034) and the Gelande II Kit with 2015 Land Rover Defender D90 Hard Body Set (Z-K0064). RC4WD also shows the carrier installed in a Trail Finder 2 LWB Mojave II Four Door bed.
Tire Retention
The included black straps with metal latches are intended to retain the spare against the angled carrier. Always confirm the chosen tire diameter and width fit cleanly within the bed and do not interfere with the body, rear window or other cargo accessories.
GASHEAD RC Installation Note
The carrier itself weighs 87.6 g before adding the spare wheel and tire. Check rear ride height and suspension balance after installation, particularly on builds already carrying steel rear bumpers or heavy bed accessories. Test-fit the complete spare assembly before drilling or tightening the carrier permanently.
SKU: Z-S0759
