RC4WD LANDIES VINTAGE 1.9" STAMPED STEEL BEADLOCK WHEELS – BLACK (4) – Z-W0136
RC4WD LANDIES VINTAGE 1.9" STAMPED STEEL BEADLOCK WHEELS – BLACK (4) – Z-W0136
SKU:Z-W0136
Bajas existencias
No se pudo cargar la disponibilidad de retiro
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.

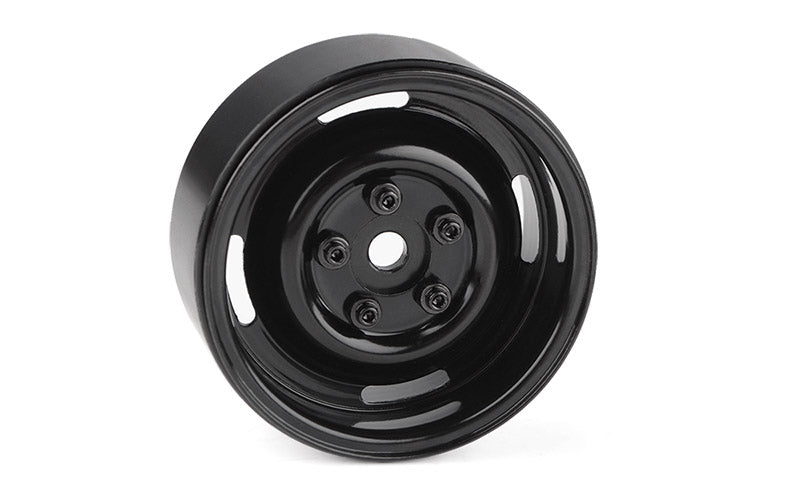

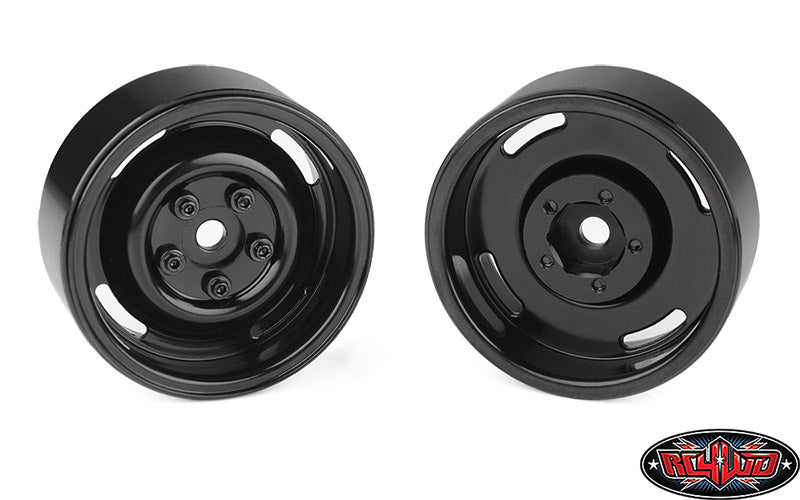

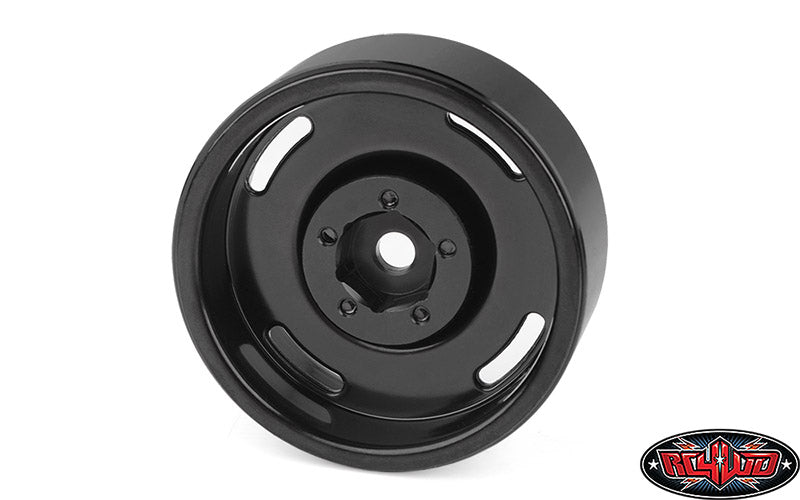

Vintage Land Rover-style proportions, a clean black finish, and a true internal beadlock system for serious scale trail builds. The RC4WD Landies Vintage 1.9" wheels reproduce the deep-dish, slotted utility-wheel look associated with classic expedition and work trucks while retaining the tire mechanically—no glue required.
WHY THESE WHEELS WORK
- Authentic vintage profile: a deep center, narrow oval ventilation slots, and restrained black finish suit Land Rover, classic pickup, expedition, military, and period-correct crawler builds.
- Internal beadlock retention: the tire bead is clamped between the wheel components, helping maintain bead security during low-pressure crawling.
- Zero offset: keeps the mounting plane centered relative to wheel width and avoids intentionally adding positive or negative wheel offset.
- Standard 12 mm hex: designed around the common 1/10-scale crawler hub interface.
- Complete four-wheel set: one package outfits a four-wheel vehicle.
OFFICIAL SPECIFICATIONS
| Manufacturer | RC4WD |
|---|---|
| Part number | Z-W0136 |
| Product name | Landies Vintage 1.9" Stamped Steel Beadlock Wheels |
| Manufacturer construction wording | CNC machined; billet aluminum |
| Color | Black |
| Wheel size | 1.9" |
| Outer diameter | 52.5 mm / 2.06 in |
| Width | 22.9 mm / 0.90 in |
| Center-hole diameter | 5.2 mm / 0.20 in |
| Offset | Zero offset |
| Hex | Standard 12 mm |
| Weight | 63.5 g / 2.23 oz per wheel |
| Quantity | 4 wheels |
Material clarification: RC4WD's official product name uses “Stamped Steel,” while the specification block on the same manufacturer page states “CNC Machined” and “Billet Aluminum.” Both manufacturer statements are shown here without inventing a resolution. If the exact base material is critical to your build, confirm it with RC4WD before ordering.
DIMENSIONS AND STANCE

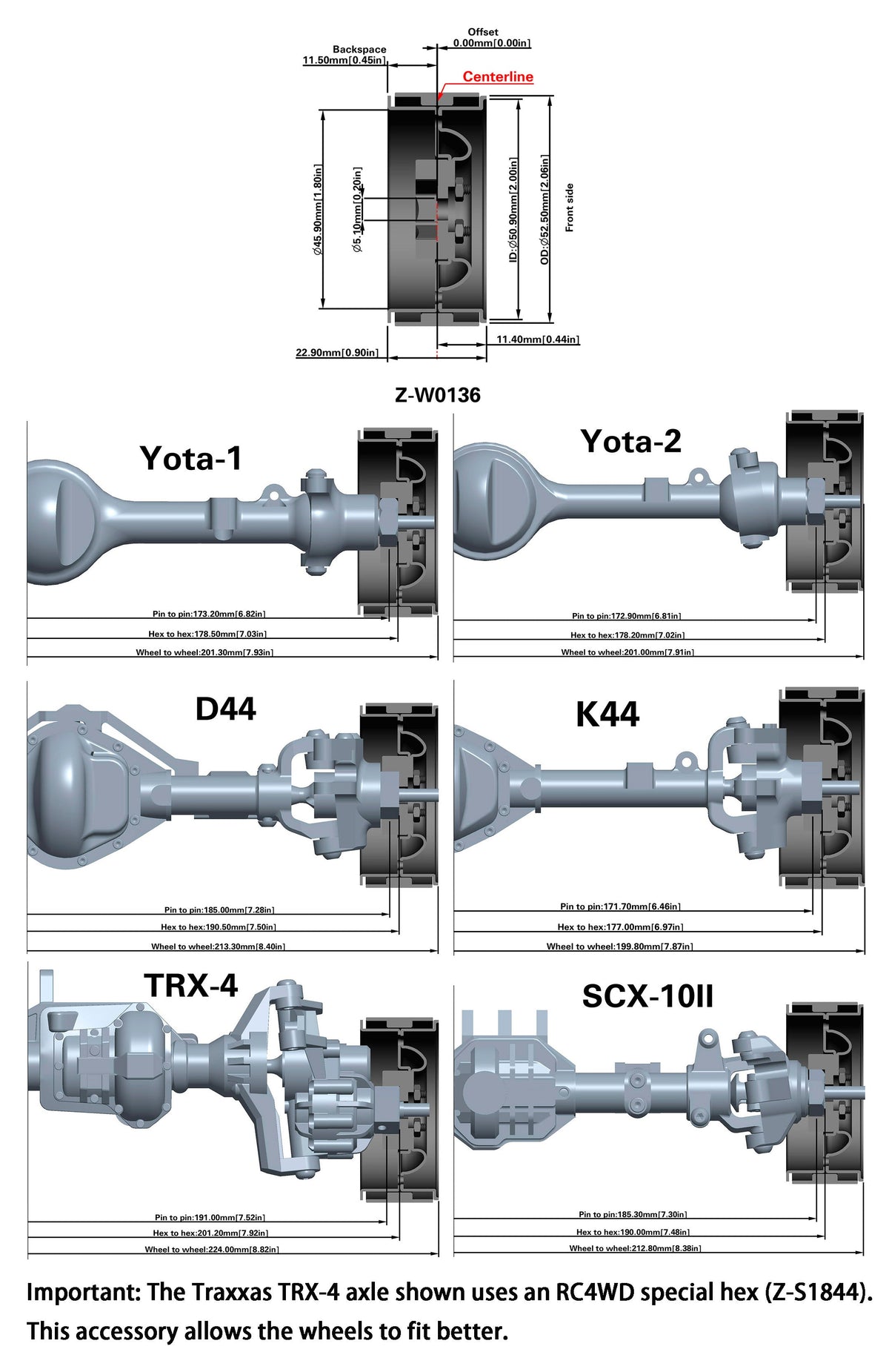

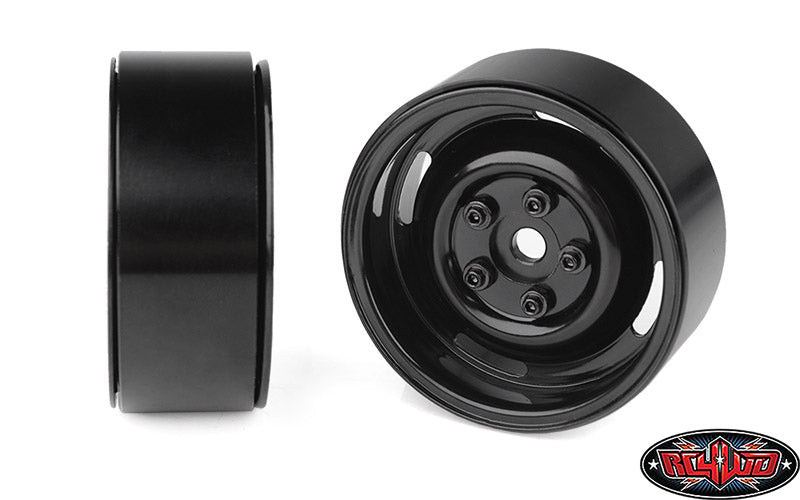

The 52.5 mm outer diameter and 22.9 mm width create a narrow, scale-focused package. Zero offset means the hub mounting surface is centered through the wheel's width; final track width still depends on the axle, hex thickness, hub hardware, and any adapter used. Always check steering-link, portal, knuckle, and body clearance through the full suspension and steering range.
INTERNAL BEADLOCK ASSEMBLY
Seat the foam evenly inside the tire, position the tire around the internal beadlock components, and start every fastener by hand. Tighten gradually in a cross pattern using several light passes. Inspect both beads around the full 360 degrees before final tightening; a raised or pinched section means the assembly should be loosened and reseated.
Do not pull the wheel halves together by force. Excessive resistance usually points to a displaced foam, uneven bead, incompatible tire profile, or misaligned wheel component.
OFFICIAL TIRE EXAMPLE: BFGOODRICH MUD-TERRAIN KM

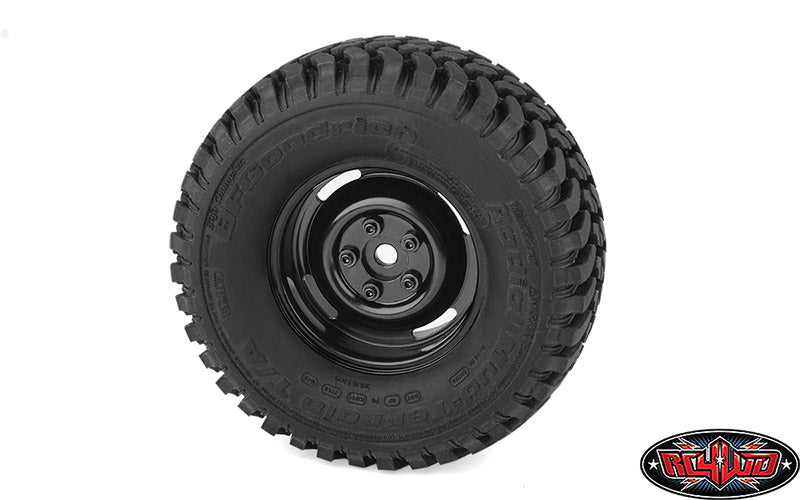

RC4WD shows Z-W0136 installed with its BFGoodrich Mud-Terrain KM 1.9" Scale Tires, part Z-T0225. The tires and foams shown are application examples and are not included.

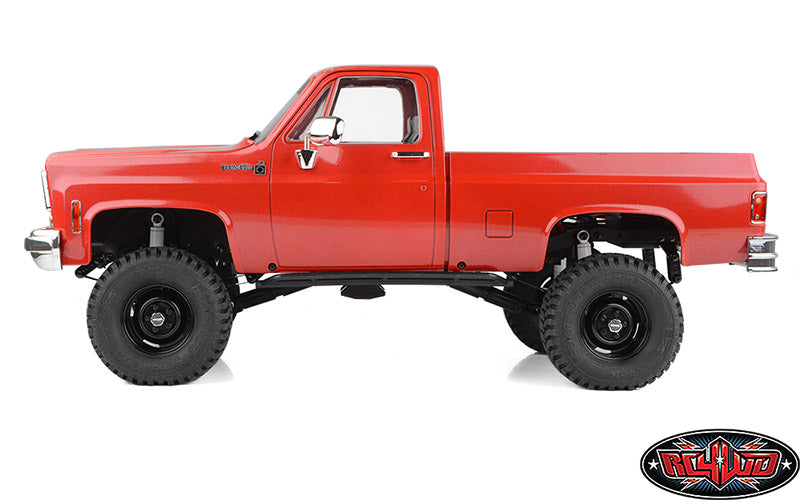

OFFICIAL VEHICLE EXAMPLE: TRAIL FINDER 2 LWB K10

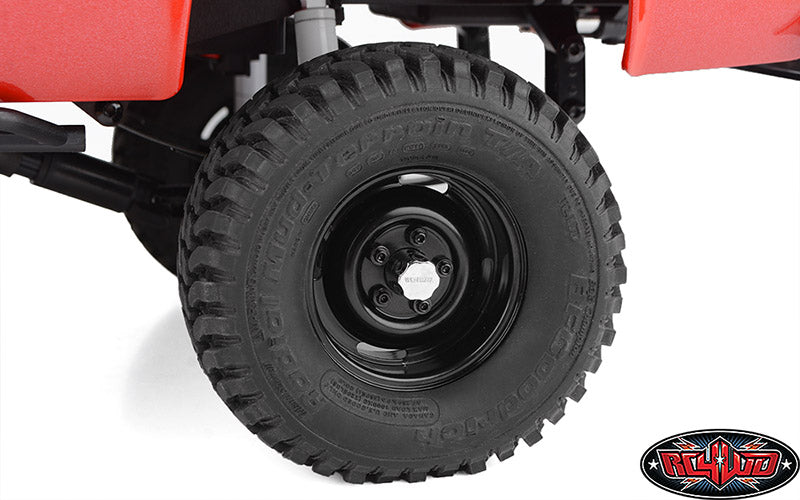

RC4WD also shows these wheels on the Trail Finder 2 LWB RTR with Chevrolet K10 Scottsdale hard body, paired with Z-T0225 tires and RC4WD Rally 1/10 Locking Wheel Hubs, part Z-S0298. The vehicle, tires, locking hubs, and accessories are not included.

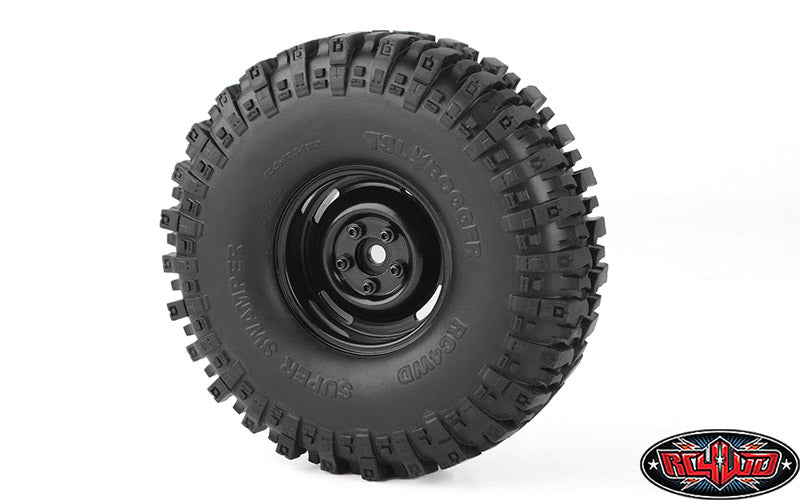

OFFICIAL TIRE EXAMPLE: INTERCO SUPER SWAMPER TSL/BOGGER
A second manufacturer example uses RC4WD Interco Super Swamper 1.9" TSL/Bogger Scale Tires, part Z-T0046. This demonstrates the wheel with a more aggressive mud-oriented tire profile; it does not make the tire part of the package.
OFFICIAL VEHICLE EXAMPLE: TRAXXAS TRX-4 2021 FORD BRONCO

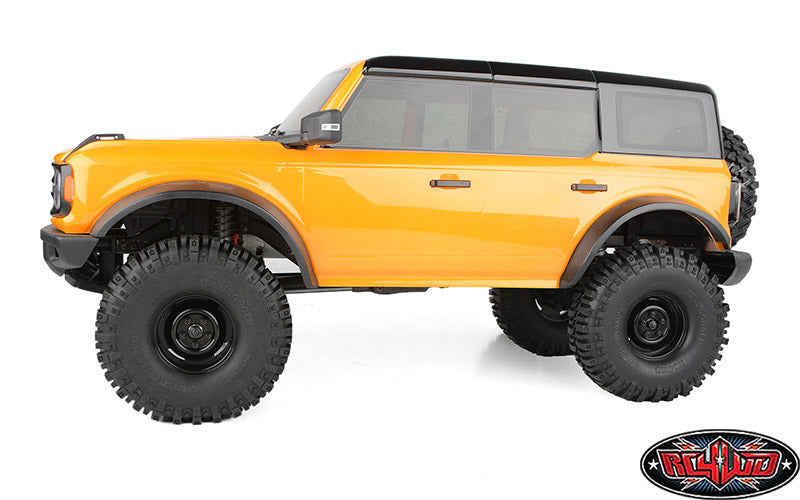

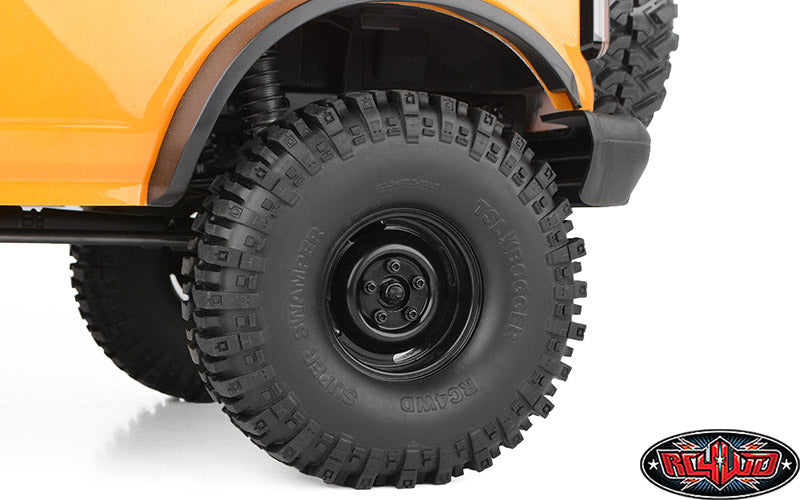

RC4WD shows the same Z-W0136 and Z-T0046 combination on a Traxxas TRX-4 2021 Ford Bronco. Verify 12 mm hex engagement, hub hardware, center-hole clearance, tire diameter, body clearance, and steering clearance on your individual vehicle before running.
WHAT IS INCLUDED
- 4 × RC4WD Landies Vintage 1.9" Beadlock Wheels in black
- Wheel components and original assembly hardware
NOT INCLUDED
- Tires and foams
- RC vehicle, axles, hex adapters, locking hubs, and body
- BFGoodrich Z-T0225 and Interco Super Swamper Z-T0046 tires shown in official examples
- RC4WD Rally Locking Wheel Hubs Z-S0298
REPLACEMENT HARDWARE
RC4WD identifies M2.5 × 12 mm special hex-bolt screws as the replacement hardware reference for this wheel.
IMPORTANT TIRE-COMPATIBILITY NOTE
RC4WD confirms its own tires and wheels are designed to work together, but it does not guarantee every third-party wheel-and-tire combination. The 1.9" label confirms nominal bead diameter only; bead thickness, bead shape, foam width, and internal ring geometry can still differ by manufacturer.
GASHEAD RC FITMENT CHECK
Before ordering, confirm the exact tire model, 12 mm axle hex, zero-offset requirement, 5.2 mm center-hole clearance, and available space around steering and suspension components. Build and verify one wheel completely before assembling the remaining three.
