RC4WD RACELINE MONSTER 2.2" ALUMINUM BEADLOCK WHEELS – BLACK (4) – Z-W0193

RC4WD RACELINE MONSTER 2.2" ALUMINUM BEADLOCK WHEELS – BLACK (4) – Z-W0193

$103.99 USD
$103.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Z-W0193

Bajas existencias
SECURE CHECKOUT • SOUTHERN CALIFORNIA
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.

OFFICIALLY LICENSED RACELINE DETAIL, MACHINED FOR SERIOUS 2.2-INCH BUILDS. The RC4WD Raceline Monster Z-W0193 combines CNC-machined billet-aluminum construction, a four-piece beadlock design and realistic scale hex hardware in a fully black finish. RC4WD developed this version around the Axial Wraith’s standard 12 mm hex interface, while retaining dimensions suitable for other carefully verified 2.2-inch applications.

Exact SKU: Z-W0193 Black. This listing is for one set of four black wheels. Z-W0174 and Z-W0195 Black/Silver are separate products with different finishes and, in some cases, different published dimensions or hardware. Their specifications are not substituted here.

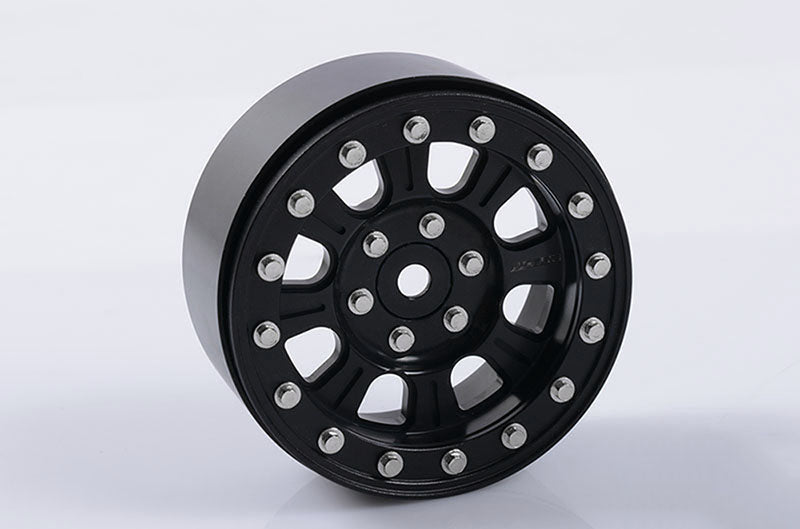

RC4WD Raceline Monster 2.2 aluminum beadlock wheels Black Z-W0193 set of four
RC4WD Raceline Monster 2.2 Black — Z-W0193 set of four.

KEY FEATURES

  • Officially licensed Raceline Monster wheel design.
  • CNC-machined billet-aluminum construction.
  • Four-piece beadlock wheel architecture.
  • Machined Raceline logo and detailed scale hex-head hardware.
  • Standard 12 mm hex interface.
  • Designed with the Axial Wraith’s stock hex system in mind.
  • 2.2-inch wheel and tire mounting class.
  • Black finish throughout the wheel assembly.

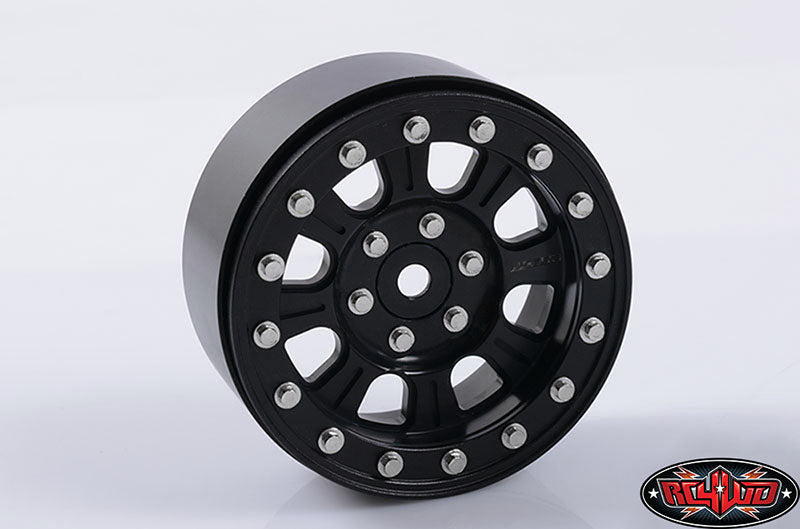

RC4WD Z-W0193 Black Raceline Monster 2.2 wheel — official front detail
Front detail showing the machined Raceline face and scale hardware.

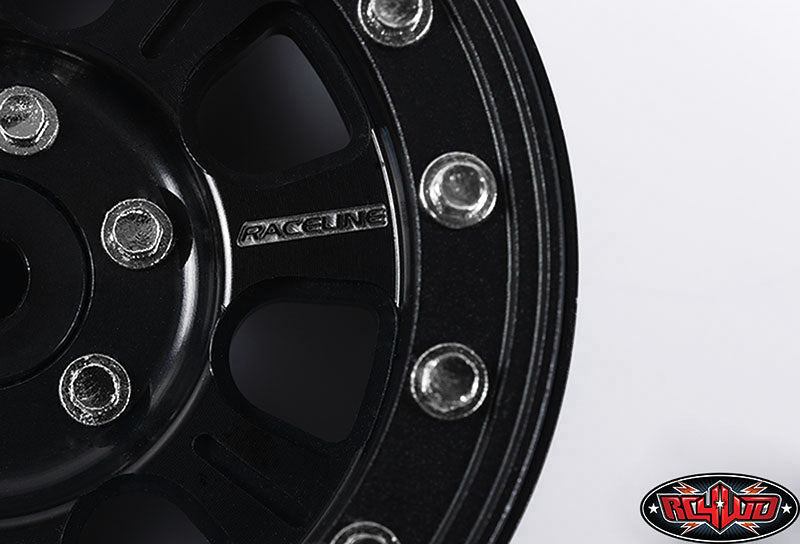

RC4WD Z-W0193 Black Raceline Monster 2.2 wheel — official angled detail
Angled view of the four-piece beadlock construction.

MANUFACTURER-PUBLISHED SPECIFICATIONS

Manufacturer part number Z-W0193
Wheel size 2.2 in
Outer diameter 56.5 mm / 2.22 in
Width 29.5 mm / 1.16 in
Center-hole diameter 5.2 mm / 0.20 in
Published offset 13.7 mm / 0.54 in negative
Hex interface Standard 12 mm hex
Weight 88 g / 3.1 oz per wheel
Construction CNC-machined billet aluminum
Quantity 4 wheels

Calculated set weight: approximately 352 g / 12.4 oz before tires and foams, derived from RC4WD’s published 88 g per-wheel value. This is rotating and unsprung mass: it can add a planted feel to a crawler, but it also increases the load seen by the steering, bearings and drivetrain.

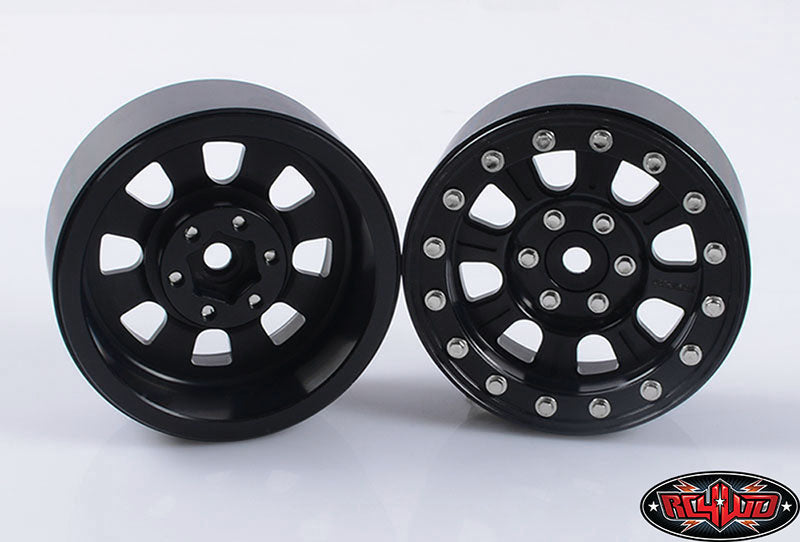

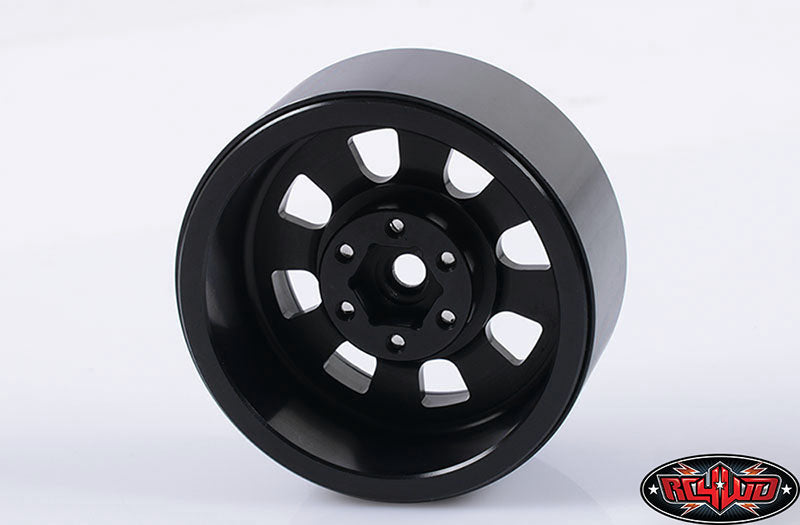

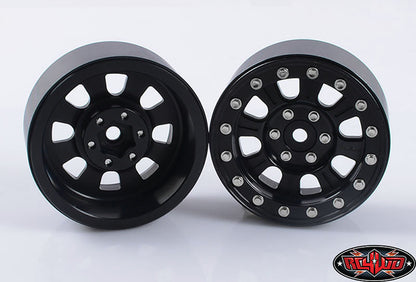

RC4WD Z-W0193 Black Raceline Monster 2.2 wheel — official rear and 12 mm hex detail
Rear view and standard 12 mm hex interface detail.
RC4WD Z-W0193 Black Raceline Monster 2.2 wheel — official profile detail
Profile view for checking the wheel’s published width and negative offset.

FITMENT AND TIRE COMPATIBILITY

RC4WD designed the wheel with the Axial Wraith in mind and states that its hex hub works with the Wraith’s stock hex hub. The standard 12 mm hex specification does not guarantee universal installation: verify axle-thread engagement, hub depth, steering-link clearance, portal or knuckle clearance, body clearance and full suspension travel on the actual vehicle.

  • RC4WD confirms fitment with Pit Bull Rock Beast II Scale 2.2 RC tires.
  • RC4WD shows the wheels installed with Mickey Thompson 2.2 Baja Claw TTC Scale tires, Z-T0065, as an example. Tires and foams are not included.
  • RC4WD offers Z-S1341 internal beadlock rings specifically for improved compatibility with certain Pro-Line 2.2 tire beads. These rings are optional and sold separately.
  • Compatibility with third-party tires is not guaranteed by RC4WD because bead diameter, thickness and carcass construction vary between brands and models.

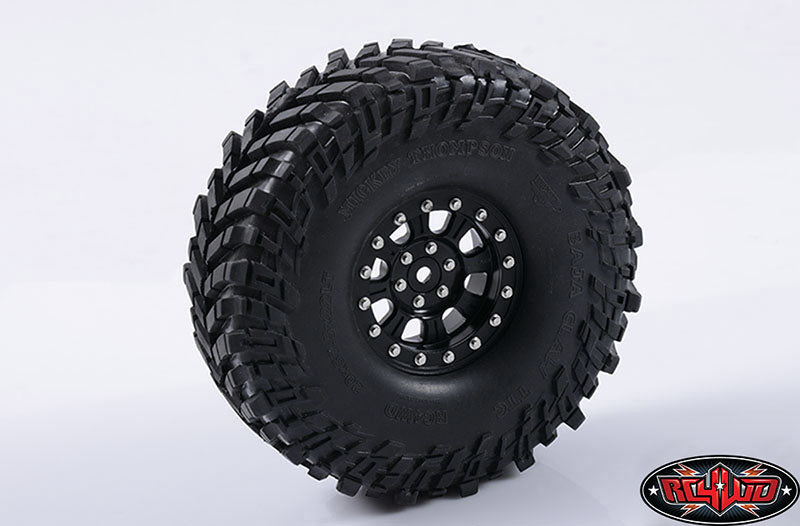

RC4WD Z-W0193 Black Raceline Monster 2.2 wheels installed with example tires
Manufacturer application example. Tires, vehicle and other accessories shown are not included.

OFFSET AND CLEARANCE — READ BEFORE ORDERING

RC4WD publishes a substantial 13.7 mm negative offset for Z-W0193. Offset conventions and measurement references can be described differently across RC manufacturers, so treat this as the manufacturer’s published value and compare the physical wheel dimensions to your current setup. Expect offset to affect track width, scrub radius, steering clearance and body coverage. A 12 mm hex alone is not enough to confirm fitment.

WHAT IS INCLUDED

  • 4 × RC4WD Raceline Monster 2.2" Beadlock Wheels in Black.
  • 1 × RC4WD miniature scale hex-bolt tool for M2.5 and M3 scale bolts, Z-S0635.
  • 1 × Raceline decal sheet.

Tires, foams, vehicle, optional beadlock rings and additional tools are not included.

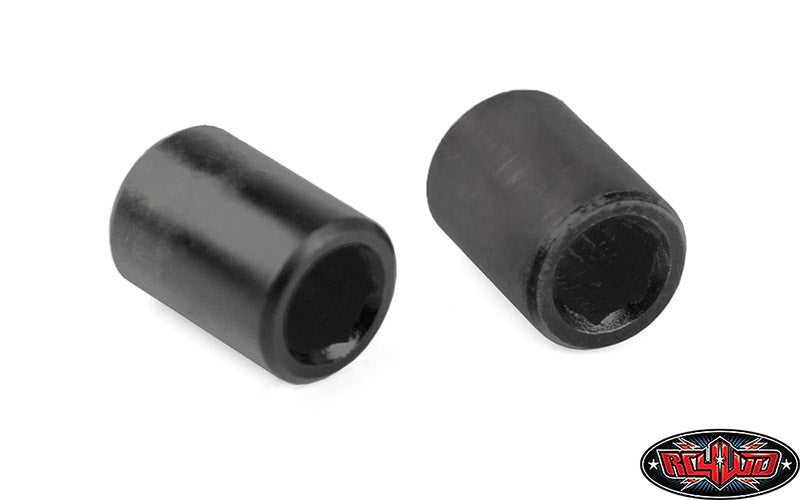

RC4WD Z-S0635 miniature scale hex bolt tool reference
Manufacturer reference image for Z-S0635. The Z-W0193 wheel set includes one tool; the standalone tool package may be pictured or sold in a different quantity.

OPTIONAL PARTS AND SERVICE HARDWARE

  • Z-S1341: 2.2 Pro-Line tire-compatible internal beadlock rings — optional, sold separately.
  • Z-F0030: RC4WD four-piece precision metric hex/nut driver set — optional, sold separately.
  • Z-S0695: 64 × M3 × 8 mm silver miniature scale hex bolts — manufacturer-listed replacement hardware.
  • Z-S0663: 24 × M2.5 × 6 mm silver miniature scale hex bolts — manufacturer-listed replacement hardware.

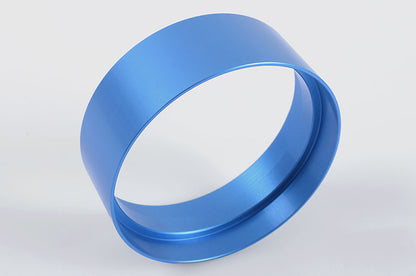

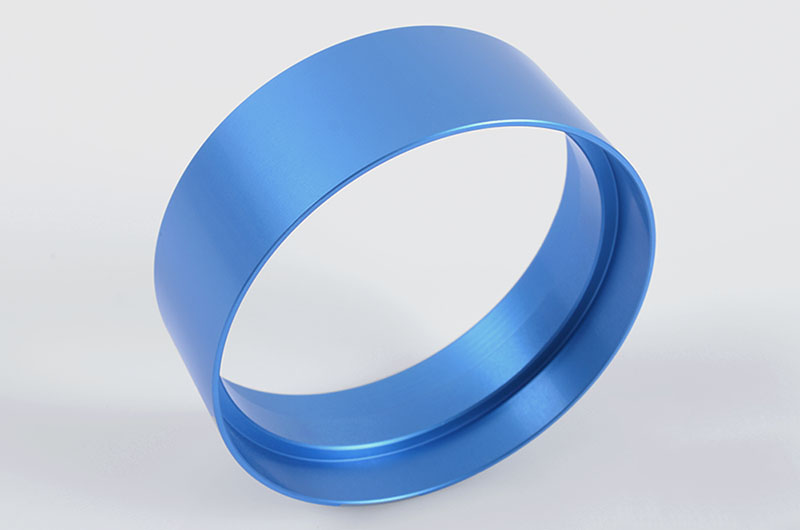

RC4WD Z-S1341 optional 2.2 Pro-Line tire compatible internal beadlock rings
Optional Z-S1341 internal beadlock rings shown for fitment reference. Sold separately; not included with Z-W0193.

INSTALLATION CHECKLIST

  1. Confirm the SKU is Z-W0193 and compare the 56.5 mm OD, 29.5 mm width and published negative offset against the intended chassis.
  2. Verify that the axle uses a compatible standard 12 mm hex and provides sufficient thread engagement after the wheel is seated.
  3. Inspect the tire beads and select the correct internal ring before final assembly.
  4. Seat both tire beads evenly and start every fastener by hand.
  5. Tighten beadlock hardware gradually in an alternating cross pattern. RC4WD does not publish a torque value on the current product page; use the supplied hand tool carefully and do not overtighten the miniature hardware.
  6. Rotate each completed wheel by hand and cycle steering and suspension through their full range to check for contact.
  7. Reinspect wheel nuts and beadlock hardware after the first run.

GASHEAD RC BUILD NOTE

This is the wheel for a builder who wants genuine licensed detail and a noticeably wide, aggressive stance—not a generic black 2.2 rim. Measure before ordering, particularly on portal axles, narrow bodies and steering setups with tight rod-end clearance. The published dimensions are the reliable starting point; “it has a 12 mm hex” is only the beginning of the fitment conversation.

Specifications, included items and compatibility notes verified against the current official RC4WD Z-W0193 product page. Calculated values and engineering interpretation are identified separately. Manufacturer specifications may change.
