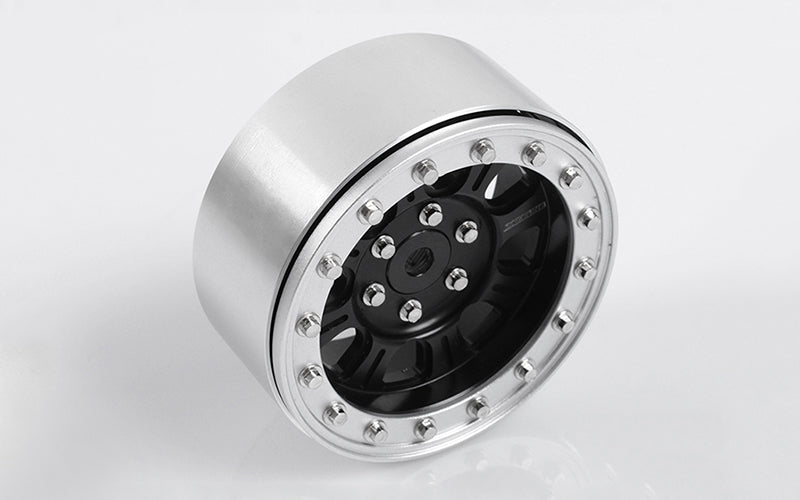

RC4WD RACELINE MONSTER 2.2" ALUMINUM BEADLOCK WHEELS – BLACK / SILVER (4) – Z-W0195

LICENSED RACELINE DETAIL. TRUE FOUR-PIECE BEADLOCK CONSTRUCTION.

The RC4WD Raceline Monster 2.2-inch Beadlock Wheel Set combines CNC-machined billet aluminum, a black center, a machined silver outer surface and scale hardware in an officially licensed Raceline Wheels design. RC4WD developed this version around the stock 12 mm hex used by the Axial Wraith, while retaining the standard hex interface needed for other correctly sized crawler and trail platforms.

This is the complete Black / Silver set of four, manufacturer part number Z-W0195. It is intended for builders who want functional beadlock tire retention, realistic full-size wheel styling and substantial aluminum wheel mass without mixing parts from a different Raceline Monster finish or SKU.

GASHEAD RC QUICK READ

• Product: RC4WD Raceline Monster 2.2-inch beadlock wheels
• Manufacturer SKU: Z-W0195
• Finish: Black center with machined silver outer surfaces and silver scale hardware
• Quantity: Four wheels
• Material: CNC-machined billet aluminum
• Mount: Standard 12 mm hex
• Construction: Four-piece beadlock design
• License: Official Raceline Wheels Monster design
• Manufacturer certification: RECON G6 Certified

WHY THIS WHEEL WORKS ON A SCALE CRAWLER

The beadlock assembly mechanically captures the tire beads, allowing a compatible tire to be installed without relying on tire glue. That makes foam changes and tire service practical while preserving the dimensional, hardware-rich appearance expected from a scale build. The machined Raceline logo and contrasting black/silver finish keep the licensed pattern visible from both trail distance and close-up display.

At the rear, the wheel uses a standard 12 mm hex interface. RC4WD specifically identifies the stock Axial Wraith hex as the design target. Fitment on another vehicle is possible only when the hex size, axle thread engagement, hub clearance, steering clearance and tire dimensions all agree.

MANUFACTURER SPECIFICATIONS

Derived engineering reference: four wheels at the stated 86 g each equal approximately 344 g / 12.1 oz before tires and foams. This set total is calculated from RC4WD's per-wheel figure; it is not a separately published manufacturer measurement.

FITMENT AND COMPATIBILITY

• Primary manufacturer reference: designed around the Axial Wraith and its stock 12 mm hex.
• Other vehicles: may fit other 2.2-class crawler or trail platforms using a standard 12 mm hex, subject to a complete clearance check.
• Confirmed tire references from RC4WD: RC4WD Rock Beast II Scale 2.2-inch tires; RC4WD also shows the wheel mounted with Mud Slingers 2.2-inch tires, part Z-T0097, as an example.
• Pro-Line option: RC4WD lists its 2.2 Pro-Line Tire Compatible Internal Beadlock Rings, part Z-S1341, as an optional component.

Before ordering or assembling: verify 12 mm hex size, axle-thread engagement, wheel-nut seating, steering-knuckle clearance, portal or hub clearance, body clearance at full steering lock and suspension compression, and the bead geometry of the tire being used. A shared 2.2-inch designation alone does not guarantee bead compatibility.

WHAT IS INCLUDED

• 4 × RC4WD Raceline Monster 2.2-inch Beadlock Wheels in Black / Silver
• 1 × Miniature Scale Hex Bolt Tool for M2.5 and M3 scale bolts, 2.5 mm hex — RC4WD Z-S0635
• 1 × Raceline decal sheet

NOT INCLUDED

• Tires, foams, vehicle, axles and wheel nuts
• Mud Slingers 2.2-inch tires shown in the installed example
• Optional Pro-Line-compatible internal beadlock rings
• Optional service hardware and driver set

ASSEMBLY NOTES

1. Confirm that the tire bead and any selected internal ring sit evenly around the complete circumference.
2. Start hardware by hand and tighten gradually in a cross-pattern so the bead is drawn down evenly.
3. RC4WD's installation graphic states that only every other bolt needs to be removed for tire installation. Follow the correct alternating pattern and do not loosen unrelated decorative hardware.
4. Use the included scale hex tool with controlled hand pressure. Small scale fasteners can be damaged by excessive torque or a poorly seated driver.
5. After the first run, inspect bead seating, wheel-nut security and all functional fasteners.

OPTIONAL AND REPLACEMENT PARTS

• Z-S1341: 2.2 Pro-Line Tire Compatible Internal Beadlock Rings
• Z-F0030: RC4WD 4-piece Precision Metric Hex / Nut Driver Set
• Z-S0695: 64 × M3 × 8 mm Miniature Scale Hex Bolts, Silver
• Z-S0663: 24 × M2.5 × 6 mm Miniature Scale Hex Bolts, Silver

These are RC4WD's listed options and service references for Z-W0195. They are separate purchases unless a listing explicitly states otherwise.

RECON G6 CERTIFIED

RC4WD states that this product has been tested and approved by RECON G6. The certification is a manufacturer-listed product attribute; it does not replace the fitment and installation checks required for a specific vehicle.

IMPORTANT TIRE-COMPATIBILITY NOTICE

RC4WD guarantees compatibility within its own wheel-and-tire system but does not guarantee every cross-brand combination. Tire bead profiles, carcass construction and internal ring requirements vary between manufacturers. If using a non-RC4WD tire, test-fit one wheel carefully before assembling the complete set.

Brand: RC4WD
Licensed design: Raceline Wheels Monster
Manufacturer part number: Z-W0195
Finish: Black / Silver
Pack quantity: 4 wheels
