RC4WD FUEL OFF-ROAD HOSTAGE 2.2" ALUMINUM BEADLOCK WHEELS – BLACK (4) – Z-W0196

LICENSED FUEL OFF-ROAD STYLE, MACHINED FOR THE TRAIL

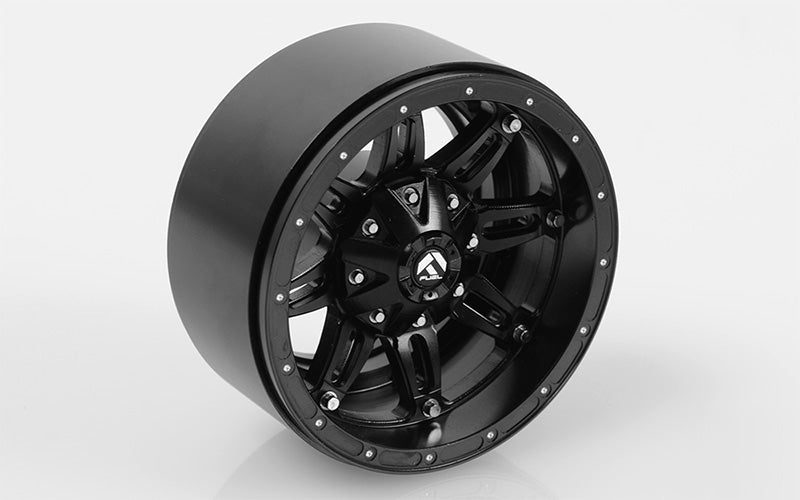

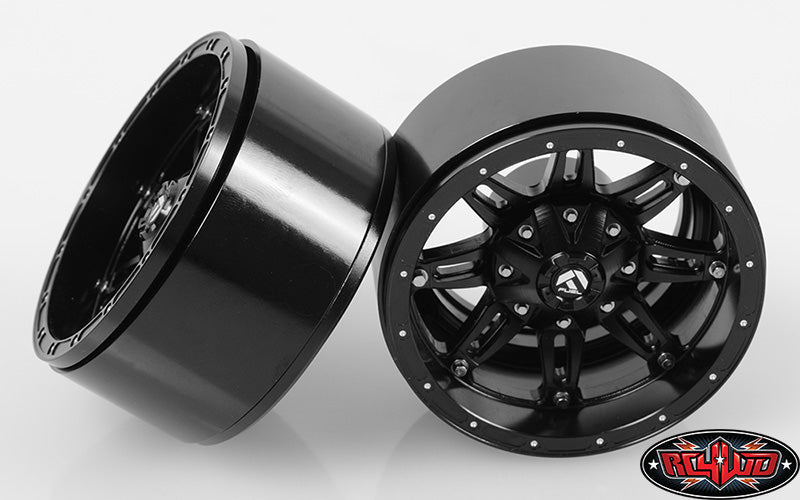

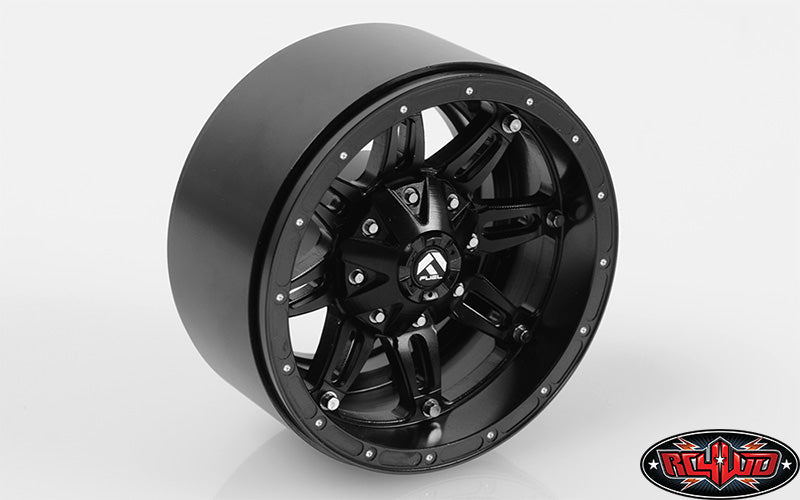

The RC4WD Fuel Off-Road Hostage 2.2-inch Beadlock Wheels bring the full-size Hostage design to a functional crawler wheel built from CNC-machined billet aluminum. The black finish, FUEL branding, scale hex hardware and branded wheel-nut cover give a 2.2-class rig a properly detailed competition-truck look without sacrificing the serviceability expected from a beadlock assembly.

This listing is for the complete set of four wheels, manufacturer part number Z-W0196. RC4WD officially licenses the Hostage design from Fuel Off-Road and supplies the scale tools and decal sheet needed for the wheel package.

GASHEAD RC QUICK READ

• Product: RC4WD Fuel Off-Road Hostage 2.2-inch beadlock wheels
• Manufacturer SKU: Z-W0196
• Quantity: Four wheels
• Finish: Black
• Material: CNC-machined billet aluminum
• Mount: Standard 12 mm wheel hex
• Detailing: FUEL logo, branded wheel-nut cover and scale hex bolts
• Wheel class: 2.2-inch crawler / trail tire applications

MANUFACTURER SPECIFICATIONS

Wheel size	2.2 in
Outside diameter	2.40 in / 61.0 mm
Width	1.22 in / 31 mm
Center-hole outside diameter	0.20 in / 5.2 mm
Wheel hex	Standard 12 mm
Offset	Negative 0.18 in / 4.50 mm
Weight	3.35 oz / 95 g per wheel
Construction	CNC-machined billet aluminum beadlock

Derived engineering reference: four wheels at the manufacturer's stated 95 g each equal approximately 380 g / 13.4 oz before tires and foams. This set weight is a calculation, not a separately published RC4WD measurement.

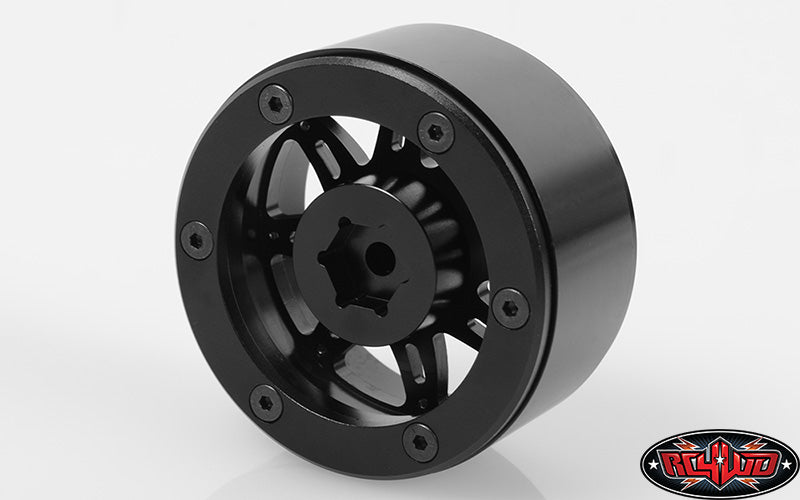

FUNCTIONAL BEADLOCK CONSTRUCTION

A correctly assembled beadlock mechanically captures the tire bead, allowing compatible tires to be installed without permanent tire glue. This makes tire and foam changes practical and keeps the visible scale hardware as part of the wheel's full-size appearance. The aluminum construction also adds rotating and unsprung mass compared with many plastic wheels; gearing, motor temperature and driving style should still be monitored on a specific build.

The negative offset affects stance and component clearance. Do not assume that every standard 12 mm hex installation will clear steering knuckles, portals, suspension links or bodywork. Check the complete steering and suspension cycle before operation.

FUEL OFF-ROAD SCALE DETAIL

• Officially licensed Fuel Off-Road Hostage pattern
• FUEL logo integrated into the wheel design

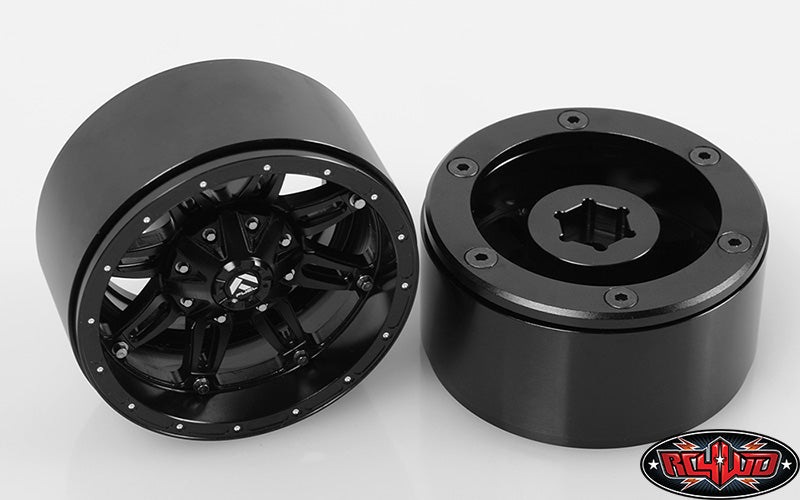

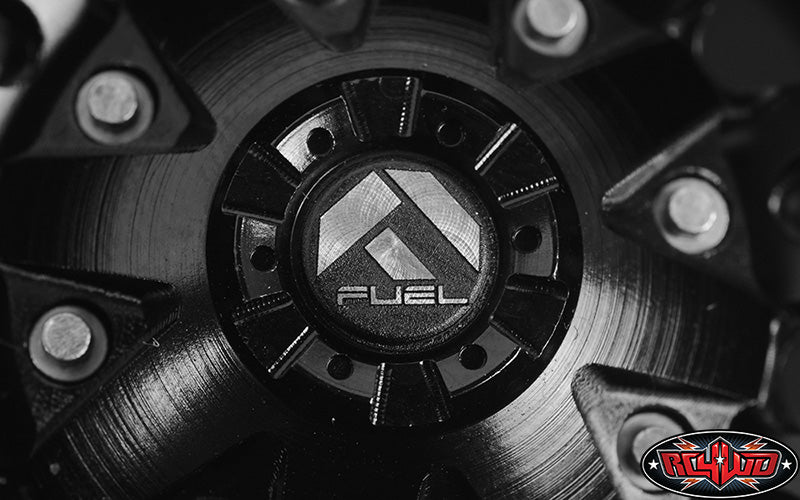

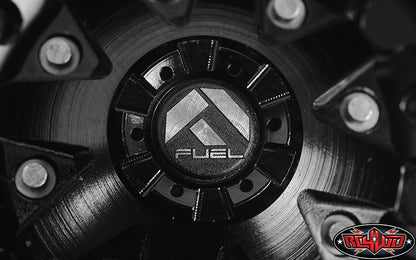

• Scale wheel-nut cover carrying the FUEL logo
• Scale hex bolts for a realistic assembled appearance
• Black finish suited to crawler, trail and scale truck builds

TIRE COMPATIBILITY

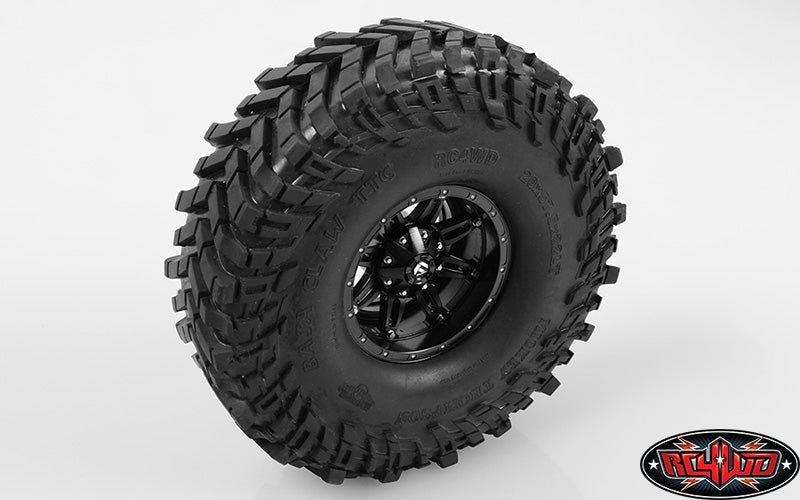

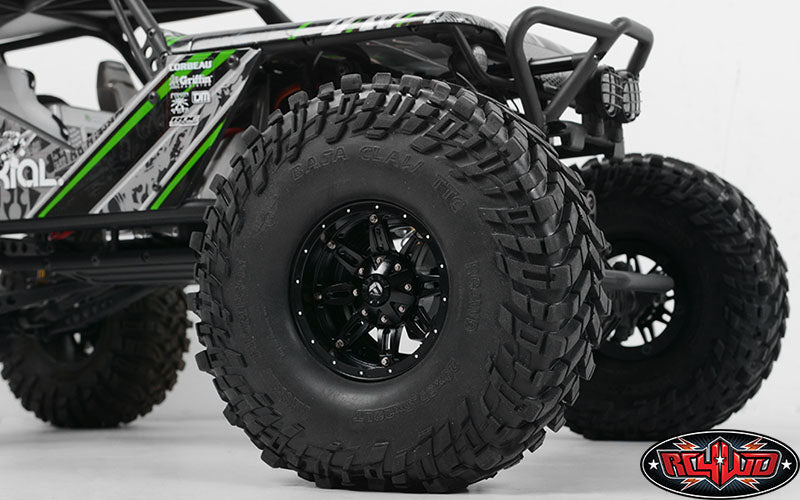

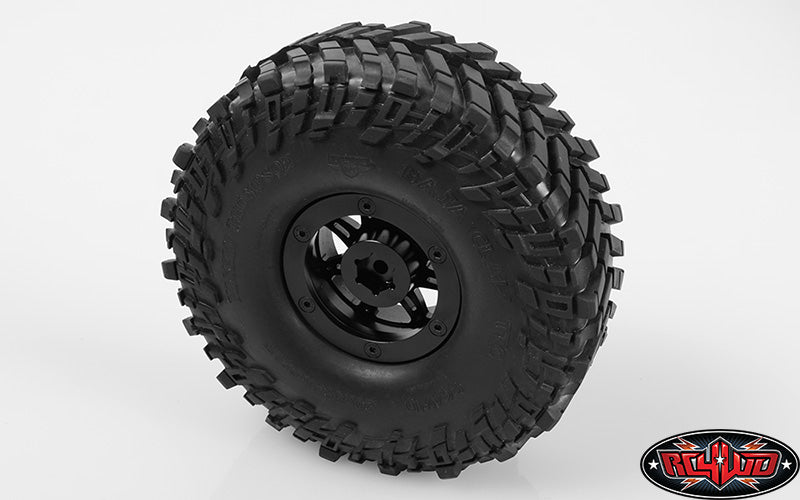

RC4WD shows Z-W0196 installed with RC4WD Mickey Thompson 2.2-inch Baja Claw TTC Scale Tires, Z-T0065, as an example. Those tires are not included. RC4WD states that its own wheels and tires are designed to work together, but it does not guarantee every cross-brand wheel-and-tire combination because bead profiles and construction methods vary.

For certain Pro-Line 2.2-inch tire applications, RC4WD lists the Z-S1341 Pro-Line Tire Compatible Internal Beadlock Rings as an optional part. Confirm the exact tire model and ring requirement before assembly.

VEHICLE FITMENT AND REQUIRED ADAPTERS

• Standard applications: requires a compatible 12 mm hex plus adequate axle-thread engagement and mechanical clearance.
• Axial Yeti 1/10 front: RC4WD states that fitment requires the Z-S0238 RC4WD 12 mm Axle Wheel Hex Set.
• Axial Yeti 1/10 rear: RC4WD states that fitment requires both the Z-S1604 Rear Wheel Adapters for Axial Yeti and the Z-S0238 12 mm Axle Wheel Hex Set.

Important: the front and rear Yeti requirements are not interchangeable. The adapters listed above are separate purchases and are not included with Z-W0196.

PRE-INSTALLATION CHECKLIST

1. Verify the vehicle uses the correct 12 mm hex or install the manufacturer-specified adapter set.
2. Check wheel-nut seating and confirm sufficient axle-thread engagement.
3. Test steering-knuckle, portal, link and shock clearance at full lock.
4. Cycle the suspension through full compression and articulation to check tire-to-body contact.
5. Confirm the tire bead sits uniformly inside the beadlock assembly before tightening.
6. Tighten functional hardware gradually and evenly with the correctly sized hand tool.
7. Recheck wheel nuts, bead seating and fasteners after the first drive.

WHAT IS INCLUDED

• 4 × RC4WD Fuel Off-Road Hostage 2.2-inch Beadlock Wheels
• 1 × Miniature Scale Hex Bolt Tool, M2 hex — RC4WD Z-S0626
• 1 × Miniature Scale Hex Bolt Tool for M1.6 scale bolts, 1.5 mm hex — RC4WD Z-S1328
• 1 × FUEL decal sheet

NOT INCLUDED

• Tires and foams
• Vehicle, axles and standard wheel nuts
• Axial Yeti front or rear adapters
• Optional Pro-Line-compatible internal beadlock rings
• Optional precision driver set and replacement hardware

OPTIONAL TOOLS AND SERVICE HARDWARE

• Z-S1341: 2.2 Pro-Line Tire Compatible Internal Beadlock Rings
• Z-F0030: RC4WD 4-piece Precision Metric Hex / Nut Driver Set
• Z-S0649: M3 × 8 mm steel flat-head cap screws; RC4WD identifies 24 screws for the wheel set, while the referenced service package is listed as a 10-count pack. Order enough packages for the intended service.
• Z-S1124: M1.6 × 4 mm silver Miniature Scale Hex Bolts; RC4WD identifies 32 pieces for the wheel set.
• Z-S0238: 12 mm Axle Wheel Hex Set for stated Axial Yeti fitment.
• Z-S1604: Rear Wheel Adapters for the Axial Yeti rear installation.

BUYING CHECK

Choose Z-W0196 when the build calls for the black, licensed Fuel Off-Road Hostage design, a 2.2-inch beadlock format and a standard 12 mm hex interface. Do not buy on wheel diameter alone: confirm the tire bead system, offset, center-hole clearance and any vehicle-specific adapters first.

Brand: RC4WD
Licensed design: Fuel Off-Road Hostage
Manufacturer part number: Z-W0196
Finish: Black
Pack quantity: 4 wheels
