RC4WD TOYO 1.9" BILLET ALUMINUM BEADLOCK WHEELS – ORANGE (4) – Z-W0204

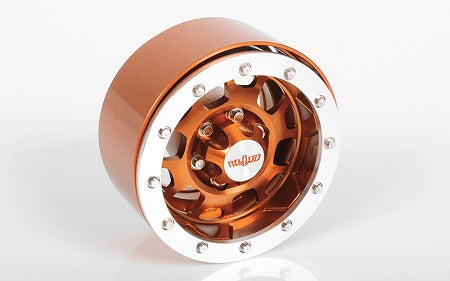

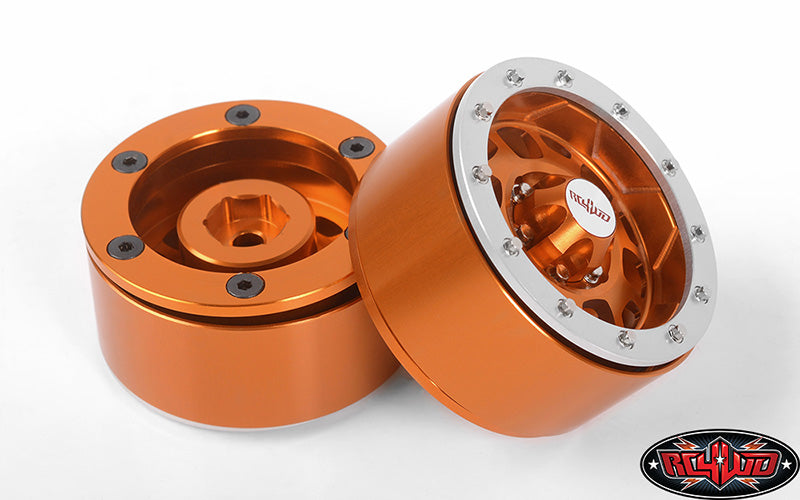

Built for scale rigs that deserve more than a generic wheel. The RC4WD Toyo 1.9" Beadlock Wheels combine a CNC-machined billet-aluminum construction with a deep, highly detailed face, contrasting outer ring and RC4WD-branded scale center cover. This is a complete set of four wheels for 1.9" crawler and trail-truck applications using a standard 12 mm wheel hex.

WHY THE TOYO WHEEL STANDS OUT

• Real beadlock construction: mounts a compatible tire mechanically, so the tire bead does not need to be glued to the wheel.
• CNC-machined billet aluminum: a rigid, durable construction with crisp scale detail.

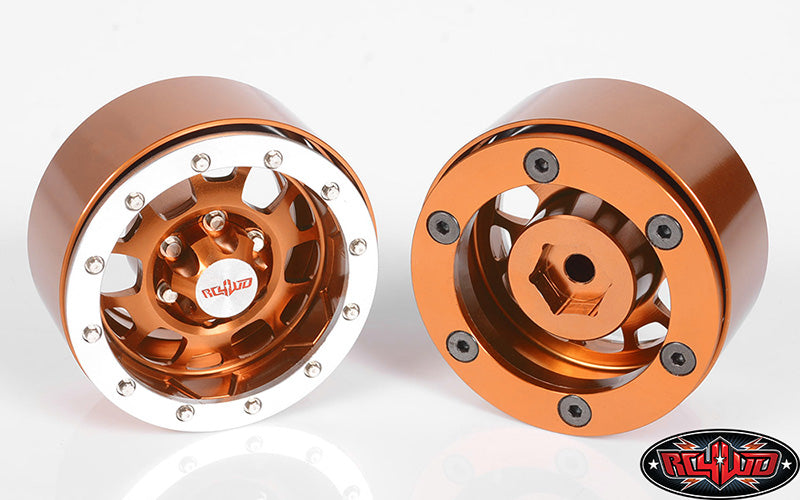

• Distinctive scale finish: orange wheel body, bright outer ring, detailed center section and RC4WD logo cap.

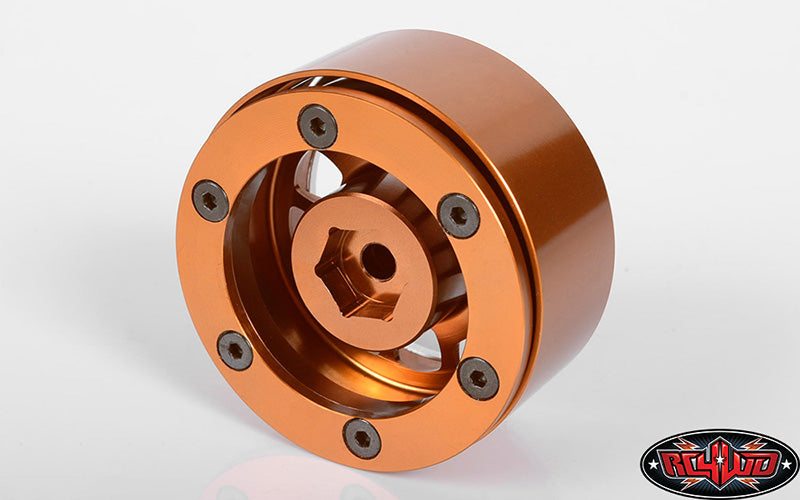

• Trail-ready fitment: standard 12 mm hex interface for compatible scale crawler axles.
• Complete four-wheel set: includes the two scale tools specified by RC4WD for assembly and center-cover hardware.

MANUFACTURER SPECIFICATIONS

FITMENT & CLEARANCE — CHECK BEFORE ORDERING

Required: a compatible 1.9" tire bead and a 12 mm axle hex. RC4WD confirms its own tires and wheels are designed to work together; because tire-bead profiles vary between manufacturers, compatibility with non-RC4WD tires cannot be guaranteed.

Engineering fitment note: the published 4.50 mm negative offset places the wheel farther outward than a zero-offset wheel. This can increase track width and may improve body or suspension-link clearance, but it also changes scrub radius and fender coverage. Verify axle-end hardware, hub clearance, steering-knuckle clearance, body clearance and the desired total track width on your specific chassis.

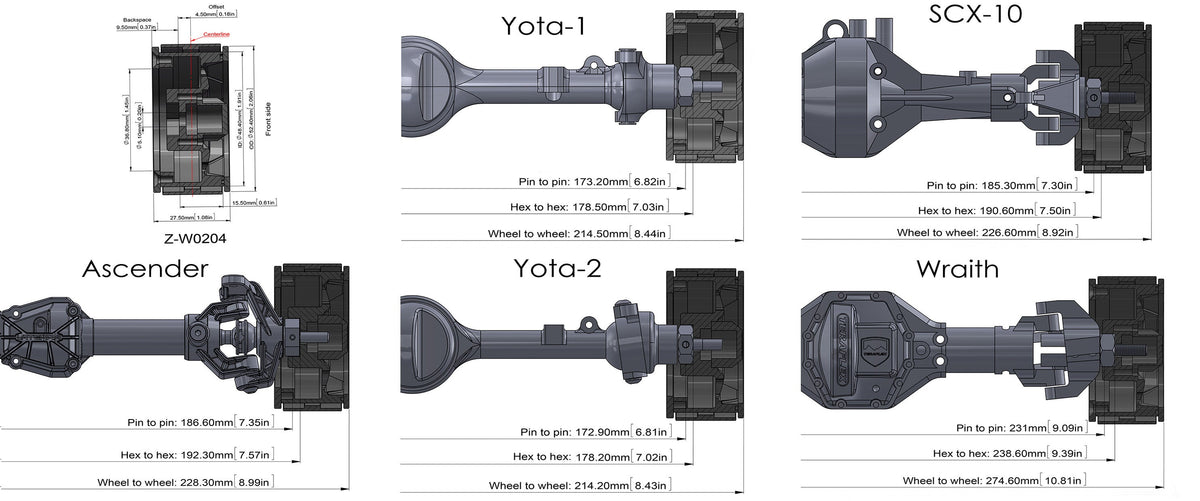

The manufacturer diagram is a dimensional reference, not a universal bolt-on guarantee. Axle versions, hex thickness, portal housings, brake-weight systems and aftermarket hubs can change the final position of the wheel.

WHAT'S INCLUDED

• 4 × RC4WD Toyo 1.9" Beadlock Wheels
• 1 × Hex Bolt Tool — RC4WD Z-S0626
• 1 × Miniature Scale Hex Bolt Tool for M2.5 and M3 scale bolts, 2.5 mm hex — RC4WD Z-S0635

NOT INCLUDED

• Tires, foams/inserts, axles, hubs, vehicle and electronics

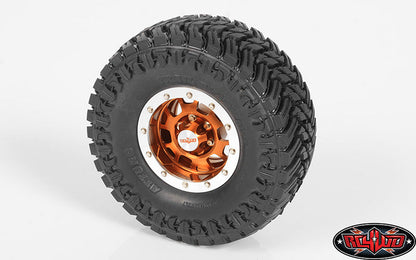

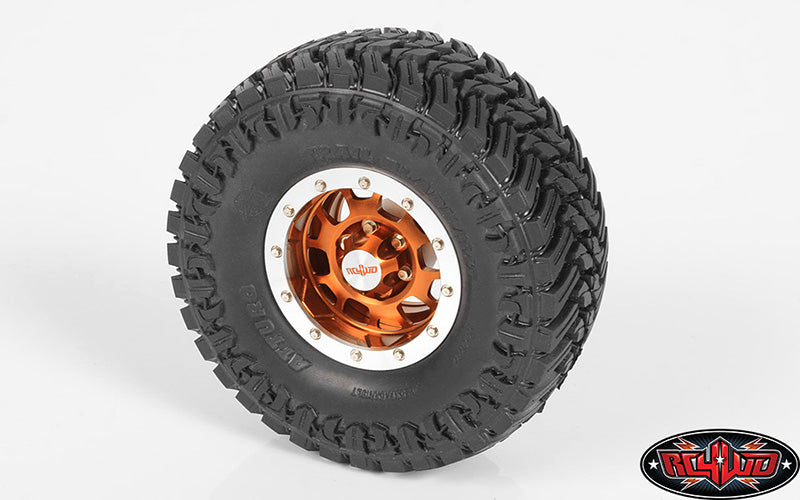

• RC4WD Atturo Trail Blade M/T 1.9" tires (Z-T0137), shown only as a mounting example

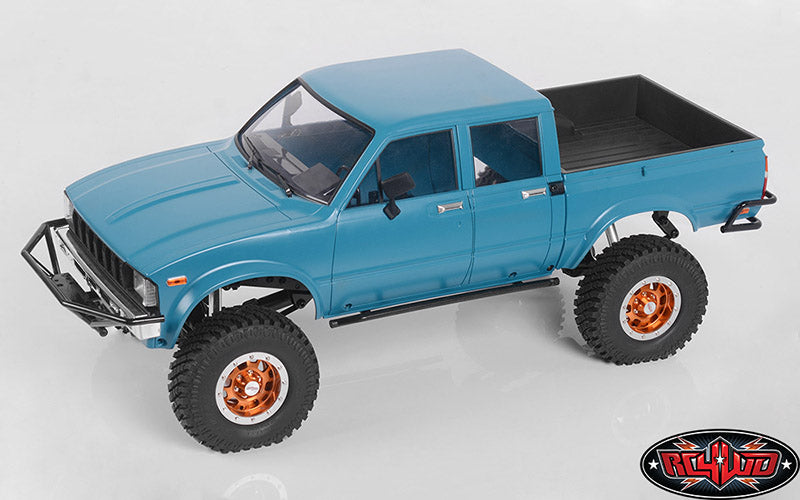

• RC4WD Atturo Trail Blade X/T 1.9" tires (Z-T0154) and Trail Finder 2 LWB vehicle, shown only as installed examples

BEADLOCK ASSEMBLY NOTES

1. Confirm that the tire beads sit evenly in their channels before tightening.

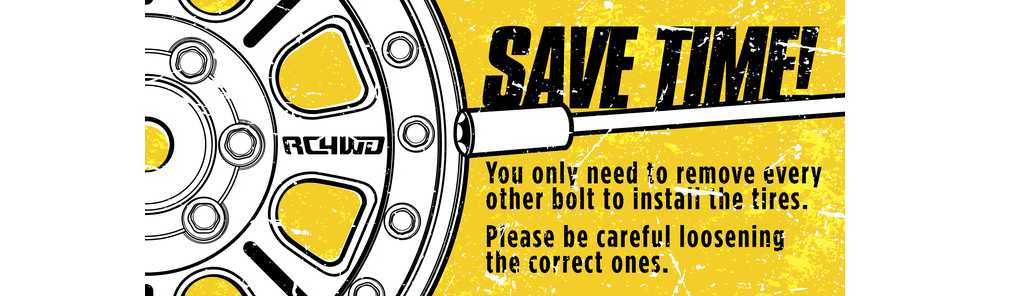

2. RC4WD specifies removing every other bolt when installing or dismantling the tire; the wheel uses faux scale bolts alongside the functional assembly hardware.
3. Start all functional fasteners loosely, then tighten gradually in an alternating cross pattern to seat the ring evenly.
4. Stop and reseat the bead if the ring begins to pull down unevenly. Do not force a mismatched bead profile.
5. After the first run, inspect bead seating and hardware condition as part of normal RC maintenance.

OPTIONAL & REPLACEMENT ITEMS

• Optional tool: RC4WD 4-Piece Precision Metric Hex/Nut Driver Set — Z-F0030
• Optional ring for compatible Pro-Line 1.9" tires: RC4WD Internal Beadlock Rings — Z-S0846. Tire-specific fit should still be checked.
• Manufacturer-listed replacement pack: 48 × M2 × 6 mm hex-head bolts — Z-S1196
• Manufacturer-listed replacement pack: 24 × M2.5 × 6 mm hex-head bolts — Z-S0663
• Manufacturer-listed replacement pack: 24 × M3 × 6 mm flat-head cap screws — Z-S0648

GASHEAD RC FITMENT CHECKLIST

• 12 mm axle hex confirmed
• 1.9" tire bead confirmed
• 5.1 mm center bore clears the axle stub and hardware
• 4.50 mm negative offset provides acceptable track width and body coverage
• 27.5 mm wheel width clears steering and suspension components through full travel
• Tire and vehicle shown in the photos are understood to be examples only

Bottom line: Z-W0204 is a premium, heavy-duty scale wheel set for builders who want genuine beadlock function, aluminum construction and an unmistakable orange/silver Toyo-style face. Measure first, assemble carefully and pair it with a confirmed 1.9" bead profile.

Specifications and compatibility notes are based on the current RC4WD product page for part Z-W0204. Manufacturer reference: RC4WD Toyo 1.9" Beadlock Wheels.
