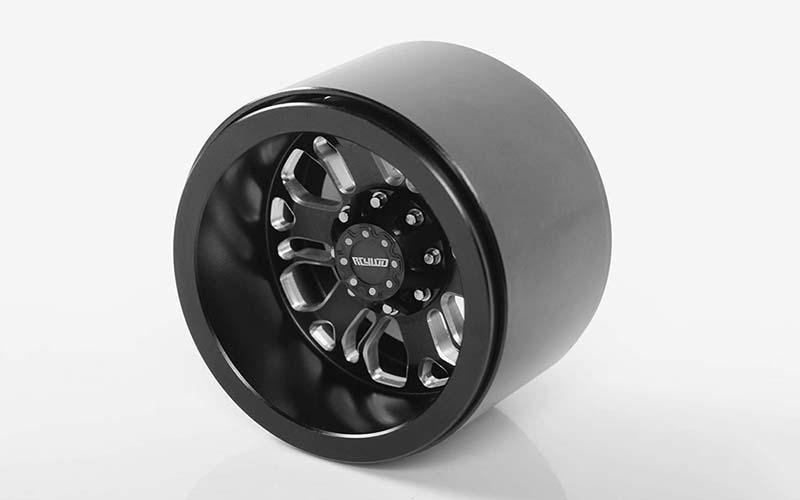

RC4WD BENCHMARK 1.7" BEADLOCK WHEELS – BLACK – Z-W0266

RC4WD BENCHMARK 1.7" BEADLOCK WHEELS – BLACK – Z-W0266

Upgrade your scale crawler or trail truck with the genuine RC4WD Benchmark 1.7-inch beadlock wheel set. The Z-W0266 wheels are CNC-machined from billet aluminum, finished in black anodizing and built with functional beadlock tire retention for compatible 1.7-inch tires.

KEY FEATURES

• Genuine RC4WD Benchmark 1.7-inch beadlock wheels
• CNC-machined billet-aluminum construction
• Black anodized finish
• Fits standard 12 mm wheel hexes
• Negative-offset design
• Four-wheel set

MANUFACTURER SPECIFICATIONS

• Part number: Z-W0266
• Material: Billet aluminum
• Finish: Black anodized
• Wheel size: 1.7 in
• Outer diameter: 1.89 in / 48.0 mm
• Width: 1.34 in / 34.0 mm
• Center-hole diameter: 0.20 in / 5.2 mm
• Hex fitment: Standard 12 mm hex
• Offset: 0.33 in / 8.38 mm negative
• Weight: 2.47 oz / 70.1 g per wheel

WHAT'S INCLUDED

• 4 × RC4WD Benchmark 1.7" Beadlock Wheels
• 1 × Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts, 1.5 mm hex – RC4WD Z-S1328

OPTIONAL TOOLS & REPLACEMENT HARDWARE

• Optional tool: RC4WD 4pc Precision Metric Hex/Nut Driver Set – Z-F0030
• Replacement hardware: RC4WD Miniature Scale Hex Bolts M1.6 × 4 mm, Silver – Z-S1124
• Replacement tool: Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts – Z-S1328

COMPATIBILITY & FITMENT

RC4WD lists these wheels as fitting the Axial SCX10 and Axial SCX10 II. They use a standard 12 mm wheel hex and are intended for compatible 1.7-inch tires.

RC4WD shows them installed on a Trail Finder 2 LWB RTR with Mojave II Four Door Body Set and RC4WD Falken WildPeak A/T 1.7-inch Scale Tires as an application example. Tires and vehicle are not included.

Tire fitment note: Tire bead geometry varies between manufacturers. RC4WD confirms compatibility within its own wheel-and-tire ecosystem but does not guarantee fitment with every third-party tire. Verify bead profile, wheel clearance and vehicle fitment before installation.

GASHEAD RC NOTE

This listing uses manufacturer-published specifications only. Tires, vehicle, optional tools and replacement hardware shown or referenced are not included unless specifically listed above.
