RC4WD JK 1.0" SCALE BEADLOCK WHEELS – SILVER – Z-W0279

RC4WD JK 1.0" SCALE BEADLOCK WHEELS – SILVER – Z-W0279

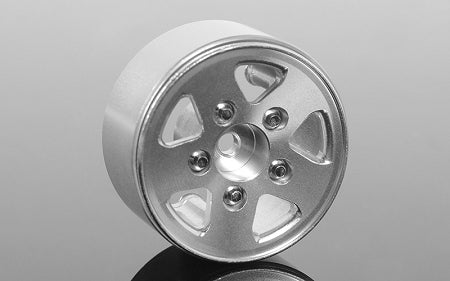

Upgrade your micro-scale crawler with the genuine RC4WD JK 1.0-inch Scale Beadlock Wheel set. The Z-W0279 wheels are CNC-machined from billet aluminum, finished in silver anodizing and built with a functional beadlock design for compatible 1.0-inch tires and standard 7 mm wheel hexes.

KEY FEATURES

• Genuine RC4WD JK 1.0-inch Scale Beadlock Wheels
• CNC-machined billet-aluminum construction
• Silver anodized finish
• Fits standard 7 mm wheel hexes
• Negative-offset geometry
• Designed for compatible 1.0-inch tires
• Four-wheel set

MANUFACTURER SPECIFICATIONS

• Part number: Z-W0279
• Material: Billet aluminum
• Finish: Silver anodized
• Wheel size: 1.0 in
• Outer diameter: 1.09 in / 27.5 mm
• Width: 0.59 in / 15.0 mm
• Center-hole diameter: 0.10 in / 2.5 mm
• Hex fitment: Standard 7 mm hex
• Offset: 0.02 in / 0.55 mm negative
• Weight: 0.44 oz / 12.5 g per wheel

WHAT'S INCLUDED

• 4 × RC4WD JK 1.0" Scale Beadlock Wheels
• 1 × Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts, 1.5 mm hex

OPTIONAL TOOLS & REPLACEMENT HARDWARE

• Optional tool: RC4WD 4pc Precision Metric Hex/Nut Driver Set – Z-F0030
• Replacement hardware: Steel Flat Head Socket Cap Screw M2 × 6 mm, Silver
• Replacement hardware: RC4WD Miniature Scale Hex Bolts M1.6 × 2 mm, Silver – Z-S1809
• Replacement tool: Miniature Scale Hex Bolt Tool for M1.6 Scale Bolts, 1.5 mm hex – Z-S1328

COMPATIBILITY & FITMENT

These wheels use a standard 7 mm wheel hex and are intended for compatible 1.0-inch tires. RC4WD shows them installed with Milestar Patagonia M/T 1.0" Micro Crawler Tires, part Z-T0164, and on the RC4WD 1/18 Gelande II platform as application examples.

Tire fitment note: Tire bead geometry varies between manufacturers. RC4WD confirms compatibility within its own wheel-and-tire ecosystem but does not guarantee fitment with every third-party tire. Verify bead profile, wheel clearance and vehicle fitment before installation.

GASHEAD RC NOTE

This listing uses manufacturer-published specifications only. Tires, vehicle, optional tools and replacement hardware shown or referenced are not included unless specifically listed above.
