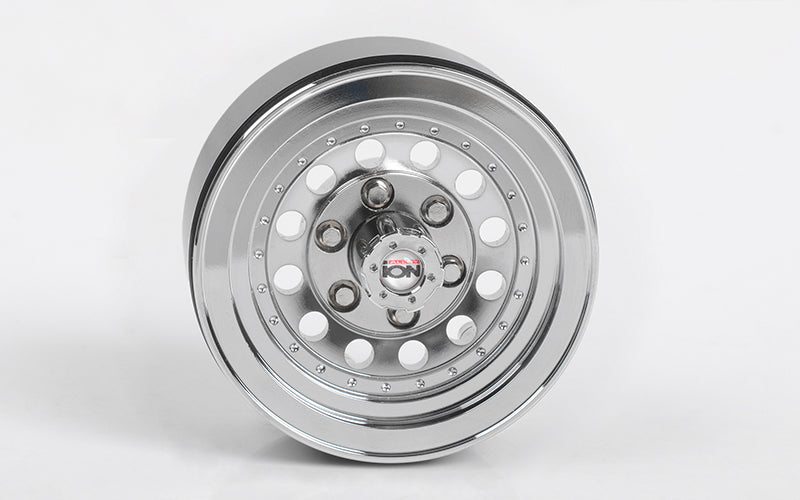

RC4WD ION STYLE 71 1.9" BEADLOCK WHEELS – CHROME – Z-W0303

RC4WD ION STYLE 71 1.9" BEADLOCK WHEELS – CHROME – Z-W0303

Bring classic 1980s-inspired truck styling to your scale build with the genuine RC4WD ION Style 71 1.9-inch beadlock wheel set. Z-W0303 is the first officially licensed aluminum RC wheel from ION offered by RC4WD, combining CNC-machined billet aluminum, a chrome finish and a concealed internal beadlock assembly for a clean scale appearance from both sides of the wheel.

KEY FEATURES

• Officially licensed ION Style 71 wheel design
• CNC-machined billet-aluminum construction
• Chrome finish
• Standard 12 mm wheel hex
• Internal beadlock design
• Positive-offset geometry
• Scale ION Alloy emblem decal inside the wheel hub
• Six rear M2.5 × 8 mm socket-head screws secure the internal beadlock assembly
• Six front M2.5 × 4 mm miniature scale hex bolts mimic lug hardware; these are cosmetic rather than the functional wheel mount
• Integrated 12 mm mounting hub with scale center hub and internal 5 mm wheel nut
• Four-wheel set

MANUFACTURER SPECIFICATIONS

• Part number: Z-W0303
• Material: Billet aluminum
• Wheel size: 1.9 in
• Outer diameter: 2.14 in / 54.0 mm
• Width: 1.02 in / 26.0 mm
• Center-hole diameter: 0.20 in / 5.2 mm
• Hex fitment: Standard 12 mm
• Offset: 0.07 in / 1.7 mm positive
• Weight: 2.40 oz / 68.0 g per wheel

WHAT'S INCLUDED

• 4 × RC4WD ION Style 71 1.9" Beadlock Wheels
• 4 × Locking hubs
• 1 × Miniature Scale Hex Bolt Tool for M2.5 & M3 scale bolts, 2.5 mm hex
• 1 × Locking Hub Installation Tool
• 1 × ION decal sheet

OPTIONAL PARTS & COMPATIBILITY

• RC4WD 1.9 Pro-Line Tire Compatible Internal Beadlock Rings – Z-S0846 – compatible for certain Pro-Line tire applications
• Traxxas TRX-4 installations require RC4WD 12 mm Wheel Hex Conversion – Z-S1844

COMPATIBILITY & FITMENT

RC4WD lists Z-W0303 as fitting the Axial SCX10, Axial SCX10 II, Vaterra Ascender, Axial Wraith and HPI Venture FJ Cruiser. For Traxxas TRX-4 applications, RC4WD specifically requires the Z-S1844 12 mm wheel-hex conversion.

RC4WD shows these wheels installed with Atturo Trail Blade X/T 1.9" Scale Tires, part Z-T0154, including examples on the Marlin Crawler Trail Finder 2 RTR with Mojave II body and on the Trail Finder 2 LWB chassis with the 2001 Toyota Tacoma 4-door body. RC4WD also shows Z-W0303 with BFGoodrich Mud Terrain T/A KM3 1.9" tires on a Gelande II D90 application. Tires, vehicle and conversion parts are not included unless specifically listed above.

Tire fitment note: Tire bead geometry varies by manufacturer. RC4WD confirms compatibility within its own wheel-and-tire ecosystem but does not guarantee every third-party tire combination. Verify bead profile, wheel clearance and vehicle fitment before installation.

GASHEAD RC NOTE

This listing uses current manufacturer-published specifications for the exact RC4WD Z-W0303 product. The front miniature lug-style bolts are decorative; the actual 12 mm mounting hub is machined into the wheel. Where RC4WD specifies an adapter or alternate internal ring for a particular application, that requirement is stated explicitly rather than inferred.
