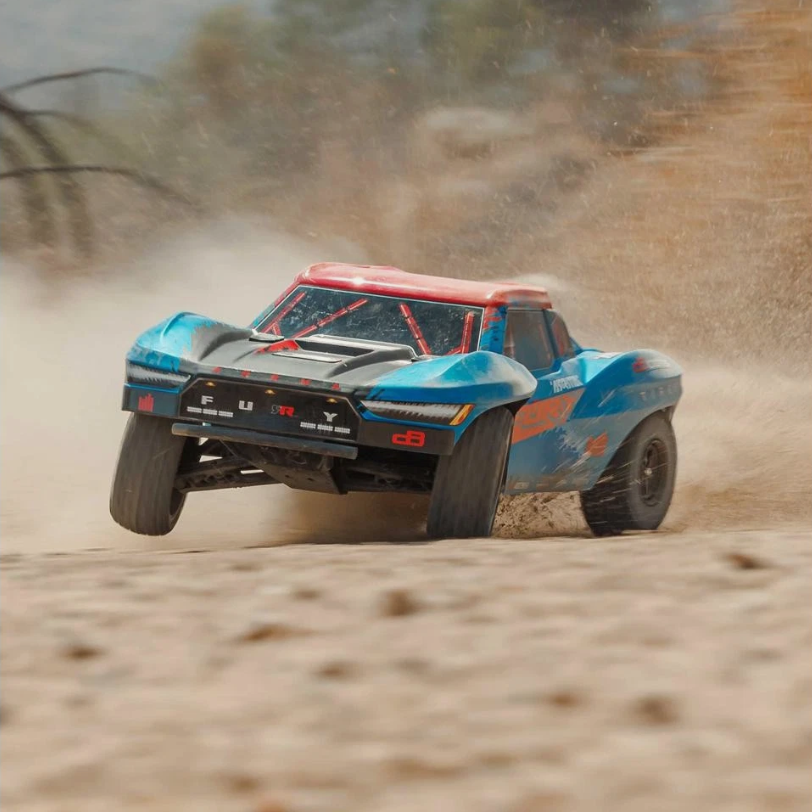

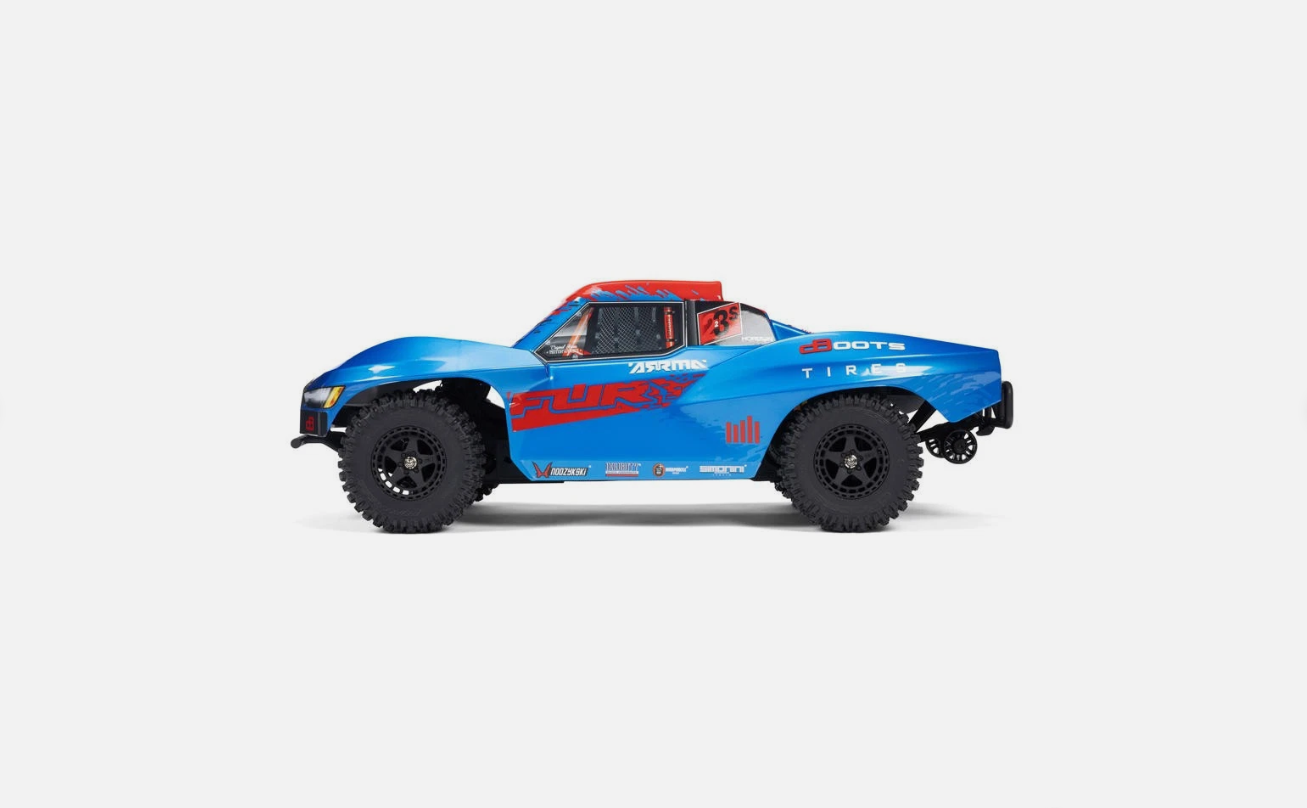

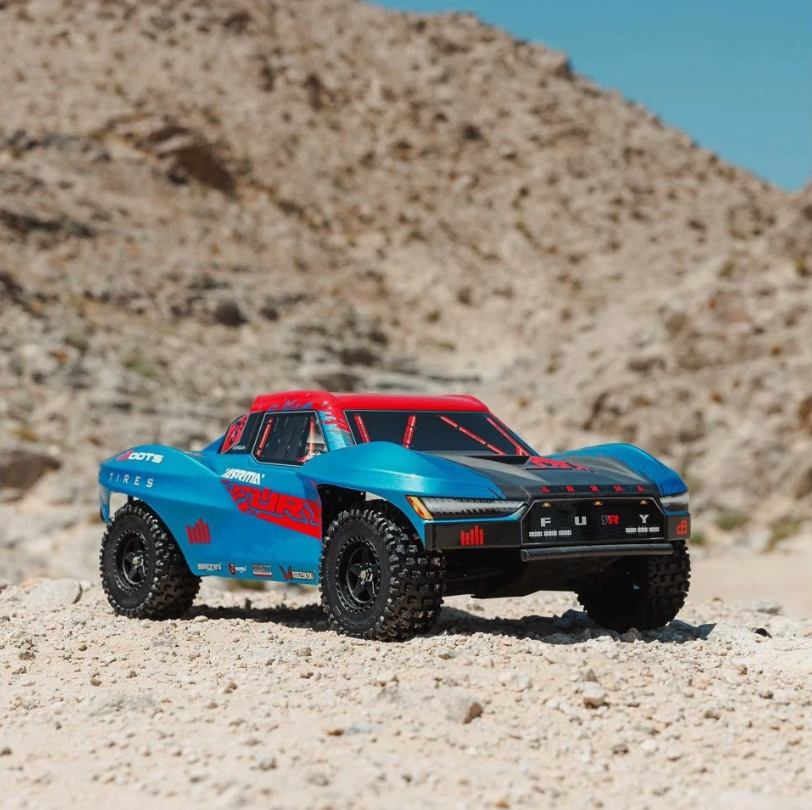

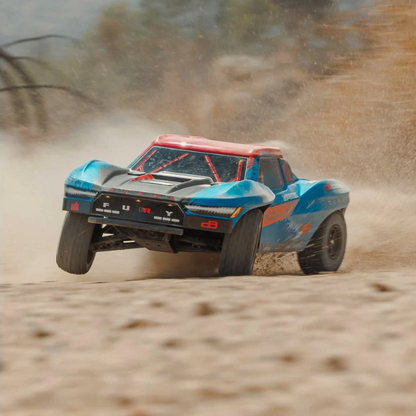

ARRMA FURY 223S BLX 1/10 2WD BRUSHLESS SHORT COURSE TRUCK RTR

The ARRMA FURY 223S BLX is a 1/10-scale, rear-wheel-drive short course truck built for drivers who want one platform that can grow with their skill level. On 2S LiPo power it delivers controllable 35+ mph performance; install a compatible 3S pack and the same factory brushless system is capable of 50+ mph under optimum conditions. No motor swap, ESC upgrade or second truck required.

WHY THE 223S PLATFORM WORKS

• 2S and 3S compatible: choose manageable speed for learning, tighter spaces and lower-grip surfaces, or step up to full 3S performance when conditions allow
• 2WD short course handling: rear-wheel drive rewards throttle control, supports predictable power slides and gives the truck a lively racing character
• 50+ mph capability: maximum speed depends on battery condition, surface, temperature, vehicle setup and driving conditions
• Ready-to-run electronics: the motor, speed control/receiver and steering servo arrive installed

SPEKTRUM BRUSHLESS ELECTRONICS

• Spektrum 4000Kv brushless motor matched to the lightweight 2WD chassis
• Spektrum SLT 45A 2-in-1 waterproof ESC and receiver compatible with 2S and 3S LiPo power
• IC5 battery connector for a secure, high-current connection
• Spektrum DSC Dynamic Stability Control provides electronic steering assistance to help keep the truck composed under acceleration and on loose surfaces
• Spektrum S681 waterproof digital steering servo with metal gears
• Spektrum SLT2 2.4GHz transmitter for dependable control without frequency crystals

SHORT COURSE CHASSIS & HANDLING

• Mid-motor layout concentrates mass near the center of the chassis for more balanced cornering
• Low center of gravity and wide footprint improve stability during fast direction changes
• Independent suspension with long wheel travel keeps the tires working over ruts, bumps and uneven terrain
• Oil-filled composite shocks smooth the chassis response and allow ride-height adjustment
• Metal-geared differential transfers brushless power to the rear wheels with added durability
• Strong composite spine chassis is shaped to stay light and reduce areas where dirt and debris collect
• Easy-access bottom-loading battery tray allows battery changes without removing the body

BODY, PROTECTION & TIRES

• Closed-wheel short course body helps prevent tires from interlocking during close driving

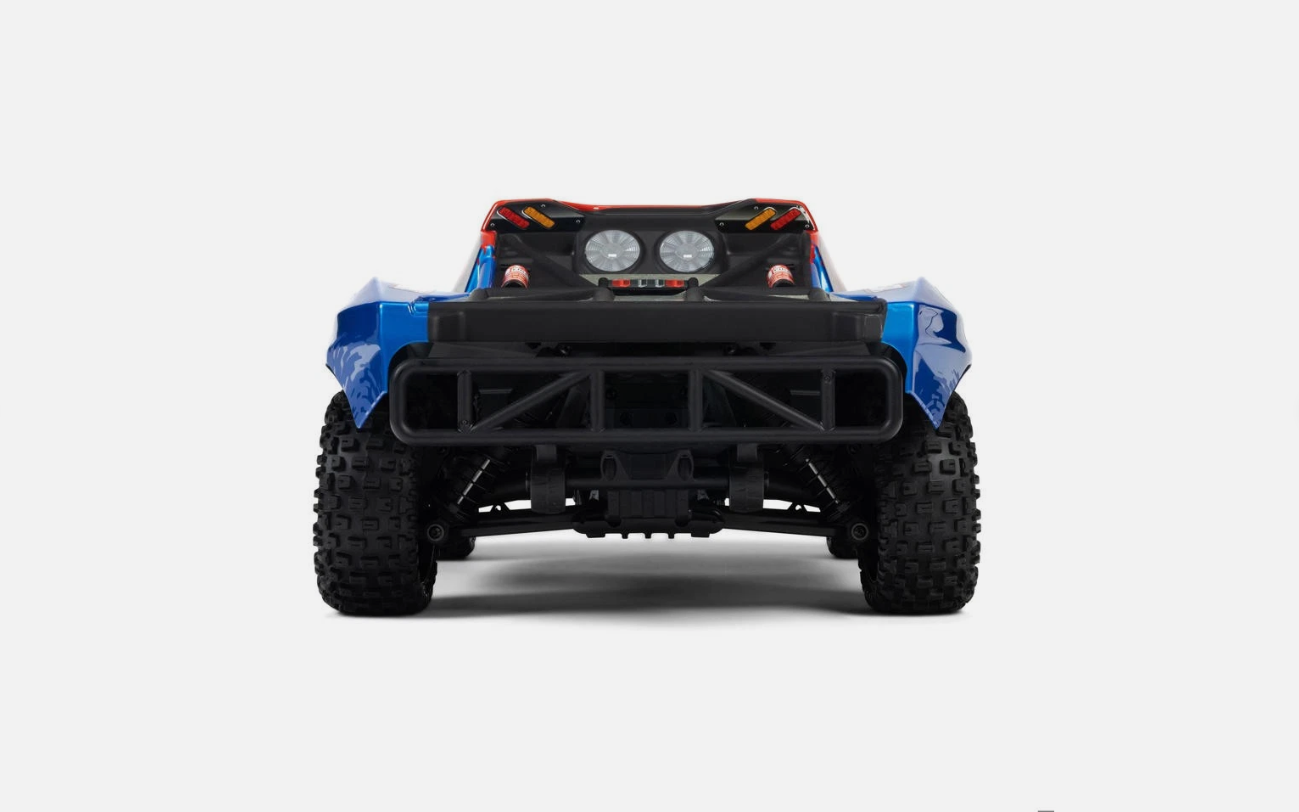

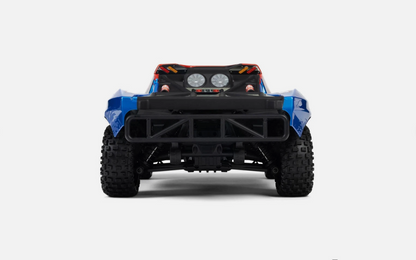

• Impact-absorbing composite front and rear bumpers protect the chassis during normal bashing
• Composite side nerf bars support the body and add side-impact protection
• dBoots FORTRESS SC all-terrain tires provide useful grip on loose dirt, hard-packed surfaces and pavement
• Available in Blue, Green and Purple with factory-applied graphics

BATTERY FITMENT

• Compatible hardcase 2S 7.4V or 3S 11.1V LiPo battery
• IC5 connector required
• Maximum battery space: 140 × 50 × 35 mm / 5.51 × 1.97 × 1.38 in
• Use a compatible balance charger and a LiPo charging bag

VEHICLE DIMENSIONS

AVAILABLE COLORS & ITEM NUMBERS

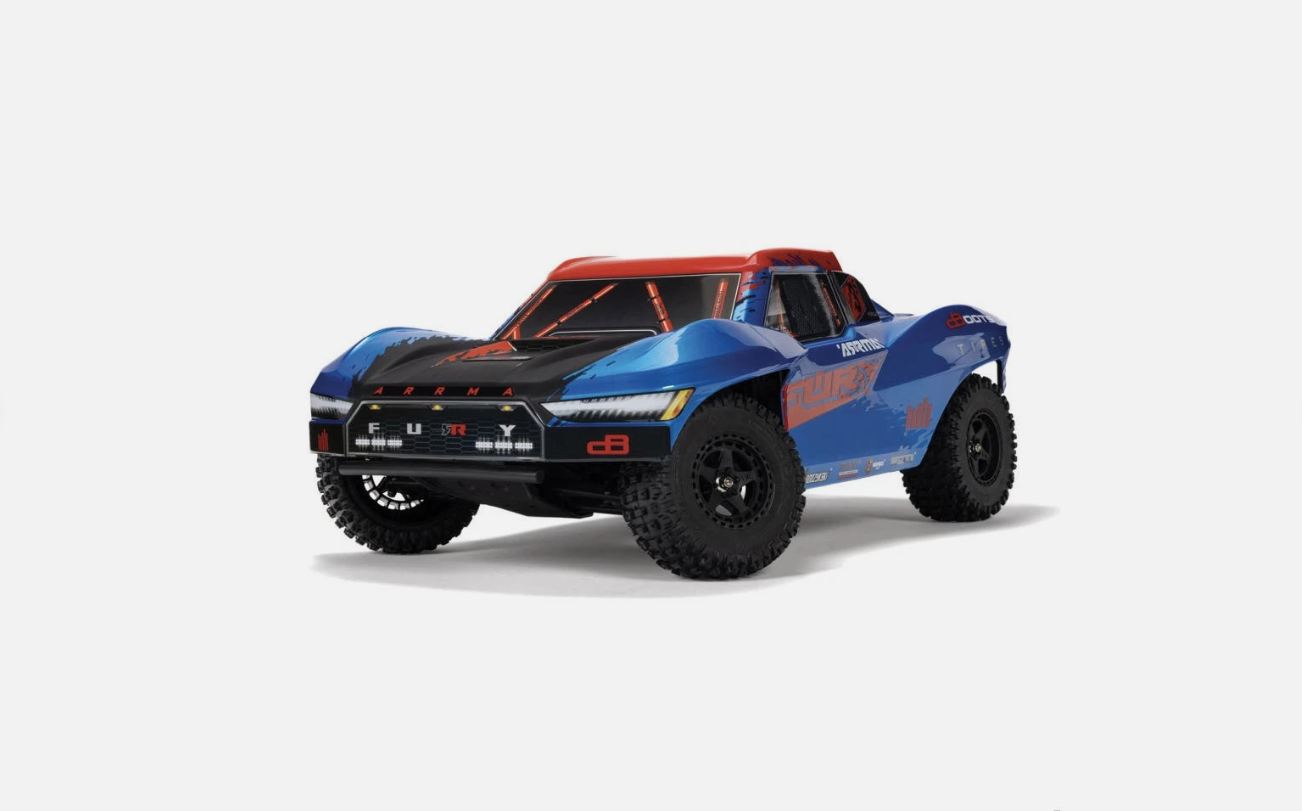

• Blue — ARA3521T1

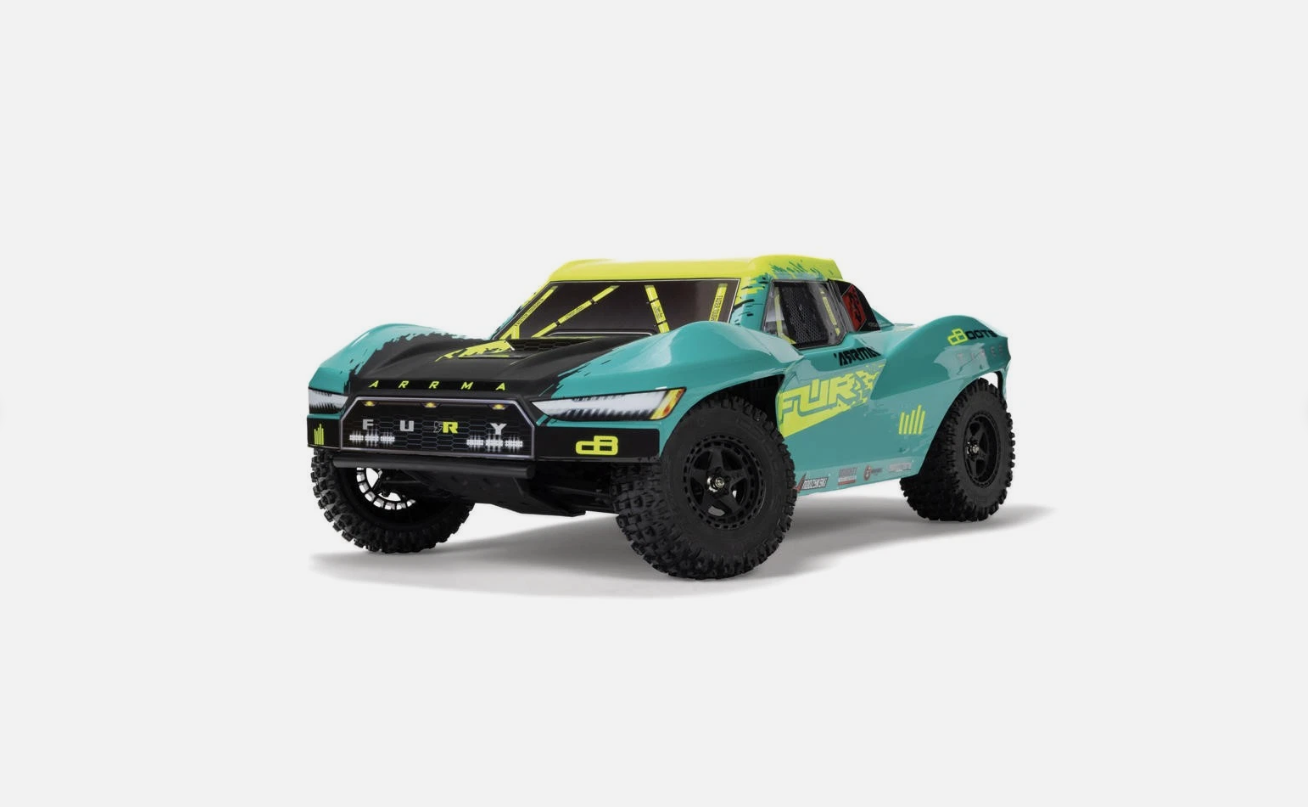

• Green — ARA3521T2

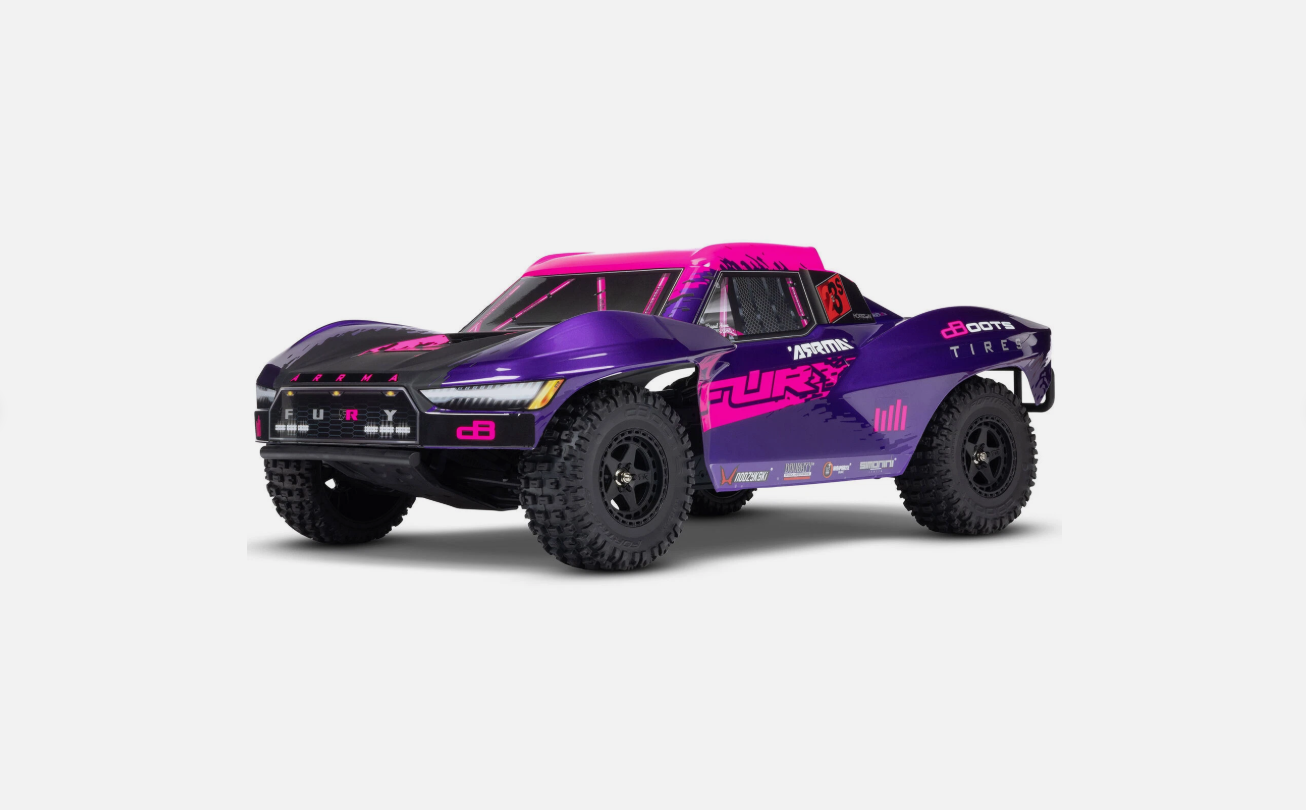

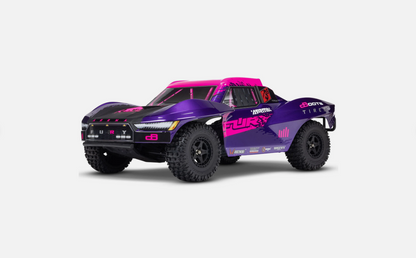

• Purple — ARA3521T3

IN THE BOX

• ARRMA FURY 223S BLX 2WD Short Course Truck RTR
• Installed Spektrum 4000Kv brushless motor
• Installed Spektrum SLT 45A 2-in-1 waterproof ESC/receiver with DSC
• Installed Spektrum S681 metal-geared waterproof digital servo
• Spektrum SLT2 2.4GHz transmitter
• Four AA transmitter batteries
• 2 mm hex driver
• 2.5 mm hex driver
• Wheel wrench/shock tool
• Instruction manual

NEEDED TO COMPLETE

• One compatible 2S or 3S hardcase LiPo battery with IC5 connector
• Compatible LiPo balance charger
• LiPo charging bag

GASHEAD RC SETUP NOTES

• Begin with 2S power if you are learning rear-wheel-drive brushless control or driving on a limited-size surface
• Check wheel nuts, steering movement and battery retention before every run
• After dusty or damp use, clean and dry the chassis before storage
• Allow the motor and ESC to cool between hard runs, especially in hot weather

RTR VEHICLE: transmitter batteries are included. The vehicle battery, charger and LiPo charging bag are sold separately.
