CKD0201 – CEN KAOS CENTER FRONT UNIVERSAL JOINT SHAFT – DL-SERIES

CEN KAOS CENTER FRONT UNIVERSAL JOINT SHAFT – DL-SERIES – CKD0201

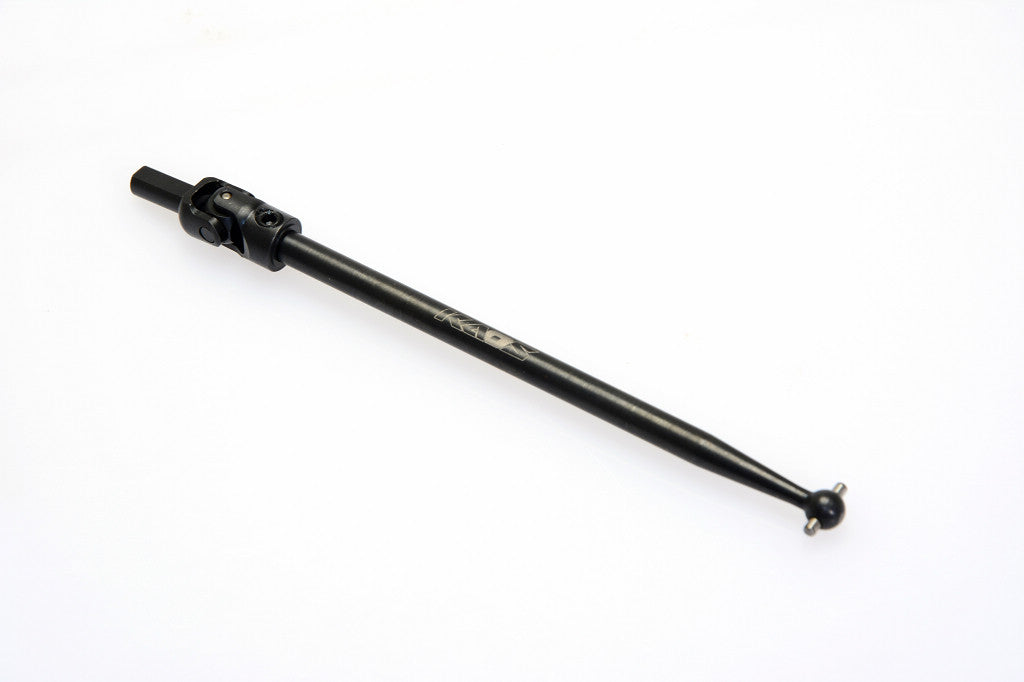

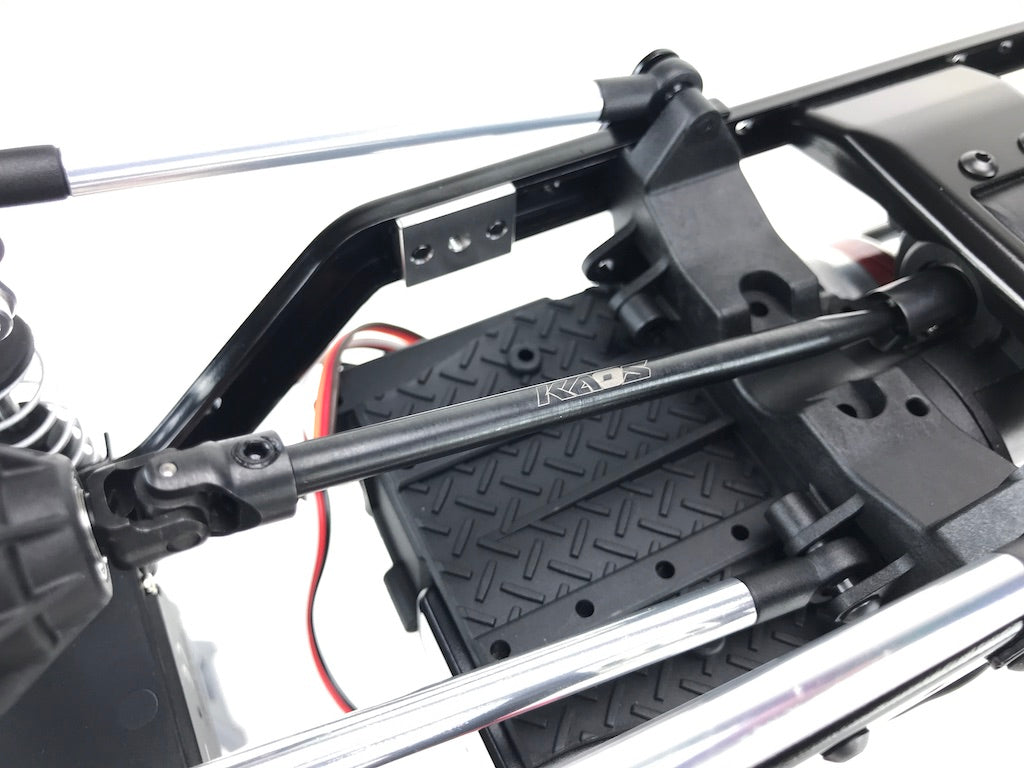

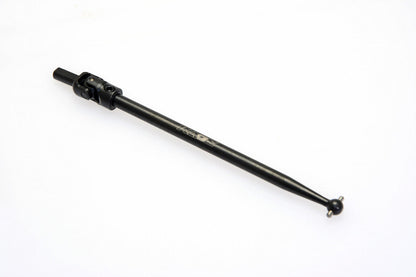

The CEN Racing CKD0201 KAOS Center Front Universal Joint Shaft is an upgraded front center driveshaft component for the DL-Series platform. Its role is to transmit torque from the center driveline toward the front axle while accommodating the angular movement created by suspension travel and chassis-to-axle geometry.

DL-SERIES / F-450 SD APPLICATION

CEN catalogs CKD0201 within its KAOS DL-Series / F-450 SD upgrade parts range. This should be treated as a platform-specific driveline component rather than a universal driveshaft. Suspension height, transmission position, axle position and aftermarket lift geometry all influence the shaft length and operating angle required by a build.

• Manufacturer: CEN Racing
• Part Number: CKD0201
• Series: KAOS / DL-Series
• Component Type: Center Front Universal Joint Shaft
• Driveline Position: Front center driveline

WHY UNIVERSAL-JOINT ARTICULATION MATTERS

A center shaft must do more than simply transfer torque. As the front axle moves through suspension travel, the shaft angle and effective distance between mounting points change. The universal-joint geometry allows the driveline to continue transmitting power while those angles vary.

Working angle still matters. Excessive joint angle can increase cyclic speed variation, vibration, wear and joint loading. A lifted chassis or modified suspension can therefore create driveline issues even when the shaft physically bolts in.

LIFT-KIT COMPATIBILITY CAUTION

CEN does not publish a universal compatibility claim for aftermarket lift kits. One customer review on CEN's own CKD0201 product page specifically reports that the shaft was too short with an H-Tech V2 lift kit and required modification to work. That is a user-reported installation experience, not a manufacturer specification, but it is relevant evidence that altered ride height can move the driveline outside the stock shaft's intended geometry.

If the truck is lifted or has non-stock suspension links, measure the actual mounting-point distance at ride height, compression and droop before assuming CKD0201 will fit correctly.

DRIVELINE ANGLE & PHASING

Universal-joint drivetrains are sensitive to geometry. If the front shaft runs at a steeper angle after a suspension modification, the joint may operate closer to its articulation limit. Poor phasing or excessive angularity can present as vibration, pulsing, noise or accelerated pin/joint wear.

When diagnosing a vibration after installation, do not immediately assume the shaft itself is defective. Check axle pinion angle, transmission output angle, shaft phasing, joint freedom, mounting hardware and whether the shaft is bottoming out or running near the end of its usable extension.

INSTALLATION CHECKLIST

• Confirm the application is a compatible CEN DL-Series / F-450 SD driveline.
• Compare the new shaft to the original before installation.
• Verify both joint ends articulate freely with no notchiness or binding.
• Check the shaft has sufficient engagement at normal ride height.
• Cycle the suspension through full compression and droop before powering the truck.
• Make sure the shaft does not bottom out at compression.
• Make sure it does not pull apart or lose adequate engagement at droop.
• Check universal-joint operating angle throughout suspension travel.
• Confirm retaining hardware is fully seated and secure.
• After installation, rotate the driveline by hand and feel for tight spots before applying motor power.

SYMPTOMS OF INCORRECT DRIVELINE GEOMETRY

• Vibration that increases with speed: can indicate excessive shaft angle, phasing issues, bent components or poor alignment.
• Clicking or binding: may indicate a joint reaching its articulation limit.
• Shaft separating at droop: indicates insufficient engagement or excessive effective driveline length.
• Shaft bottoming at compression: can transfer axial load into bearings, transmission outputs or axle inputs.
• Rapid joint wear: can result from high operating angles, contamination, loose hardware or sustained binding.

MAINTENANCE

Inspect the universal joints and retaining hardware periodically, especially after trail use or after changing suspension geometry. Remove dirt and abrasive debris from the joint area, check for increasing rotational play, and investigate new vibration before continued use turns a small driveline issue into damage elsewhere in the transmission or axle.

WHAT CEN DOES NOT PUBLISH

CEN's current CKD0201 listing does not publish overall shaft length, collapsed/extended length, shaft diameter, joint operating-angle limit or detailed material specification. GASHEAD RC does not invent those values. Custom or lifted applications should therefore be physically measured rather than fitted by assumption.

GASHEAD RC NOTE

For a stock-geometry DL-Series build, CKD0201 is a purpose-built KAOS front center universal shaft upgrade. On a lifted or heavily modified truck, the important question is not simply whether the mounting ends match—it is whether the shaft maintains safe engagement and joint angle through the complete suspension cycle.
