FMS FCX10 CHEVROLET K5 BLAZER RS 1/10 4WD CRAWLER RTR

The officially licensed FMS FCX10 Chevrolet K5 Blazer RS combines classic American truck design with one of FMS’s most function-rich 1/10 crawler platforms. Beneath the scale Chevrolet body is a metal-rail FCX10 chassis equipped with portal axles, a two-speed transmission, remotely locking front and rear differentials and configurable DIG/drive-mode functions for technical trail work.

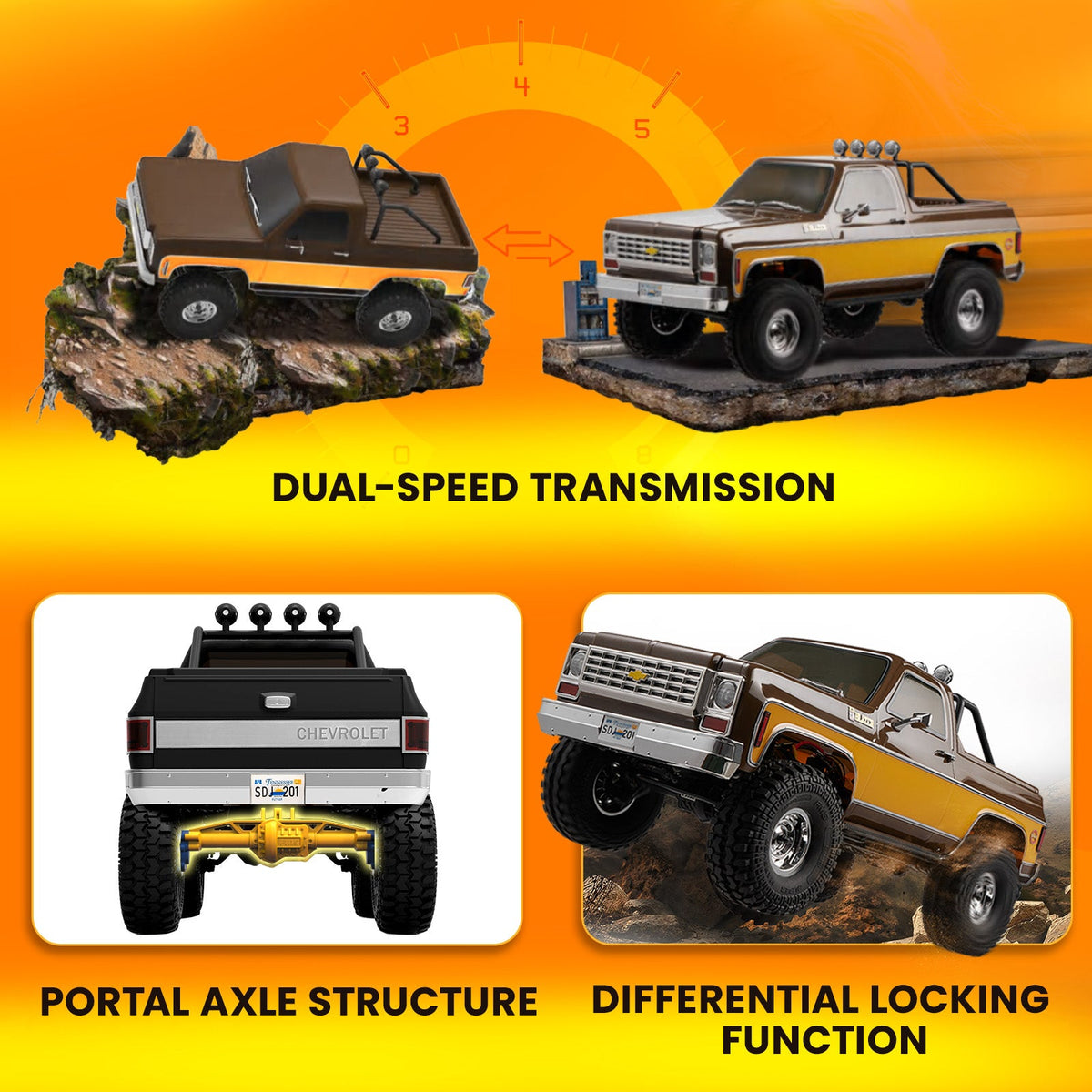

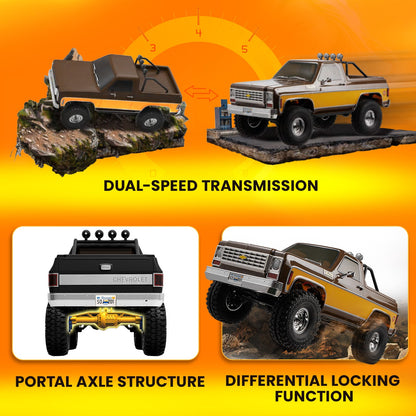

FCX10 DRIVETRAIN CAPABILITY

• Two-speed transmission: use low range for controlled crawling torque and high range for faster trail sections
• Portal axles with metal gears: improve ground clearance at the axle housings while maintaining a stable chassis position
• Independently controlled front and rear differential locks: select open differentials for easier steering or lock them for maximum traction

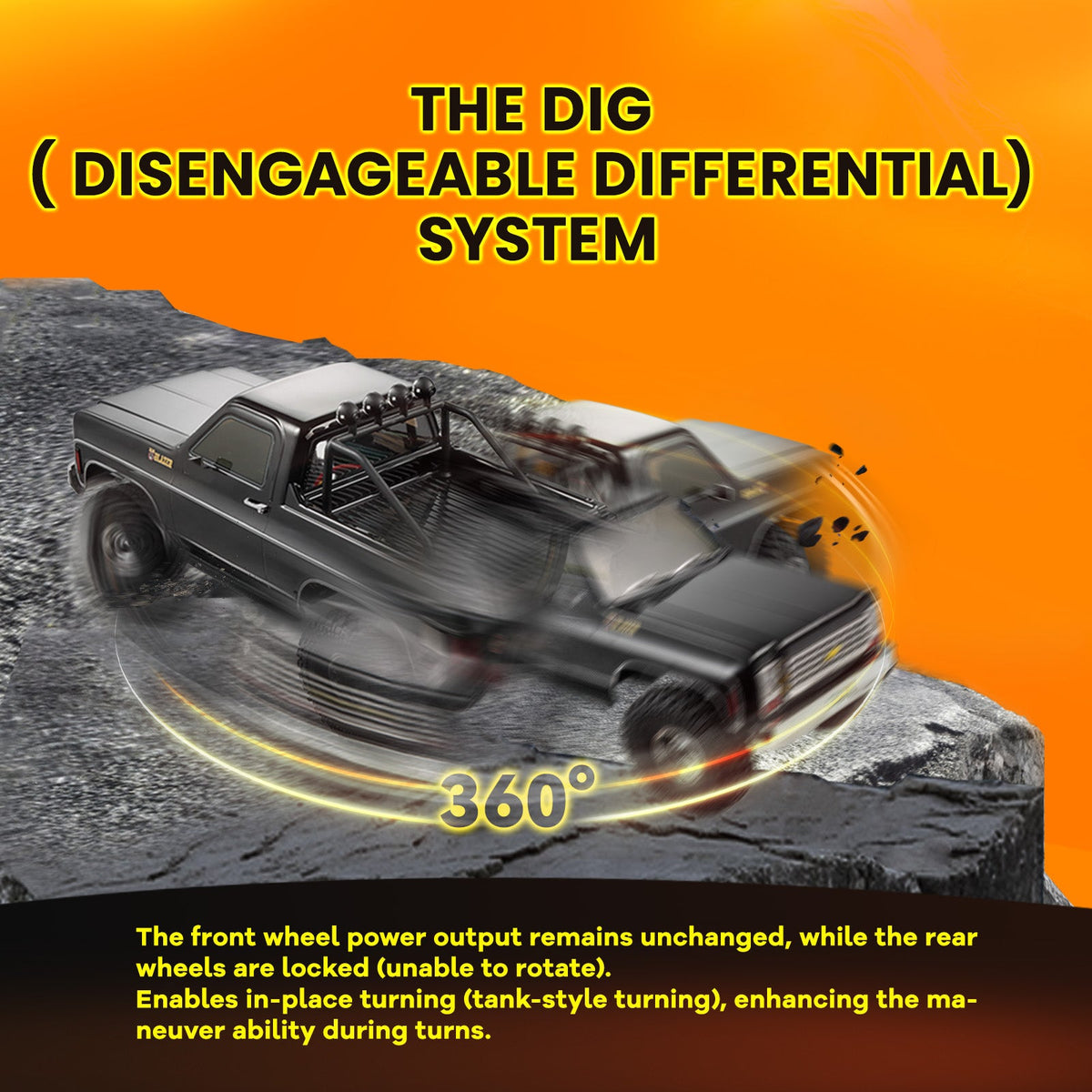

• Rear DIG function: disengages and locks the rear axle while retaining front-wheel power to tighten the turning radius on technical obstacles

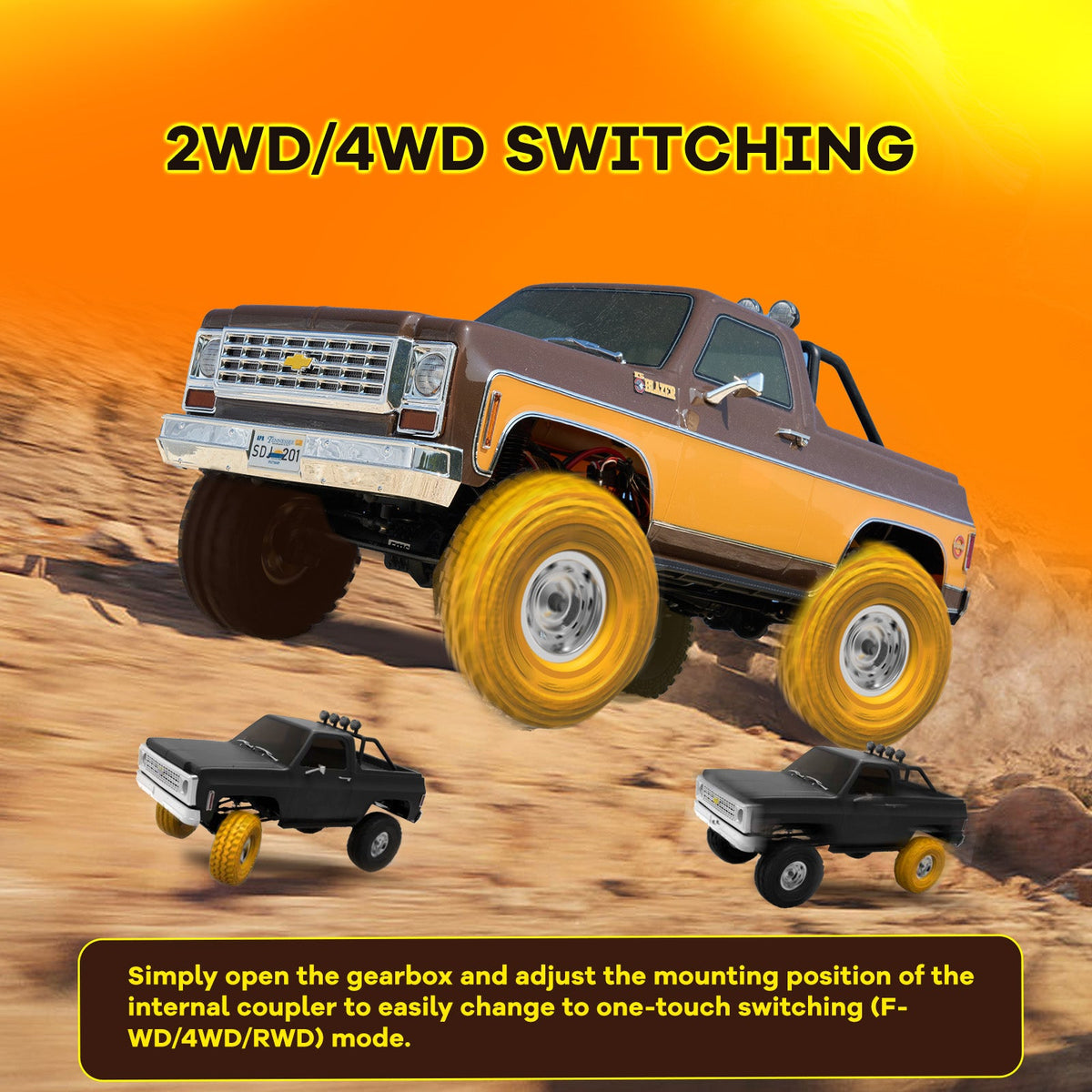

• Configurable three-position drive selector: the internal driveline can be manually configured for DIG/4WD/FWD or FWD/4WD/RWD operation
• The alternate drive-mode arrangement requires manual internal setup; it is not an automatic electronic conversion

CHASSIS & SUSPENSION

• Rigid metal frame rails for a realistic ladder-chassis foundation
• Four-link solid-axle suspension
• Metal threaded shock absorbers with adjustable spring preload
• Full metal gear set throughout the drivetrain
• Full ball-bearing support
• High-clearance portal axle geometry
• 120 × 46 mm crawler tires

POWER & RADIO SYSTEM

• 550 brushed motor tuned for trail torque and smooth low-speed operation
• Installed 2-in-1 electronic speed control and receiver

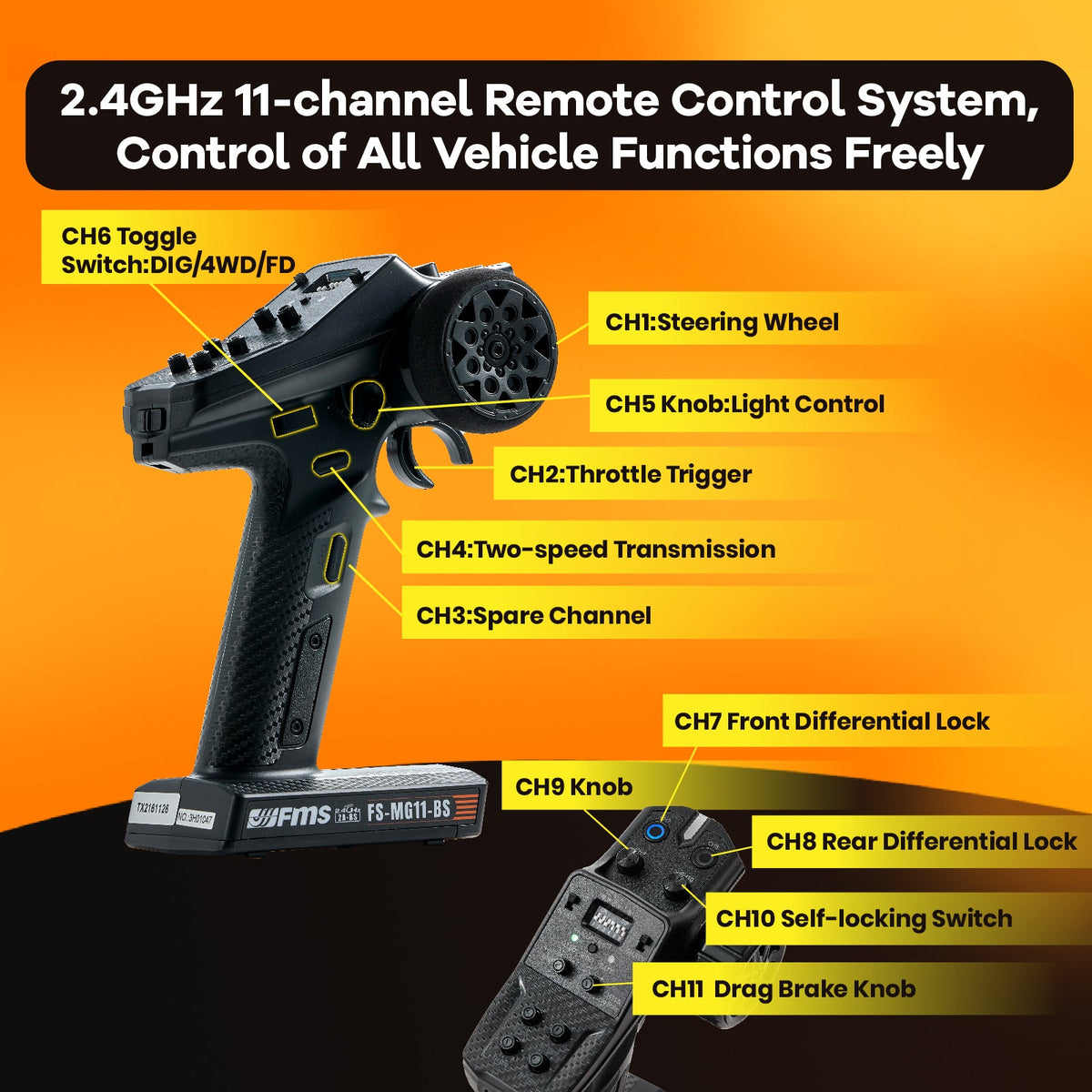

• 2.4GHz 11-channel transmitter controls steering, throttle, transmission, differential locks, lighting and auxiliary functions
• Manufacturer-rated radio range up to 150 m in open conditions

CHEVROLET SCALE BODY

• General Motors/Chevrolet-authorized K5 Blazer body
• Classic upright grille, square body lines and period-style trim
• Magnetic lighting power connection between chassis and body

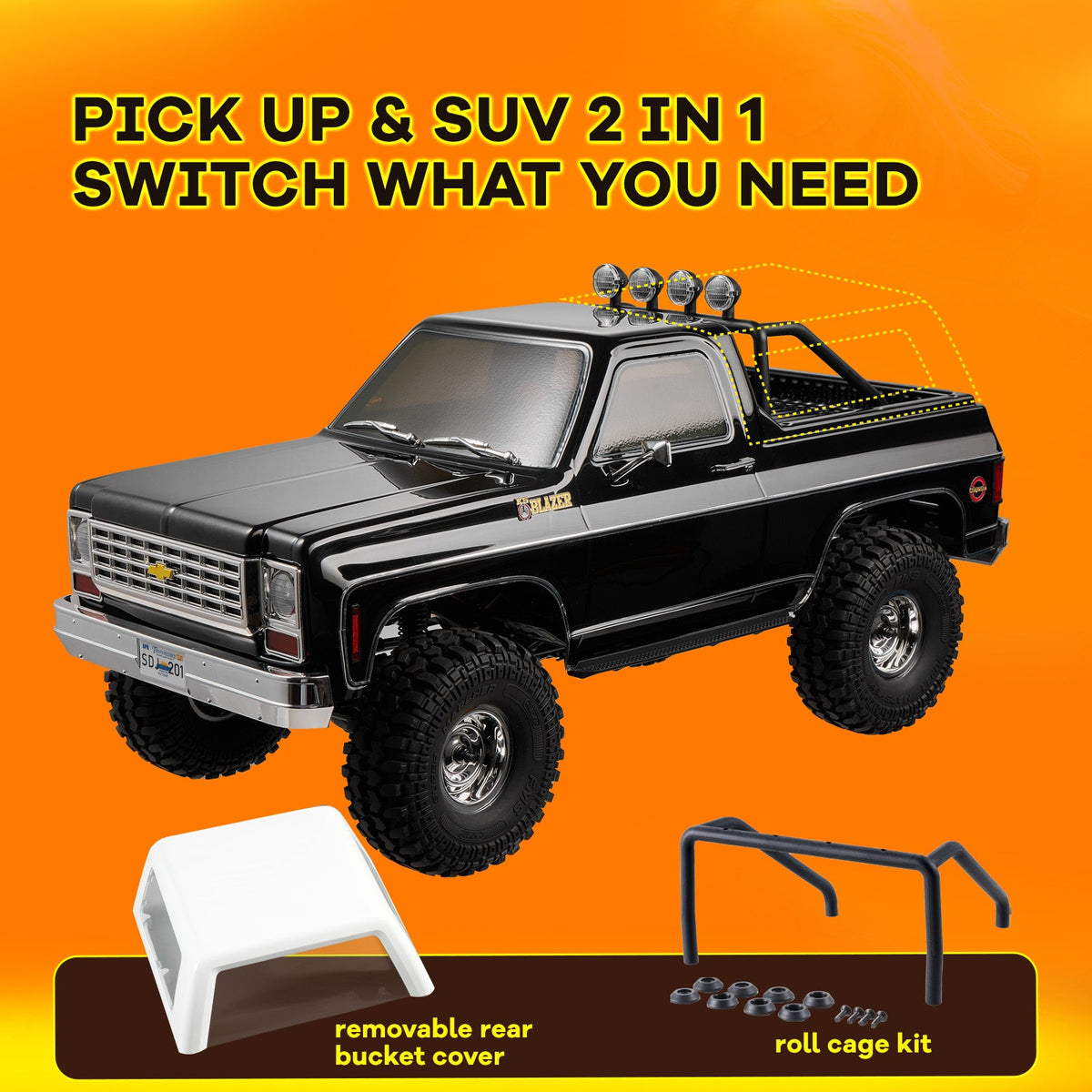

• Removable rear cargo cover and roll-cage components
• Convertible presentation: configure the body as a covered SUV or open pickup-style truck
• Available in Orange, Black and Brown

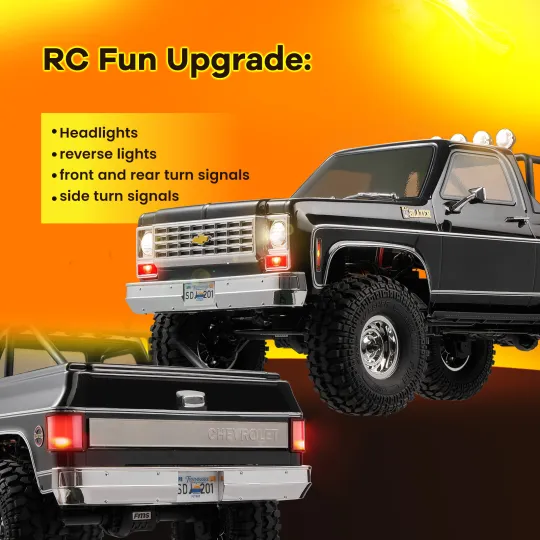

REMOTE-CONTROLLED LIGHTING

• Headlights
• Front turn signals
• Side turn signals
• Rear turn signals
• Reverse lights
• Lighting functions can be activated from the transmitter
• Roof-mounted spotlights are decorative and do not illuminate

COLORS & SKU

• Black — FMS11001RSBKGF
• Orange — FMS11001RSORGF
• Brown — FMS11001RSBRGF

SPECIFICATIONS

BATTERY FITMENT

• Recommended vehicle battery: 2S 7.4V 2000mAh LiPo with XT60 connector
• Battery compartment: 140 × 47 × 30 mm
• Use a compatible balance charger and LiPo charging bag
• Some production batches may not include an XT60 extension cable; this does not prevent normal operation

IN THE BOX

• FMS FCX10 Chevrolet K5 Blazer RS Ready Set
• 11-channel 2.4GHz transmitter
• Installed 2-in-1 ESC/receiver
• Installed 550 brushed motor
• Pre-installed lighting system
• Removable rear cargo cover
• Fender set
• Roll-cage components
• Product manual

NEEDED TO COMPLETE

• One compatible 2S LiPo battery with XT60 connector
• Compatible LiPo balance charger and charging bag
• Four AA batteries for the transmitter

GASHEAD RC SETUP NOTES

• Confirm the manually selected drive-mode layout before using the transmitter’s three-position selector
• Use DIG only at low speed on technical terrain; avoid applying heavy throttle with the rear axle locked
• Unlock the differentials for normal trail steering and lock them only when additional traction is needed
• After mud or water exposure, clean and dry the portal housings, links and driveline before storage

READY SET: vehicle battery, charger, charging bag and four AA transmitter batteries are not included.
