RC4WD 5 LUG DEEP DISH WAGON 1.9" STEEL STAMPED BEADLOCK WHEELS – BLACK / PLAIN / WHITE (4) – Z-W0243
RC4WD 5 LUG DEEP DISH WAGON 1.9" STEEL STAMPED BEADLOCK WHEELS – BLACK / PLAIN / WHITE (4) – Z-W0243
SKU:Z-W0243
Low stock
Couldn't load pickup availability
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
DEEP-DISH SCALE STYLE WITH FUNCTIONAL STAMPED-STEEL BEADLOCK CONSTRUCTION
These RC4WD 5 Lug Deep Dish Wagon wheels bring a wide, period-correct wagon-wheel stance to 1.9-inch scale trucks. The wheel shells are stamped steel, the precision parts are CNC-machined, and the beadlock assembly mechanically captures compatible tire beads. The result is a highly detailed wheel with real metal construction and the visual depth expected from a proper deep-dish setup.
This listing contains three finish variants. Select Black, Plain or White before adding to cart. Each selection includes one set of four wheels in the chosen finish; the three finishes are not supplied together.
| Variant | RC4WD SKU | Quantity | Weight |
|---|---|---|---|
| Black | Z-W0243 | 4 wheels | 78 g / 2.75 oz each |
| Plain | Z-W0244 | 4 wheels | 78 g / 2.75 oz each |
| White | Z-W0242 | 4 wheels | 78 g / 2.75 oz each |
FACTORY SPECIFICATIONS — ALL THREE VARIANTS
- Wheel size: 1.9 in
- Outside diameter: 53.0 mm / 2.09 in
- Width: 32.0 mm / 1.26 in
- Center-hole diameter: 4.0 mm / 0.16 in
- Negative offset: 12.86 mm / 0.51 in
- Mounting interface: standard 12 mm hex
- Wheel shell: stamped steel
- Precision components: CNC-machined parts
- Weight: 78 g / 2.75 oz per wheel
Setup implication: a four-wheel set weighs approximately 312 g before tires, foams and hardware. That metal mass can help lower a crawler’s center of gravity, but it also increases rotating and unsprung mass. Gear ratio, motor temperature, braking response and suspension behavior should be checked on the completed vehicle.

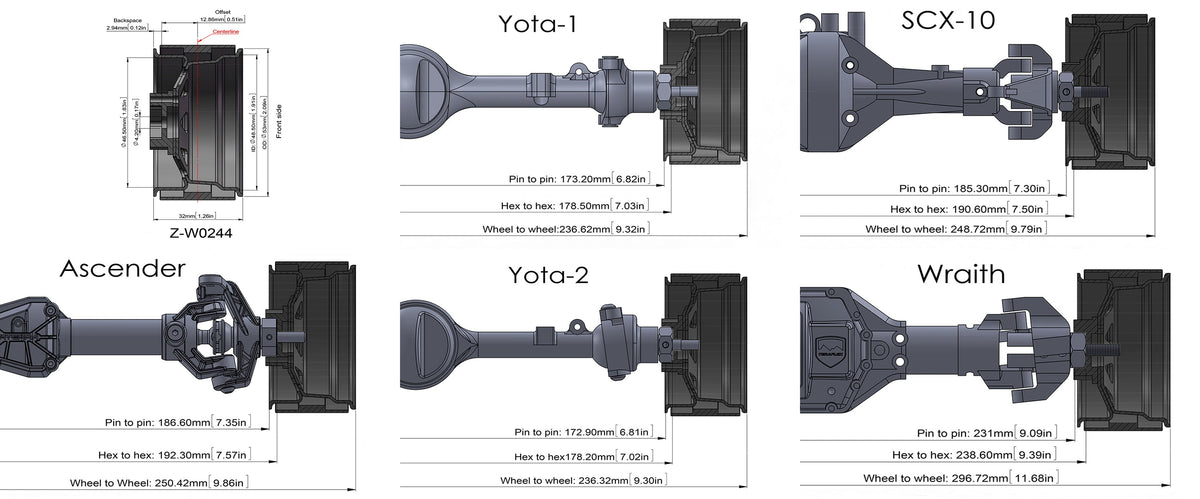

Offset note: the published 12.86 mm negative offset creates the deep-dish stance. Actual track width and clearance still depend on the selected hub, axle hex, tire width, body and steering geometry.

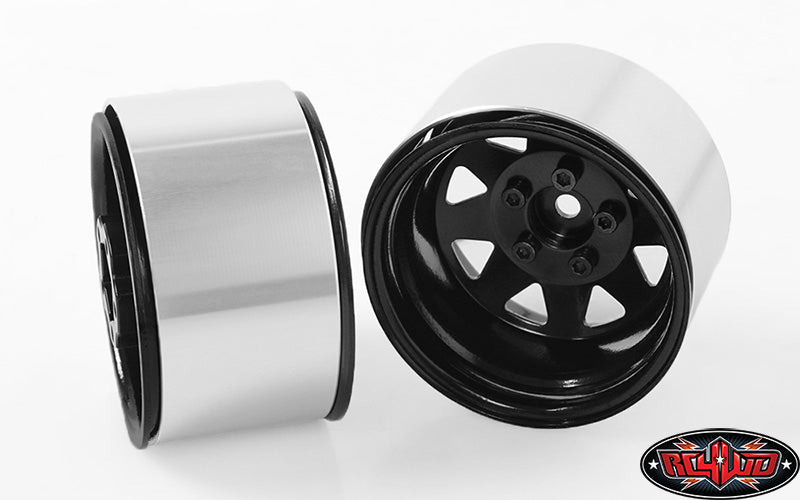

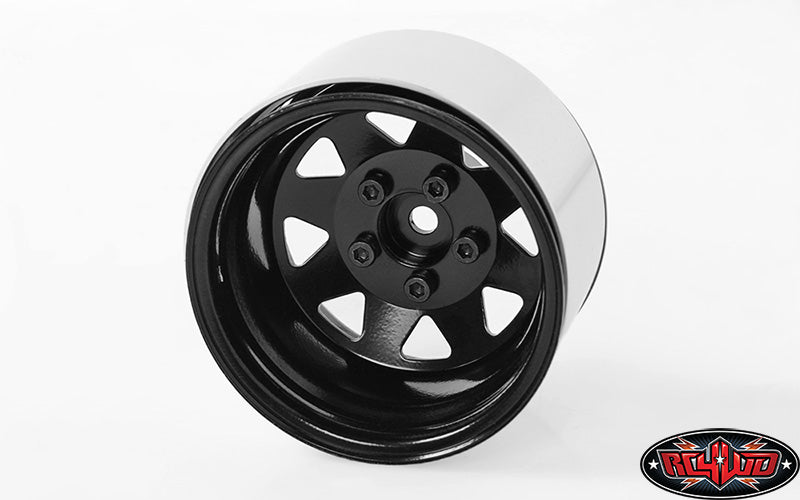

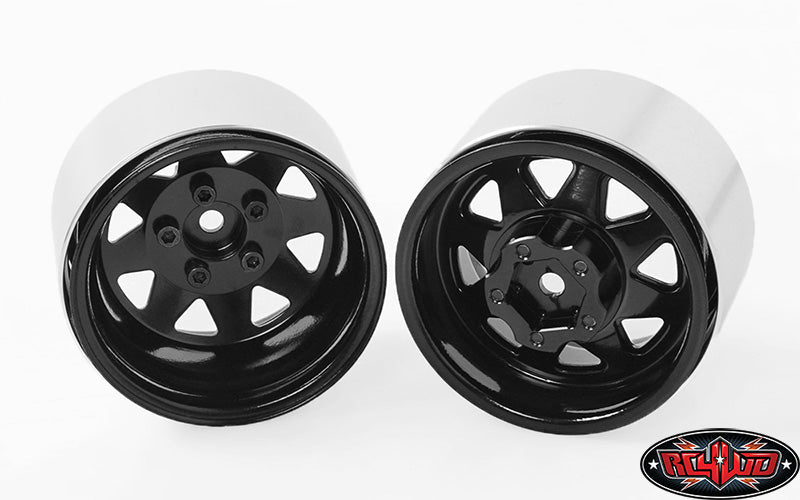

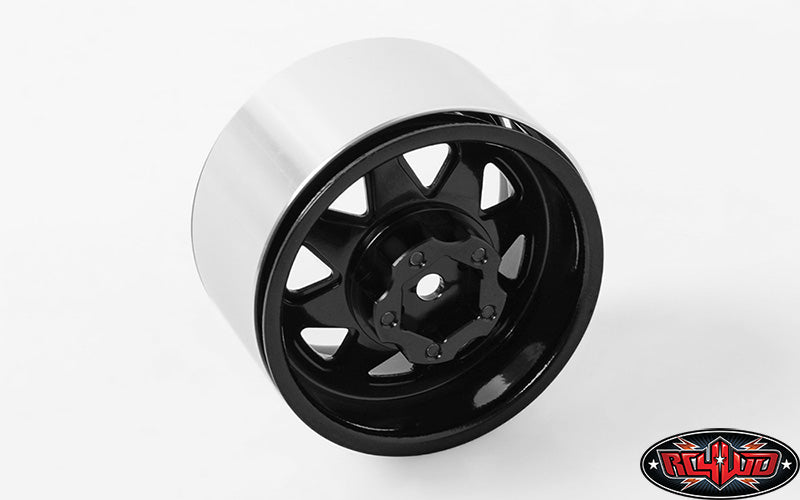

BLACK — Z-W0243
The black finish gives the deep-dish design a classic utility and trail-truck appearance while keeping the visible 5-lug center and stamped contours understated.

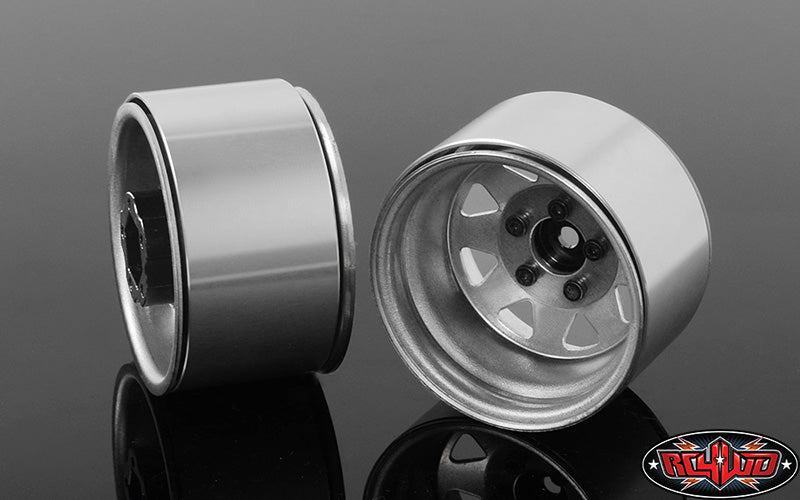

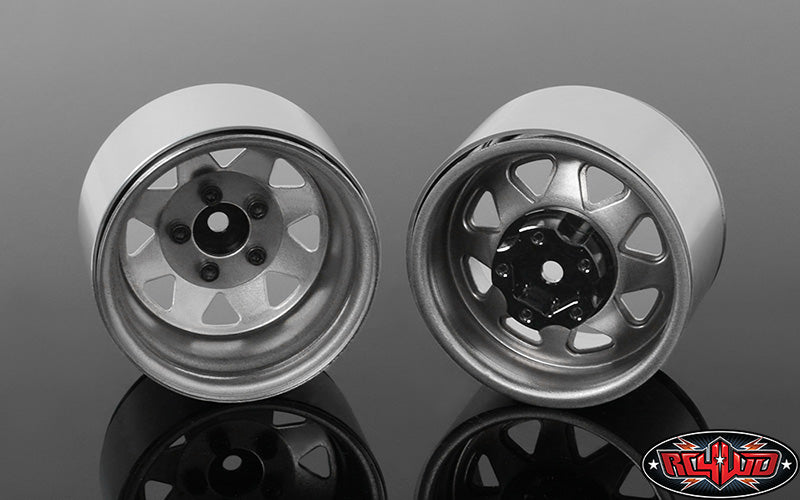

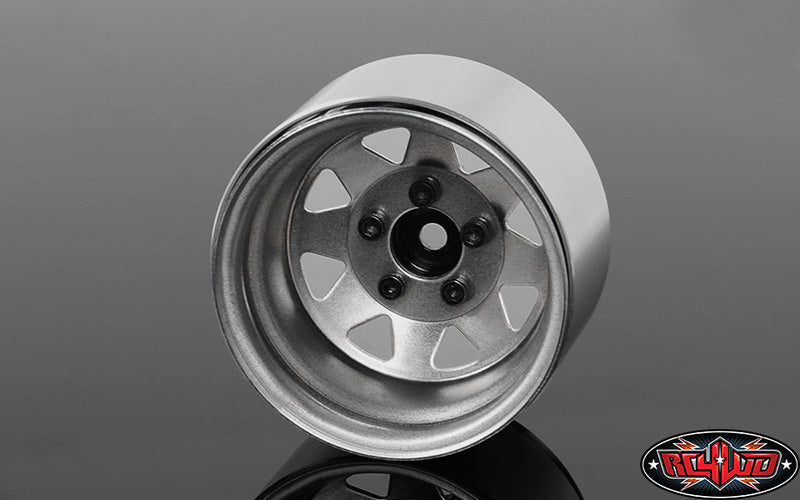

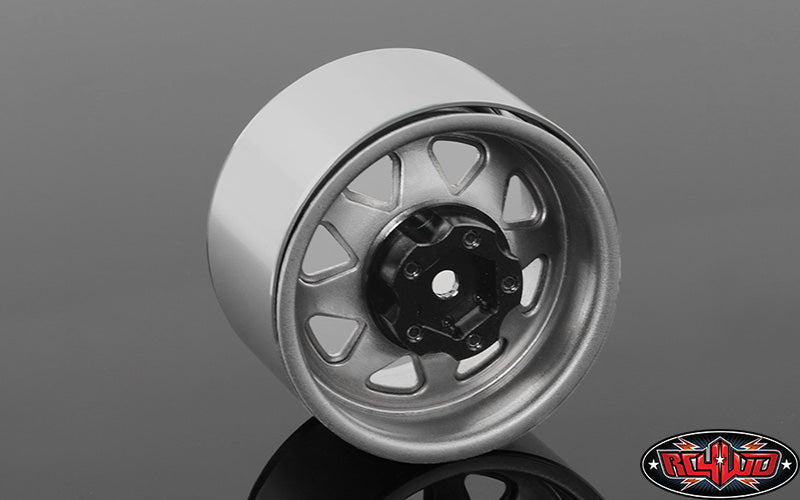

PLAIN — Z-W0244
The Plain variant leaves the steel-look presentation front and center. It uses the same dimensions, weight, beadlock construction and 12 mm hex mounting specification as the finished versions.

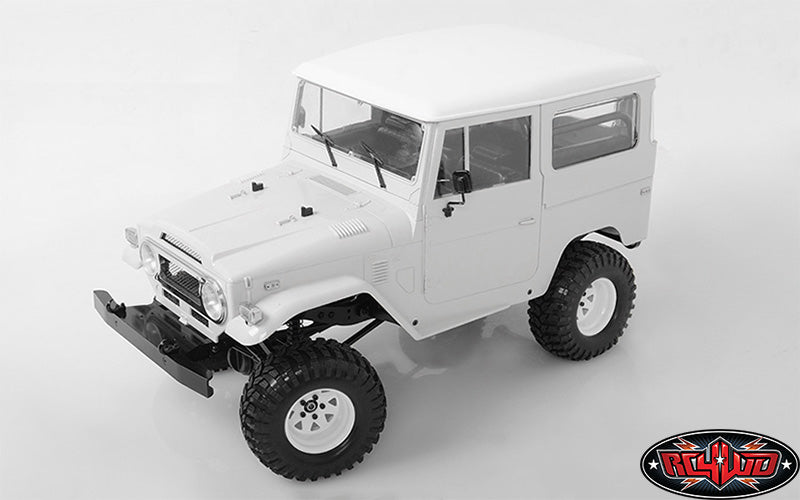

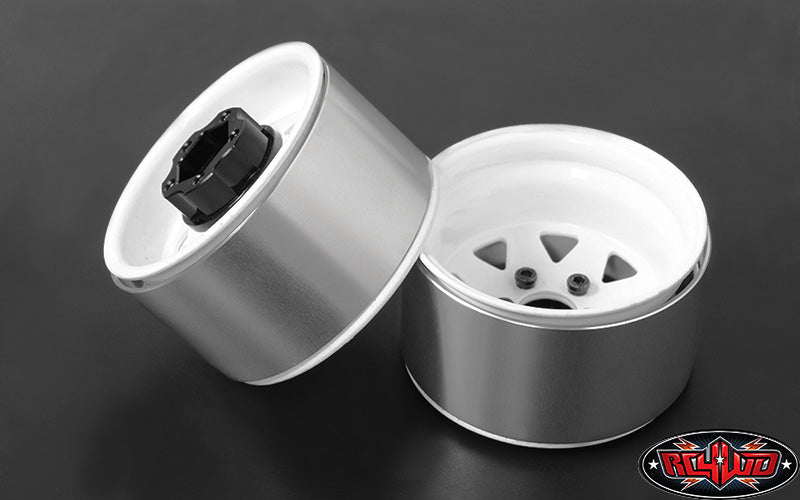

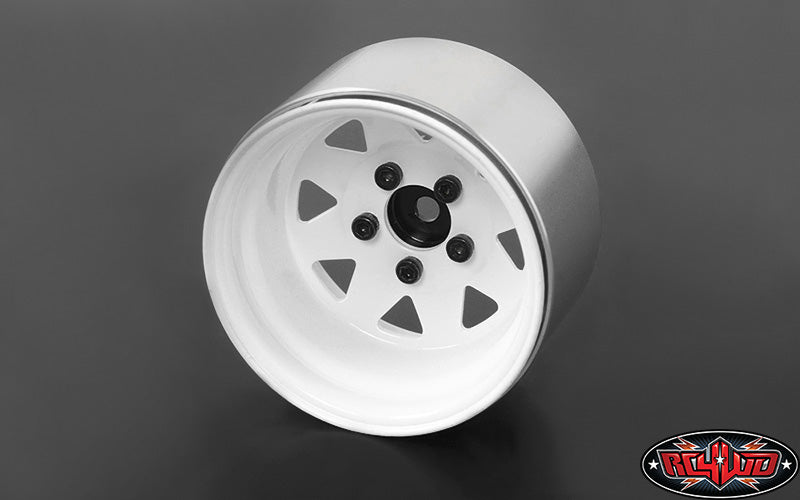

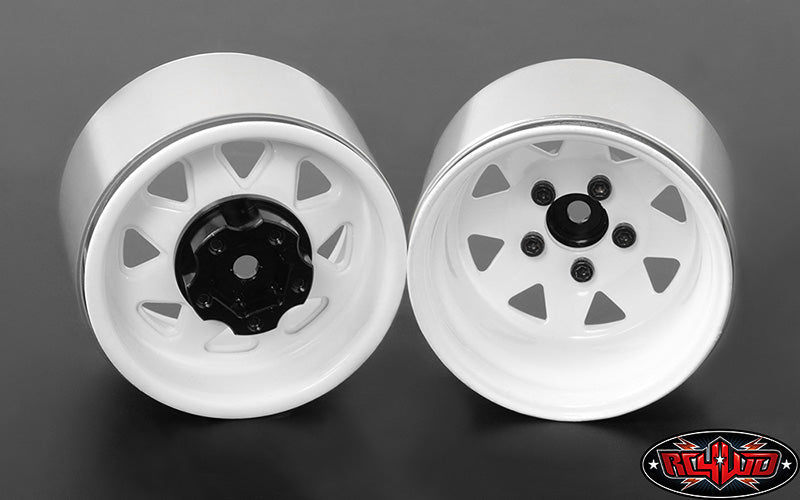

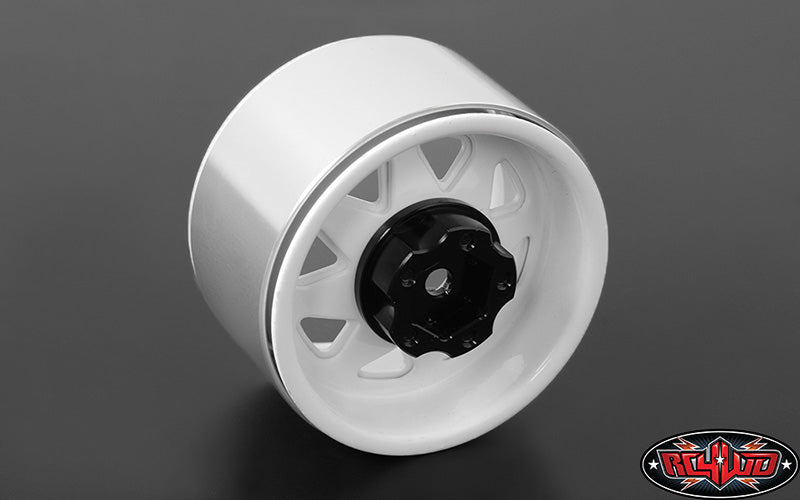

WHITE — Z-W0242
The white finish suits vintage utility trucks, classic off-road builds and period-correct trailer combinations. Dimensions and mounting requirements remain identical to the other variants.
HUB AND AXLE OPTIONS
The stock configuration is specified for a standard 12 mm hex. RC4WD also lists the following compatible mounting and offset components:
- Z-S0734 — 1.9 5 Lug Steel Wheel Hex Hub
- Z-S1273 — 1.9/2.2 5 Lug Steel Wheel Hex Hub +3 Offset; listed by RC4WD as the replacement hub
- Z-S1276 — 1.9/2.2 5 Lug Steel Wheel Hex Hub +6 Offset
- Z-S1278 — 1.9/2.2 5 Lug Steel Wheel Hex Hub +9 Offset
- Z-S0239 — RC4WD 12 mm Axle Wheel Hexes
- Z-S0238 — RC4WD 12 mm Axle Wheel Hex Set
- Z-S0449 — Bully 2 12 mm Front Axle Hex
- Z-S1941 — Narrow Stamped Steel Wheel Pin Mount, 5-lug, for 1.9 wheels
Do not select a hub by name alone. Confirm axle interface, wheel position, thread engagement and clearance. A different hub can move the wheel inboard or outboard and may create contact with the body, steering knuckle, links or shocks.
TIRE COMPATIBILITY
These are 1.9-inch beadlock wheels. RC4WD confirms compatibility between its own wheel and tire systems, but does not guarantee every mixed-brand combination because bead thickness, bead shape and carcass construction vary.

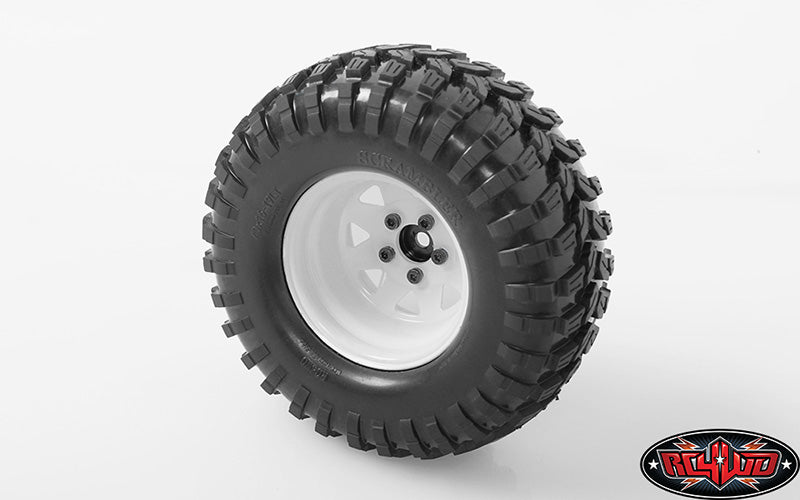

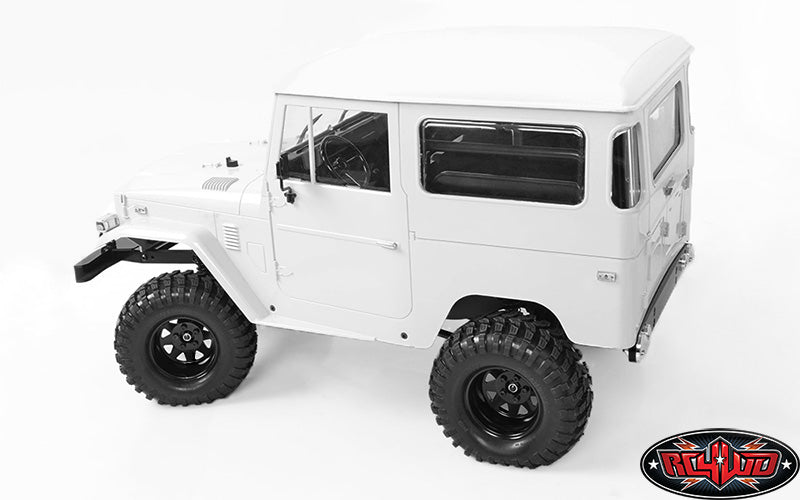

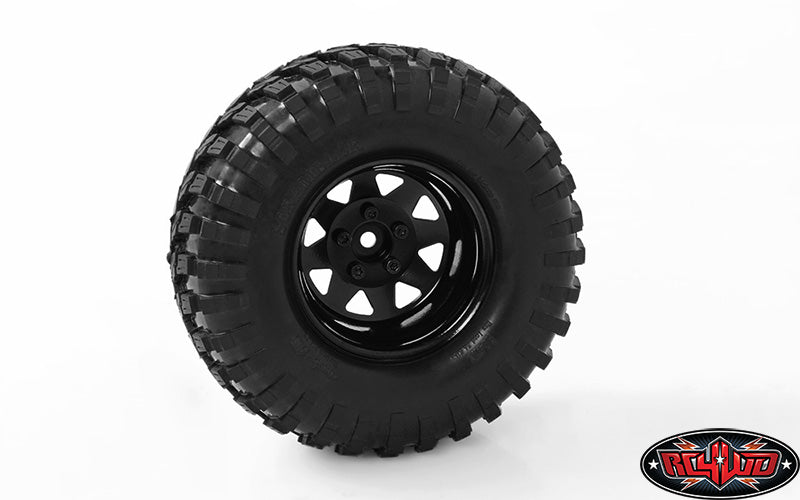

- Verified black and white example: RC4WD Scrambler Offroad 1.9 Scale Tires, Z-T0144.

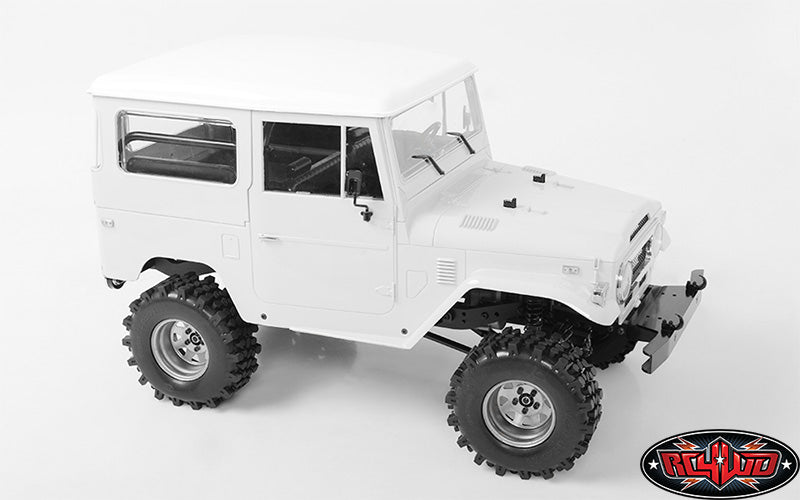

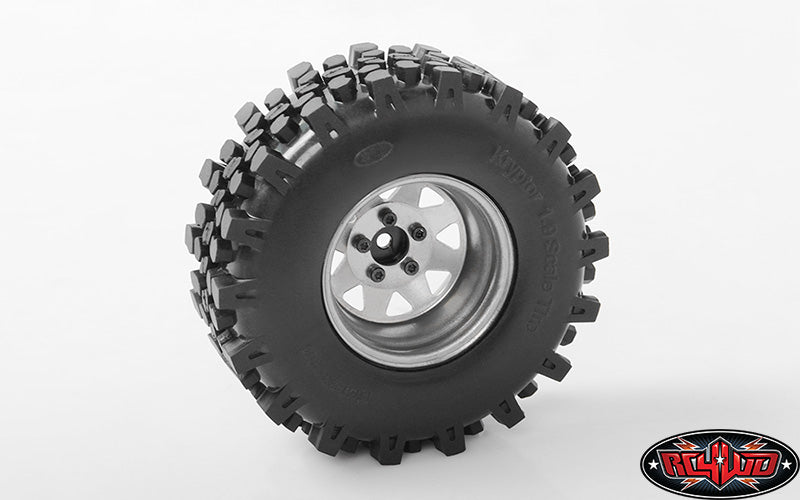

- Verified plain-wheel example: RC4WD Krypton 1.9 Scale Tires.
- Third-party tires should be dry-fitted and inspected for even bead capture before use.
WHAT IS INCLUDED
- 4 × RC4WD 5 Lug Deep Dish Wagon 1.9 Steel Stamped Beadlock Wheels in the selected finish
- 2 × M2.5 × 14 mm black socket-head cap screws
Not included: tires, foams, vehicle, axles, optional hubs, alternate axle hexes, tools and any surrounding accessories shown in the manufacturer images.
REPLACEMENT HARDWARE
- Z-S1290 — M2.5 × 10 mm black steel socket-head cap screws, manufacturer-listed replacement hardware
BEADLOCK ASSEMBLY CHECKLIST
- Confirm the tire is a 1.9-inch model with a bead profile suitable for the wheel.
- Seat both tire beads evenly around the internal beadlock assembly.
- Bring the wheel sections together without twisting or pinching the bead.
- Start every fastener by hand. Tighten gradually in an alternating pattern so the ring closes evenly.
- Inspect the full circumference on both sides. No section of bead should be pulled out, folded or visibly uneven.
- Install the correct hub or 12 mm hex arrangement and verify adequate axle-thread engagement.
- Rotate the wheel by hand through full steering and suspension travel before powering the vehicle.
- Recheck wheel and beadlock hardware after the first drive and periodically during maintenance.
RC4WD does not publish a tightening torque on these product pages. Use correctly sized tools and avoid overtightening the small fasteners.
GASHEAD RC FITMENT NOTE
Wheel diameter is only the first compatibility check. The tire bead, 32 mm wheel width, 12.86 mm negative offset, hub choice, axle hex and available body or steering clearance all matter. When mixing brands or changing hubs, test-fit the complete wheel-and-tire assembly before committing to the final setup.
Specifications, compatible parts and example installations are based on the official RC4WD product information for Z-W0243, Z-W0244 and Z-W0242. Each manufacturer image is grouped with its correct finish; optional components shown are not included.
