RC4WD TRAIL FINDER 2 1985 TOYOTA 4RUNNER RTR 1/10 – RED

RC4WD TRAIL FINDER 2 RTR W/1985 TOYOTA 4RUNNER HARD BODY SET – RED

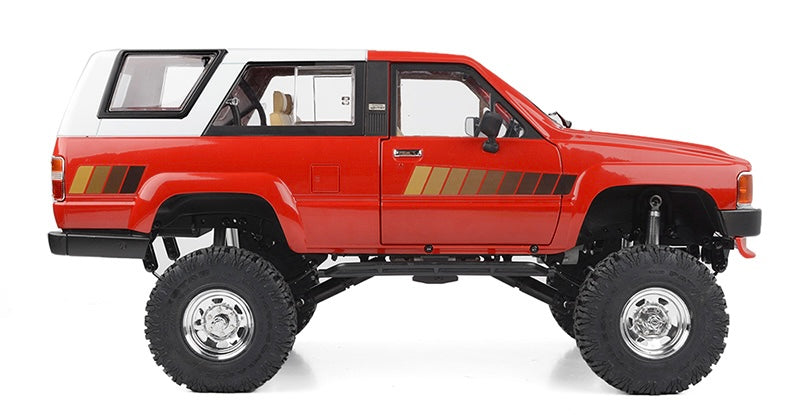

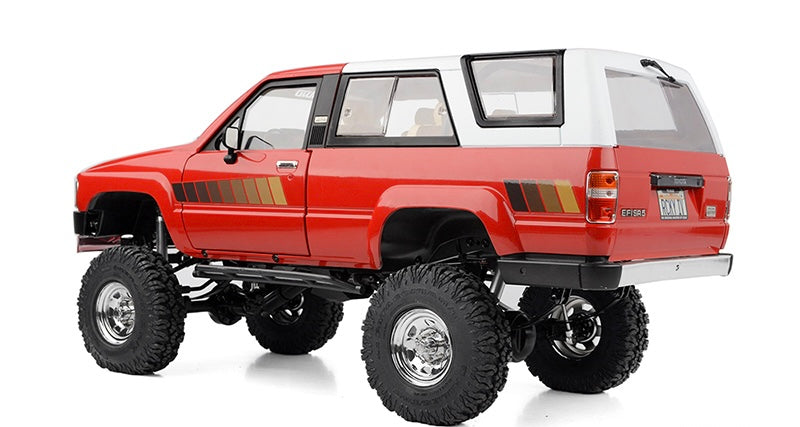

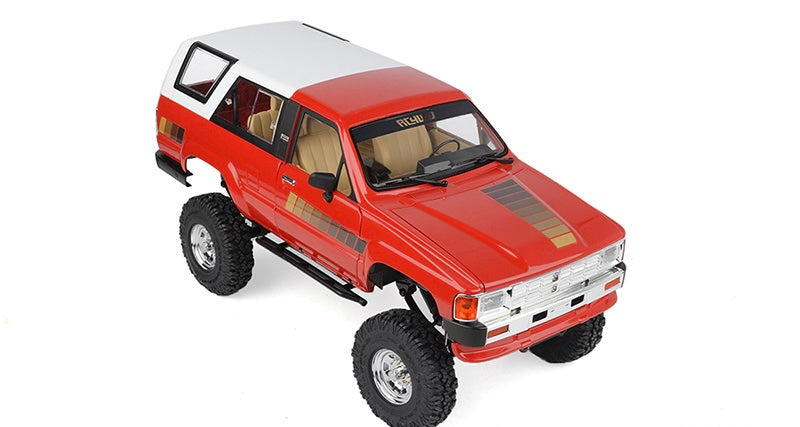

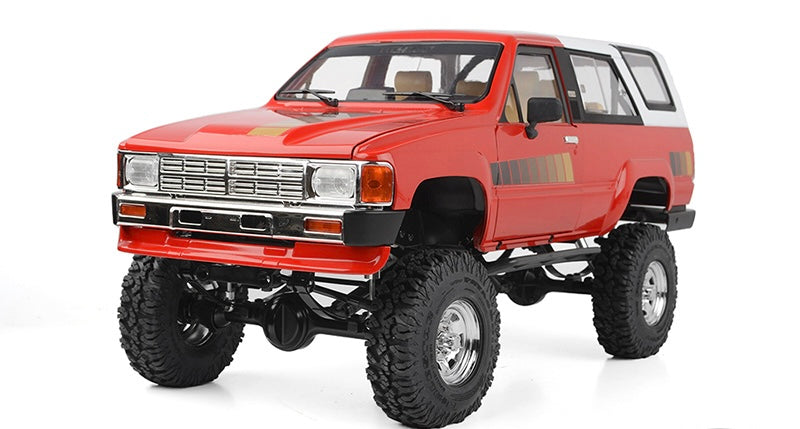

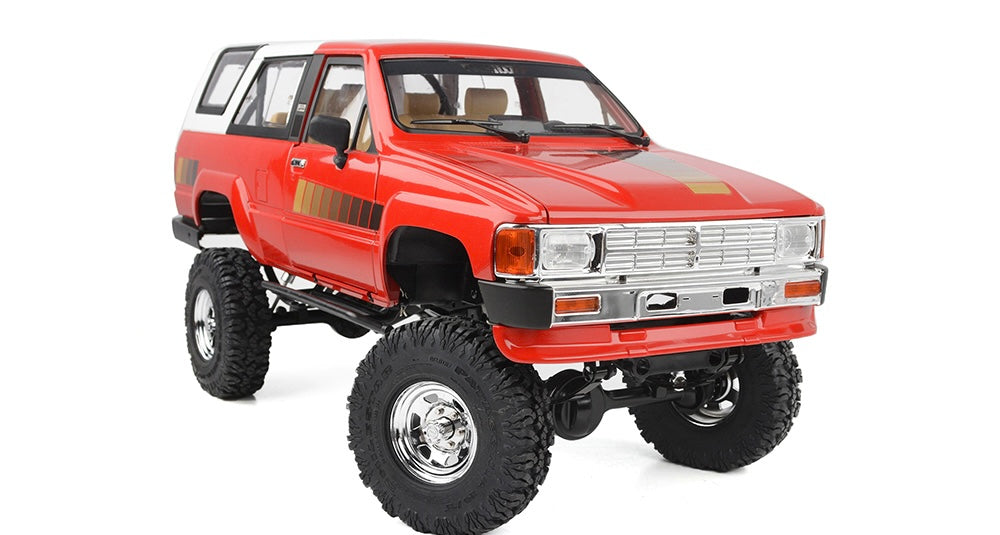

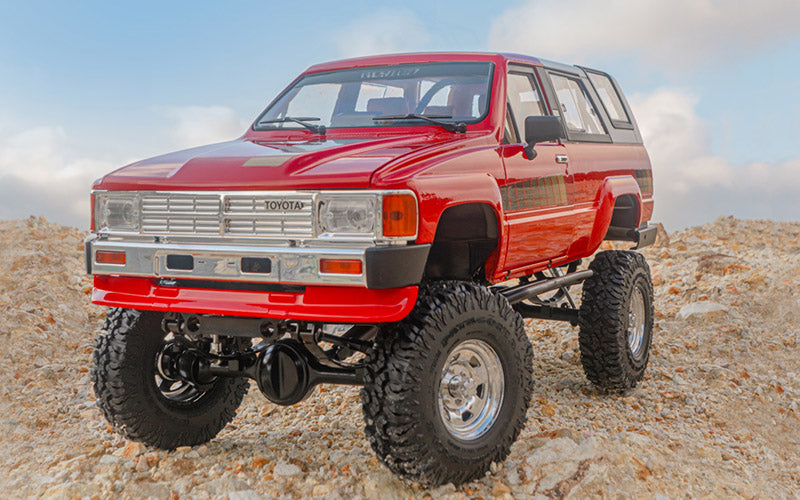

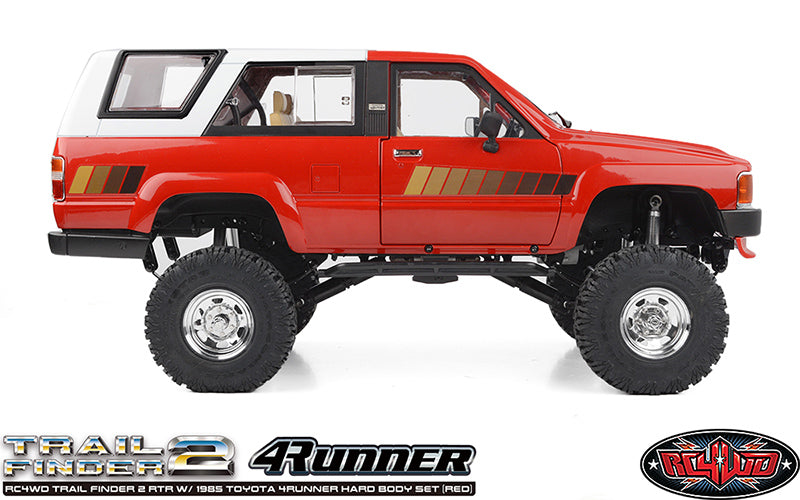

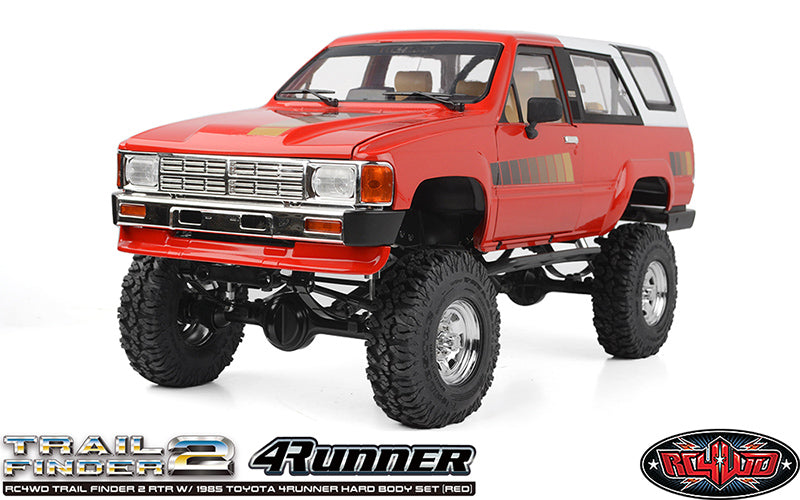

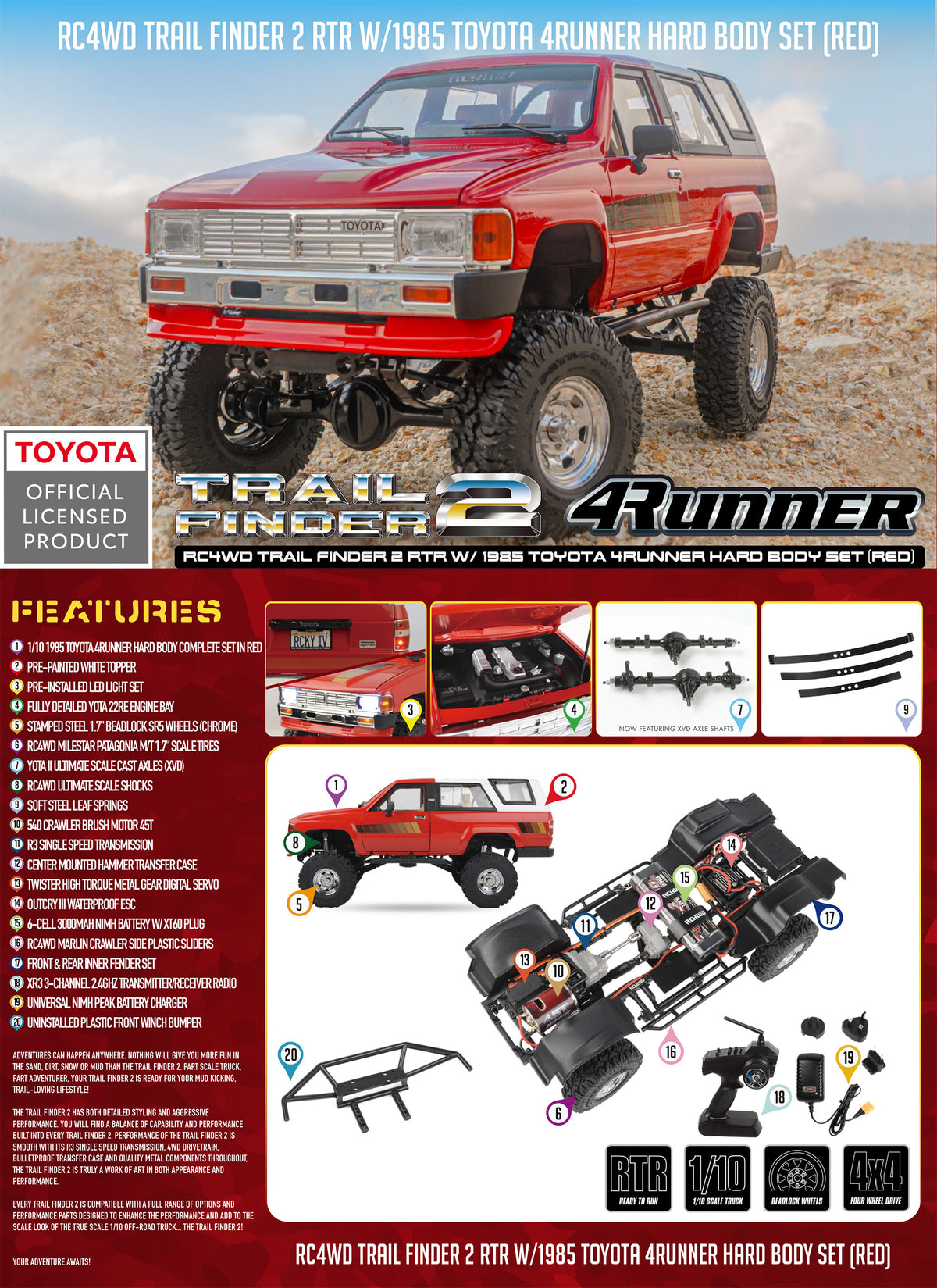

The RC4WD Trail Finder 2 1985 Toyota 4Runner RTR combines an officially licensed, highly detailed Toyota hard body with the leaf-sprung TF2 scale-trail platform. Finished in red with a pre-painted white removable topper, this 1/10 RTR is built around a billet-aluminum ladder frame, R3 single-speed transmission, Hammer transfer case and Yota II cast axles, with a detailed 22RE engine bay and complete molded interior adding the scale realism expected from RC4WD.

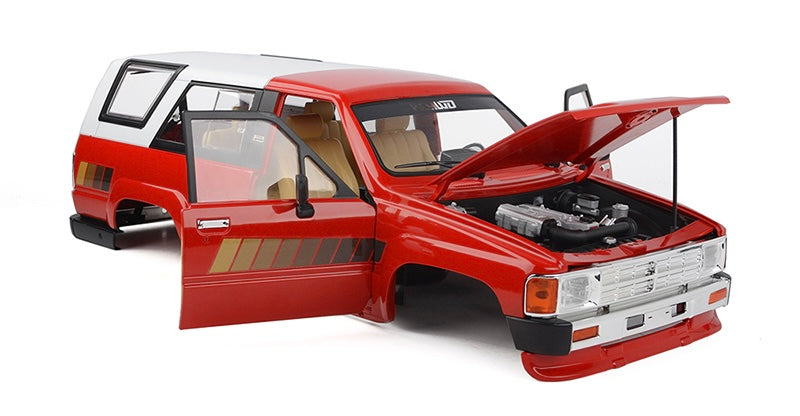

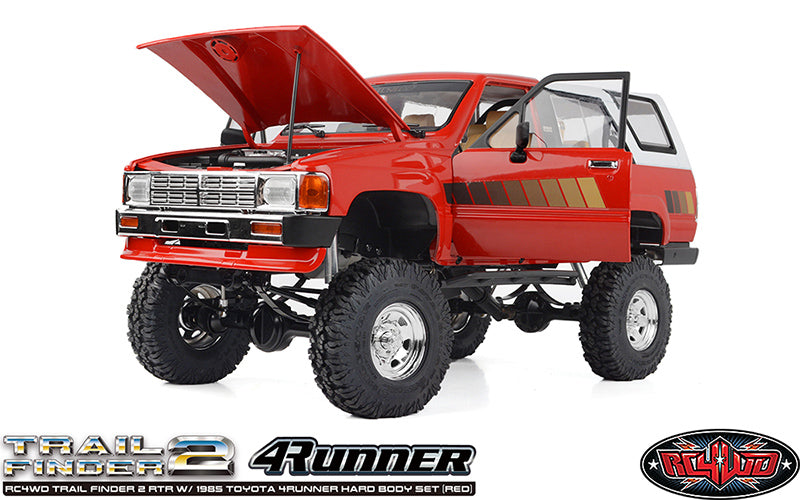

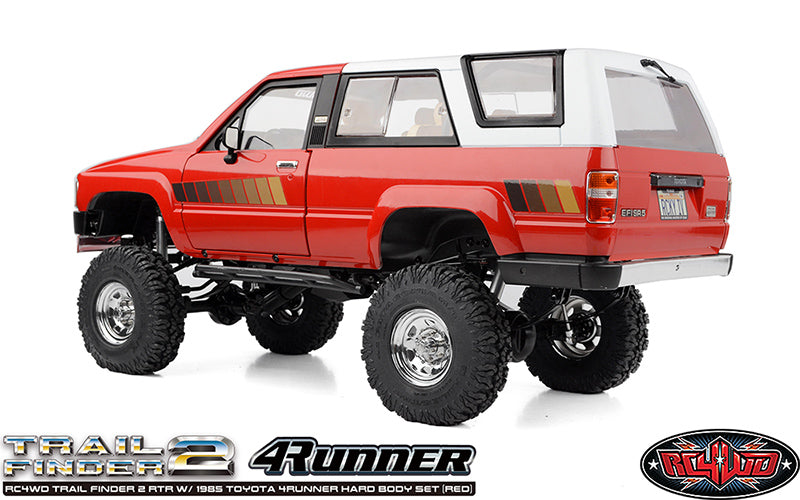

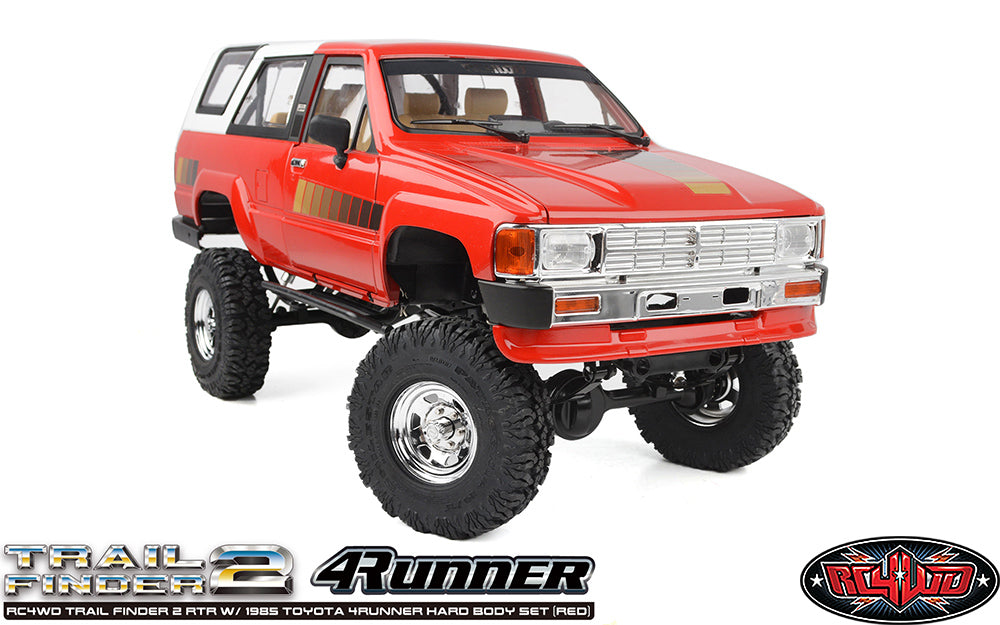

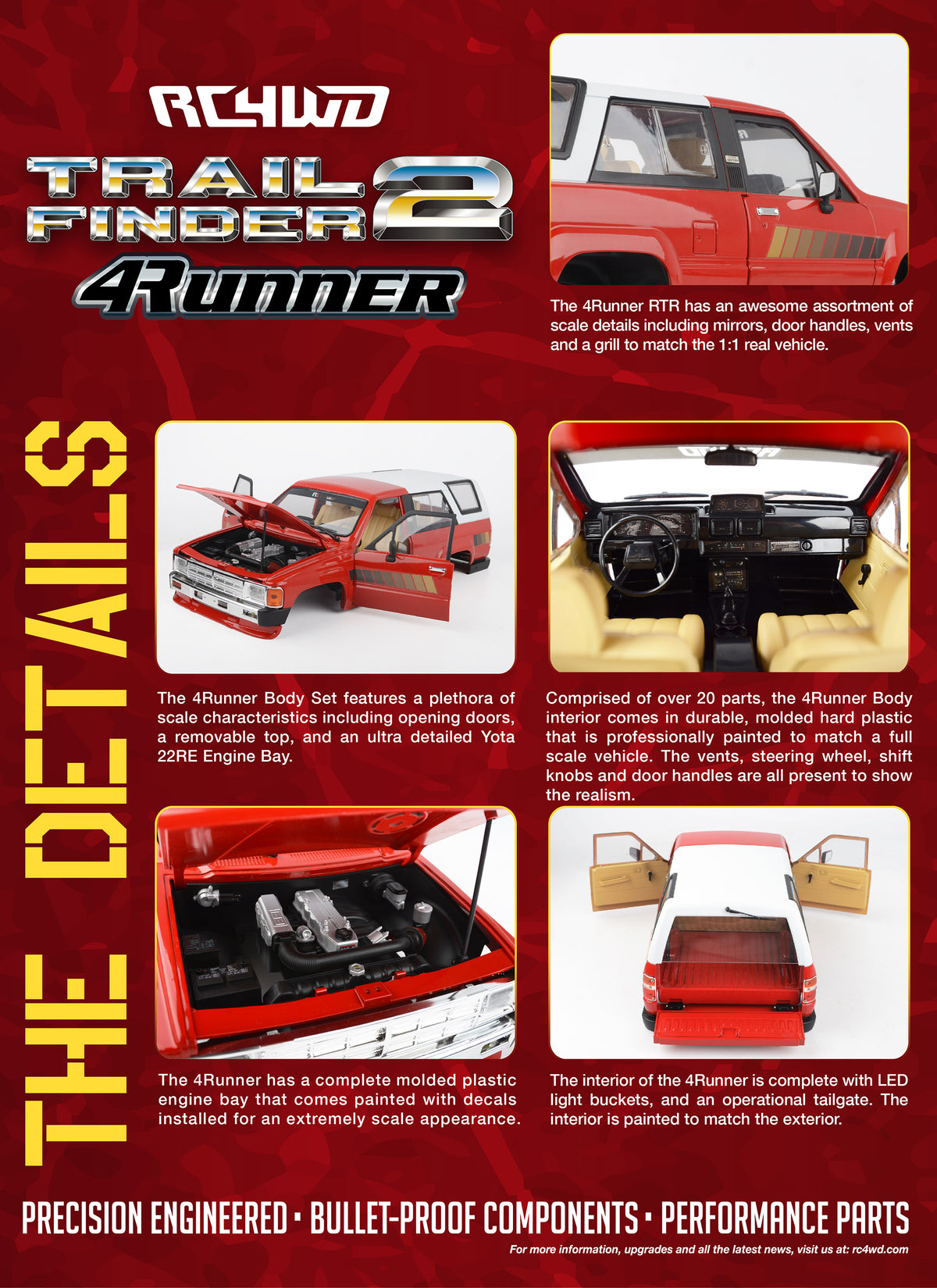

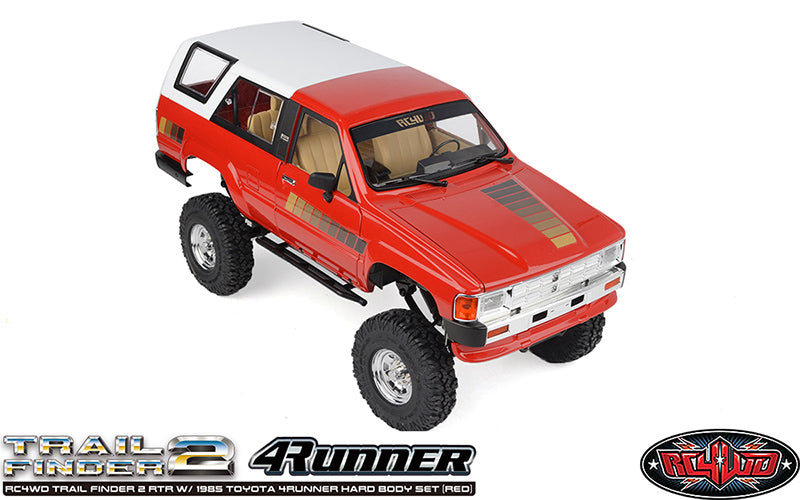

LICENSED 1985 TOYOTA 4RUNNER HARD BODY

• Officially licensed Toyota 1985 4Runner hard body finished in red

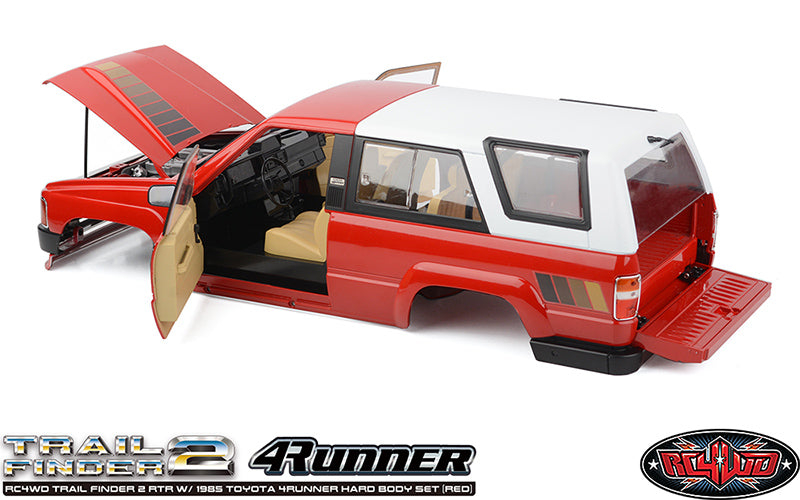

• Pre-painted white removable topper

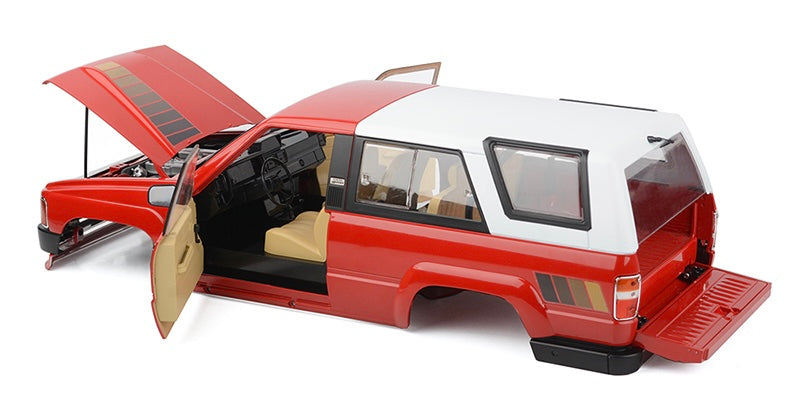

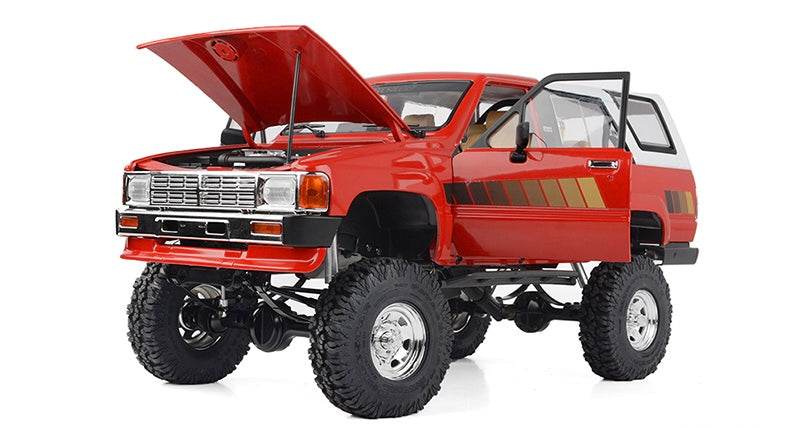

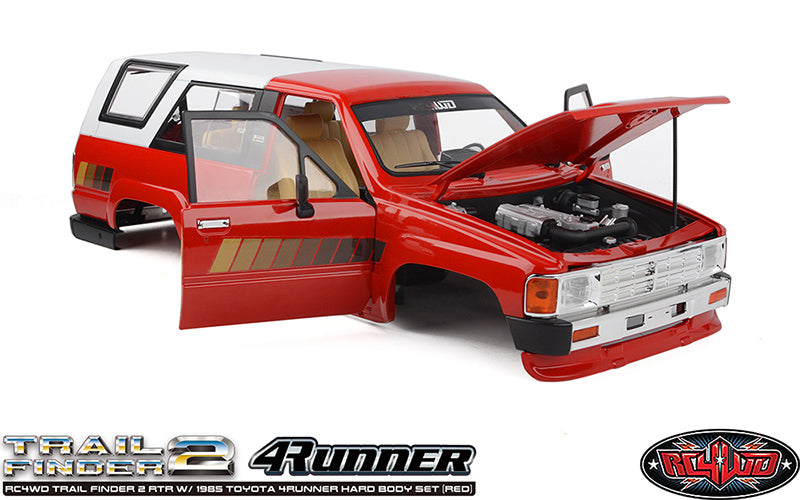

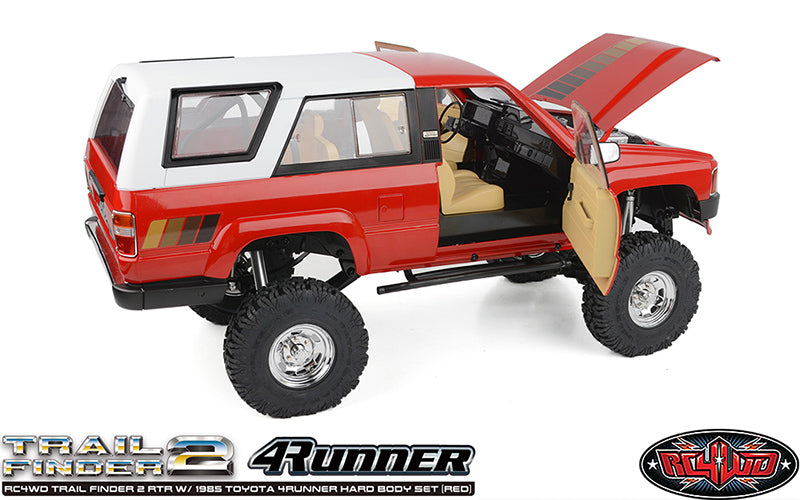

• Opening doors and operational tailgate

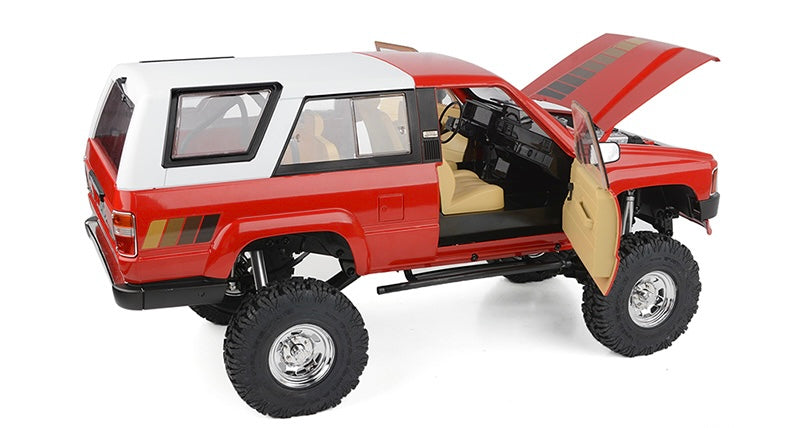

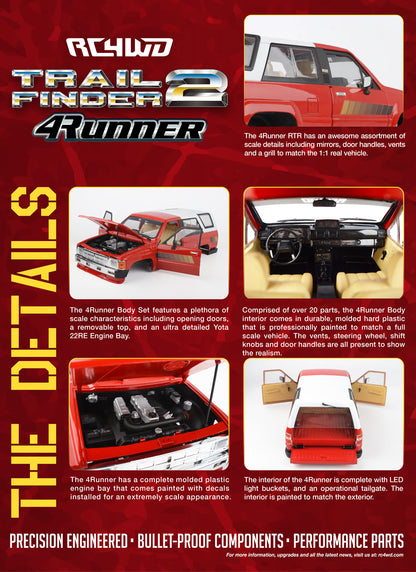

• Fully detailed molded hard-plastic interior with dashboard, vents, steering wheel, shift knobs and door details

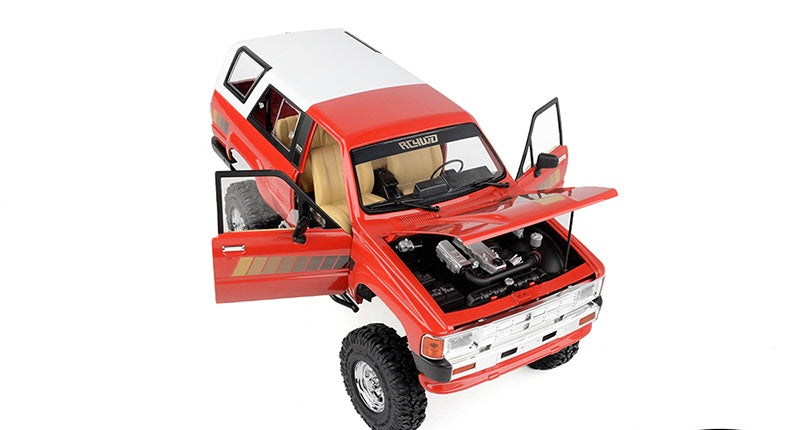

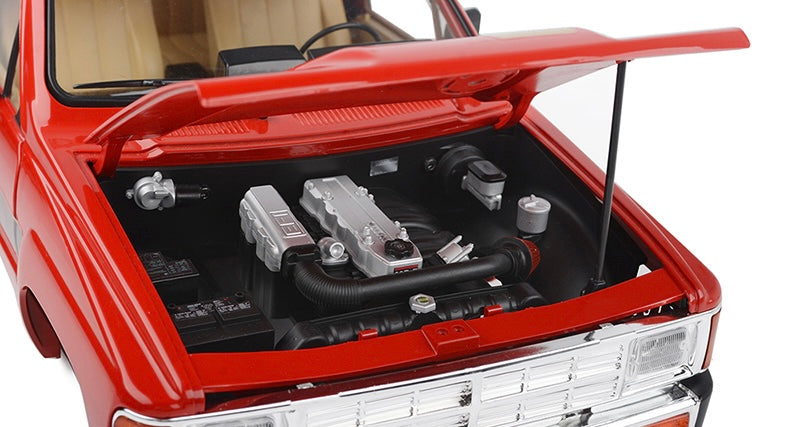

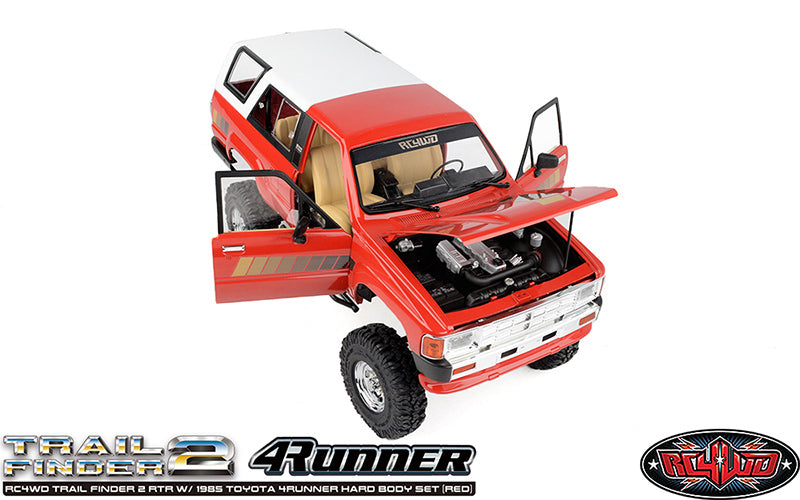

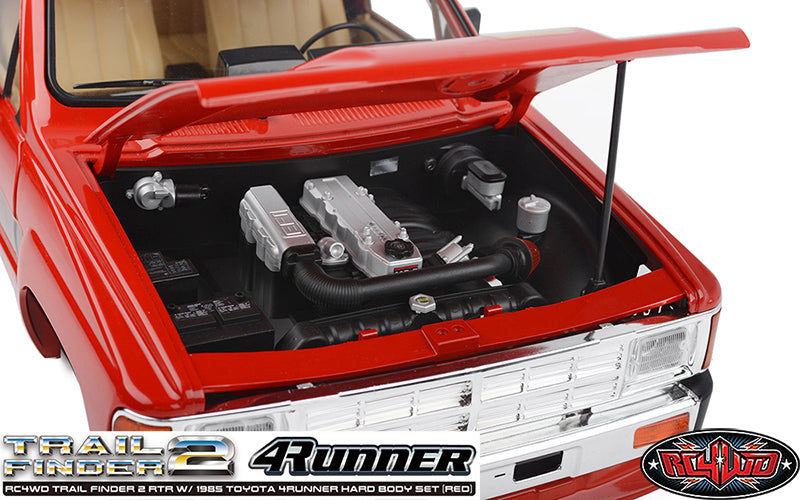

• Fully detailed Yota 22RE engine bay with painted and decaled scale components
• Scale mirrors, door handles, vents and grille details
• Pre-installed LED light set and integrated light buckets
• Front and rear inner fender set
• RC4WD Marlin Crawler side plastic sliders
• Uninstalled plastic front winch bumper supplied with the RTR

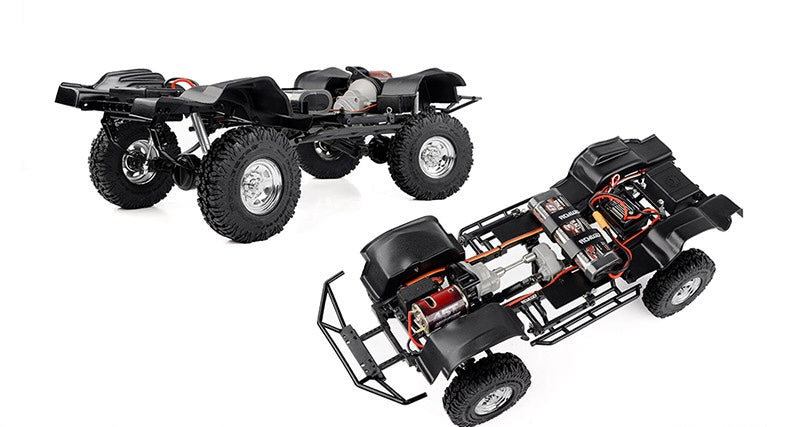

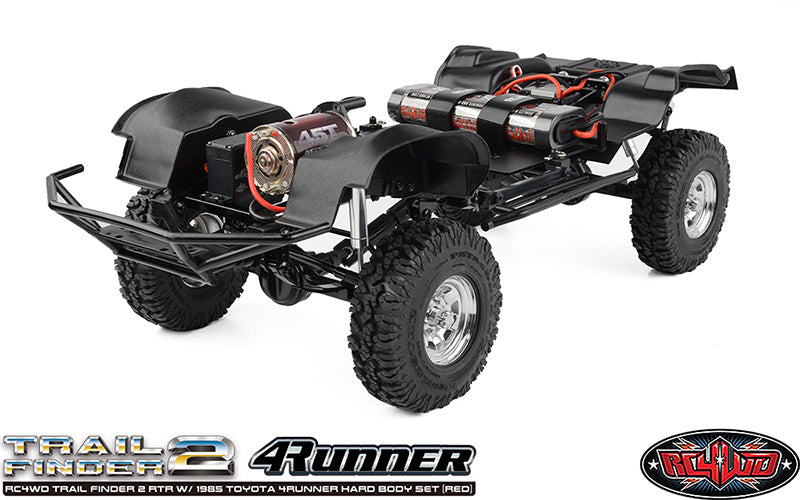

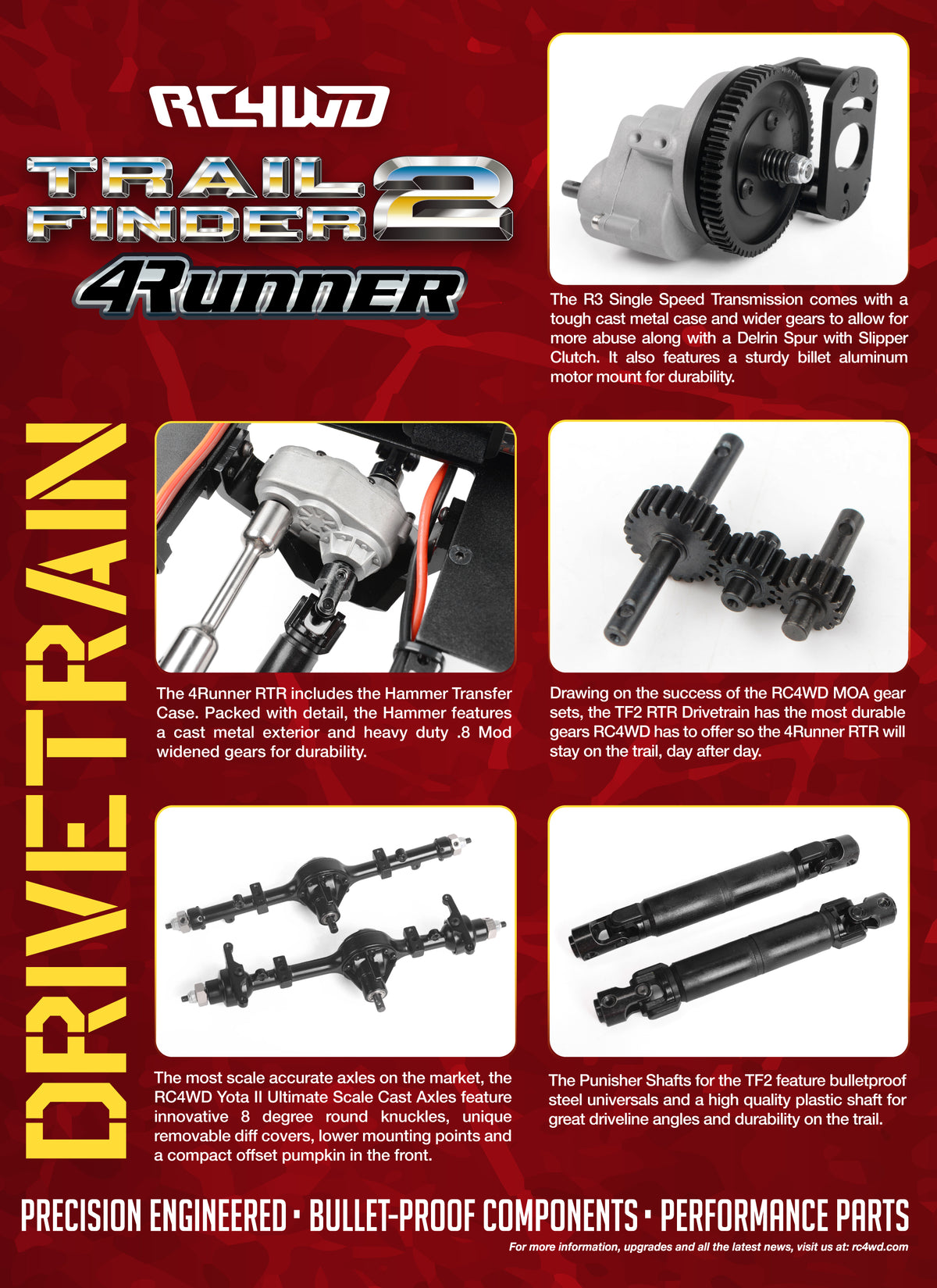

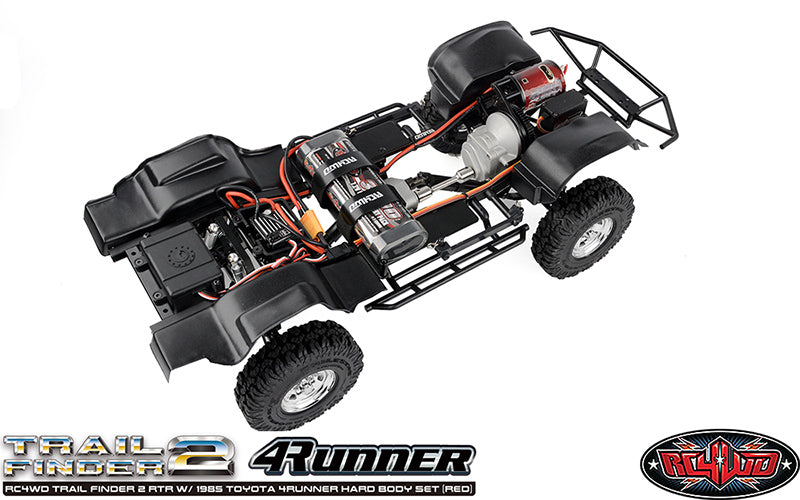

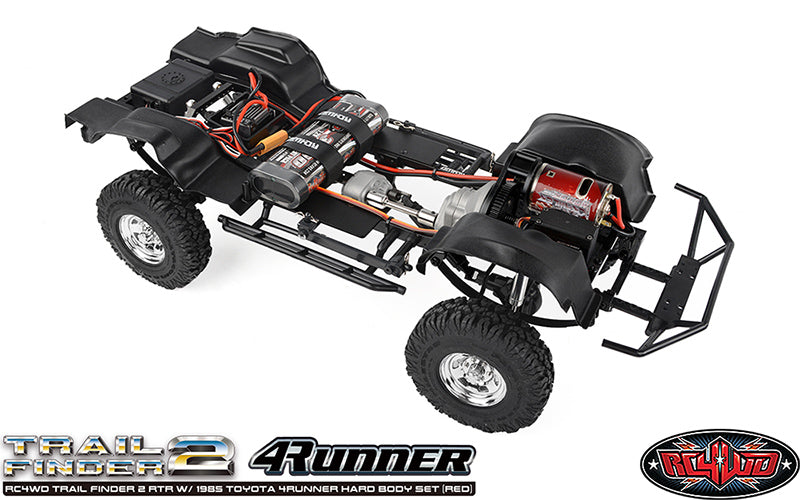

TF2 CHASSIS & DRIVETRAIN

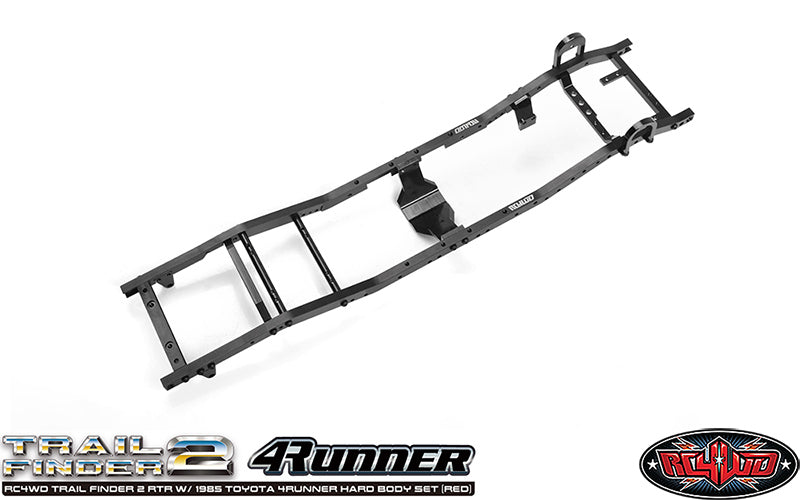

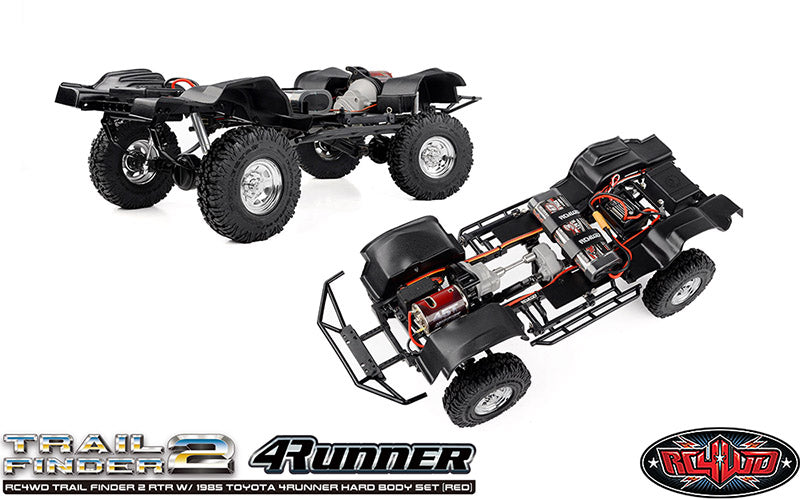

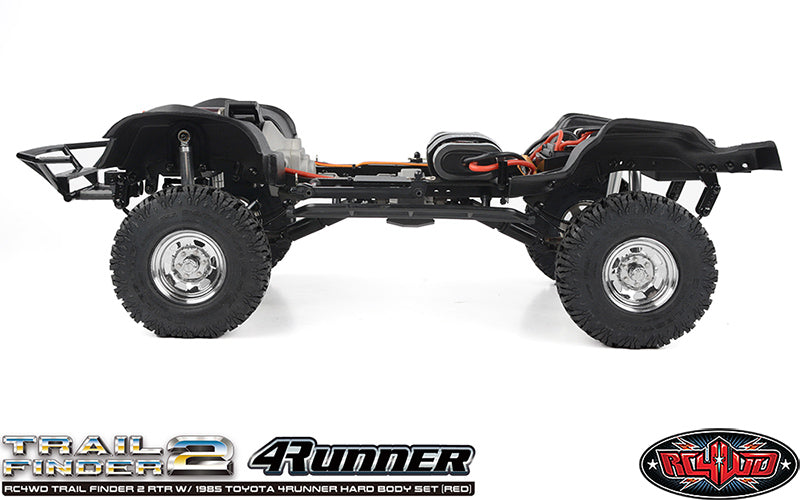

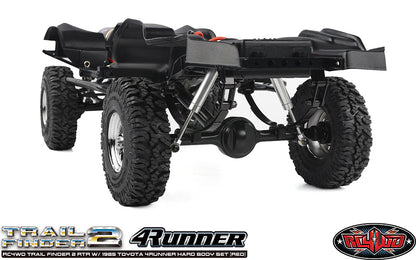

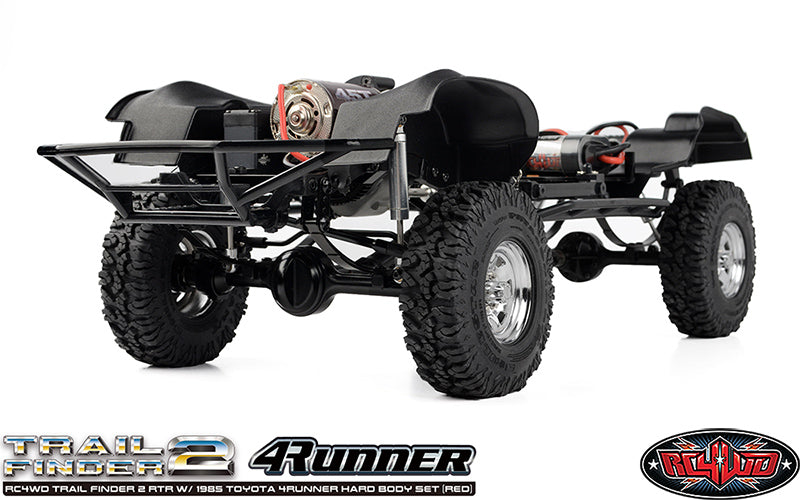

• Machined billet-aluminum ladder-frame chassis with adjustable shock hoops
• 540-size 45T brushed crawler motor

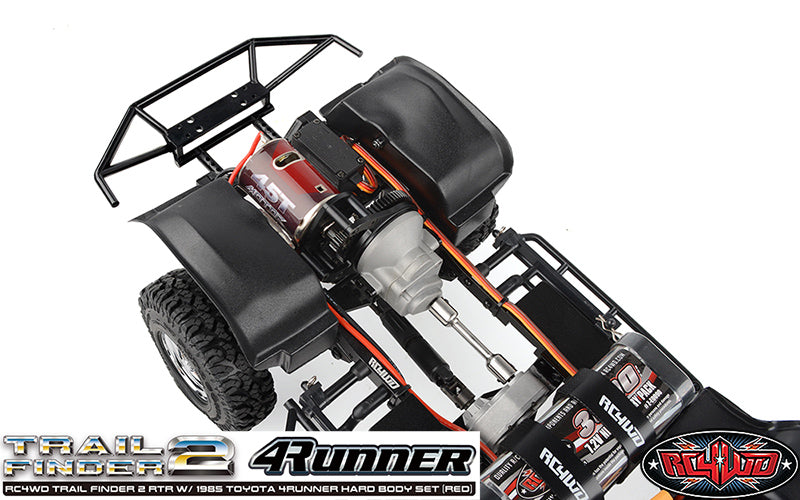

• R3 single-speed transmission with cast-metal case
• R3 pinion/spur ratio: 14/64 = 4.57:1
• R3 internal ratio: 1.78:1
• Wide 0.8 Mod steel gears, Delrin spur and slipper clutch
• Billet-aluminum motor mount with multiple mounting positions

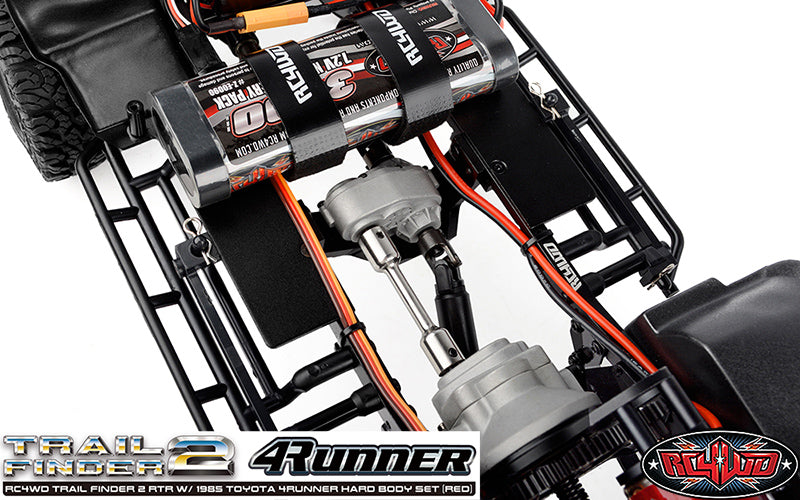

• Center-mounted Hammer transfer case
• Hammer transfer ratio: 1.47:1
• Wide 0.8 Mod hardened-steel transfer gears, cast case and eight bearings
• Yota II Ultimate Scale Cast Axles with XVD front shafts
• Yota II axle ratio: 15/40 = 2.67:1
• Axle width at hex: 178.2 mm
• RC4WD Plastic Punisher Shaft V2 driveshafts, 102–110 mm / 4.02–4.33 in, 5 mm hole
• Final drive ratio: 31.93:1

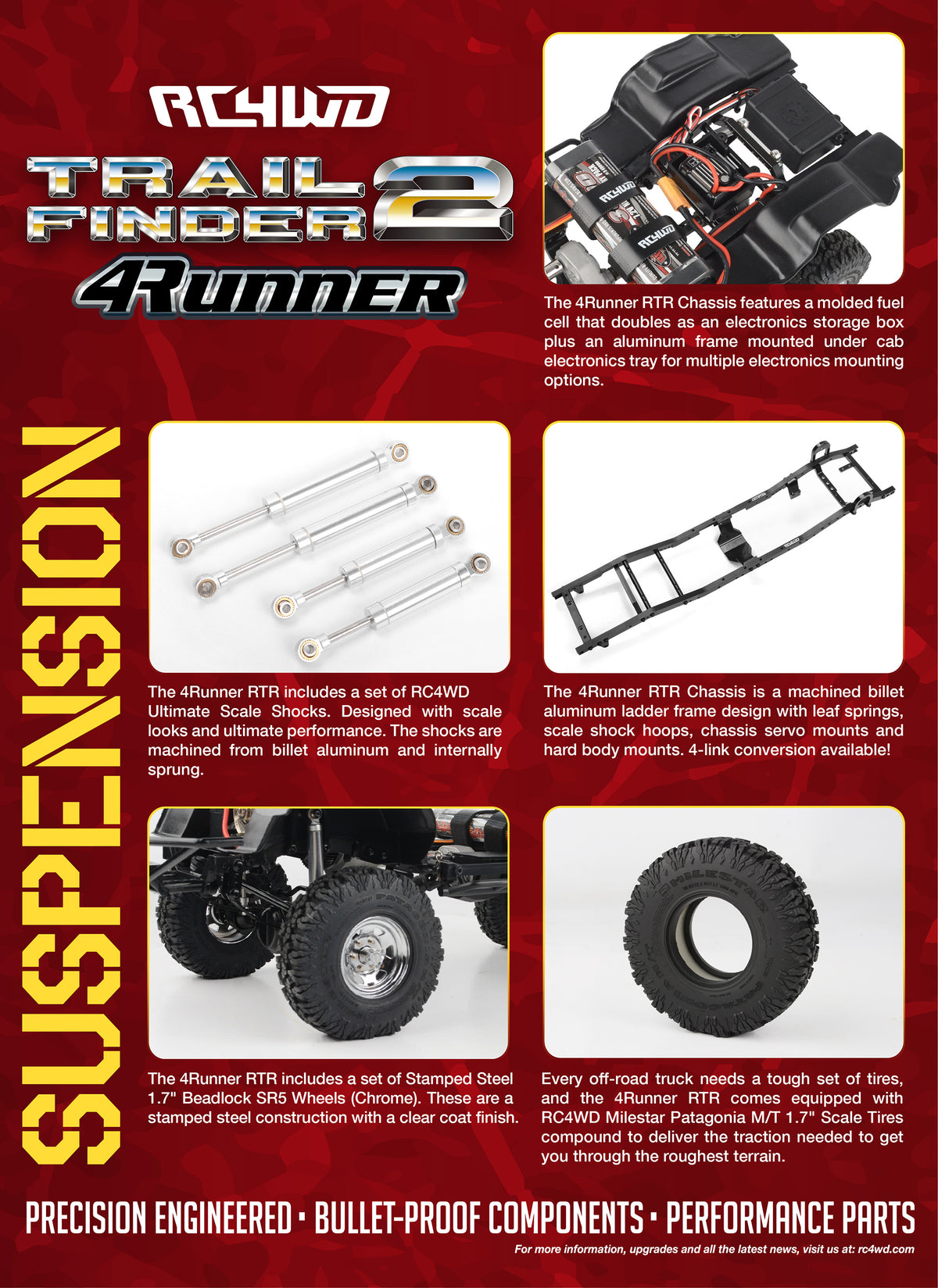

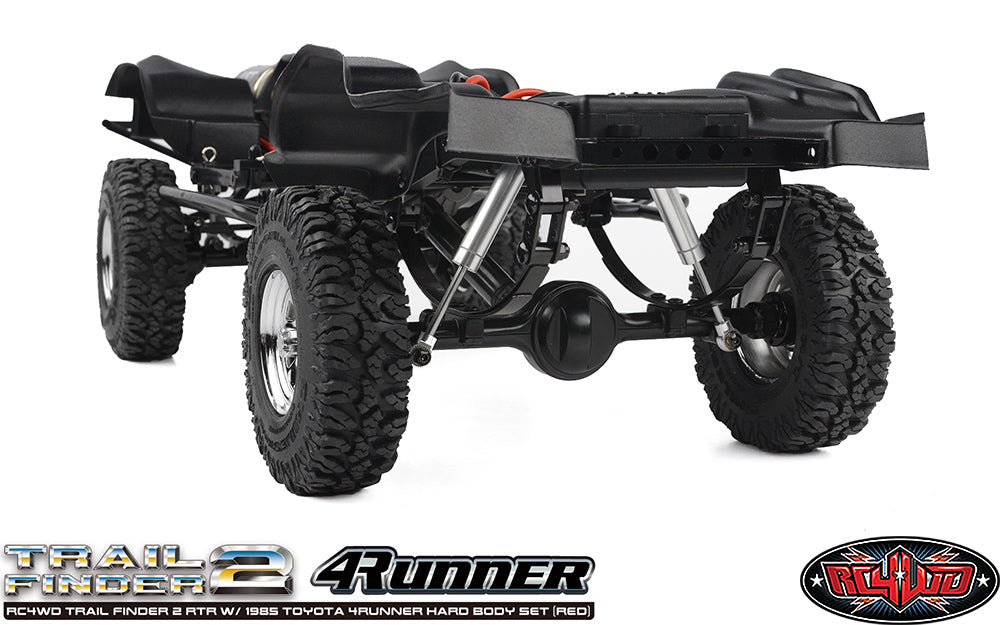

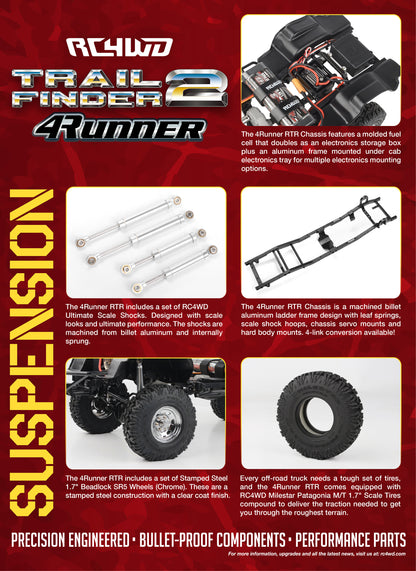

LEAF-SPRING SUSPENSION

• Soft steel leaf springs for authentic scale suspension behavior
• RC4WD Ultimate Scale Shocks with internally sprung billet-aluminum construction

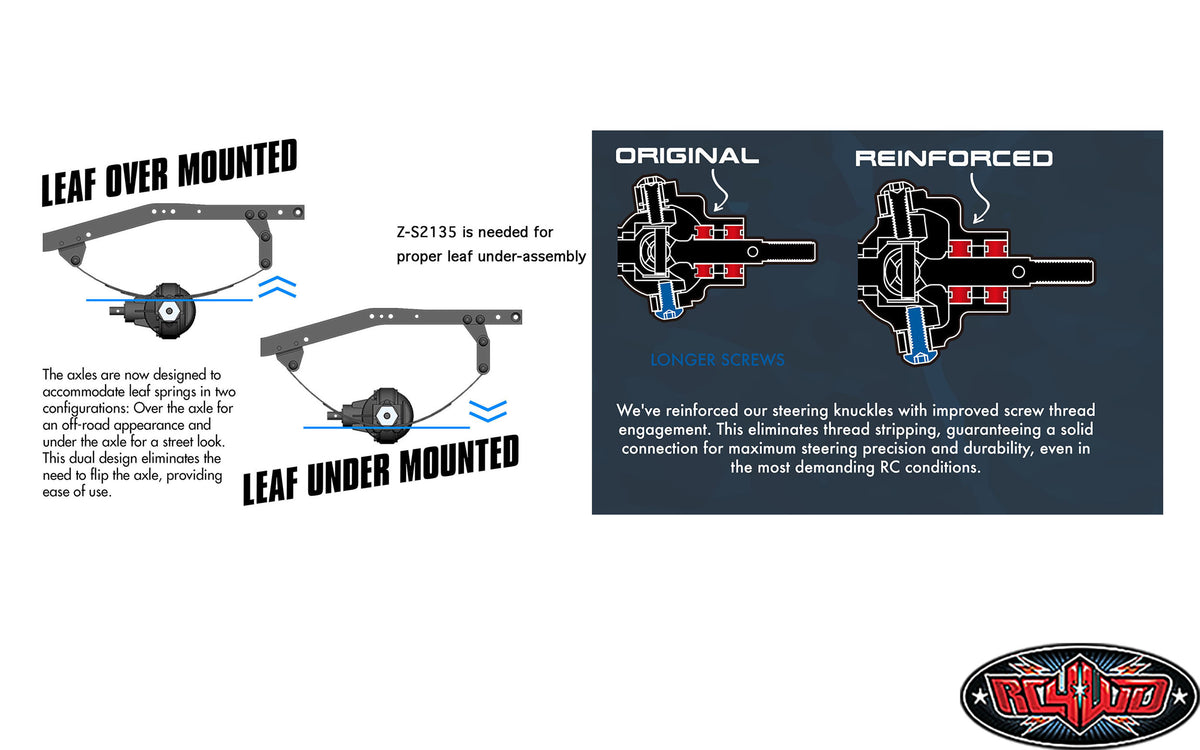

• Yota II axles support leaf-over or leaf-under configurations without flipping the axle
• RC4WD Z-S2135 is required for proper leaf-under assembly
• Reinforced steering knuckles use improved thread engagement for greater steering durability

WHEELS & TIRES

• Stamped Steel 1.7-inch Beadlock SR5 Wheels in chrome
• 12 mm hex
• Wheel width: 22.0 mm / 0.87 in
• Wheel OD: 47.0 mm / 1.85 in
• RC4WD Milestar Patagonia M/T 1.7-inch Scale Tires

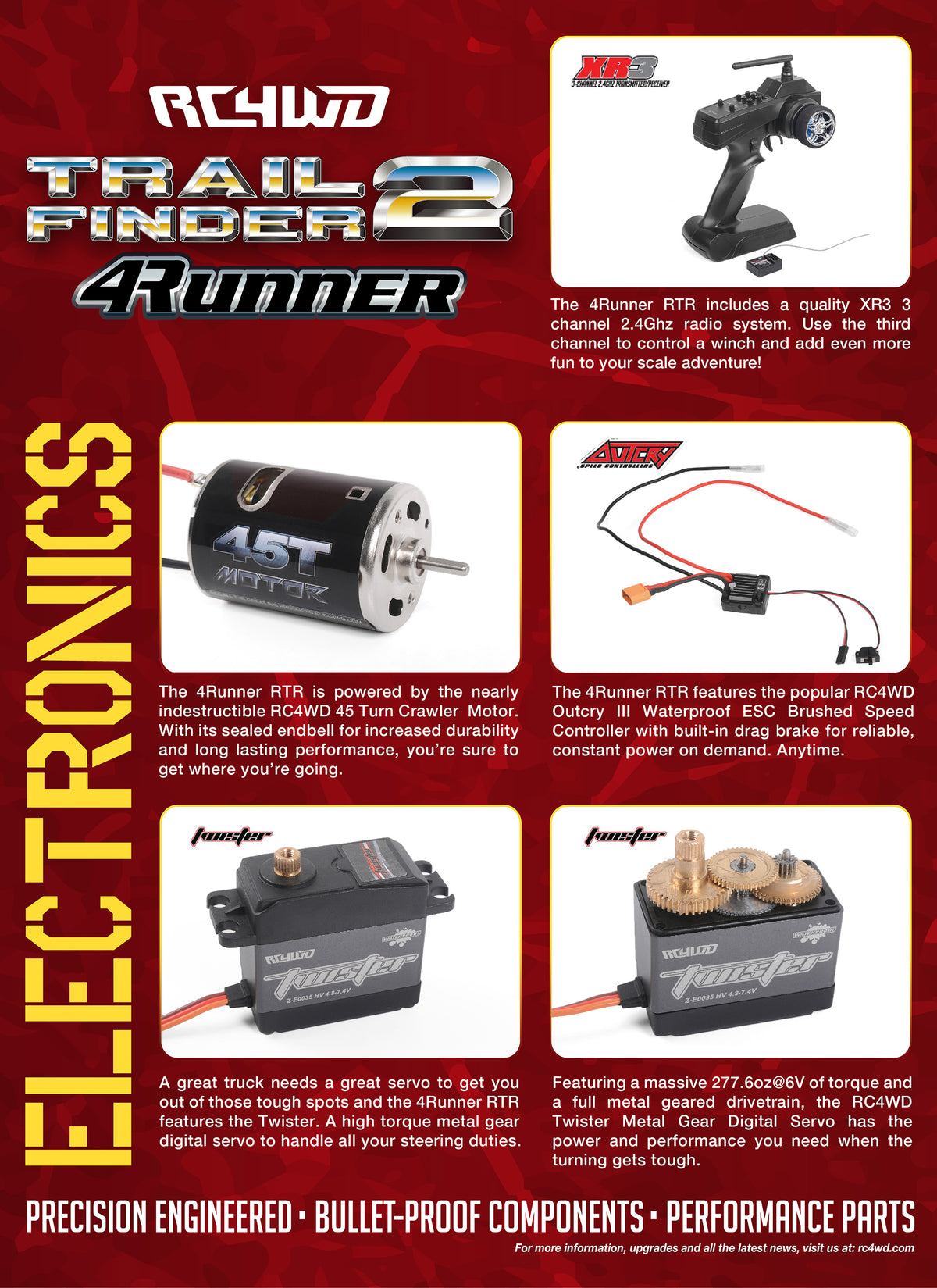

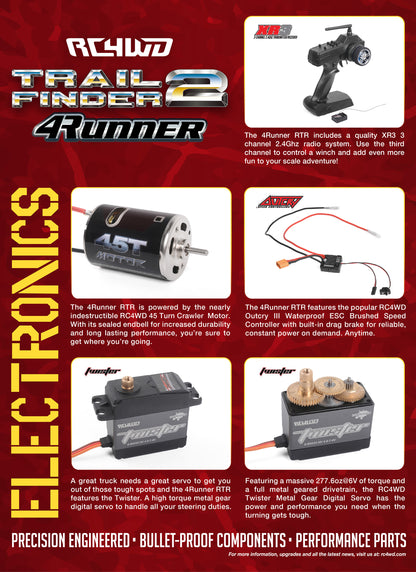

ELECTRONICS & RTR EQUIPMENT

• XR3 3-channel 2.4GHz transmitter/receiver radio system
• RC4WD Outcry III waterproof brushed ESC with built-in drag brake
• Twister High Torque Metal Gear Digital Servo
• Published steering-servo torque: 277.6 oz-in @ 6V
• 6-cell 3000mAh NiMH battery pack with XT60 plug
• Universal NiMH peak battery charger
• Pre-installed LED lighting system

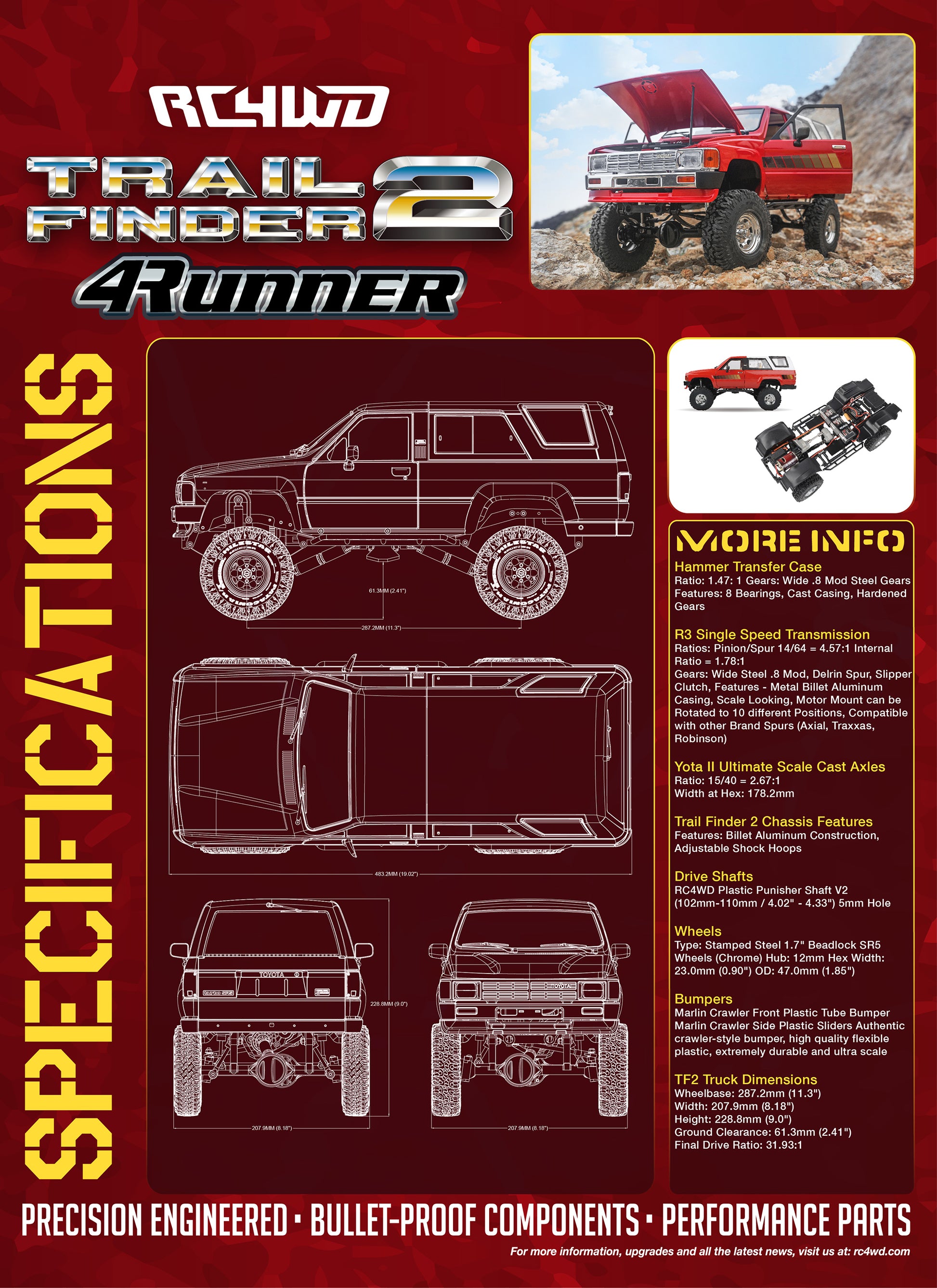

DIMENSIONS

• Scale: 1/10
• Wheelbase: 287.2 mm / 11.3 in
• Width: 207.9 mm / 8.18 in
• Height: 228.8 mm / 9.0 in
• Ground clearance: 61.3 mm / 2.41 in
• Final drive ratio: 31.93:1

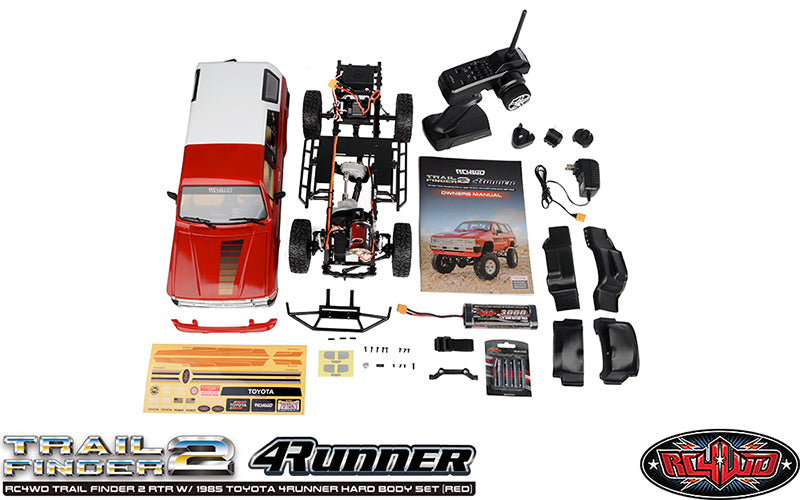

WHAT'S INCLUDED

• 1x RC4WD Trail Finder 2 RTR with 1985 Toyota 4Runner Hard Body Set – Red
• XR3 3-channel 2.4GHz radio system
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak charger
• Pre-installed LED lighting
• Uninstalled plastic front winch bumper

SETUP & OWNER NOTES

• RC4WD notes that the hard bodies are hand-painted, so minor finish differences or blemishes may occur.
• Check installed hardware before the first run and periodically thereafter.
• Use good-quality hex drivers and apply thread lock sparingly where metal screws thread into metal components.
• Do not overtighten fasteners.
• The detailed hard body, mirrors, topper, interior and engine bay reward realistic trail driving; protect them during rollovers.

GASHEAD RC SCALE-TRAIL NOTE

The 1985 4Runner is one of the most complete classic-Toyota presentations in the TF2 family. Its removable topper, opening body features, detailed 22RE bay and full interior make it a strong display-scale truck, while the R3/Hammer/Yota II drivetrain and leaf-spring chassis preserve the mechanical character that makes the Trail Finder 2 distinctive on the trail.

SKU: Z-RTR0063
