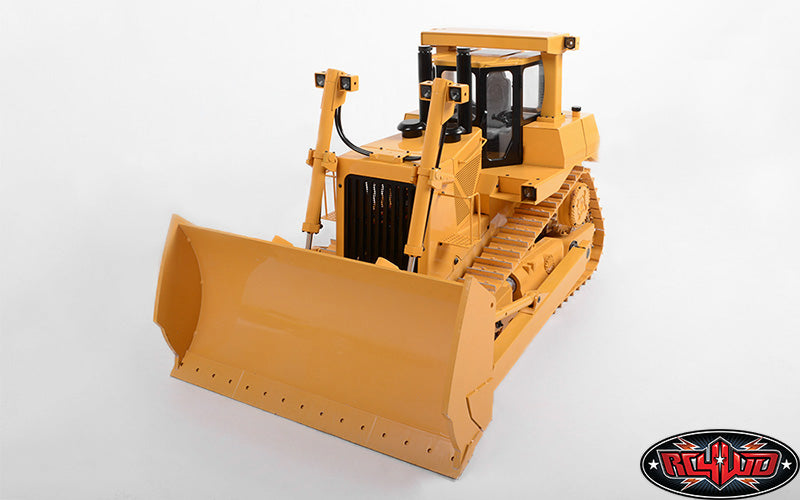

1/14 Scale DXR2 Hydraulic Earth Dozer

RC4WD 1/14 SCALE DXR2 HYDRAULIC EARTH DOZER – VV-JD00015

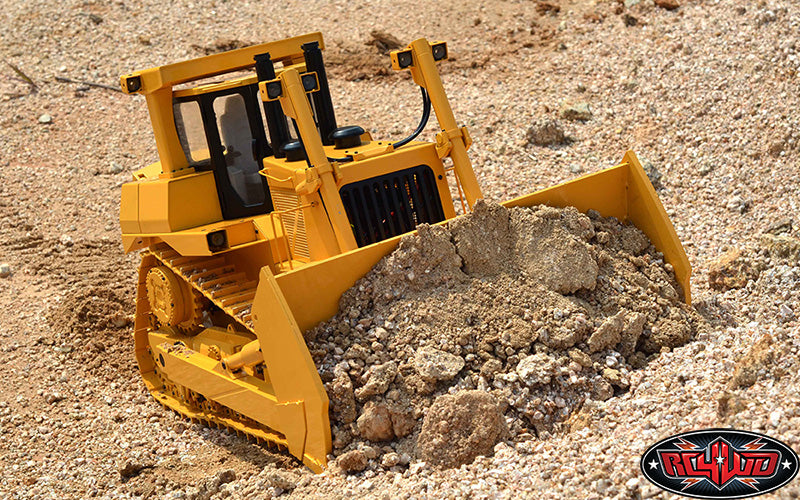

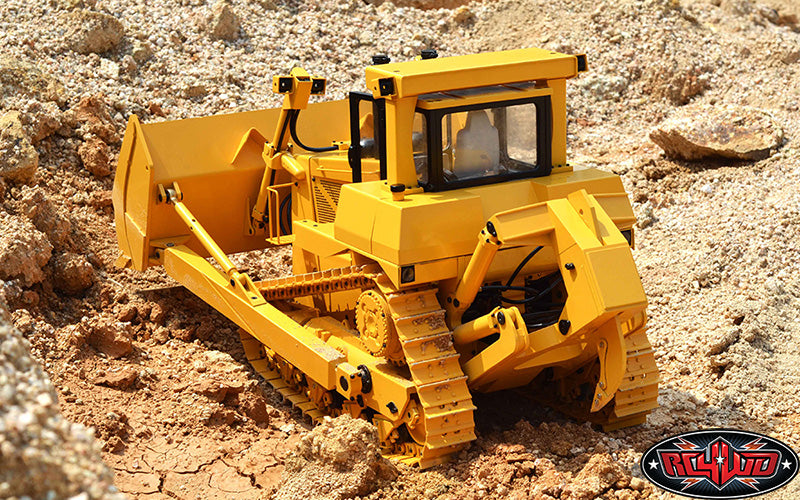

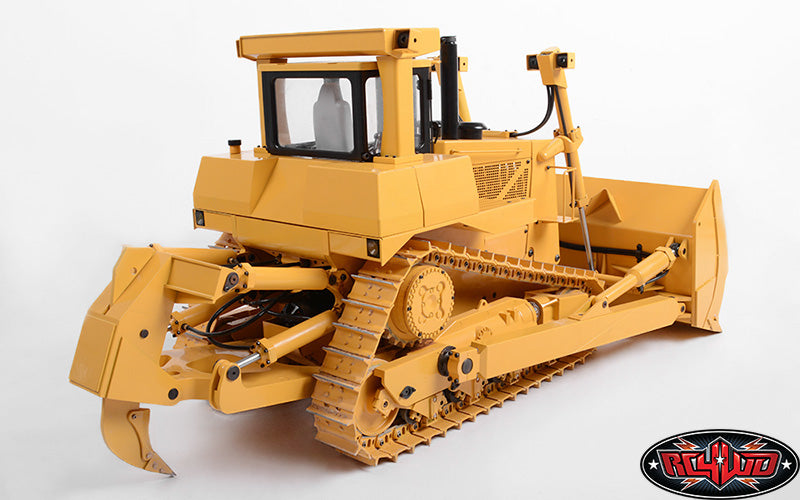

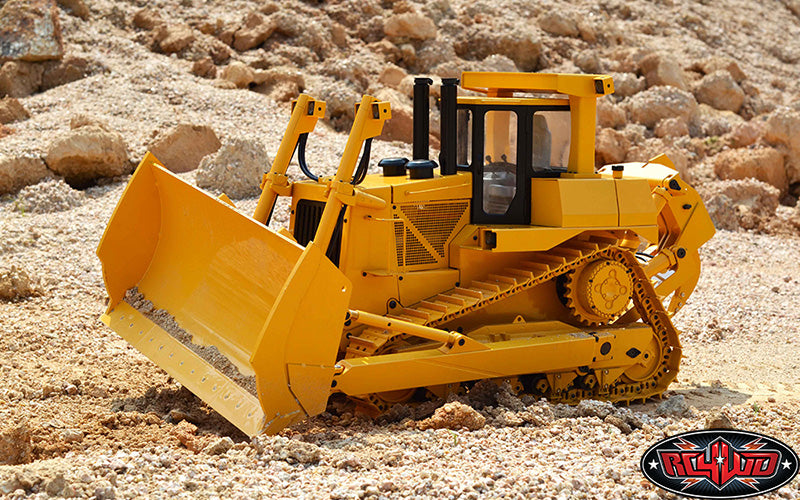

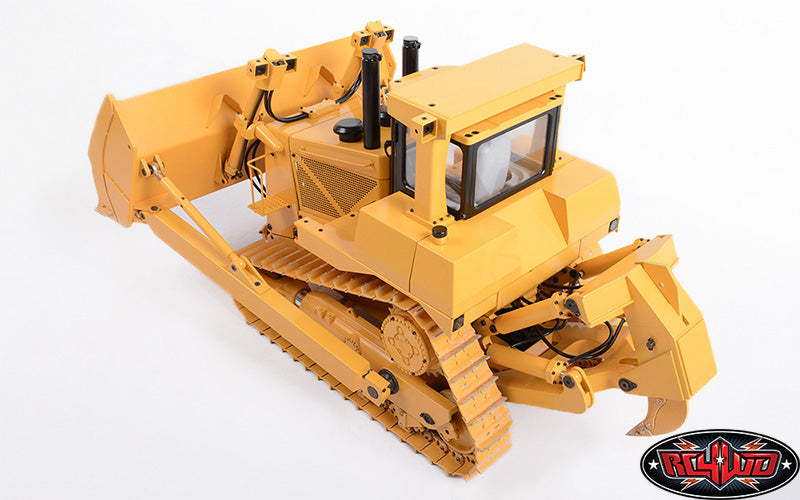

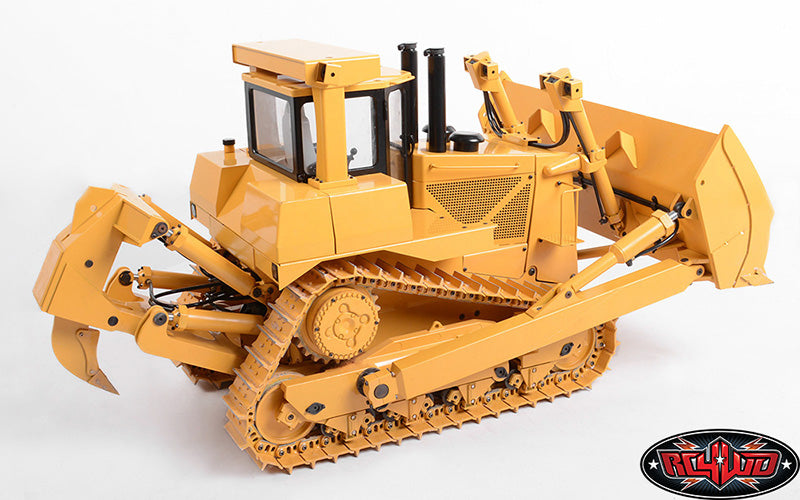

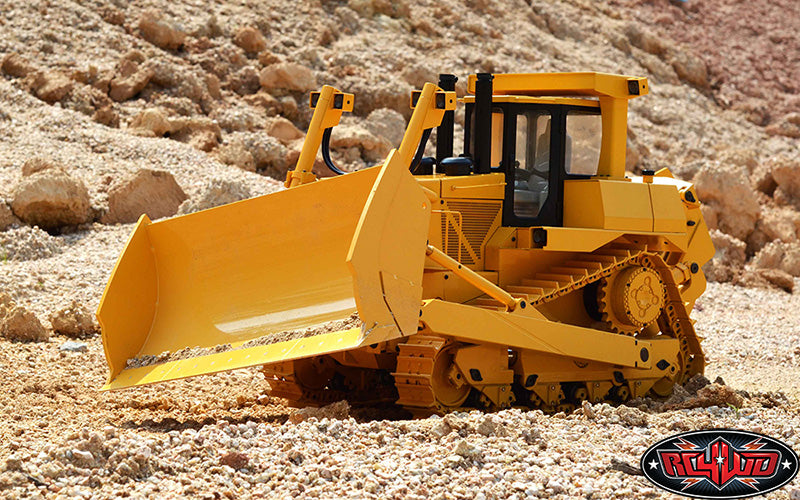

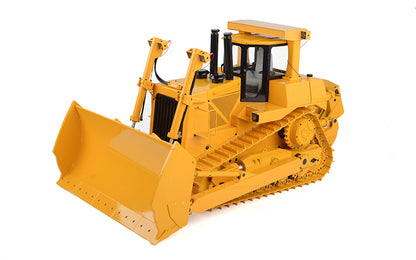

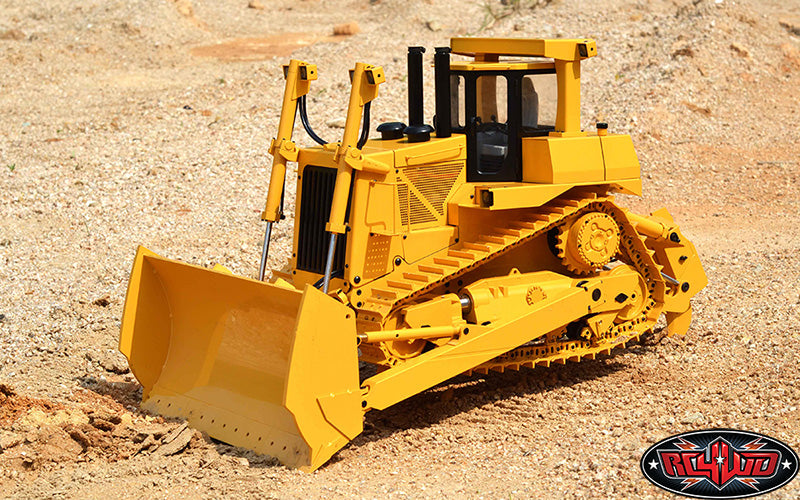

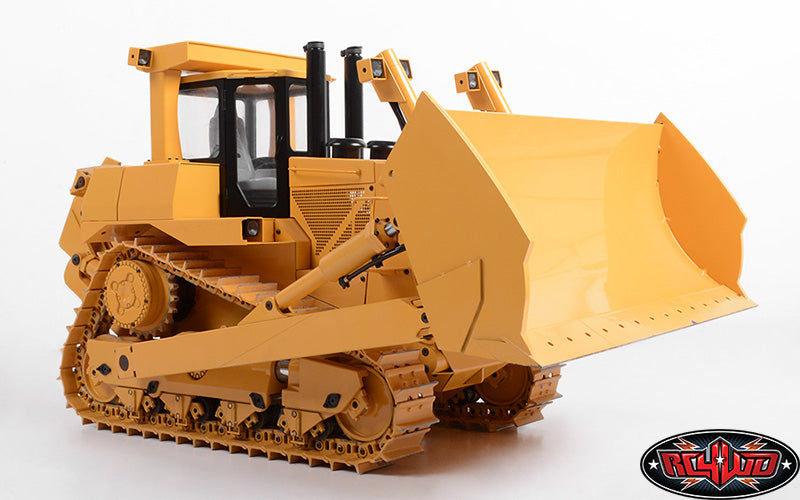

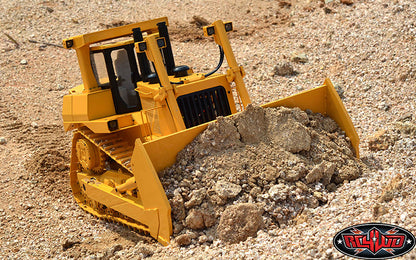

The RC4WD DXR2 is a professionally assembled 1/14-scale hydraulic earth dozer engineered for experienced RC construction operators. Its heavy full-metal platform combines a welded steel blade, all-terrain metal crawler tracks, hydraulic blade control and a rear ripper in a large-format machine built for realistic earthmoving work.

HEAVY-DUTY CONSTRUCTION

• Alloy zinc and alloy aluminum cast construction except tracks and hydraulic pump

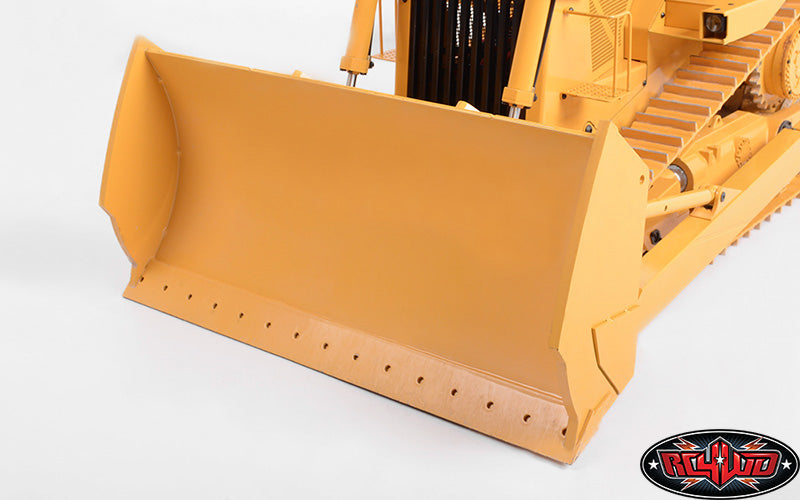

• Welded steel blade
• Full-metal scale construction

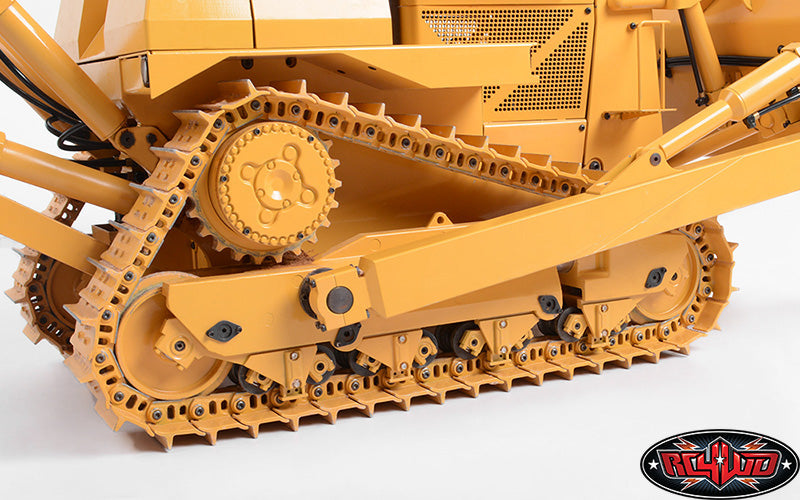

• All-terrain metal crawler tracks
• 540 brushed high-torque drive motor
• Full-metal 1:256 transmission
• LiPo cutoff protection

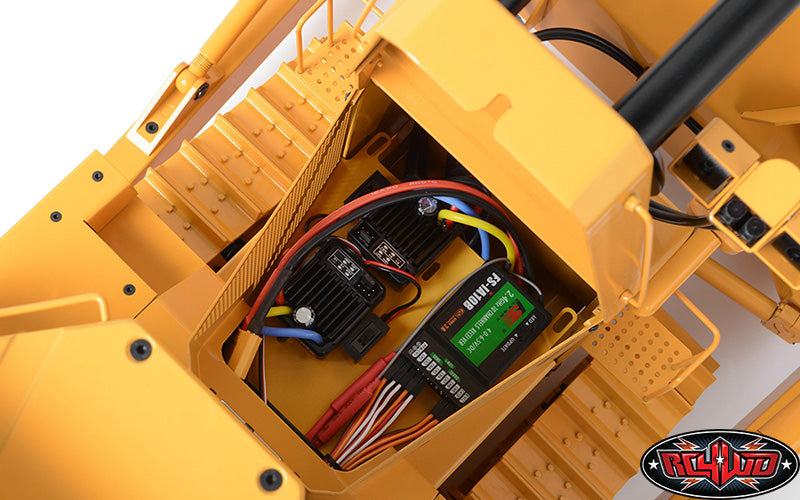

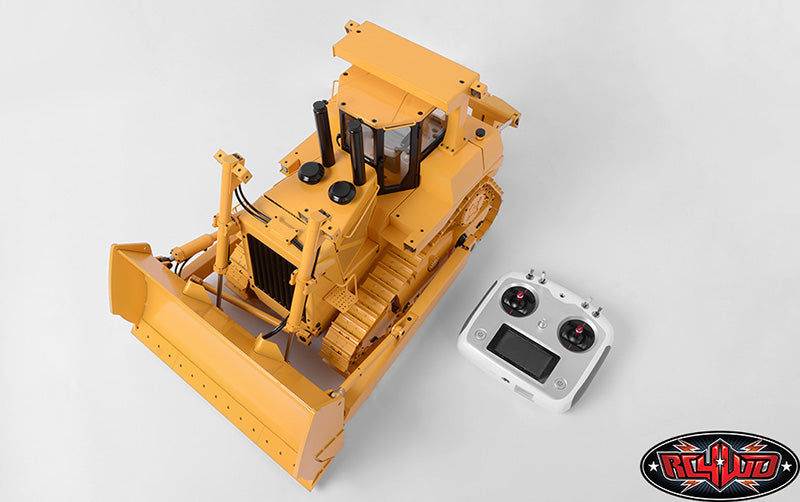

• 9-channel 2.4GHz radio system

HYDRAULIC SYSTEM

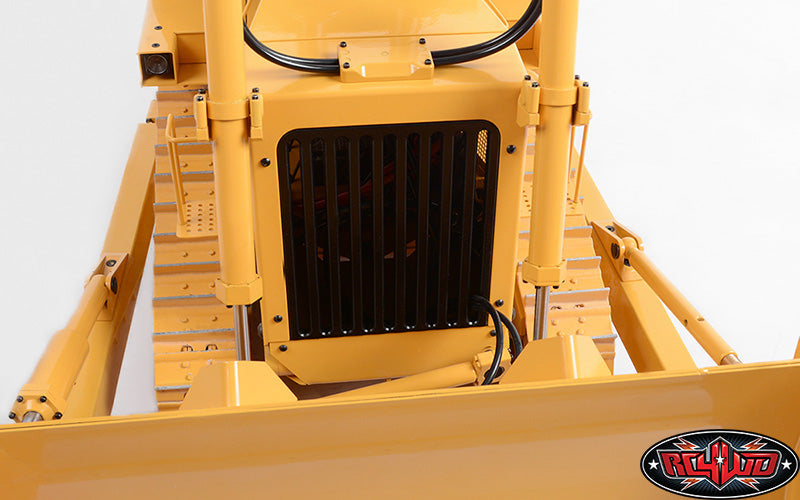

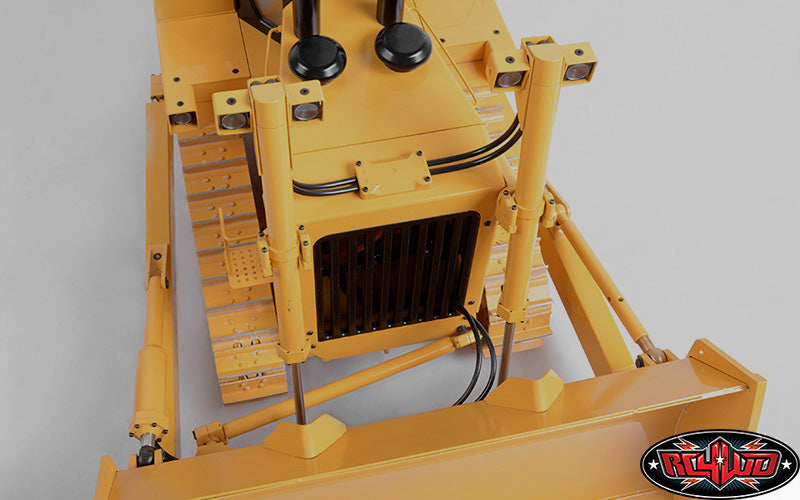

• Optimized steel hydraulic system
• Reliable hydraulic valve and adjustable pump
• Brushless hydraulic system
• Heavy-duty hoses: 3.2 mm OD / 2.2 mm ID
• Main heavy-duty hoses: 4 mm OD / 2.5 mm ID
• Chrome-steel oil pump: 47.5 × 35 × 36 mm
• Operating oil pressure: 25 bar / 362.5 psi

PERFORMANCE

• Maximum blade force, down: 76 kg / 167 lb
• Maximum blade force, up: 50 kg / 110 lb
• Maximum blade thrust: 50 kg / 110 lb
• Driving speed: 408 meters per hour
• Approximate runtime: 38 minutes with a 5300mAh battery, per RC4WD
• Blade capacity: 494,949 mm³

DIMENSIONS & OPERATING GEOMETRY

• Scale: 1/14
• Length: 685 mm / 27.0 in
• Width: 351 mm / 13.8 in
• Height: 323 mm / 12.7 in
• Blade height: 174.6 mm / 6.87 in
• Maximum blade up/down angle: 29°
• Maximum blade tilt left/right: 9°

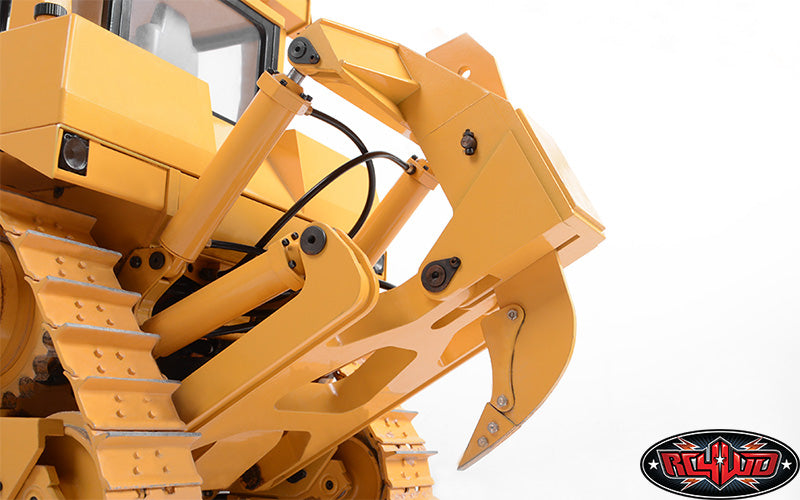

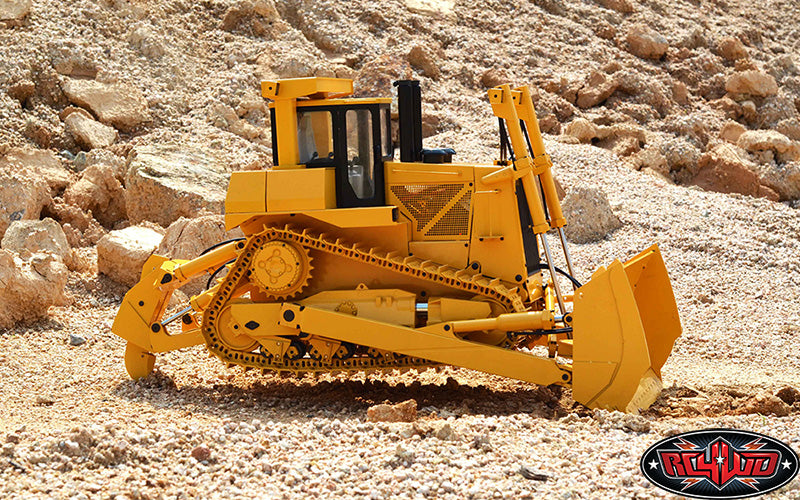

• Maximum ripper ground depth: 50 mm / 1.97 in
• Dead weight: 26 kg / 57 lb
• Total mass load: 37 kg / 82 lb

WHAT'S INCLUDED

• 1x RC4WD 1/14 Scale DXR2 Hydraulic Earth Dozer

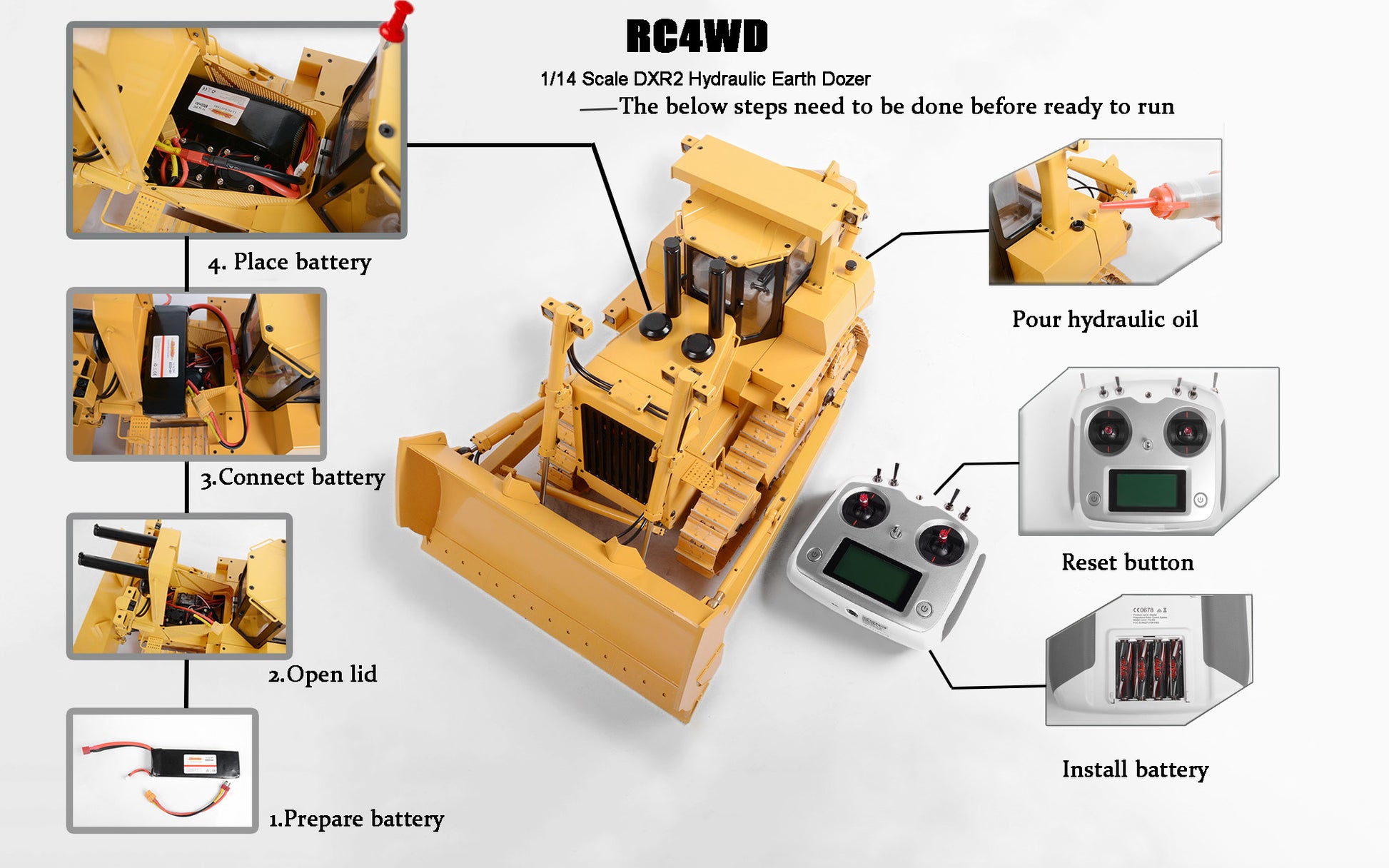

REQUIRED TO COMPLETE

• 5000mAh 11.1V 50C 3S1P short-size LiPo battery with XT60 plug
• Battery must fit within 140 × 40 × 44 mm
• Compatible LiPo charger
• 8x AA batteries for radio
• AW ISO 32 hydraulic oil

IMPORTANT OPERATING NOTES

• Designed for experienced RC hobbyists; RC4WD does not recommend this model for users under 16.
• Inspect all hardware after shipping and before first operation.
• Use quality hex drivers and thread lock appropriately on metal-to-metal fasteners.
• Do not adjust the hydraulic oil-pressure switch.
• Monitor hydraulic-system temperature during extended use and do not allow the system to overheat.
• Inspect hoses and fittings regularly; hydraulic pressure may decrease over time during operation.
• Each unit is professionally assembled, adjusted and tested by the manufacturer.

REPLACEMENT / UPGRADE SUPPORT

RC4WD identifies the VVV-S0011 brushed ESC and VVV-S0166 DXR2 tracks as replacement parts for this platform. RC4WD also offers dedicated DXR2 attachments such as the HD Abrasion U Dozer Blade. Verify exact SKU compatibility before ordering replacement or upgrade components.

GASHEAD RC OWNER NOTE

At approximately 57 lb with a published 167 lb maximum downward blade-force figure, the DXR2 should be treated as serious scale hydraulic equipment. Before working under load, verify track hardware, blade linkage, ripper hardware, hydraulic hose routing and fittings. Keep the hydraulic system clean, correctly filled and within the manufacturer's operating limits.

SKU: VV-JD00015
