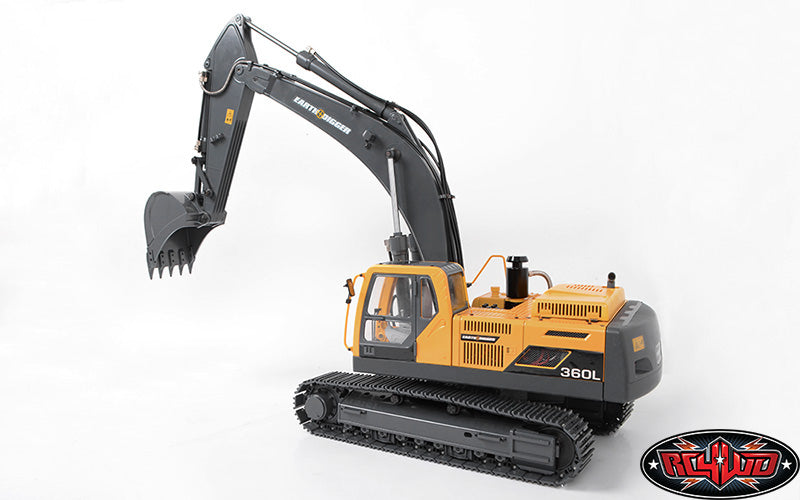

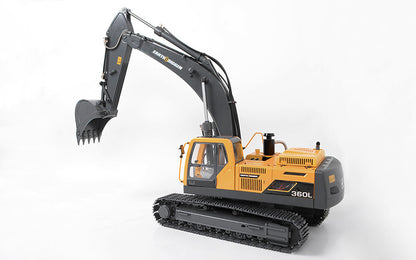

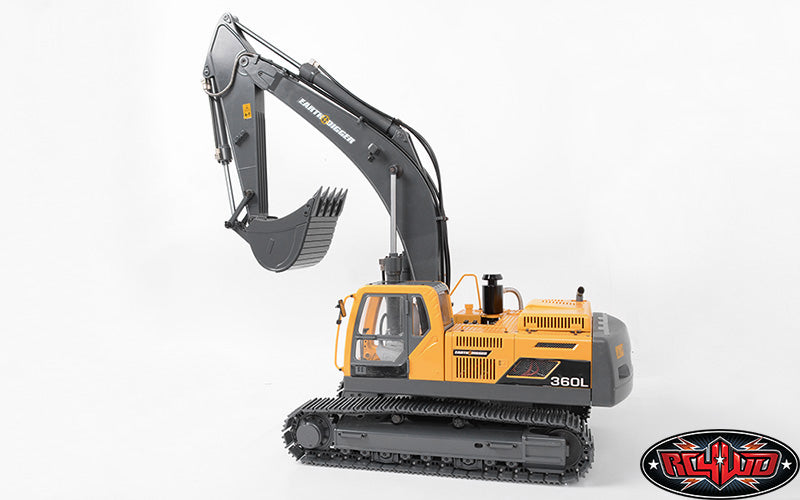

1/14 Earth Digger 360L Hydraulic Excavator RTR – Yellow

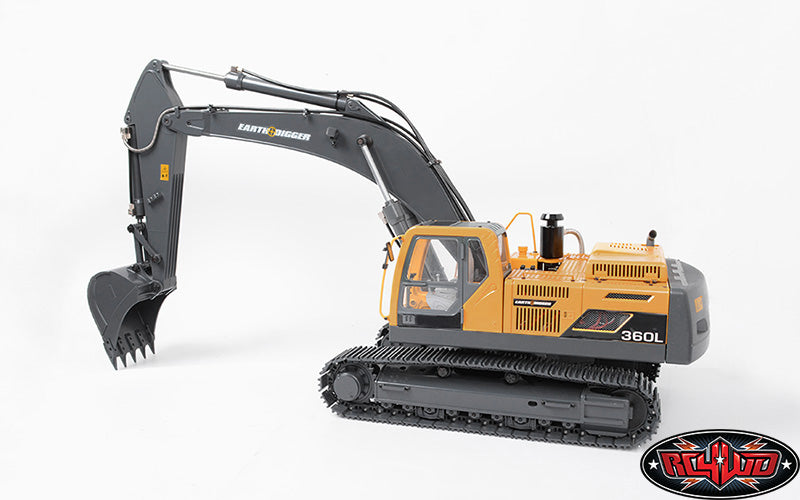

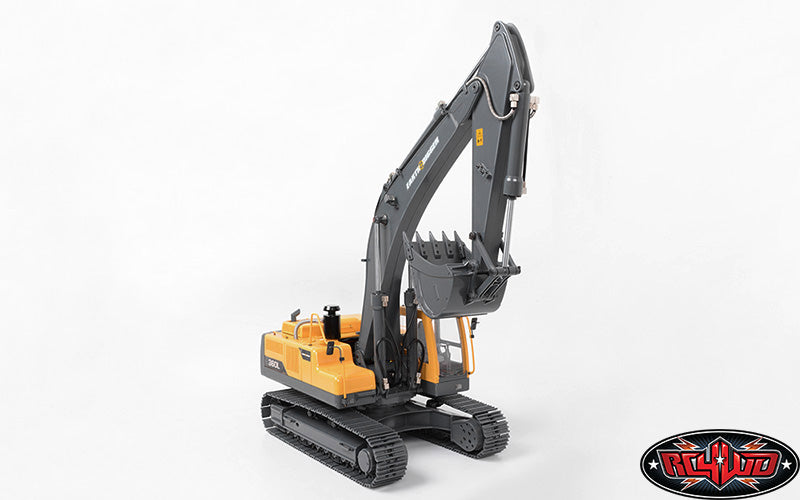

RC4WD 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator – Yellow

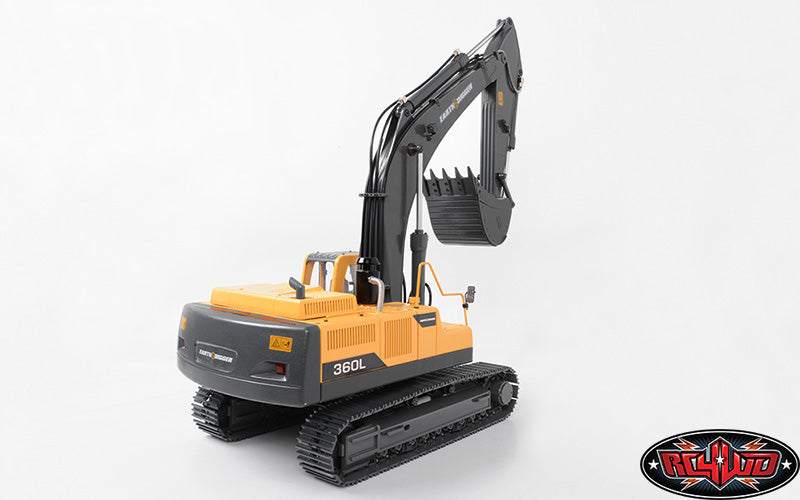

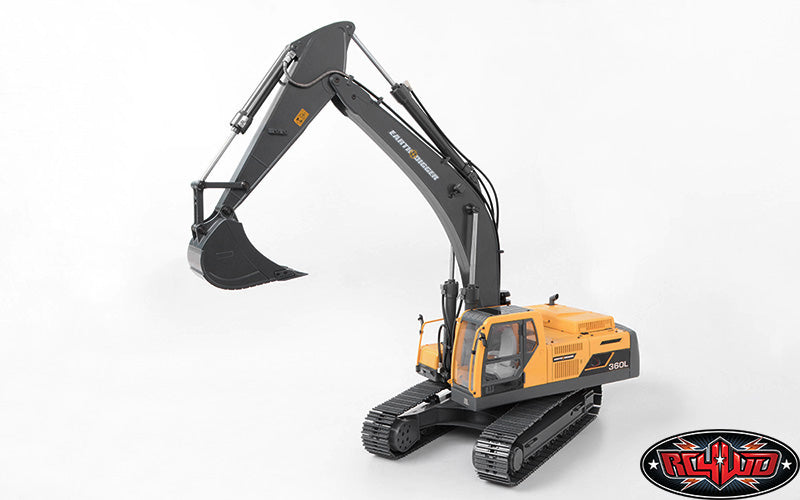

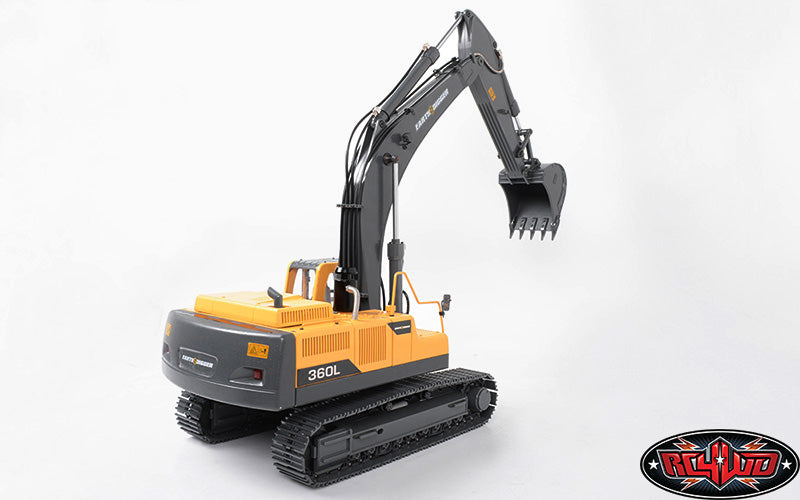

The Earth Digger 360L is a heavy-duty 1/14 hydraulic RC excavator built for experienced scale-construction operators. Its zinc-alloy and aluminum construction, 50 mm metal tracks, brushless hydraulic/drive systems and endless upper-structure rotation make it a substantial working machine rather than a display-only model.

Construction & Scale Detail

• 1/14 scale hydraulic excavator
• Zinc-alloy and aluminum cast construction except hydraulic pump

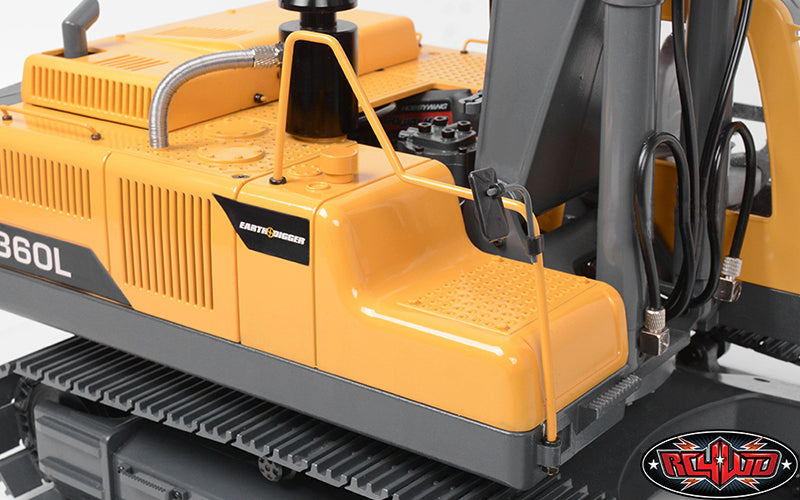

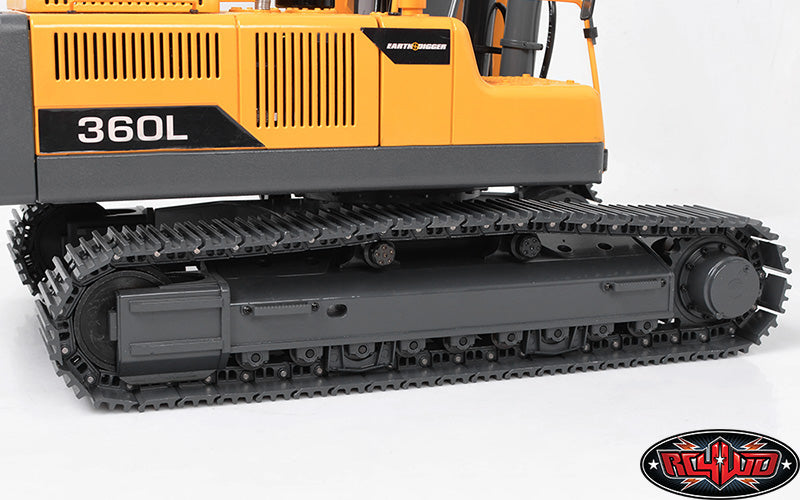

• 50 mm wide zinc-alloy molded tracks
• Efficient metal undercarriage
• Powder-coated yellow and gray finish

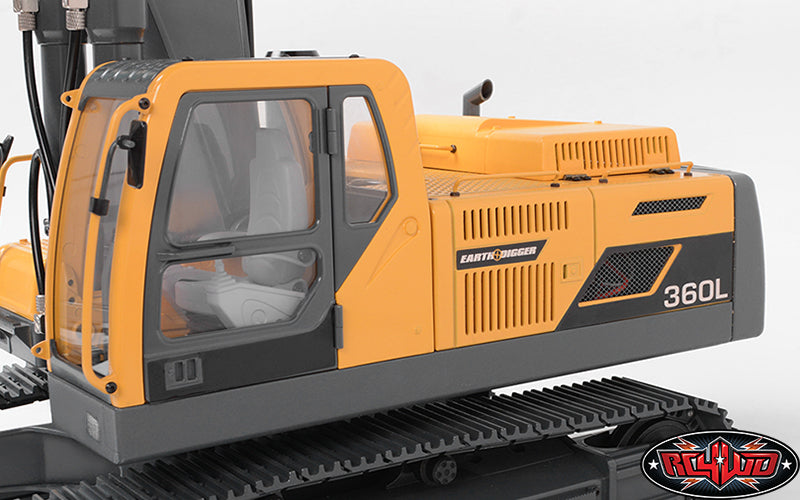

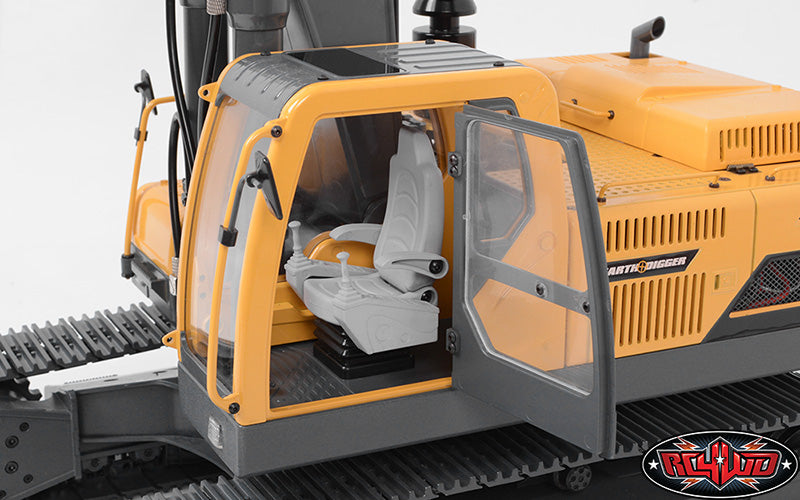

• Scale driver-figure-ready cab; figure not included

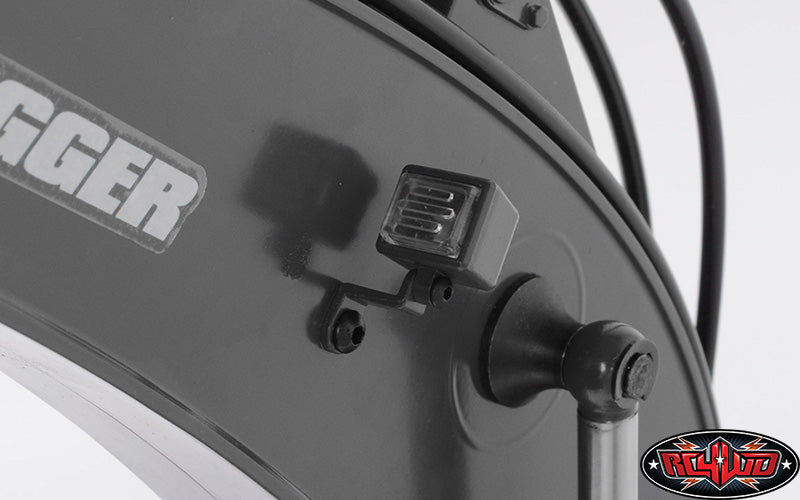

• Preinstalled high-intensity light sockets; wiring and bulbs are not included
• Custom 8-channel 2.4GHz radio

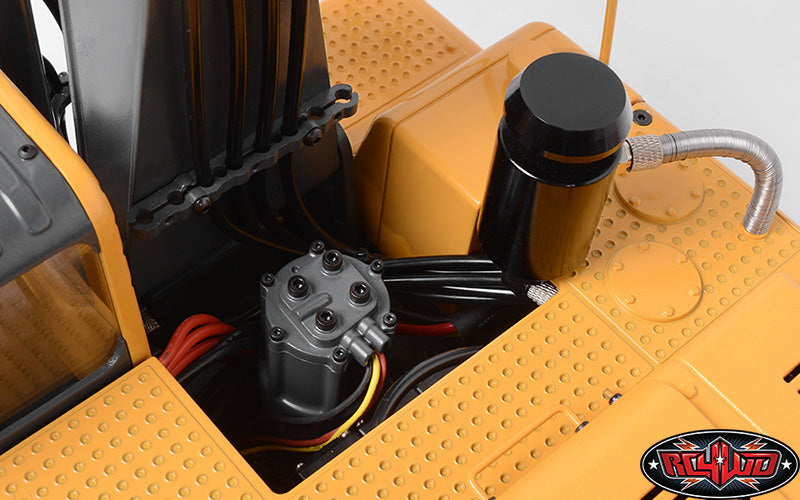

Hydraulic & Brushless Systems

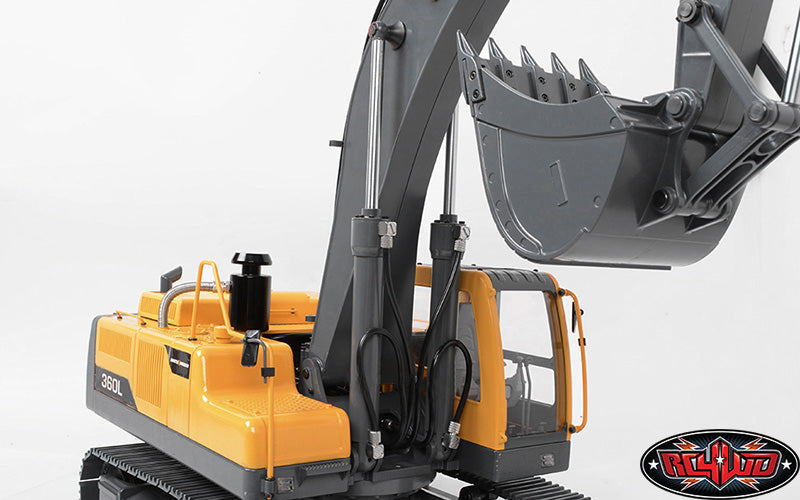

• Optimized steel hydraulic system
• Reliable hydraulic valve and adjustable pump

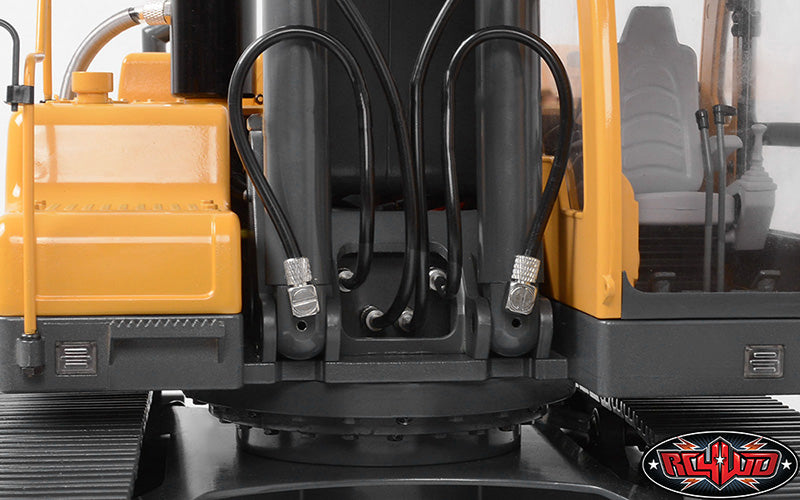

• Heavy-duty hydraulic hose: 4.5 mm OD / 2.5 mm ID nylon

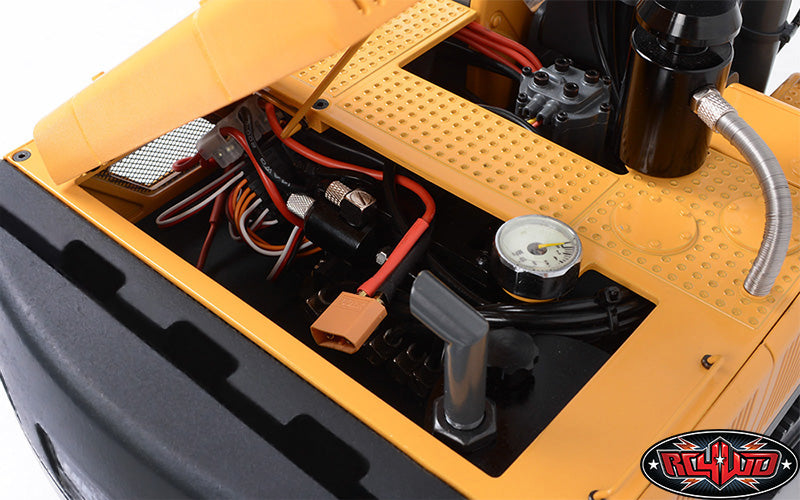

• Steel machined oil pump: 60 x 60 x 93 mm
• Hydraulic system: 60A brushless ESC
• Drive and rotation system: 30A brushless ESC
• 270KV brushless monster-torque motor with 3.0 mm shaft
• Operating oil pressure: 2.5 MPa
• XT60 female power connector

Operating Functions

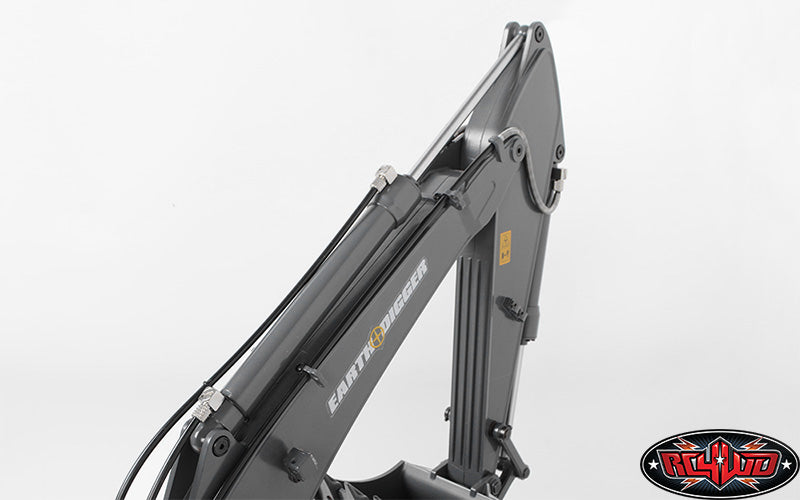

• Hydraulic boom up/down
• Hydraulic arm in/out
• Bucket curl/dump
• Independent tracked driving
• Endless 360-degree upper-structure rotation
• Combined proportional functions for realistic digging cycles

Performance

• Digging force: 15 kg / 33 lb
• Maximum lifting force: 70 kg / 154 lb
• Driving speed: approximately 360 m/hour
• Typical runtime: approximately 20 minutes with a 4200mAh 11.1V battery, depending on operating load

Dimensions & Weight

• Scale: 1:14
• Length: 823 mm / 32.4 in
• Width: 234 mm / 9.21 in
• Height: 260 mm / 10.2 in
• Inside cab: 120 x 65 x 107 mm / 4.72 x 2.55 x 4.21 in
• Dead weight: 26 kg / 57 lb

What's Included

• 1x RC4WD 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator – Yellow

Required to Complete

• 3S LiPo battery; RC4WD recommends 12V-class supply, 3S 25C, XT60 connector
• Battery dimensions must remain within approximately 160 x 51 x 73 mm
• Compatible LiPo charger
• 8x AA batteries for the radio
• AW ISO 32 hydraulic oil
• LiPo low-voltage alarm strongly recommended

Optional Accessories

• Volvo decal sheet set — VVV-C0267
• Cab window protective screens — VVV-S0186
• Skeleton bucket — VVV-S0217
• Narrow digging bucket — VVV-S0219
• Wide bucket — VVV-S0218
• Digging bucket — VVV-S0221
• Quick Connect — VVV-S0220
• Functional hydraulic radiator — VVV-S0246
• Breaker / Hammer accessories — VVV-S0245 / VVV-S0244

Important Operating Notes

• For experienced RC hobbyists; RC4WD does not recommend this machine for users under 16.
• Turn on the transmitter before powering the excavator ESC.
• The excavator ships without hydraulic oil; fill the reservoir according to the manufacturer instructions before use.
• RC4WD's operating notes state that this unit does not have a low-voltage cutoff and recommend a LiPo low-voltage alarm to protect the battery.
• Inspect hardware after shipping and periodically during operation.
• Use quality hex drivers and thread lock sparingly where metal screws thread into metal.
• Do not over-tighten screws or adjust the factory oil-pressure setting.
• Avoid overheating the pump, hoses and electronics during extended operation.

GASHEAD RC Owner Note

At approximately 57 lb, the 360L should be planned around transport and service access before purchase. Use a sturdy loading surface, verify battery fit before ordering a pack, and inspect hydraulic fittings, track hardware and boom pivots after shipping. Because of the machine's mass and hydraulic power, controlled operation and preventative maintenance matter much more here than on a conventional electric crawler.

SKU: VV-JD00016
