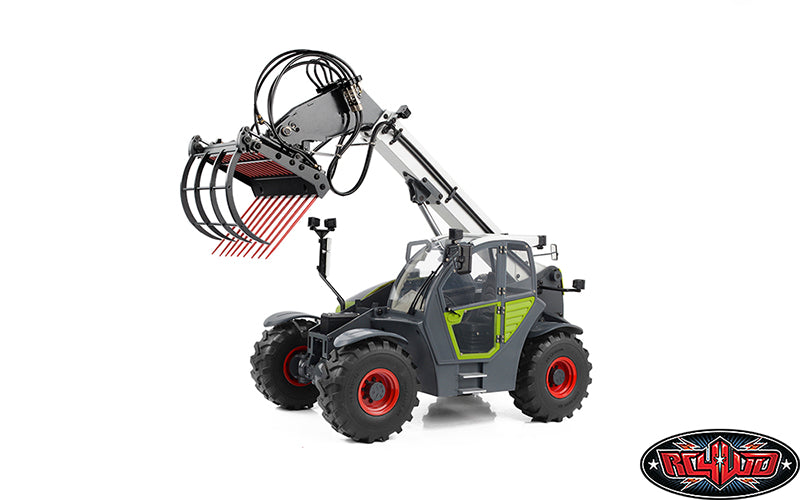

1/14 Grabber Telescopic Hydraulic RC Forklift RTR

RC4WD 1/14 Grabber Telescopic Hydraulic RC Forklift RTR

The Grabber is a premium 1/14-scale hydraulic telehandler engineered for experienced RC construction operators. CNC-machined metal components, an optimized steel hydraulic system, front and rear differential locks, four-wheel steering capability and a two-speed all-metal planetary transmission give this machine genuine working capability, while its hydraulic quick-change interface lets the operator switch between three included tools.

Heavy-Duty Construction

• CNC-machined metal parts
• Optimized steel hydraulic system
• Heavy-duty hydraulic hoses
• Powder-coated white, grey and green finish

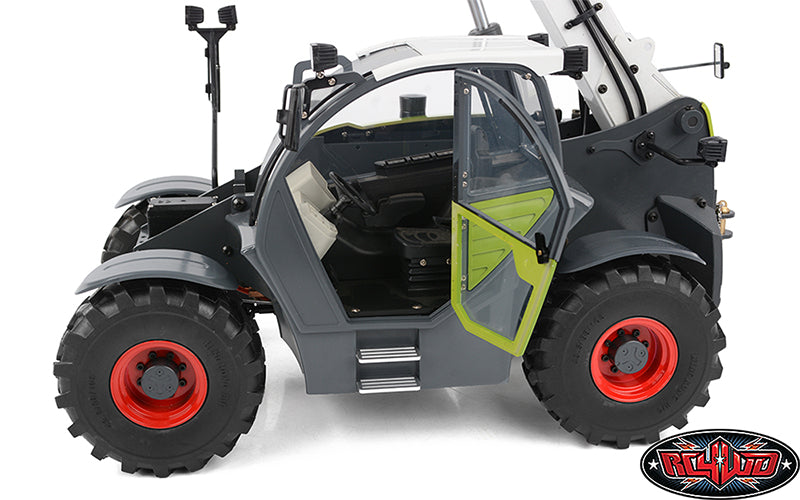

• Scale operator station capable of accepting a driver figure
• Detailed scale interior
• EVA rubber tires
• LiPo low-voltage cutoff
• 10-channel 2.4GHz radio system

Telescopic Boom & Hydraulic Quick-Change System

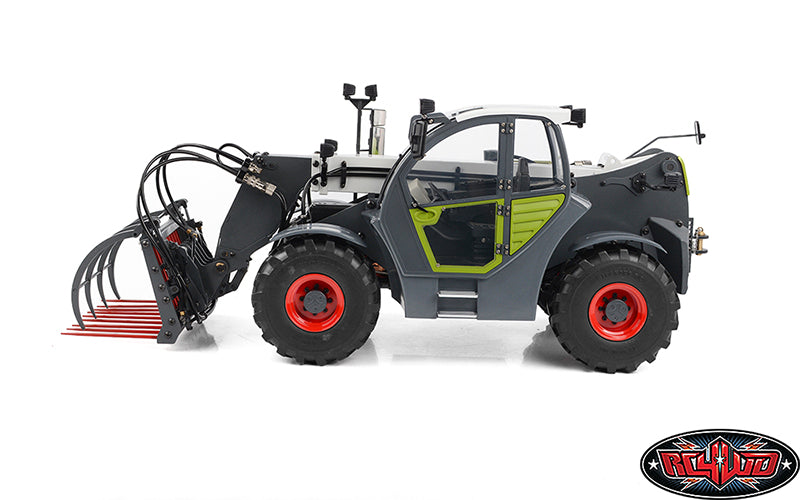

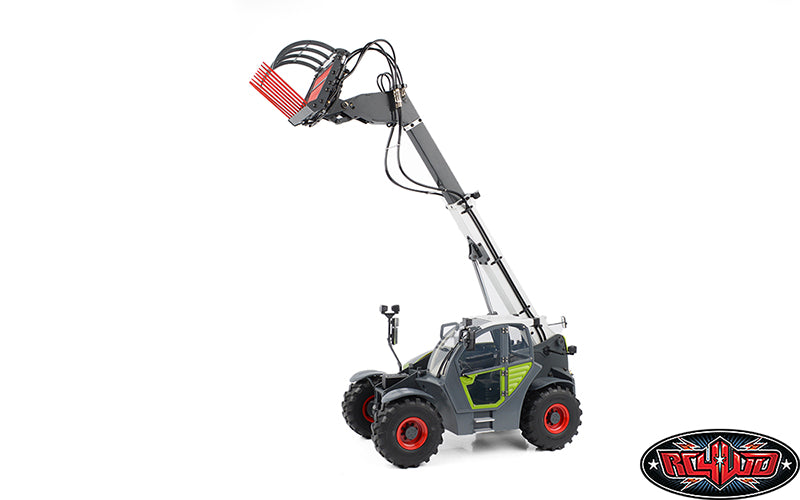

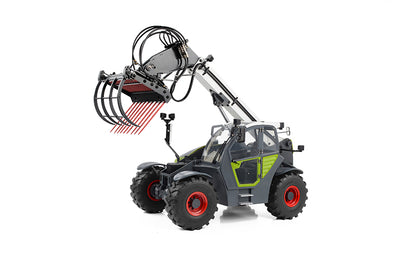

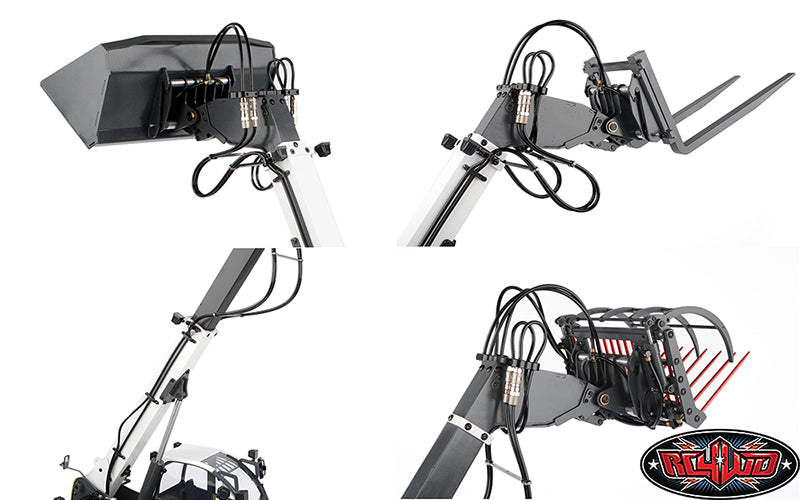

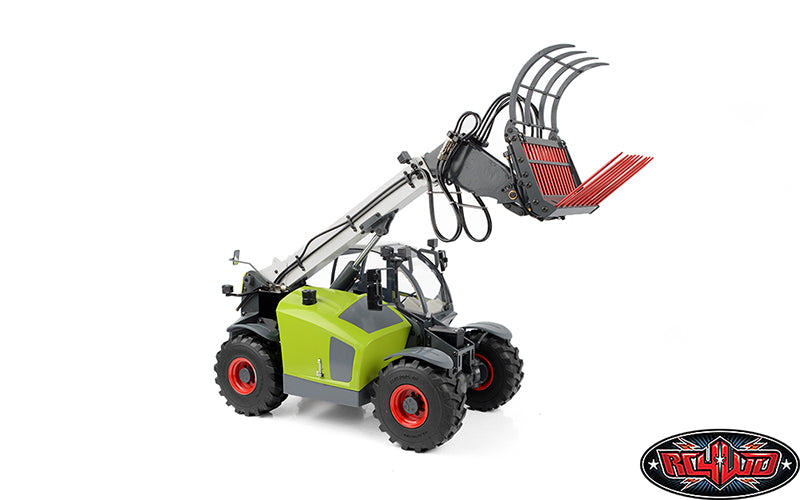

The working boom lifts, telescopes and controls the front attachment hydraulically. The front coupler uses a hydraulic quick-release system so the machine can change between the included hydraulic gripper, molded steel bucket and pallet forks. The boom can reach more than 500 mm of maximum lift height.

• Lifting force with boom retracted: approximately 4 kg / 8.8 lb
• Lifting force with boom extended: approximately 1.5 kg / 3.3 lb
• Bucket turning capacity: approximately 2 kg / 4.4 lb

Three Included Working Attachments

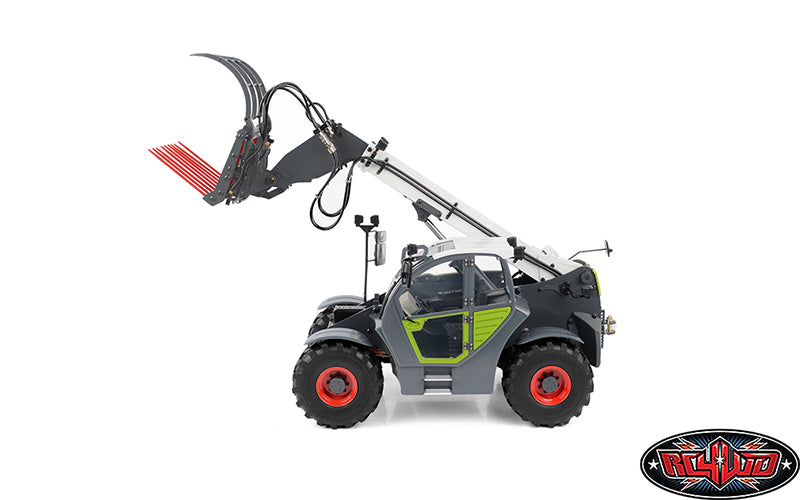

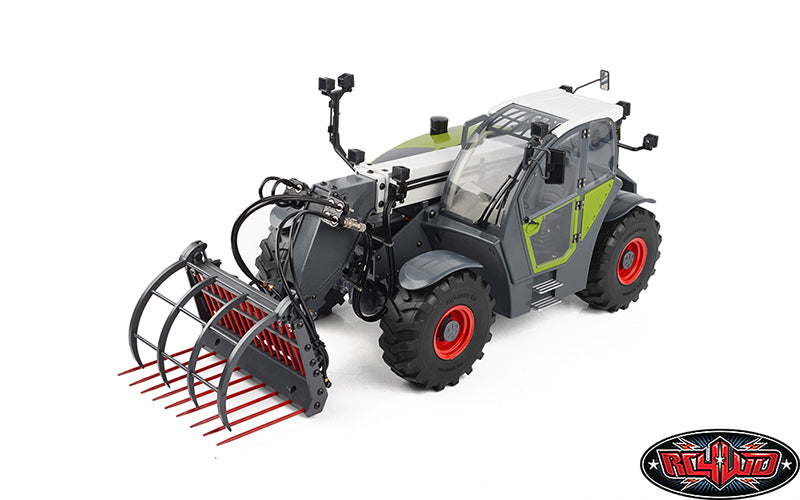

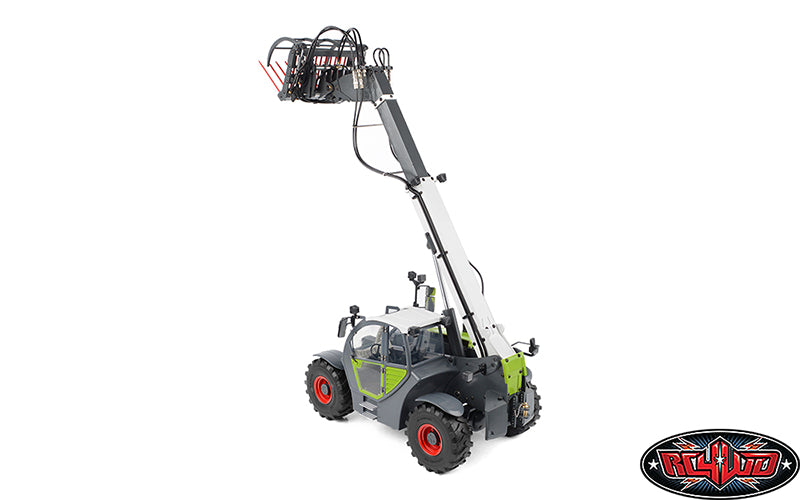

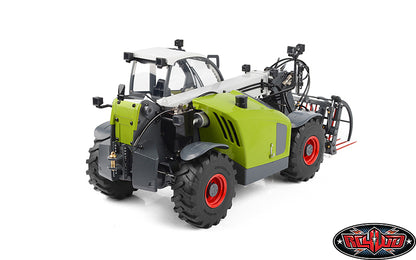

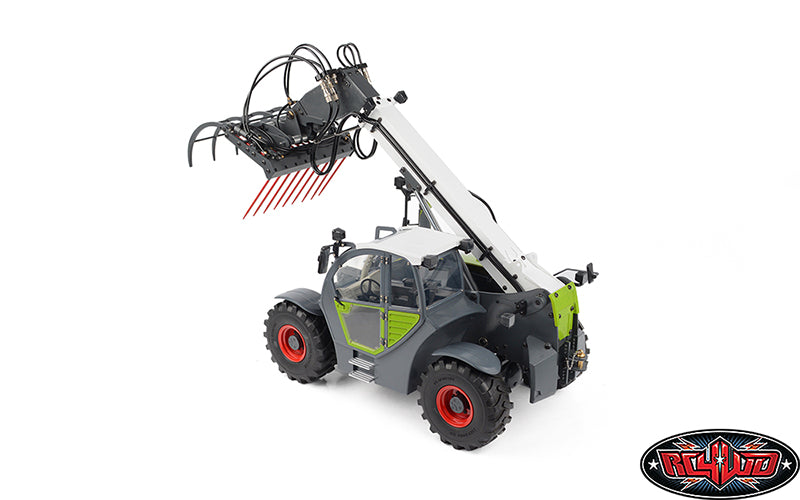

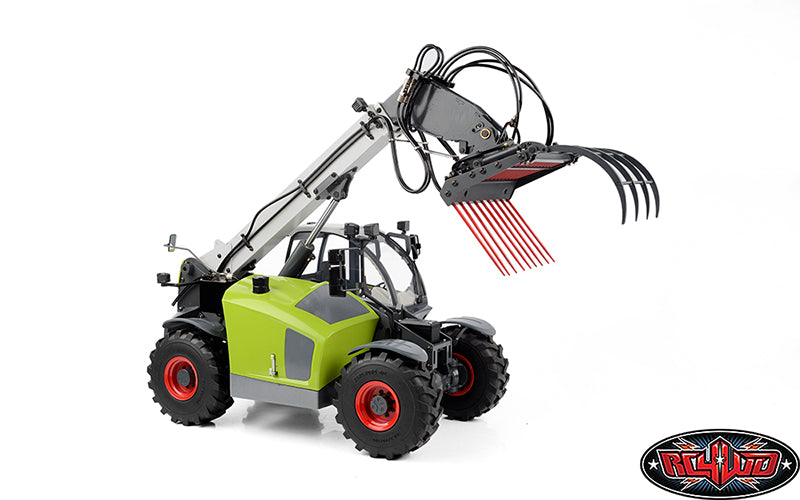

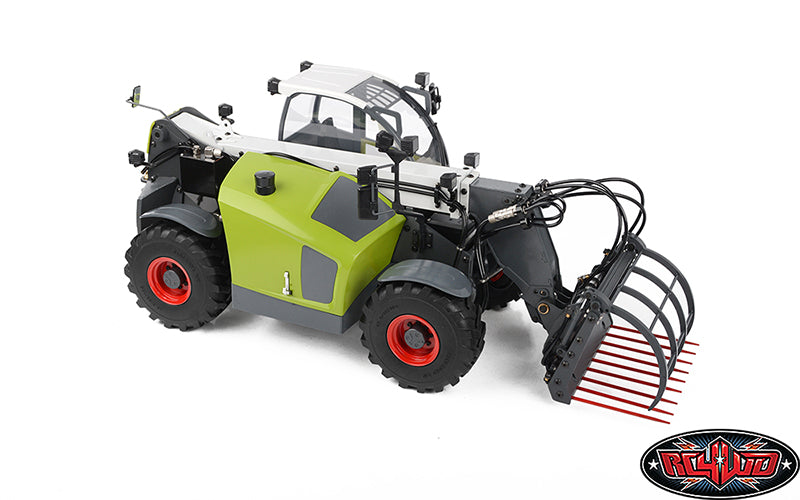

• Hydraulic gripper

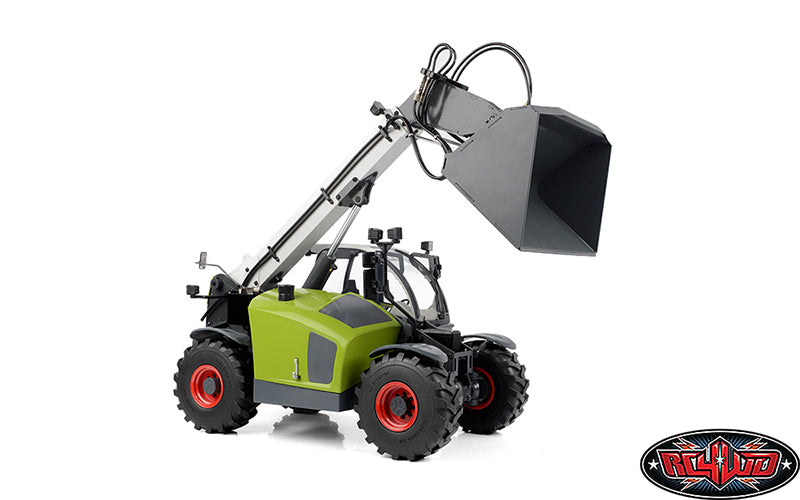

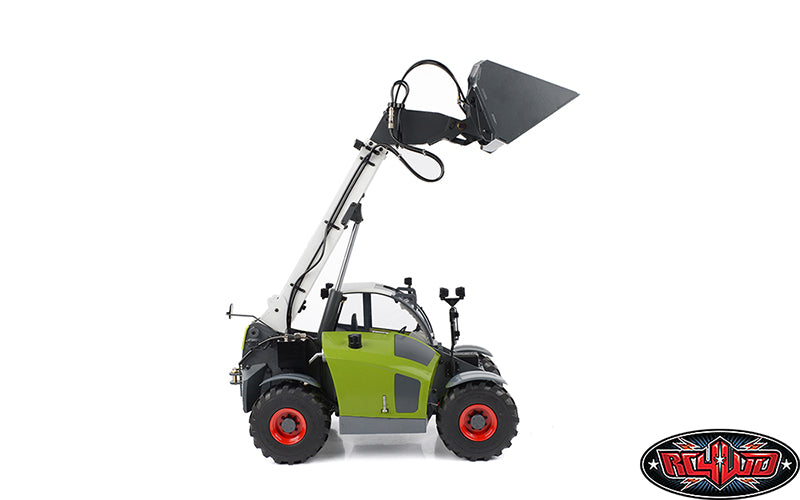

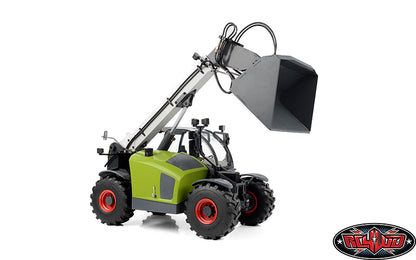

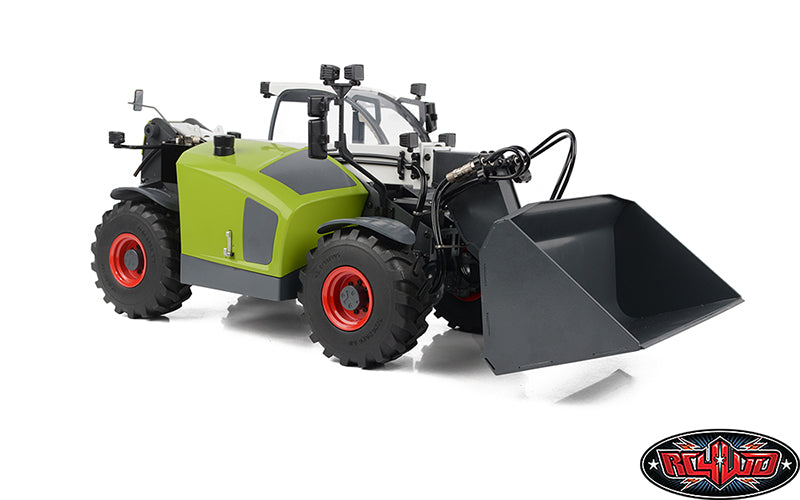

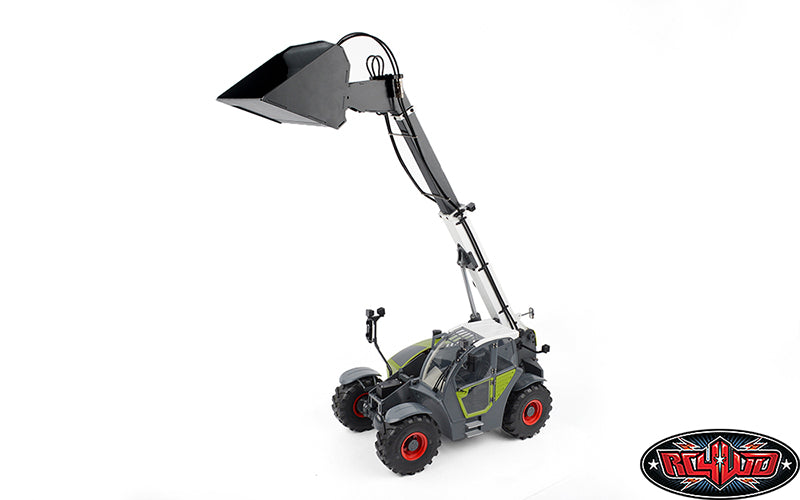

• Molded steel bucket

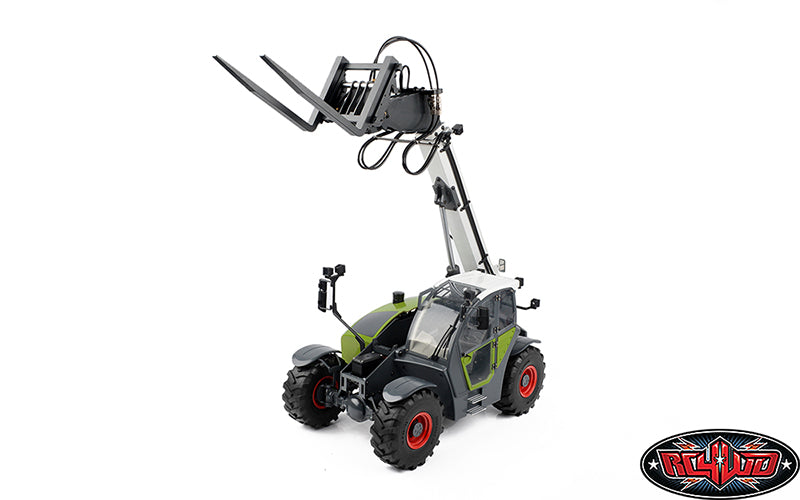

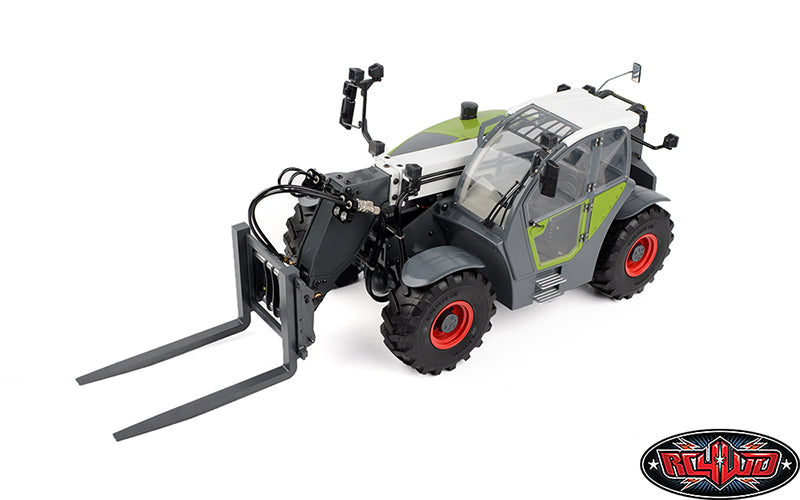

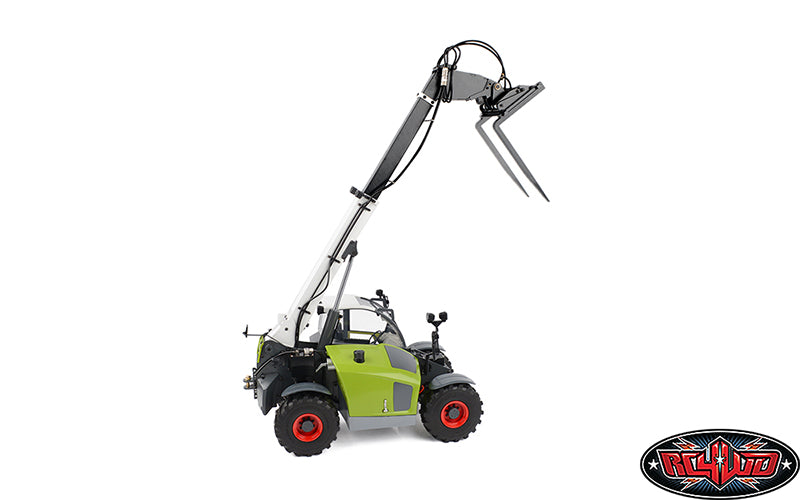

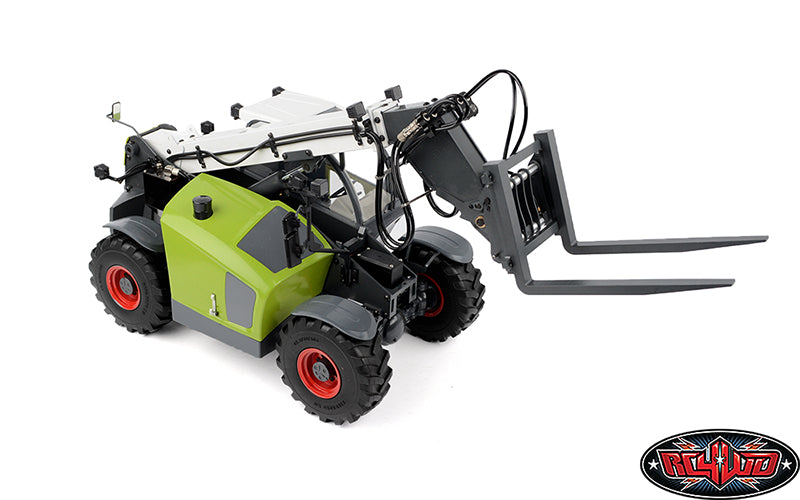

• Pallet forks

The attachment system is one of the Grabber's defining features: rather than limiting the machine to a single loading task, the three tools support gripping, material handling, bucket work and pallet-style lifting from the same platform.

Drivetrain & Steering

• Transmission: two-speed all-metal planetary gearbox
• First gear: 1:64
• Second gear: 1:16

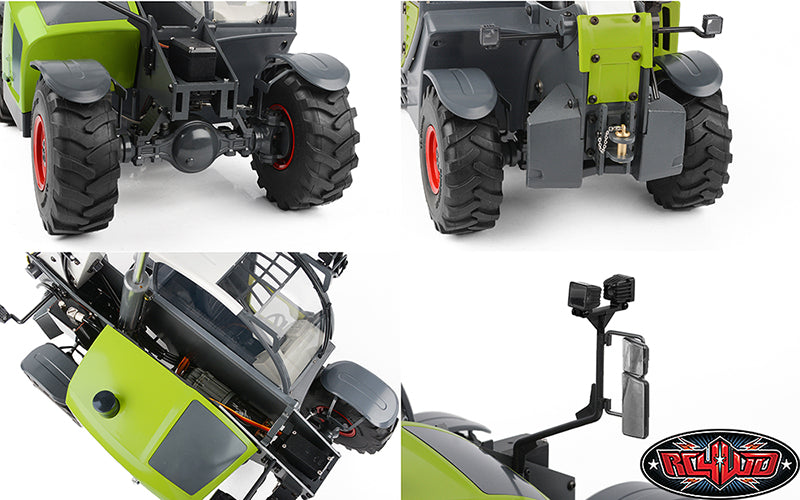

• Axles: static alloy front and rear axles
• Differentials: front and rear differential-lock function
• Steering: front and rear axle steering for highly maneuverable operation

Dimensions & Weight

• Scale: 1:14
• Length: 553 mm / 21.77 in
• Width: 220 mm / 8.66 in
• Height: 232 mm / 9.13 in
• Vehicle weight: approximately 9.1 kg / 20 lb

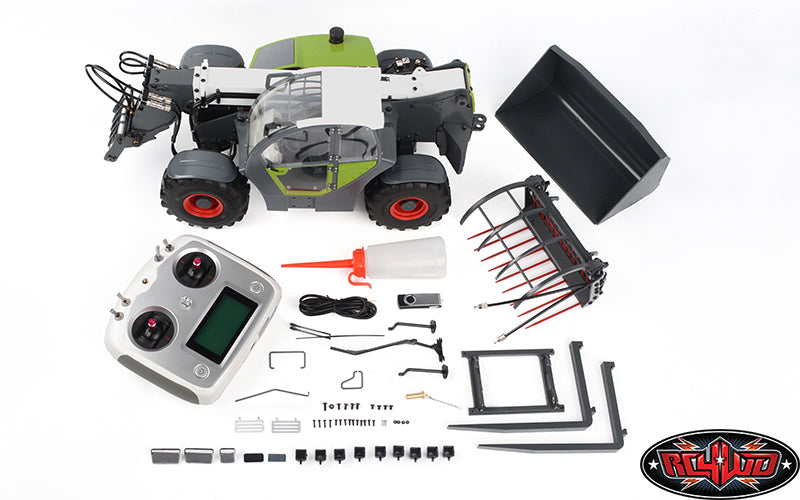

What's Included

• 1x RC4WD 1/14 Grabber Telescopic Hydraulic RC Forklift RTR
• Hydraulic gripper attachment
• Molded steel bucket attachment
• Pallet fork attachment
• 10-channel radio system

Required to Complete

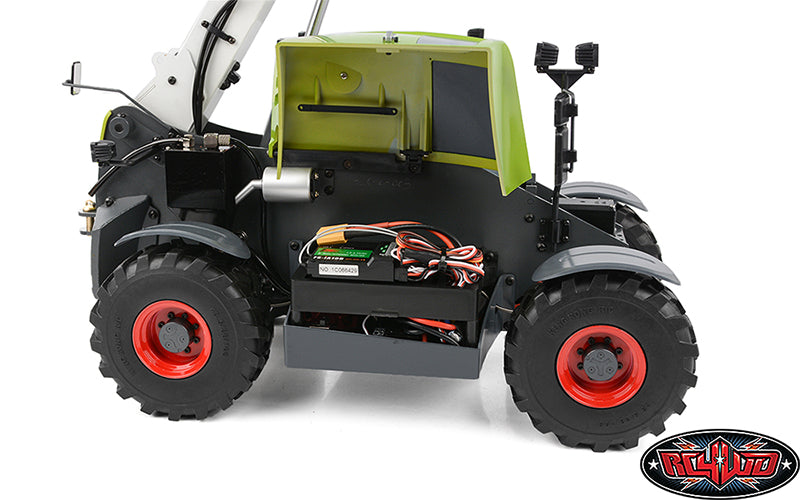

• 5000mAh 11.1V 35C 3S1P short-size LiPo battery with XT60 plug
• Maximum battery size: 103 x 33 x 35 mm / 4.05 x 1.29 x 1.37 in
• Compatible LiPo charger
• 4x AA batteries for the transmitter
• AW ISO 32 hydraulic oil

Important Operating Notes

• This product is intended for experienced RC hobbyists and is not recommended for users under 16.
• Confirm the battery dimensions before purchase; the battery compartment is compact.
• Turn on the transmitter before powering the vehicle and verify the control switches are in their required startup positions.
• Check hydraulic connections, oil level and attachment couplers before operating the pump.
• Inspect hardware after shipping and periodically during use.
• This model is intended for personal hobby operation, not continuous commercial-duty use.

GASHEAD RC Owner Note

The Grabber's combination of a telescoping boom, 4 kg retracted-boom lift rating and interchangeable hydraulic tooling makes pre-run inspection especially important. Before loading the boom, verify attachment lock engagement, hydraulic quick-connect seating, boom pivots, axle hardware and tire condition. As boom extension increases, available lifting capacity decreases significantly, so keep heavier loads close to the chassis whenever possible.

SKU: VV-JD00055
