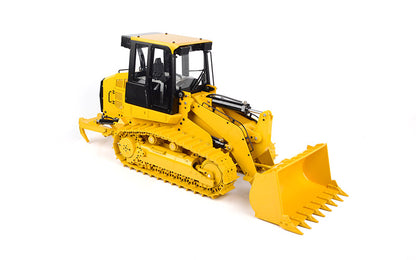

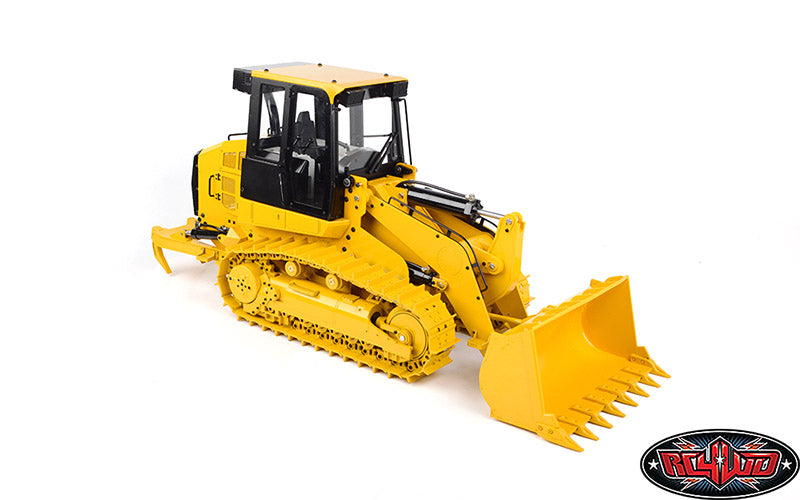

1/14 Earth Mover RC693T Hydraulic Track Loader RTR

RC4WD 1/14 Earth Mover RC693T Hydraulic Track Loader RTR

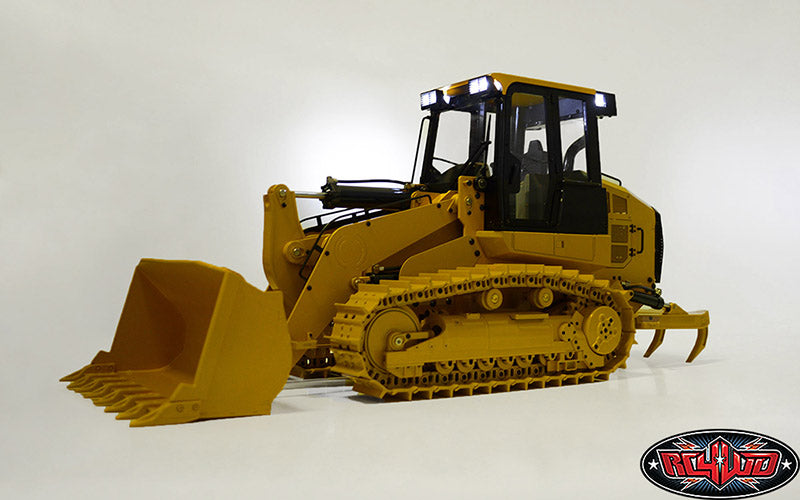

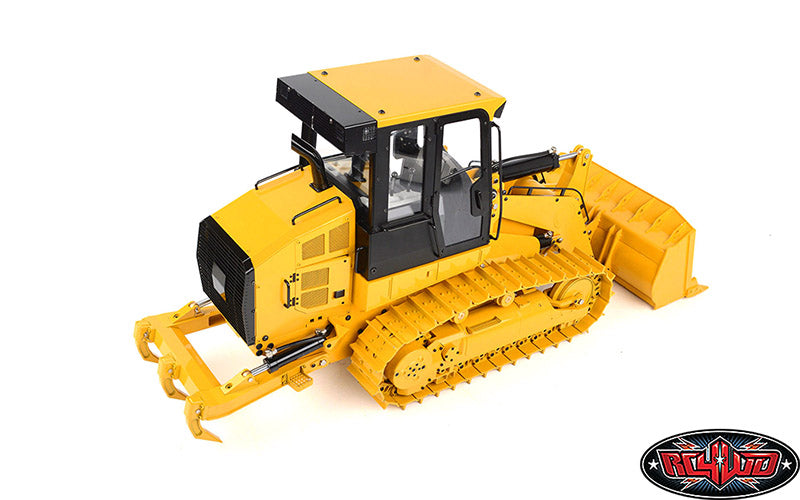

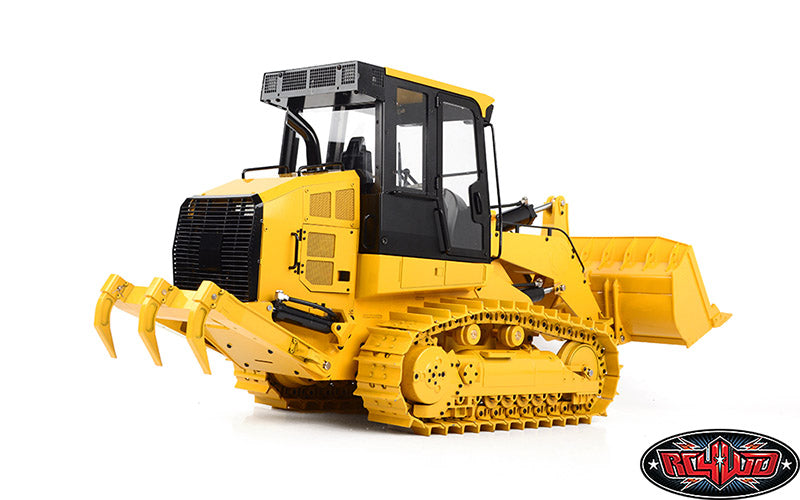

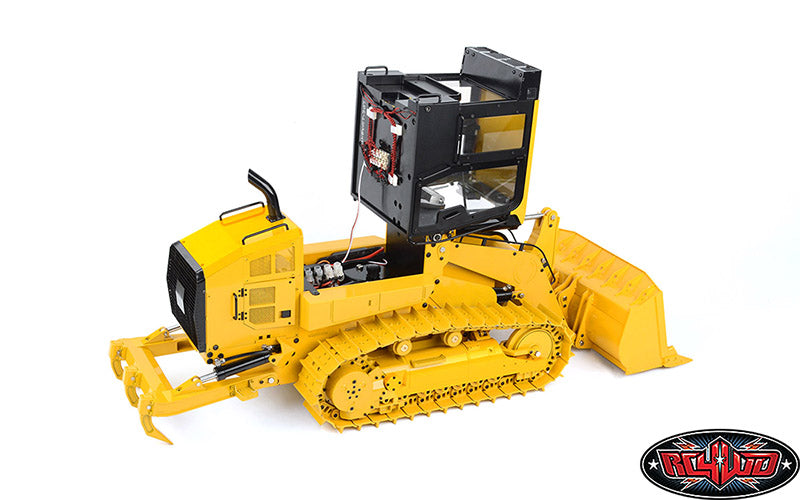

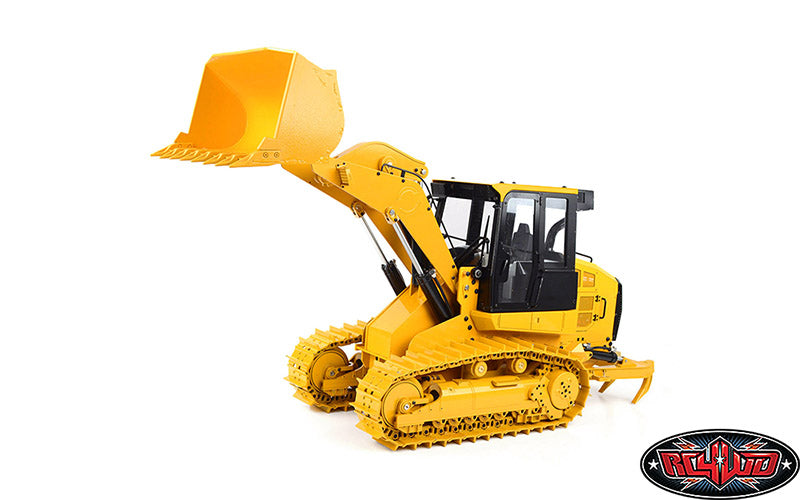

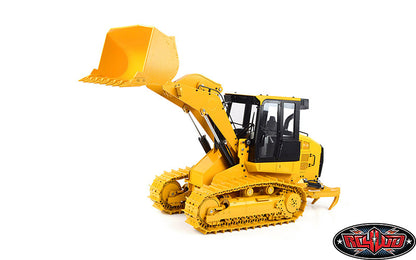

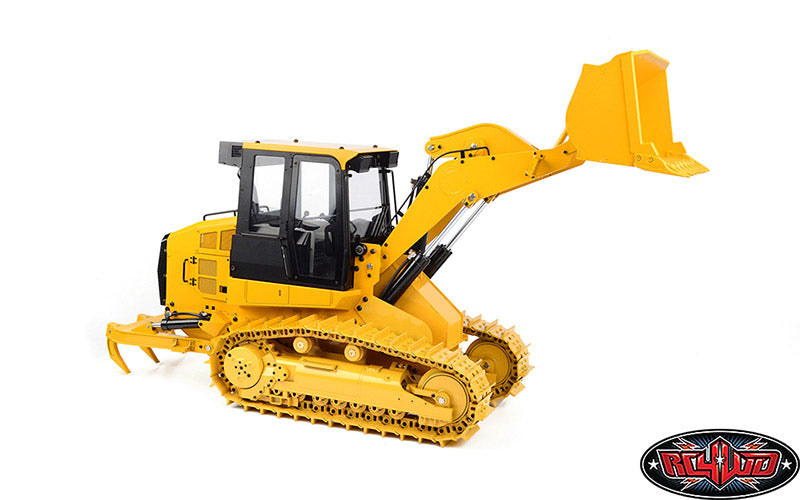

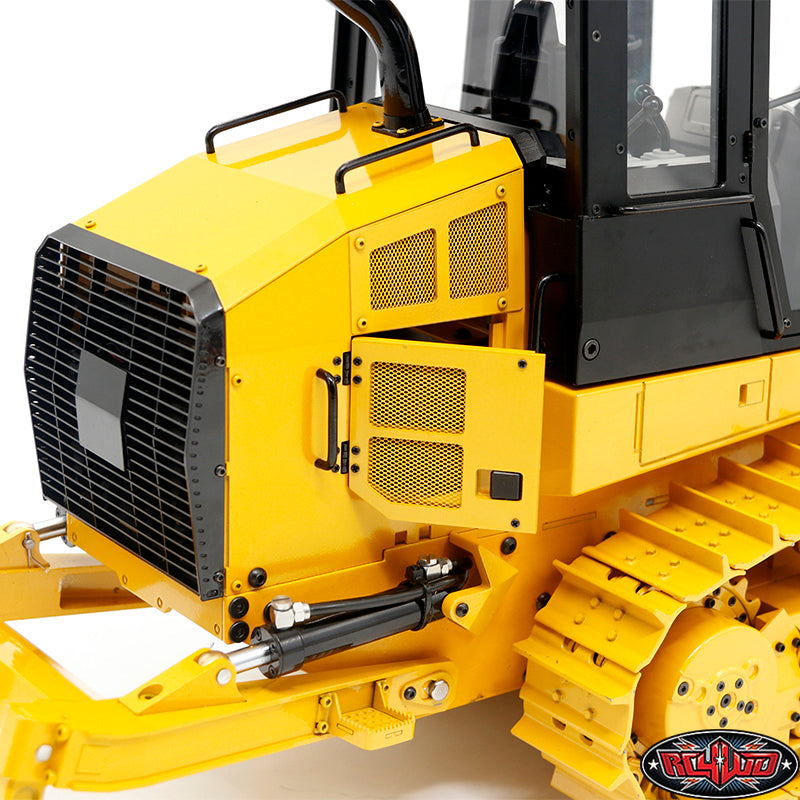

The RC693T is a full-metal 1/14-scale hydraulic track loader built for realistic RC construction work. Its zinc-alloy and aluminum cast structure, welded steel bucket, metal crawler undercarriage and brushless hydraulic system give it the mass and durability expected from a serious working machine rather than a display-only model.

Construction & Chassis

• Alloy zinc and alloy aluminum casting, excluding track and hydraulic pump

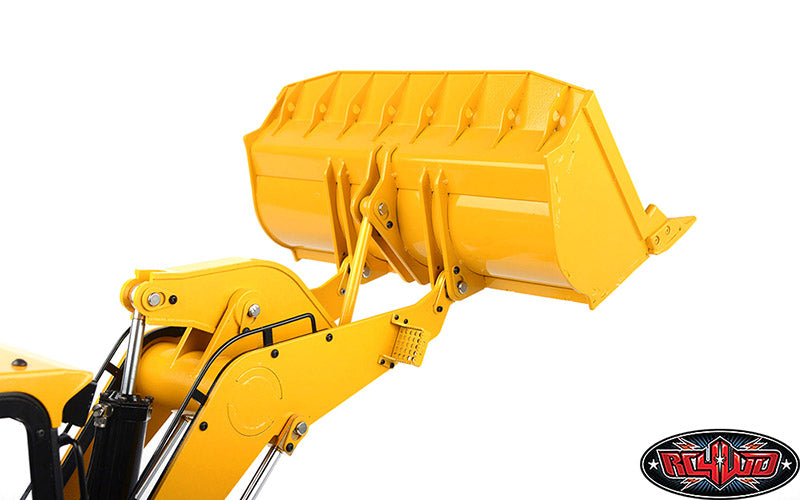

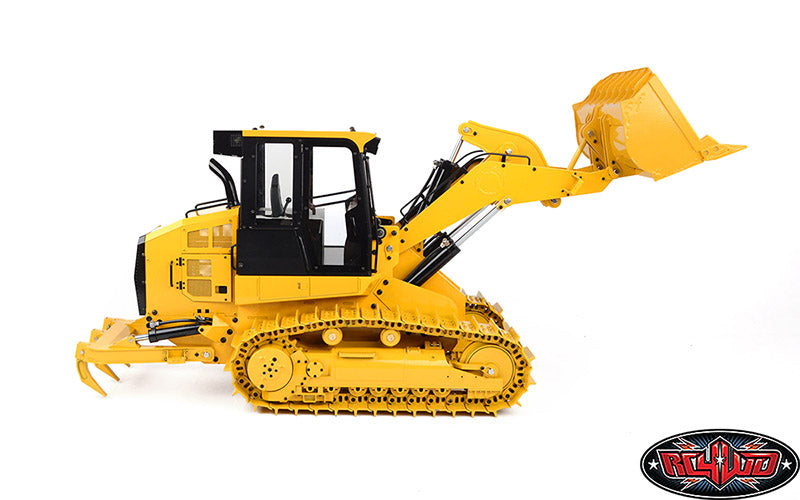

• Welded steel bucket
• Full-metal scale construction

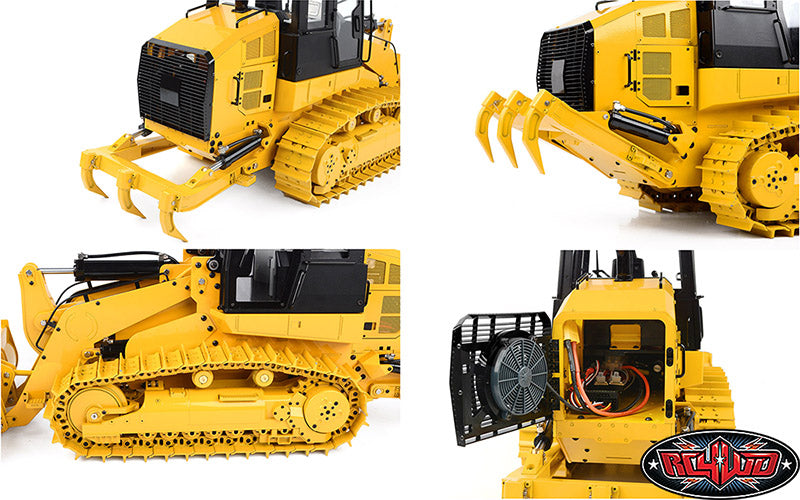

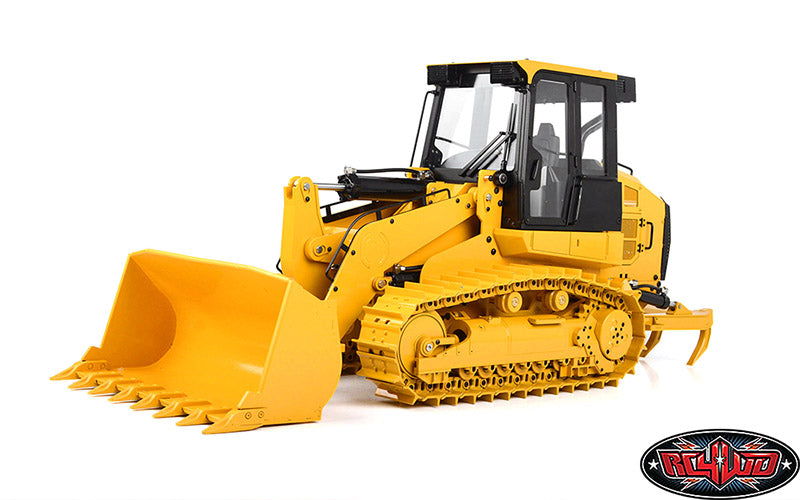

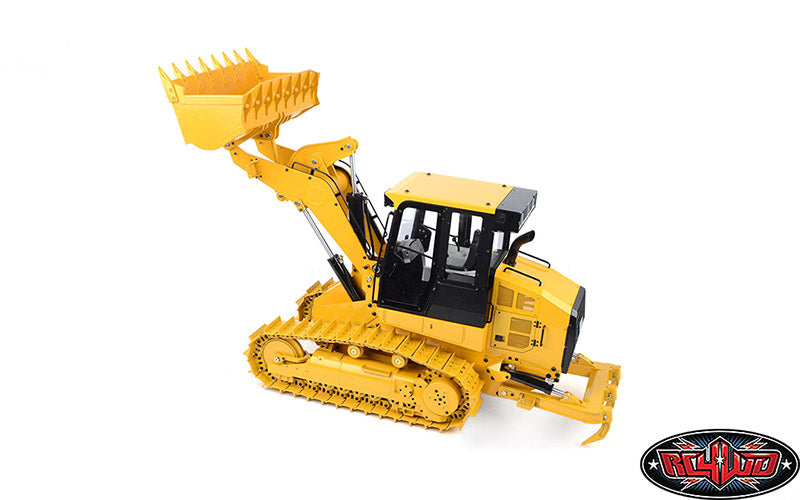

• All-terrain metal crawler undercarriage

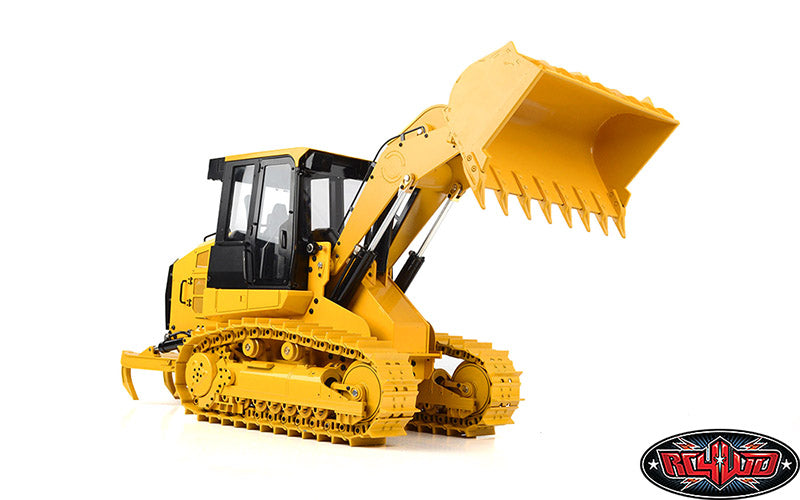

• Heavy-duty hydraulic hoses
• 9-channel 2.4GHz radio system

Hydraulic & Drive System

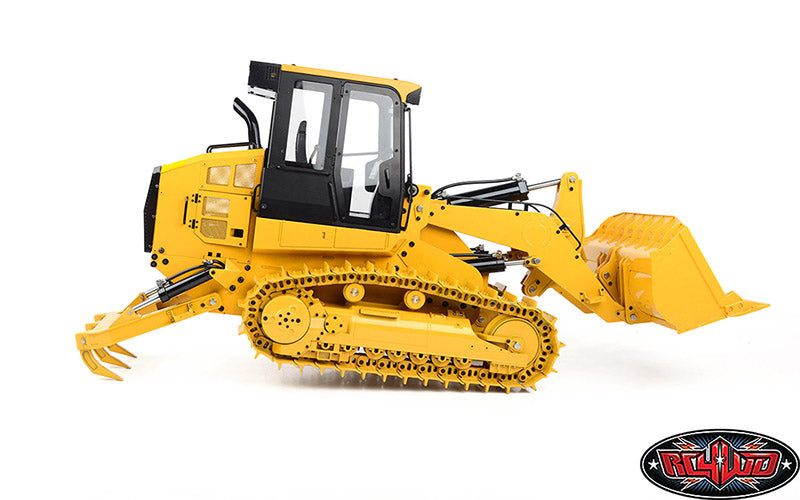

• Reliable brushless hydraulic system with adjustable pump

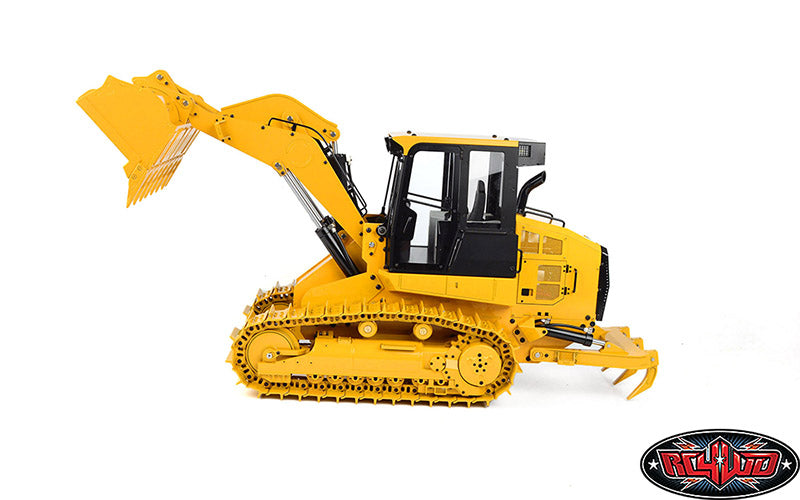

• 540 brushed monster-torque drive motor
• Independent tracked movement

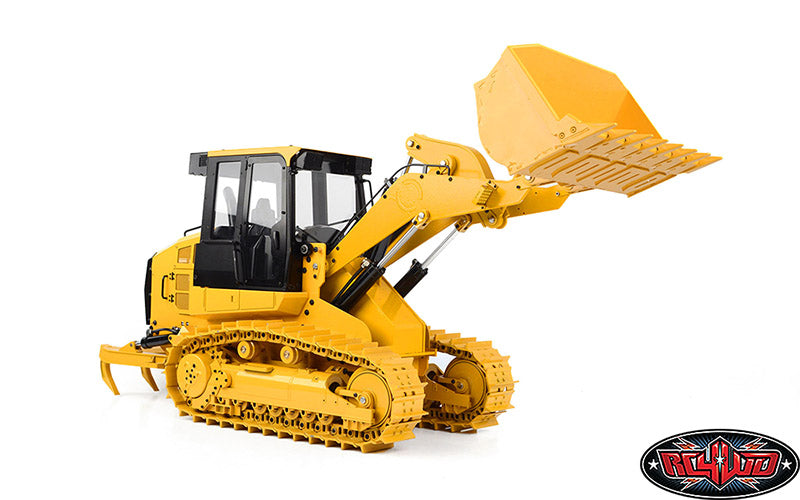

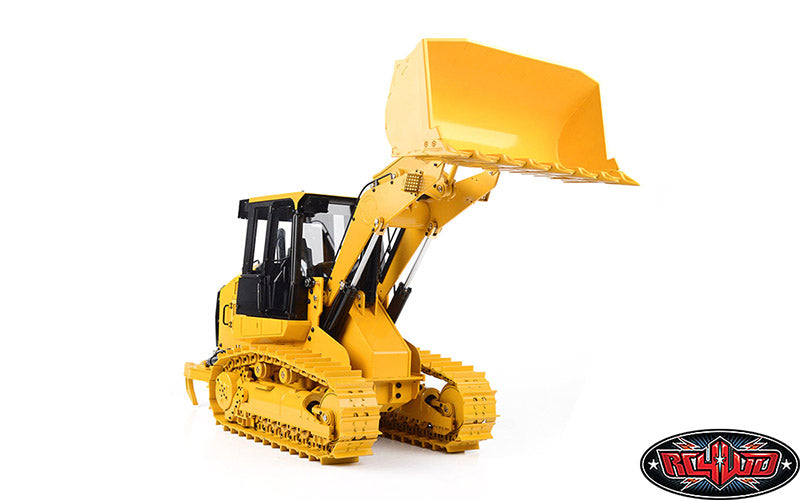

• Hydraulic loader-arm control
• Hydraulic bucket control
• LiPo cutoff

Performance

• Maximum bucket force upward: 13 kg / 28.6 lb
• Typical runtime: approximately 38 minutes with a 5200mAh battery
• Scale: 1:14
• Length: 627 mm / 24.6 in
• Width: 220 mm / 8.66 in
• Height: 278 mm / 10.9 in
• Dead weight: 15 kg / 33 lb

What's Included

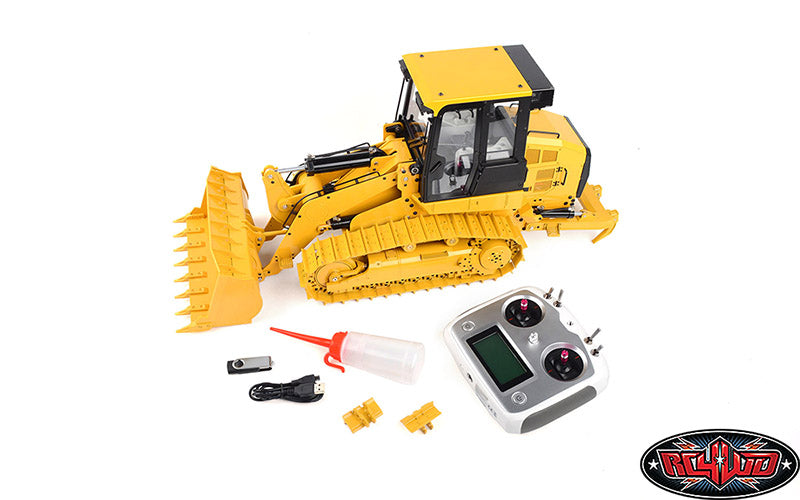

• 1x RC4WD 1/14 Earth Mover RC693T Hydraulic Track Loader RTR

Required to Complete

• 5200mAh 11.1V 25C 3S LiPo battery pack with XT60 plug
• Maximum battery size: 140 x 45 x 25 mm
• Compatible LiPo charger
• 4x AA batteries for the radio
• AW ISO 32 hydraulic oil

Important Operating Notes

• Inspect hardware after shipping before the first run.
• Use quality hex drivers to avoid stripping screw heads.
• Apply thread lock where metal screws thread into metal, but use it sparingly.
• Do not over-tighten screws.
• Confirm battery dimensions before purchase; the compartment is shallow.
• This machine is intended for experienced RC hobbyists and is not recommended for users under 16.

GASHEAD RC Owner Note

At 33 lb, the RC693T benefits from the same pre-run discipline as the larger excavators: verify track tension, bucket hardware, loader-arm pivots, hydraulic fittings and battery retention before putting it to work. Its 13 kg bucket-force rating is substantial for a 1/14 loader, so avoid shock-loading the bucket or using the hydraulic system as a pry bar.

SKU: VV-JD00059
