1/14 E450C Articulating Dump Truck (RTR)

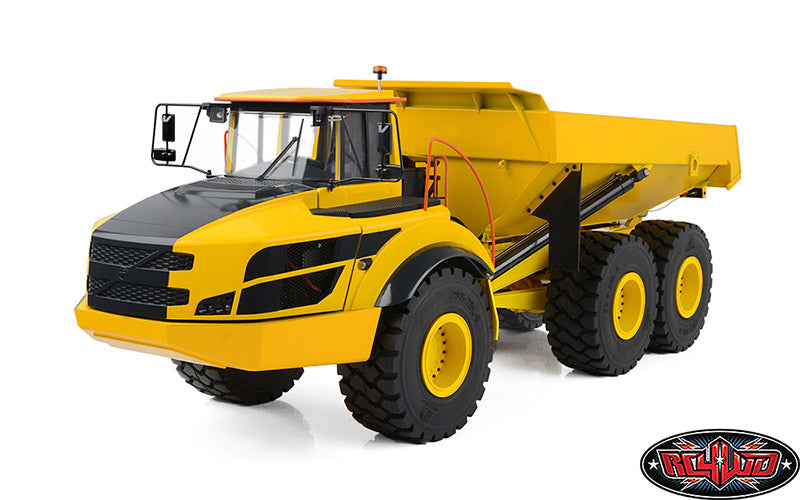

RC4WD 1/14 E450C Articulating Dump Truck RTR

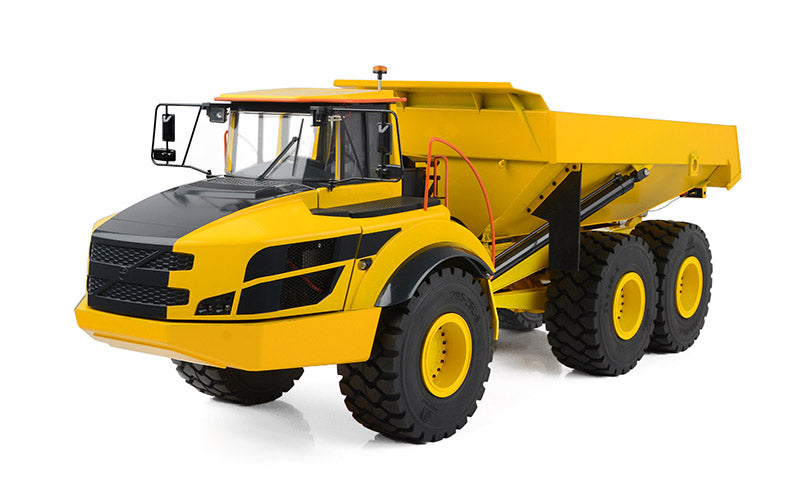

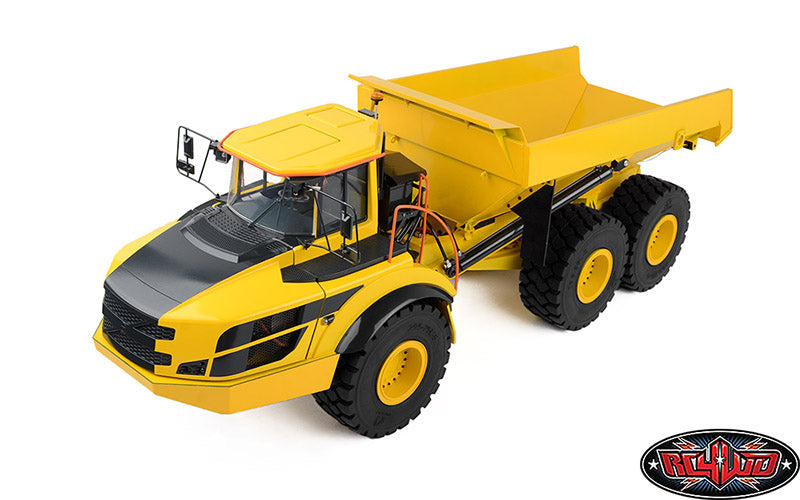

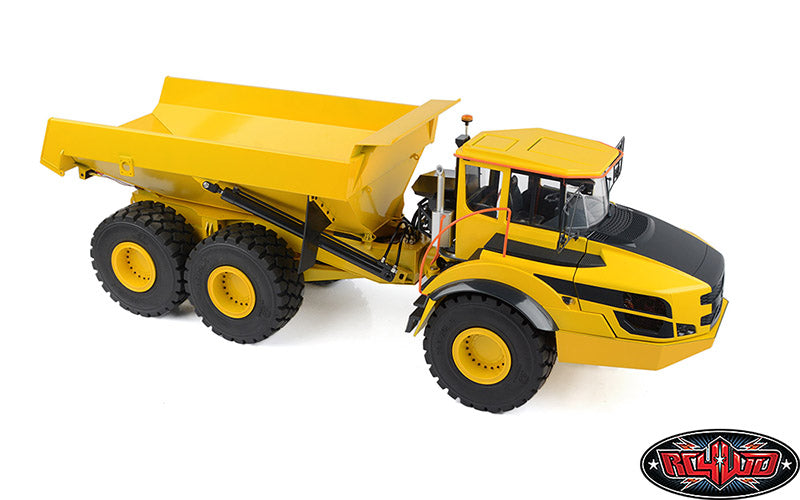

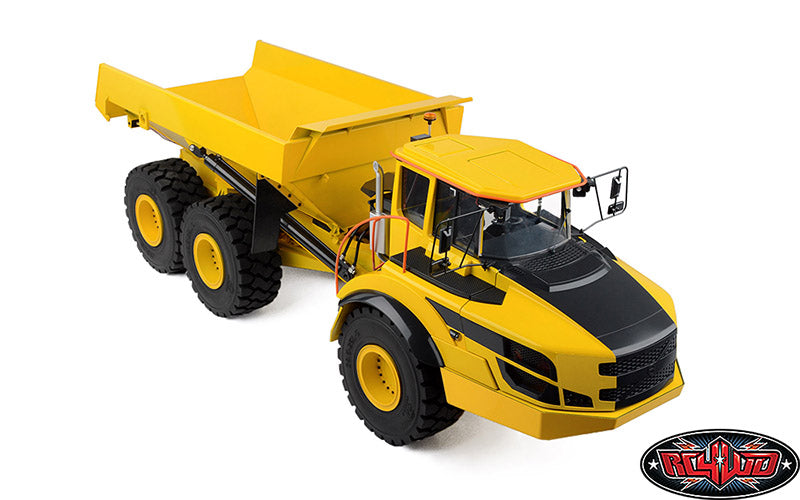

The E450C is a heavy-duty 1/14-scale articulated hydraulic dump truck built as a functional RC construction machine. It combines CNC-machined metal components, a molded steel dump body, articulated steering, a two-speed full-metal transmission, remotely lockable front and rear differentials and a brushless hydraulic system in a professionally assembled RTR platform.

Key Construction Features

• CNC-machined metal parts

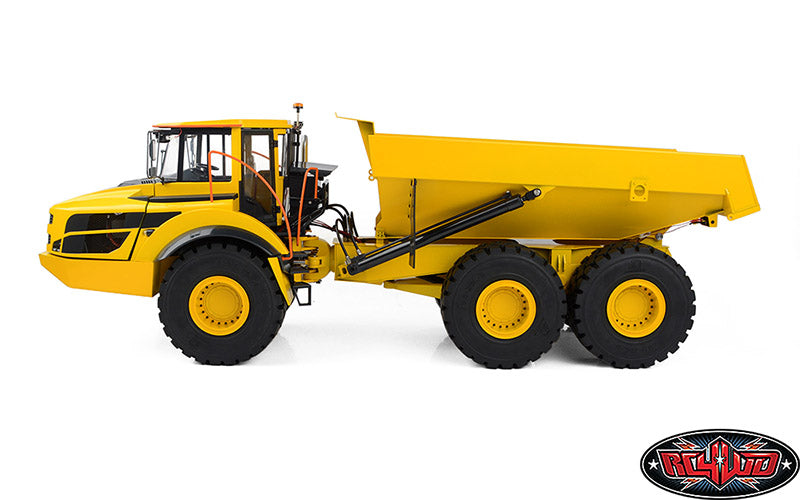

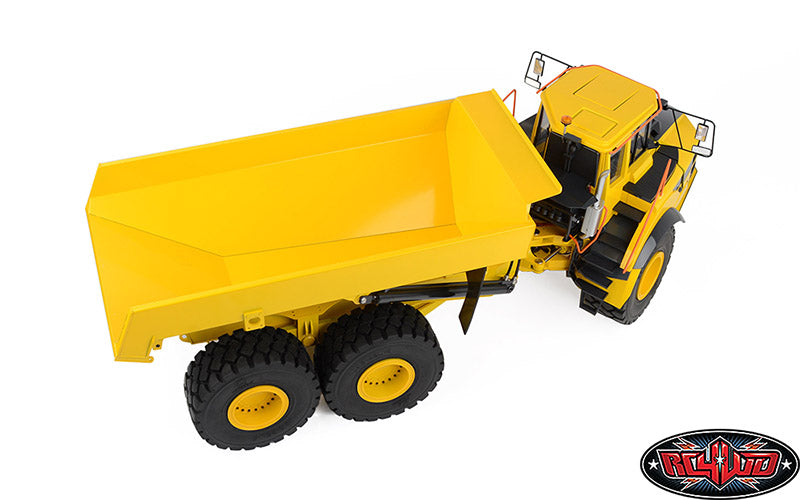

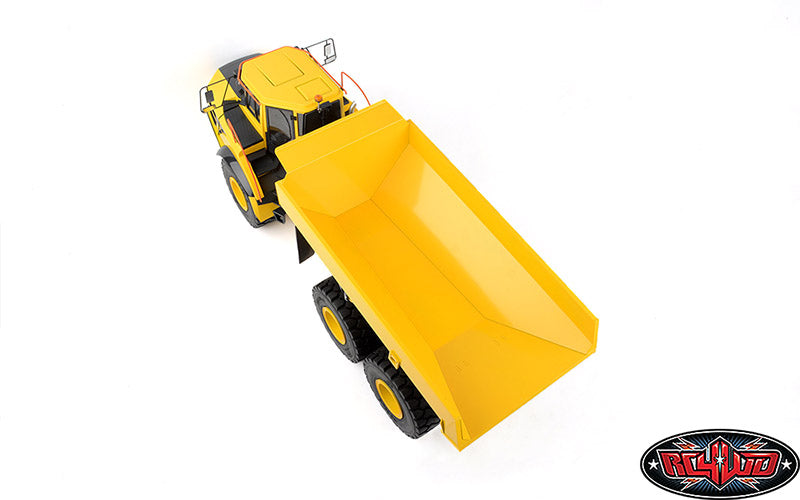

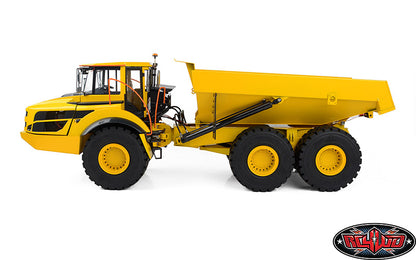

• Molded steel dump body

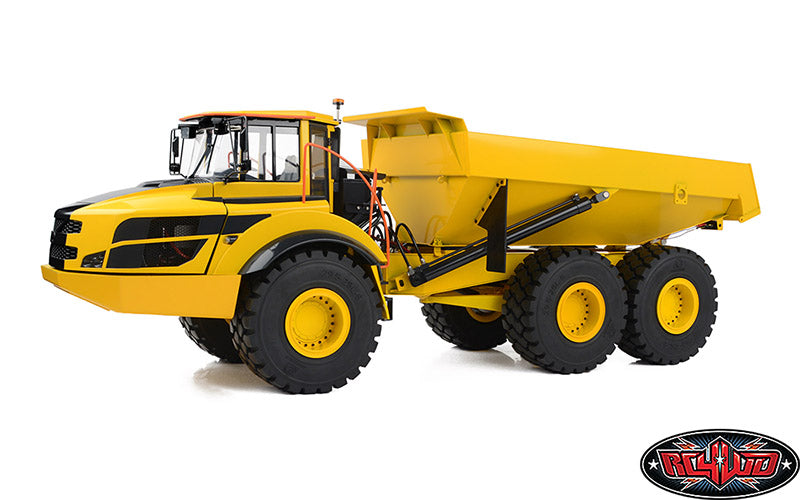

• Articulated steering design
• Scale front cab compatible with a driver figure
• Yellow powder-coated finish

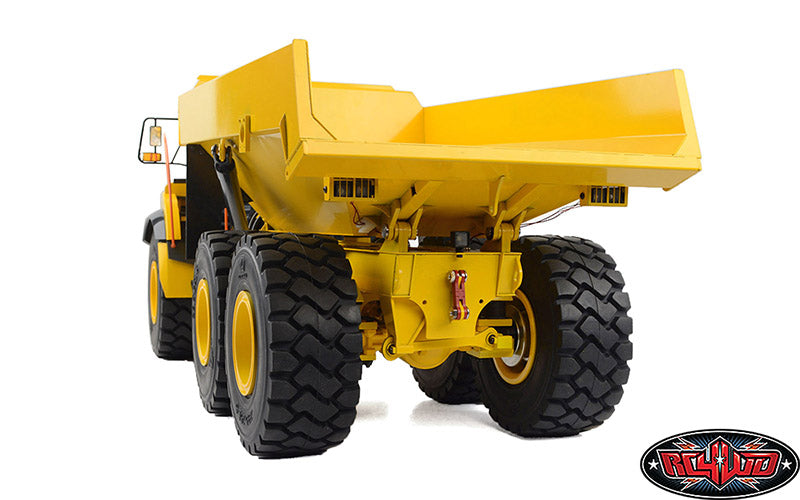

• Massive 29.5-25L-5 scale tires
• Fully functional scale lighting system
• 10-channel 2.4GHz radio system

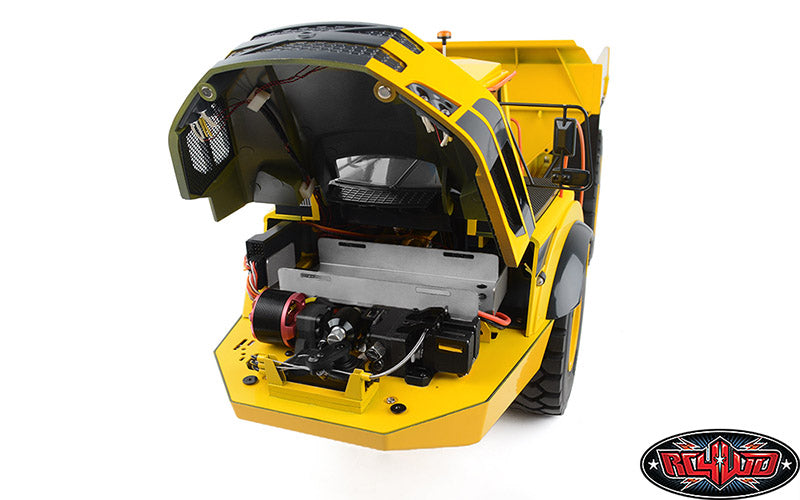

Hydraulic System

• Optimized steel hydraulic system
• Reliable hydraulic valve and adjustable pump
• Brushless hydraulic drive
• 40A brushless ESC with BEC
• 930KV brushless monster-torque motor
• Operating oil pressure: 20 bar / 290 psi
• Hydraulic cylinder maximum thrust: 40 kg / 88.1 lb

Drivetrain & Steering

• Transmission: 2-speed full-metal
• Low gear: 1:64
• High gear: 1:16
• Remote-lockable front and rear differentials
• Articulated chassis steering
• 3S LiPo power system with XT60 connection

Capacity & Dimensions

• Payload capacity: 25 kg / 55 lb
• Scale: 1:14
• Length: 818 mm / 32.2 in
• Width: 242.5 mm / 9.54 in
• Height: 278 mm / 10.9 in
• Net weight: 12 kg / 26.4 lb

What's Included

• 1x RC4WD 1/14 E450C Articulating Dump Truck RTR

Required to Complete

• 5000mAh 11.1V 50C 3S1P LiPo battery with XT60 plug
• Maximum battery size: 135 x 43 x 33 mm
• Compatible LiPo charger
• 4x AA batteries for the radio
• AW ISO 32 hydraulic oil

Important Operating Notes

• Do not use more than a 3S / 11.1V battery.
• Turn on the transmitter before starting the ESC.

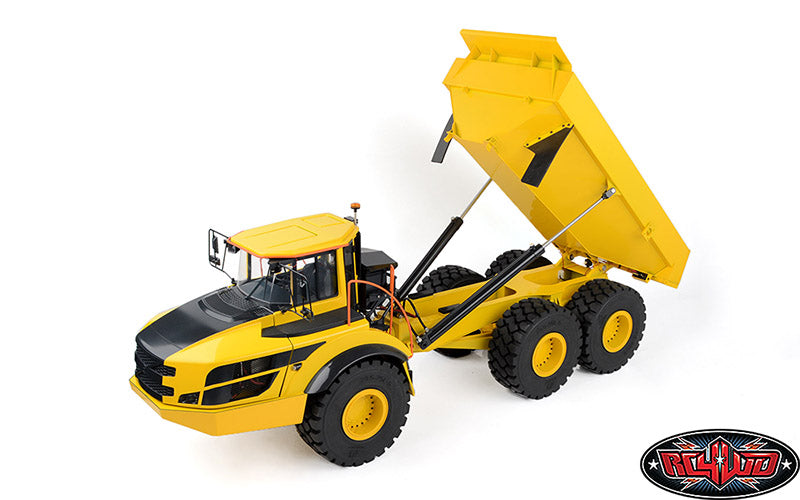

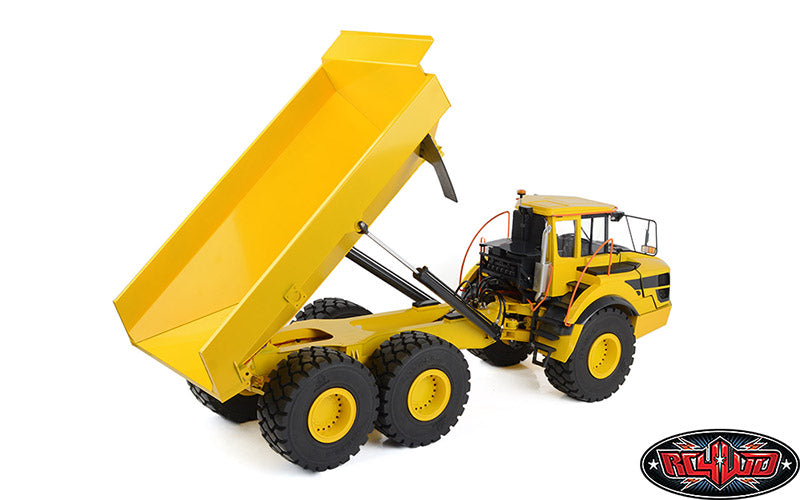

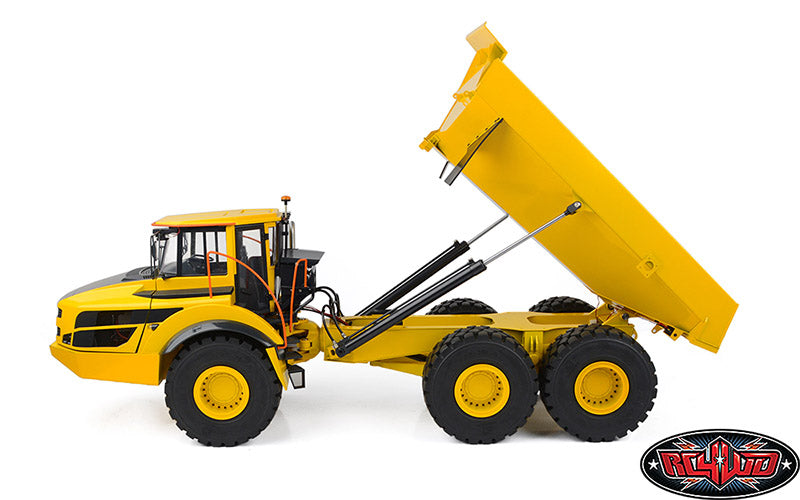

• When the dump cylinder reaches maximum extension, stop hydraulic input and do not continue forcing the system.
• Remove the truck from its shipping box horizontally while supporting it firmly; the articulated front section can rotate if handled carelessly.
• Inspect hardware after shipping and periodically during use.
• Use thread lock sparingly on metal-to-metal fasteners and do not over-tighten screws.
• This is a complex heavy-machinery RC model intended for experienced hobbyists.

GASHEAD RC Owner Note

The E450C combines a high payload rating with articulated steering, so pre-run inspection matters. Check the center articulation joint, axle hardware, dump-body pivots, hydraulic lines and battery retention before loading the bed. The manufacturer rates payload at 25 kg / 55 lb; treat that as the working ceiling, not a target to exceed repeatedly.

SKU: VV-JD00067
