Tube Roll Bar with Fabric Shade for RC4WD Gelande II Cruiser
Tube Roll Bar with Fabric Shade for RC4WD Gelande II Cruiser
SKU:VVV-C0221
Low stock
Couldn't load pickup availability
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
RC4WD Tube Roll Bar with Fabric Shade for Gelande II Cruiser

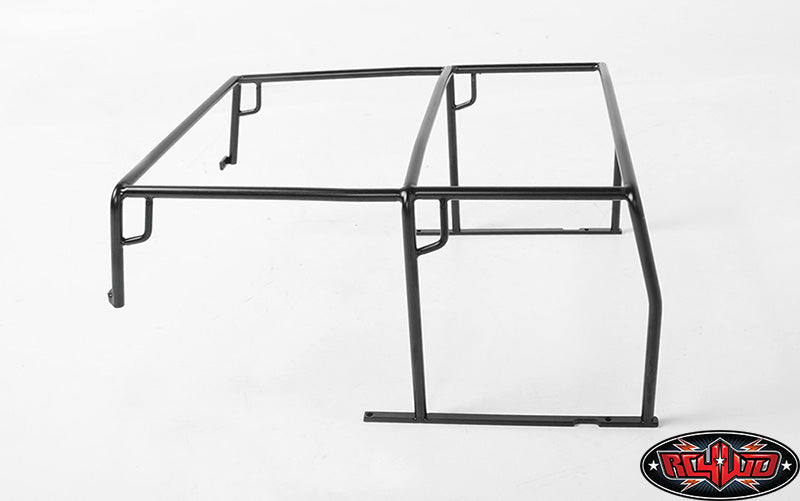

This tube roll bar and fabric-shade assembly converts the RC4WD Gelande II Cruiser into a more open, expedition-style build while preserving the rugged FJ40-inspired look of the body. The structure is hand welded from stainless steel, finished in black powder coat and supplied with a removable fabric shade for a more complete open-top appearance.
Construction & Finish
- Stainless-steel tube construction
- Hand-welded assembly
- Black powder-coated finish
- Corrosion-resistant construction
- Fabric shade included

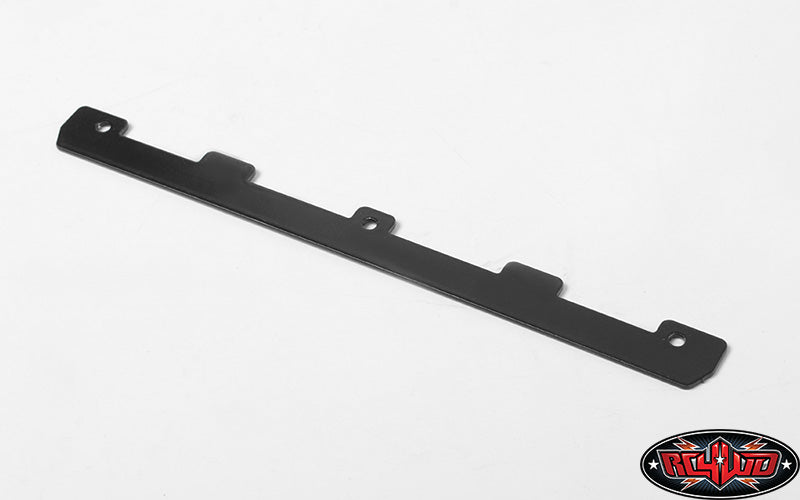

- Separate mounting plate included
Dimensions & Weight
- Total length: 8.97 in / 228 mm
- Total width: 7.48 in / 190 mm
- Total height: 4.21 in / 107 mm
- Weight: 9.52 oz / 270 g

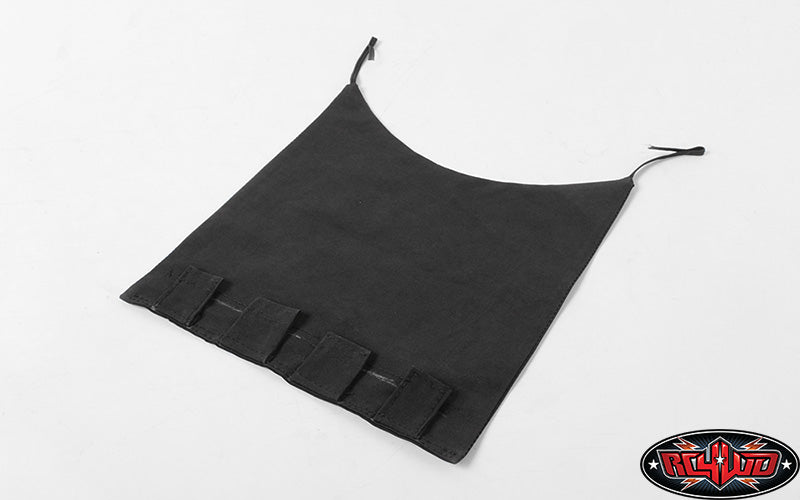

Fabric Shade
The included shade covers the upper portion of the cage for a safari-style look while keeping the sides open. It can be removed when a fully open roll-cage appearance is preferred.
Fitment
Designed for the RC4WD Complete Cruiser Body Set for Gelande II (Z-B0109). RC4WD specifically notes that the standard Cruiser roof must be removed before installation, so this is an open-top conversion rather than an add-on installed over the original hard roof.

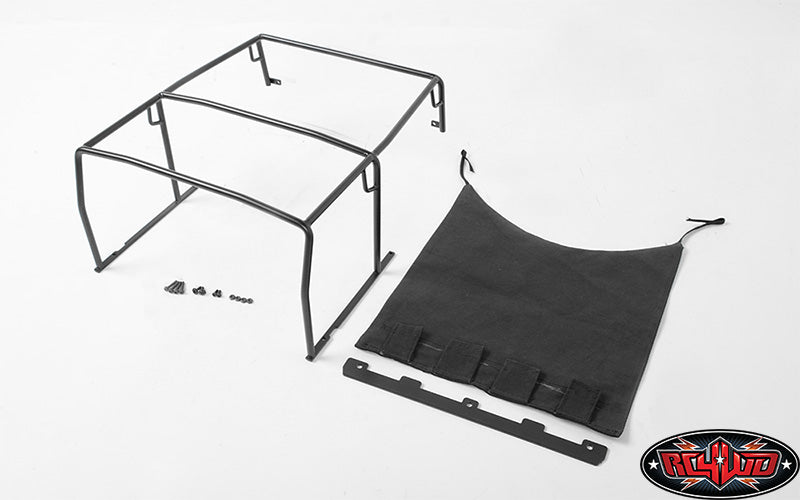

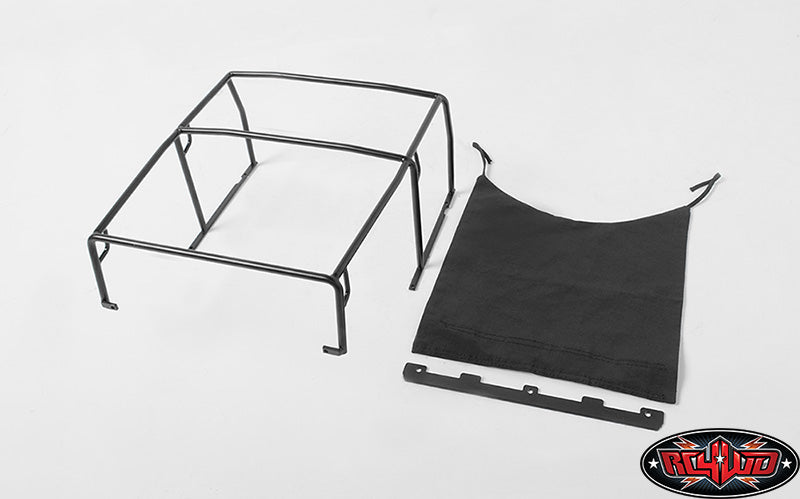

What's Included
- 1x tube roll bar for RC4WD Gelande II Cruiser
- 1x fabric shade
- 1x mounting plate
- 4x M2 x 10 mm black socket-head cap screws
- 4x M2 black regular nuts
- 2x M2 x 6 mm black Phillips self-tapping screws
- 2x M2 x 8 mm flanged black Phillips self-tapping screws

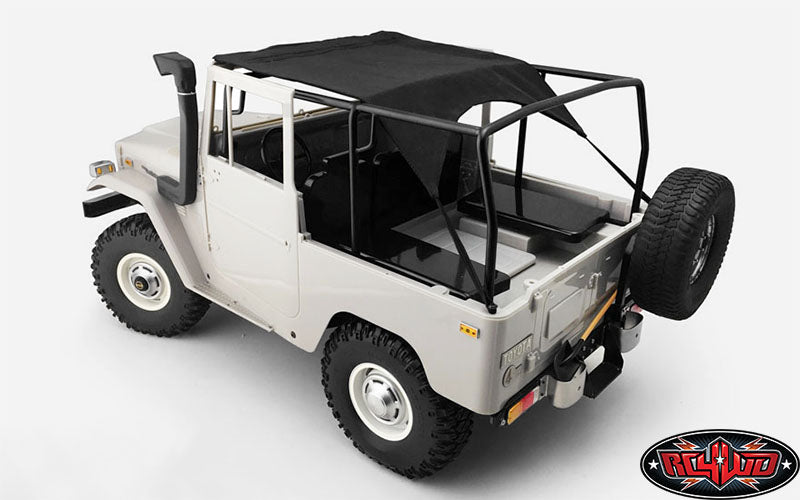

Scale Build Potential
RC4WD demonstrates the roll bar with additional Cruiser accessories including metal emblems, snorkel, tire carrier, Landies wheels, rear bumper components and scale tools. Those accessories are not included, but they show how well the roll bar works as the centerpiece of a fully detailed trail or expedition build.
GASHEAD RC Installation Note
The roll bar adds about 270 g high on the body, so keep additional roof-mounted accessories light if the truck will be used for technical crawling. Test-fit the mounting plate and cage before tightening the hardware, and remove the factory roof carefully so it can be reused later if you want to return the body to its enclosed configuration.
SKU: VVV-C0221
