Metal Front Bumper w/Stinger and Lights for Gelande II D90/D110

RC4WD METAL FRONT BUMPER W/STINGER AND LIGHTS FOR GELANDE II D90/D110 – VVV-C0286

The RC4WD VVV-C0286 Metal Front Bumper with Stinger and Lights is a purpose-built front-end upgrade for Gelande II Defender D90/D110 configurations. It combines a hand-welded stainless-steel bumper, stainless anti-slip detail, integrated stinger structure and two round light housings in one compact assembly designed around the Gelande II chassis.

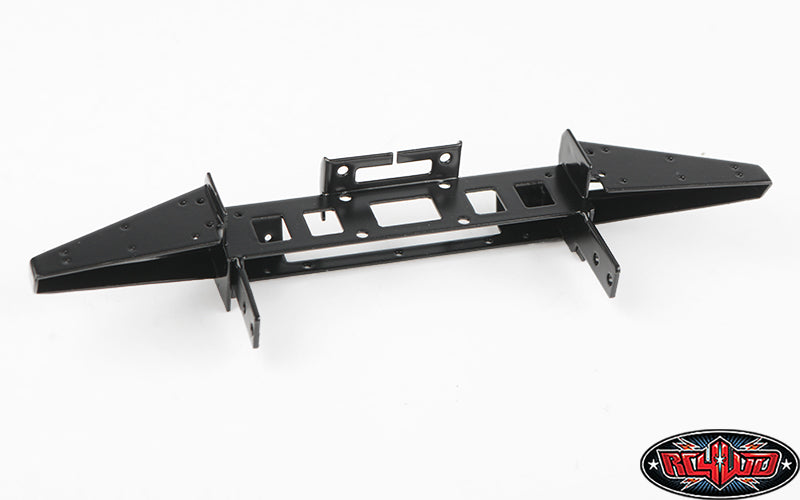

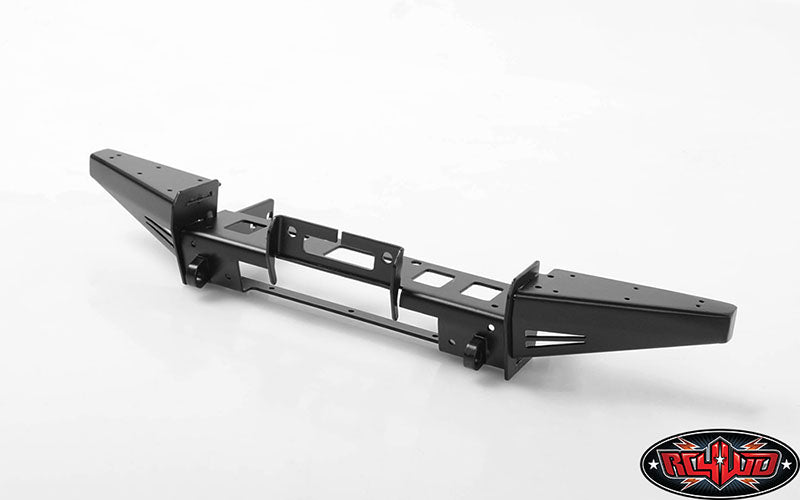

STAINLESS-STEEL CONSTRUCTION

RC4WD specifies a stainless steel bumper with a stainless steel anti-slip section, hand-welded construction and a black powder-coated finish. The material choice gives the front end a more substantial, scale-correct structure while the powder coat provides corrosion resistance and a durable trail-ready surface.

• Manufacturer: RC4WD / CChand
• Part Number: VVV-C0286
• Application: Gelande II D90 / D110
• Material: Stainless steel
• Anti-Slip Detail: Stainless steel
• Construction: Hand welded
• Finish: Black powder coated
• Corrosion Resistant: Yes
• Total Length: 46.9mm / 1.84in
• Total Width: 185.0mm / 7.28in
• Total Height: 65.0mm / 2.56in
• Weight: 125g / 4.41oz

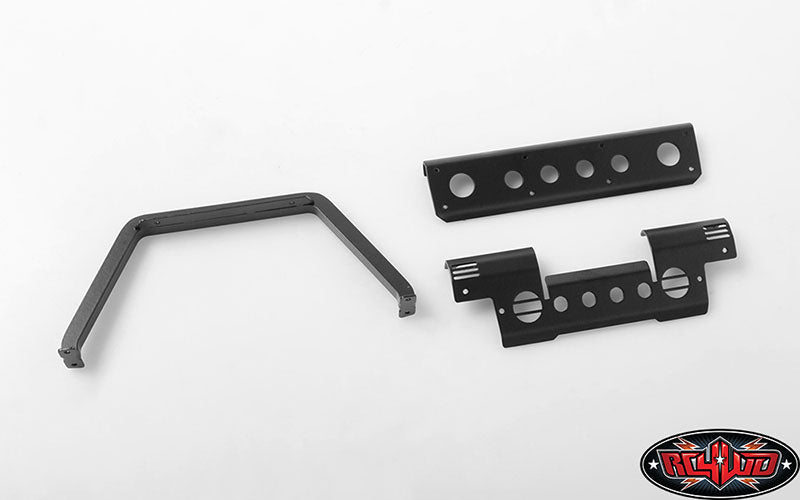

INTEGRATED STINGER

The raised stinger changes both the visual profile and the bumper's contact geometry compared with the standard VVV-C0283 or non-lighted stinger VVV-C0285 versions. Its practical effect depends on obstacle shape, ride height and mounting position, but it creates a more protective forward structure ahead of the Defender grille.

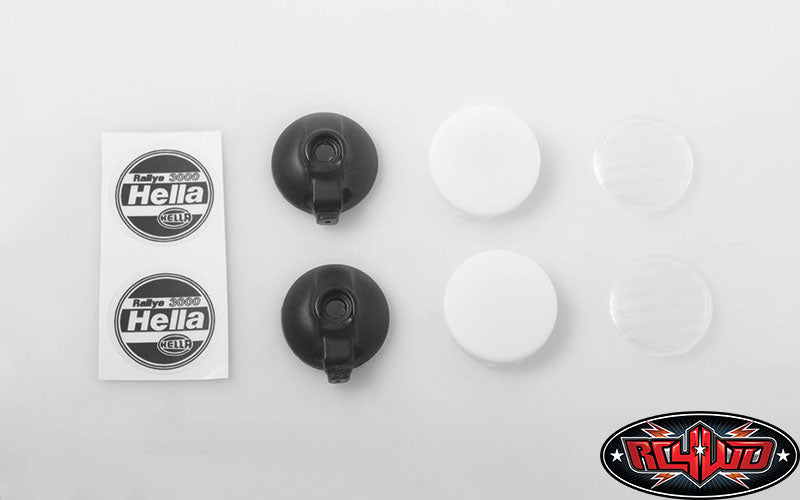

ROUND LIGHT HOUSINGS INCLUDED

RC4WD includes two round lights with VVV-C0286. Treat the supplied pieces as part of the bumper assembly; any LED wiring or powered-light conversion should be planned separately unless specifically supplied with the lighting components being used.

WINCH COMPATIBILITY

RC4WD specifically notes that this bumper only fits the RC4WD 1/10 Mini Warn 9.5cti Winch – Z-E0009. Do not assume fitment with larger Warn-style winches or unrelated winch bodies. Verify fairlead position, spool clearance and cable path before final tightening.

GELANDE II D90 / D110 FITMENT

RC4WD lists compatibility with the Gelande II RTR with 2015 Land Rover Defender D90 Body Set – Z-RTR0065 and the Gelande II Truck 1/10 Scale Builders Kit – Z-K0071. Manufacturer imagery also shows the bumper installed on a Gelande II D110 build. This is a chassis-specific accessory, not a universal 1/10 bumper.

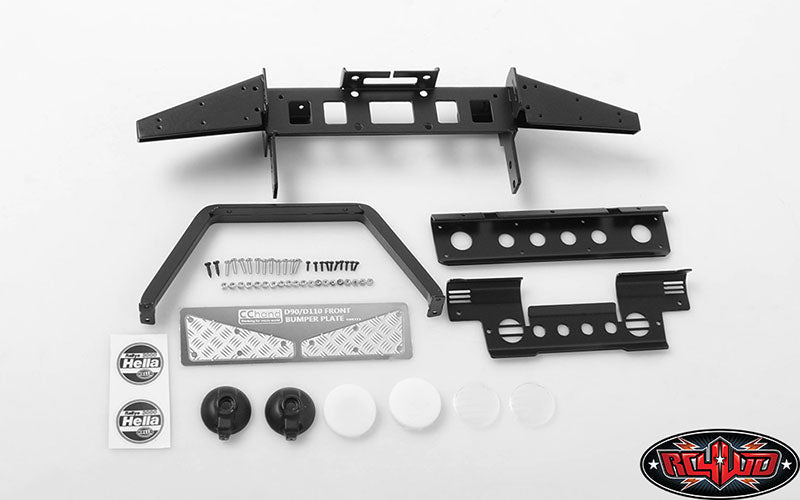

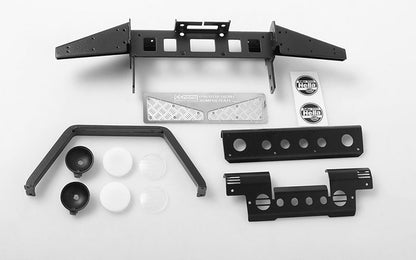

WHAT'S INCLUDED

• 1x Metal Front Bumper w/Stinger and Lights for Gelande II D90/D110
• 3x Mount Parts

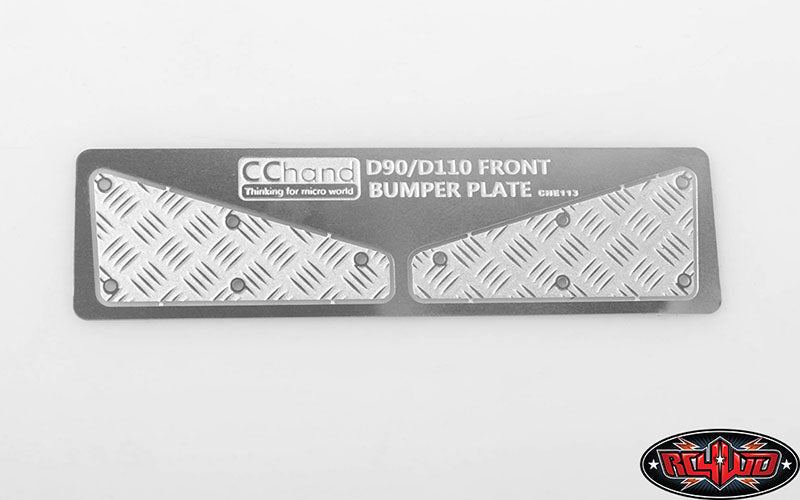

• 1x Stainless Steel Antislip Set
• 2x Round Lights
• 10x M1 x 3mm Phillips Head Machine Screws – Black
• 10x M1 Regular Nuts – Silver
• 11x M1.4 x 5mm Phillips Head Machine Screws – Silver
• 11x M1.4 Regular Nuts – Black
• 2x M1.5 x 5mm Phillips Head Self-Tapping Screws – Black

REPLACEMENT / RELATED PARTS

• Metal Front Bumper for Gelande II D90/D110 – VVV-C0283
• Metal Front Bumper w/Stinger for Gelande II D90/D110 – VVV-C0285
• 1/10 Rally 3000 Hella Lights – VVV-C0217

OPTIONAL PARTS

• RC4WD 1/10 Mini Warn 9.5cti Winch – Z-E0009
• 1/10 Rally 3000 Hella Lights w/LED – VVV-C0222
• 1/10 Square IPF Lights – VVV-C0224
• 1/10 Square IPF Lights w/LED – VVV-C0229
• King Kong Mini Tow Shackle – Z-S0075
• King Kong Tow Shackle – Z-S0093

125G FRONT-END MASS

At 125g, the bumper itself is not excessively heavy, but adding the Z-E0009 winch, fairlead, shackles and powered lighting increases sprung mass ahead of the front axle. After installation, check front ride height and spring preload, especially on a scale build already carrying a hard body, interior and other metal accessories.

INSTALLATION CHECKLIST

• Dry-fit the three mount parts before final assembly.
• Center the bumper relative to the grille and fenders.
• Check tire clearance at full steering lock and suspension compression.
• Confirm the stinger clears the body through chassis flex.
• If adding a winch, verify fairlead and cable alignment before tightening.
• Route any lighting wires away from sharp stainless edges and moving links.
• Tighten M1 and M1.4 hardware carefully; these fasteners are small and easy to over-torque.
• Re-check all mounting hardware after the first trail sessions.
• Inspect powder-coated impact areas and touch up exposed metal if the finish is damaged.

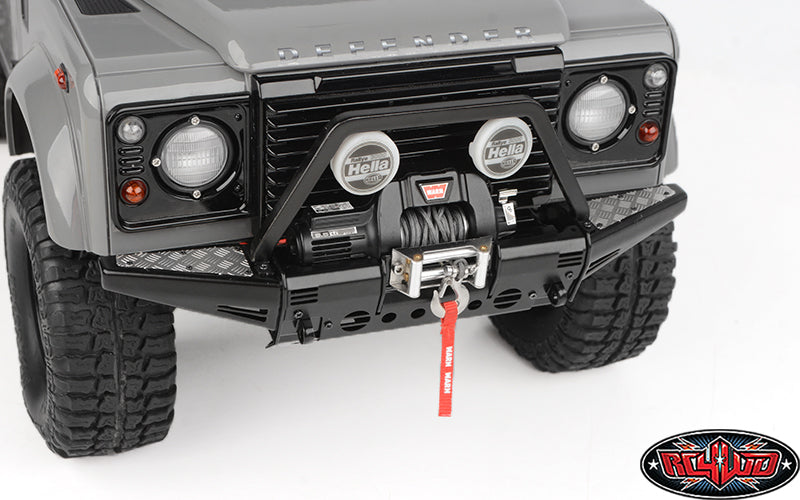

ACCESSORIES SHOWN IN MANUFACTURER PHOTOS

RC4WD installation images show additional accessories such as the Mini Warn winch, raised hood, Land Rover emblems, lamp guards, sliders, exhaust, window guards, beadlock wheels and Fuel Mud Gripper tires. Those surrounding parts and the complete vehicle are shown for application reference and are not included unless listed in the included-content section above.

GASHEAD RC NOTE

VVV-C0286 is the most complete version of this RC4WD bumper family because it combines the stainless base bumper, stinger and round light housings in one package. The key fitment detail is the winch: RC4WD specifies the Z-E0009 Mini Warn 9.5cti, so use that compatibility note as the hard limit instead of assuming other winches will bolt in.
