Metal Rear Bed for Mojave Body and Axial I & II (Style B)
Metal Rear Bed for Mojave Body and Axial I & II (Style B)
SKU:VVV-C0381
Low stock
Couldn't load pickup availability
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
RC4WD Metal Rear Bed for Mojave Body & Axial SCX10 I/II – Style B

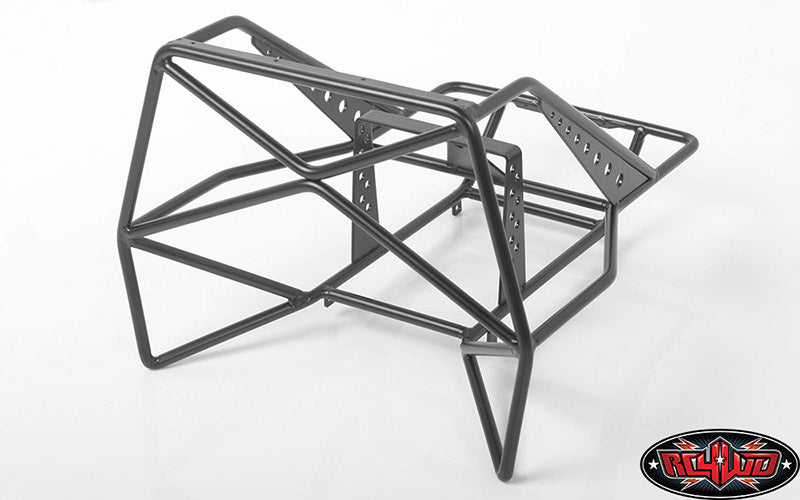

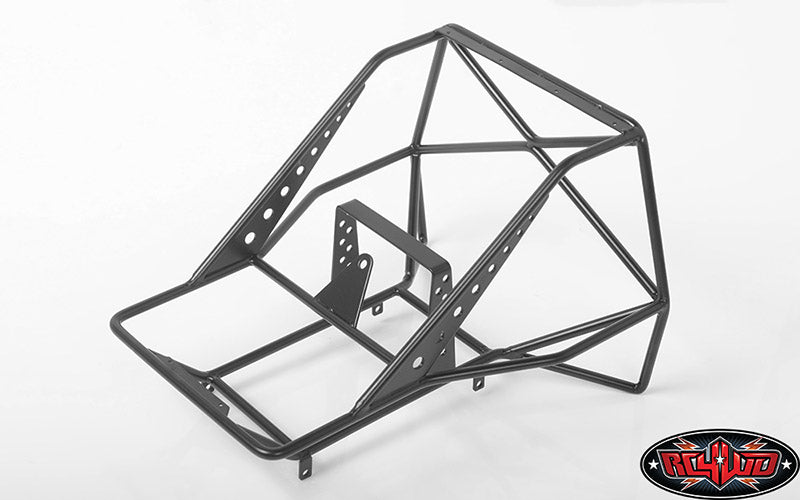

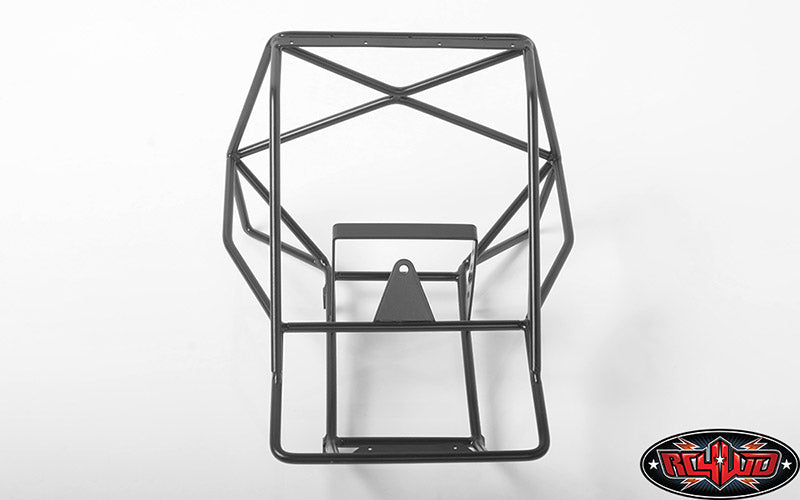

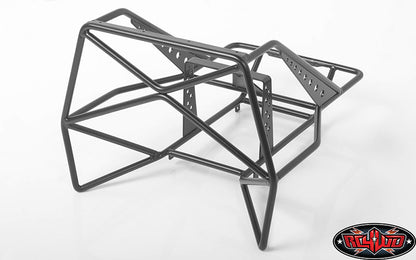

This Style B rear bed is a heavy-duty, hand-welded steel-tube conversion designed for scale truck builds using the RC4WD Mojave cab or Axial SCX10 I/II chassis. It replaces a conventional pickup bed with an open tubular rear platform that adds a tougher trail-truck appearance while retaining practical mounting space for a spare tire and scale accessories.
Construction & Finish
- Heavy-duty steel-tube construction
- Hand-welded assembly
- Black powder-coated finish
- Corrosion-resistant surface treatment
- Integrated spare-tire mounting provision
Dimensions & Weight
- Total length: 8.06 in / 204.8 mm
- Total width: 7.05 in / 179.1 mm
- Total height: 5.46 in / 138.5 mm
- Weight: 16.1 oz / 456 g
Fitment
- Axial SCX10 I
- Axial SCX10 II
- RC4WD Mojave body applications when used with the Mojave front cab
The full pickup body is not used with this conversion; RC4WD specifically notes that Mojave-body installations require the cab section. Verify cab mounting, chassis rail position and accessory clearance before final assembly.
What's Included

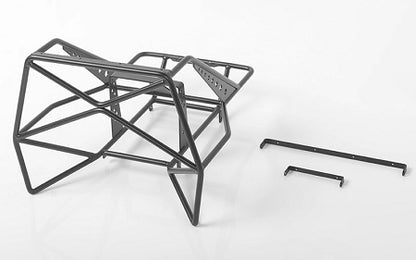

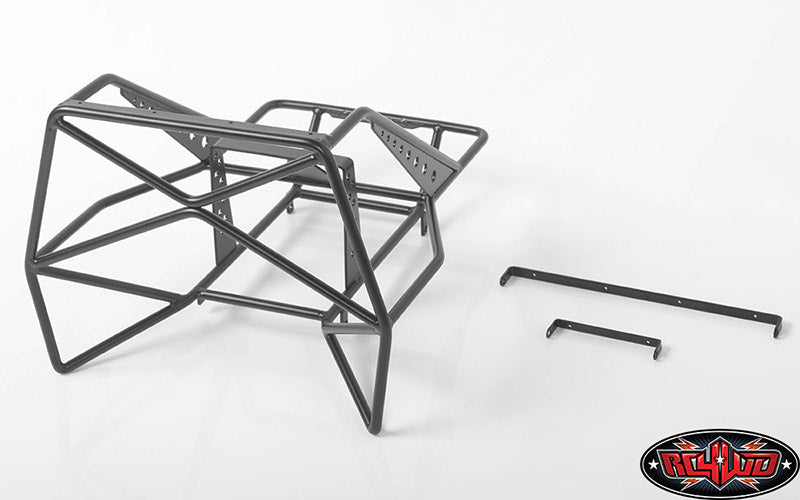

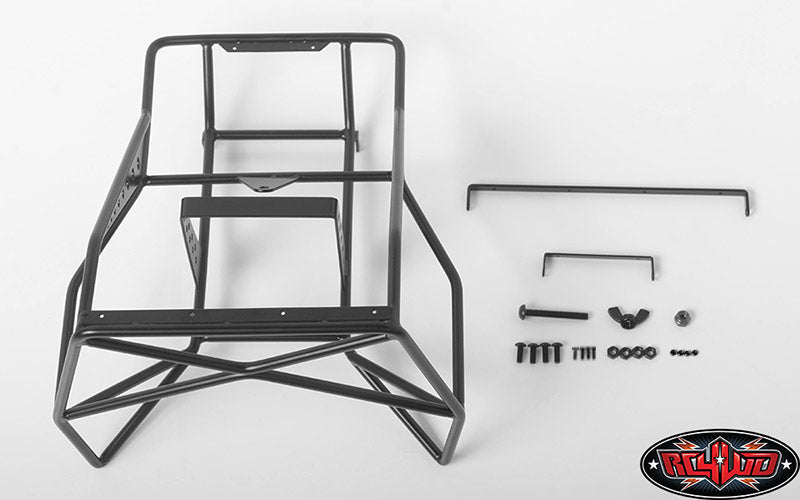

- 1x Metal Rear Bed for Mojave Body and Axial I & II – Style B
- 4x M3 x 8 mm steel button-head cap screws
- 1x M4 x 30 mm steel button-head cap screw
- 4x M1.5 x 6 mm black cross-head screws
- 1x M4 black nylock nut
- 4x M3 black regular nuts
- 4x M1 silver regular nuts
- 1x M4 spare-tire mounting knob
Scale Build Potential

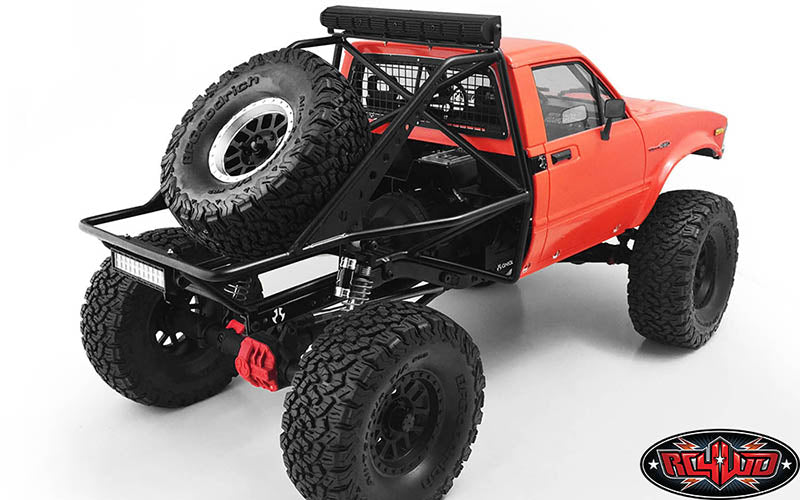

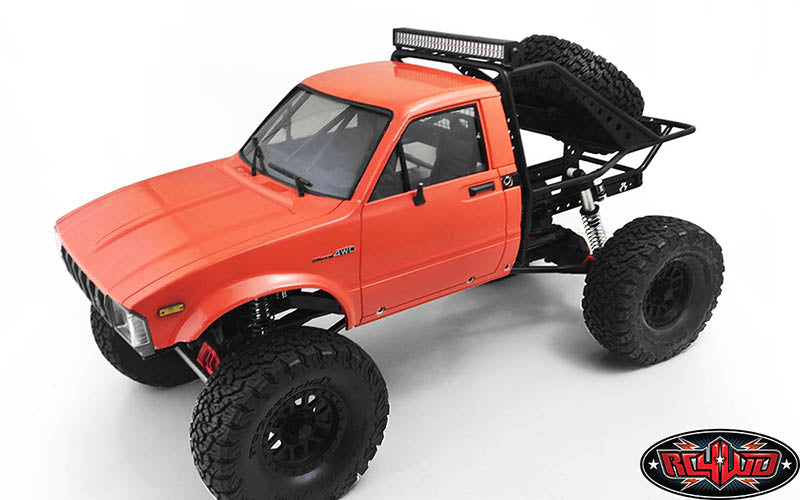

The open tube-bed layout is ideal for spare-tire setups, recovery accessories, LED bars and trail-equipment displays. RC4WD's installation examples show the bed paired with Mojave cab components and additional scale accessories; those accessories are shown for reference and are not included.
GASHEAD RC Installation Note
Because this is a rigid welded metal assembly, chassis alignment matters. Test-fit the bed, cab and rear suspension before fully tightening the hardware. On heavily customized SCX10 or Mojave builds, check tire clearance at full compression and articulation, especially if a large spare tire is mounted high or rearward.
