1/10–1/14 Work Lights with LED

RC4WD 1/10–1/14 Work Lights w/LED

These compact functional work lights are designed for scale trucks, crawlers and heavy-equipment builds ranging from approximately 1/10 to 1/14 scale. RC4WD combines stainless-steel components, injection-molded ABS housings, laser-etched detailing and 3 mm white LEDs to create a small light assembly that looks appropriate on both trail trucks and scale commercial vehicles.

Construction & Lighting

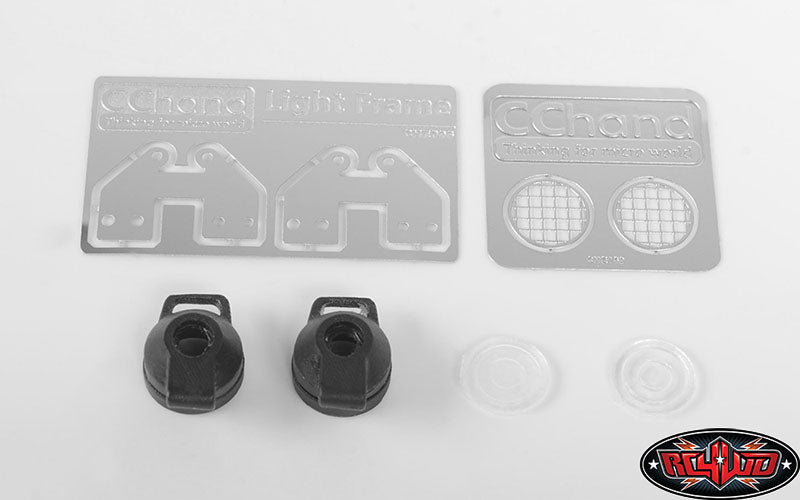

• Stainless-steel components
• ABS plastic injection-molded housings
• Laser-etched detailing

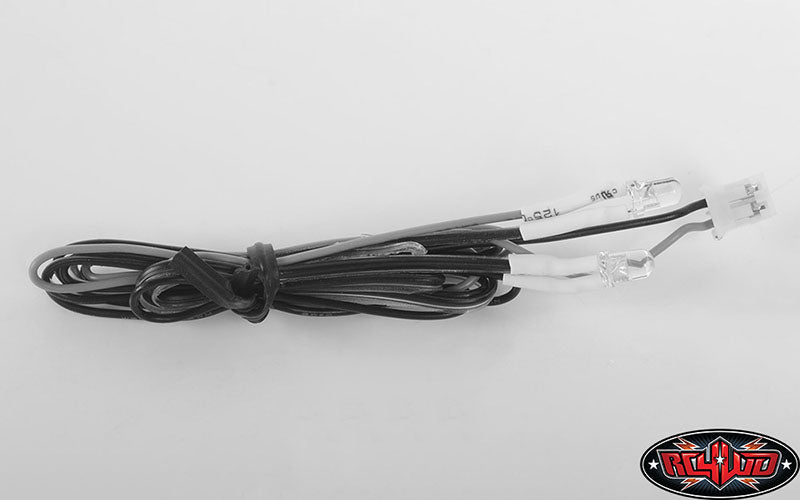

• 3 mm white LEDs
• Control voltage: 5.0–7.2V

Dimensions & Weight

• Length: 0.40 in / 10.18 mm
• Width: 0.33 in / 8.48 mm
• Height: 0.57 in / 14.50 mm
• Total weight: 0.22 oz / 5.5 g

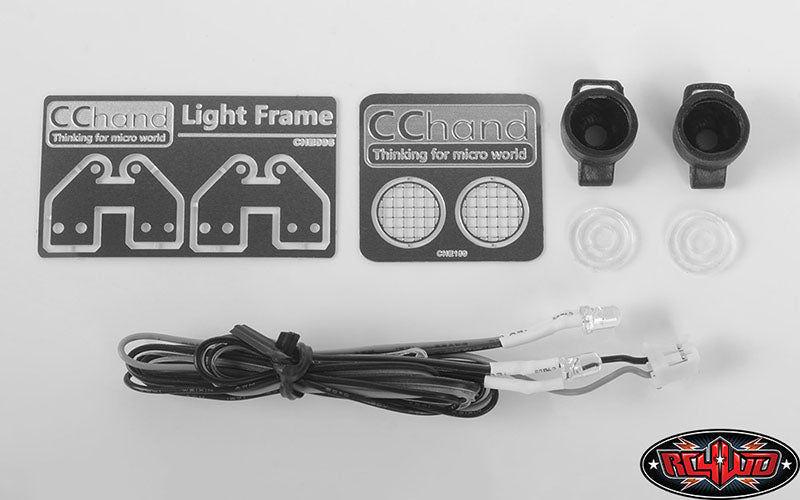

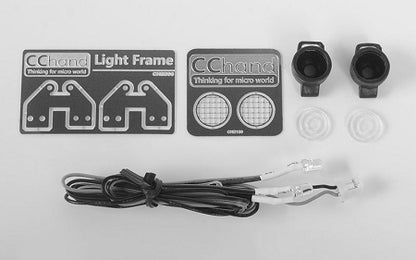

What's Included

• 1x 1/10–1/14 Work Lights w/LED set

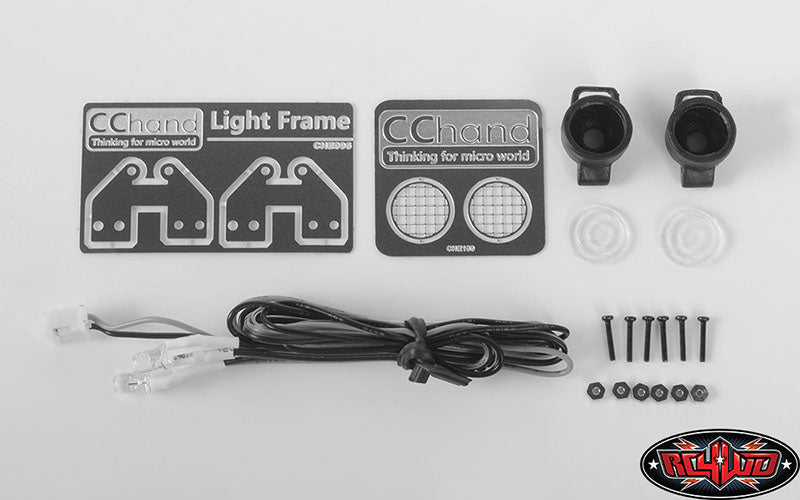

• 1x mount plate set
• 6x M1 x 6 mm black cross-head cap screws
• 6x regular M1.0 silver nuts

Fitment & Scale Applications

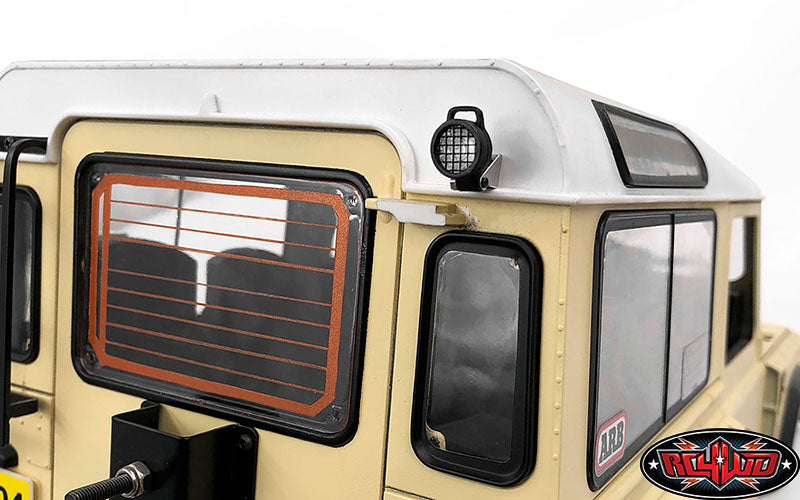

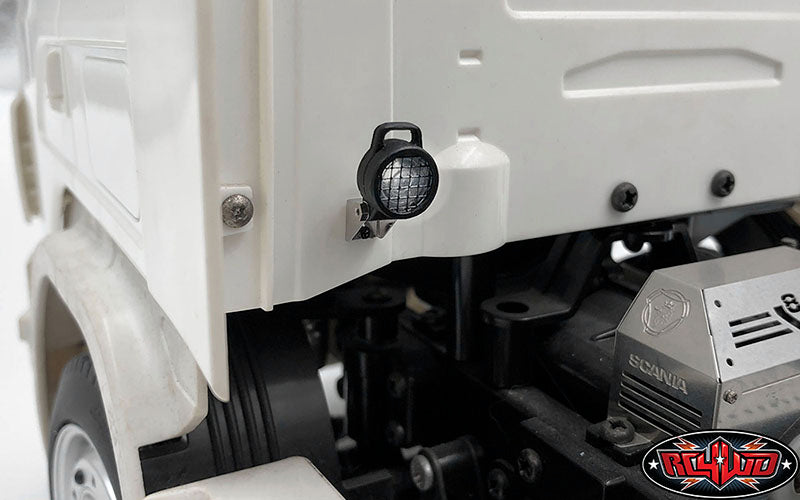

RC4WD shows these work lights installed on a Tamiya 1/14 Scania truck and on the RC4WD Gelande II D90, demonstrating that the compact housing works well on both commercial-truck and off-road scale builds. They can also be adapted to custom racks, rear work-light mounts, bumpers and utility bodies where the mounting footprint fits.

Electrical Setup

Because the specified control voltage is 5.0–7.2V, verify the actual output of the receiver, BEC or accessory controller before connection. Do not assume every lighting port is automatically compatible.

GASHEAD RC Wiring Note

Route the LED wiring away from drivetrain components, suspension travel and sharp metal edges. Leave enough service loop to remove the body or rack without pulling on the LED leads, and use a regulator or dedicated lighting controller if your onboard accessory voltage exceeds the RC4WD specification.

SKU: VVV-C0477
