Wood Rear Bed w/ Tool Boxes for Traxxas TRX-6 Ultimate RC Hauler

RC4WD WOOD REAR BED W/ TOOL BOXES FOR TRAXXAS TRX-6 ULTIMATE RC HAULER – VVV-C1445

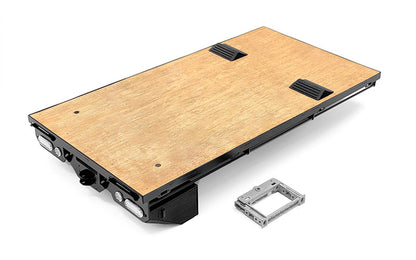

The RC4WD VVV-C1445 Wood Rear Bed with Tool Boxes is a full-length hauler-bed conversion designed specifically for the Traxxas TRX-6 Ultimate RC Hauler. It combines a hand-welded stainless-steel structure, black powder-coated finish, durable nylon components and a real wood-style deck system with integrated tool boxes, wheel stops, spare-tire retention and rear lighting details.

STAINLESS-STEEL HAULER STRUCTURE

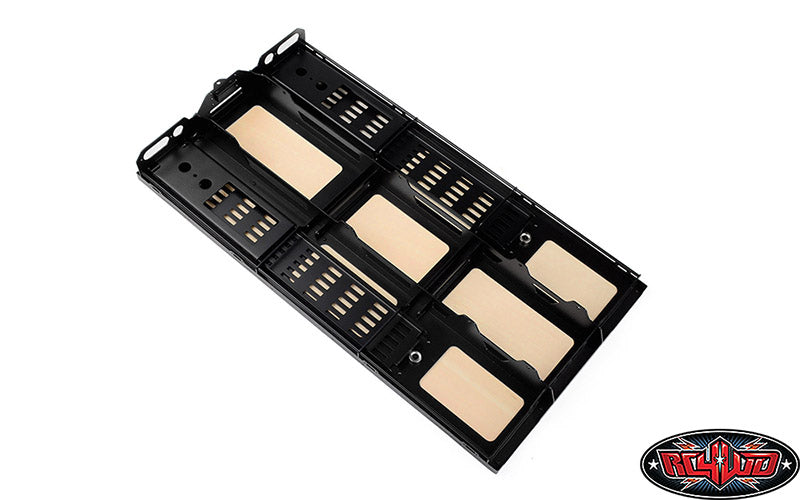

RC4WD specifies stainless steel for the primary structure, with hand-welded construction and a black powder-coated finish. That gives the bed a rigid metal framework suited to a functional scale hauler rather than a cosmetic display-only tray.

• Manufacturer: RC4WD / CChand
• Part Number: VVV-C1445
• Application: Traxxas TRX-6 Ultimate RC Hauler
• Primary Structure: Stainless steel
• Construction: Hand welded
• Finish: Black powder coated
• Additional Material: Strong durable nylon

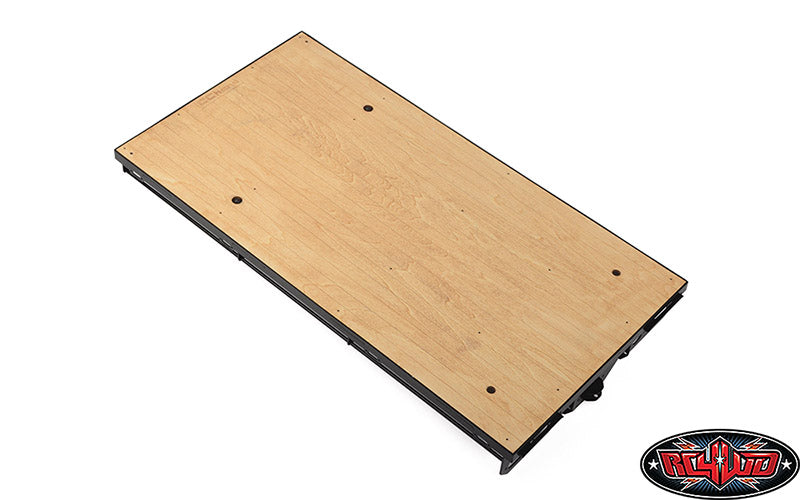

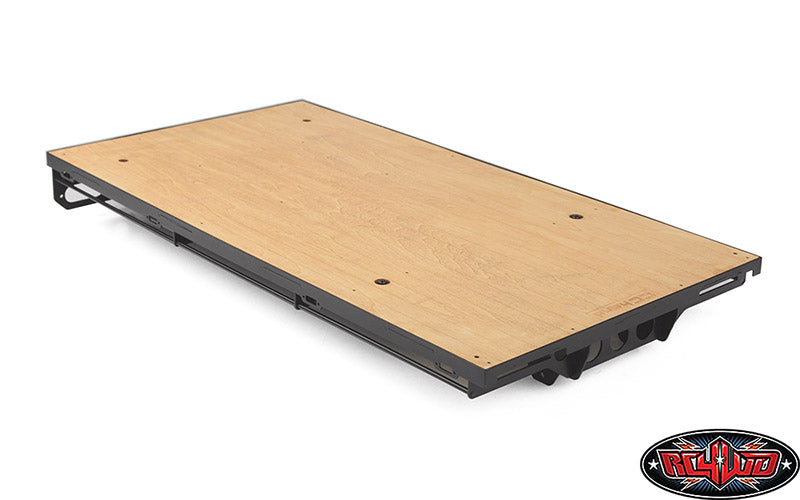

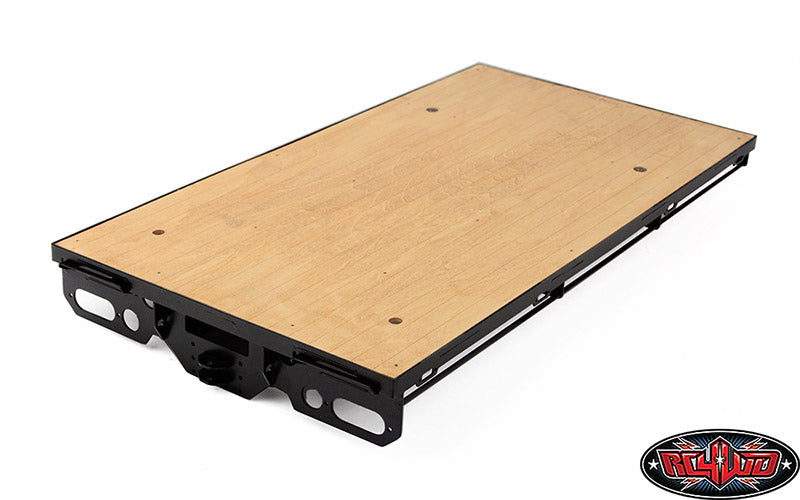

• Deck: Quality wooden bed
• Length: 18.2in / 464mm
• Width: 9.44in / 240mm
• Height: 2.04in / 52.0mm
• Weight: 55.3oz / 1570g

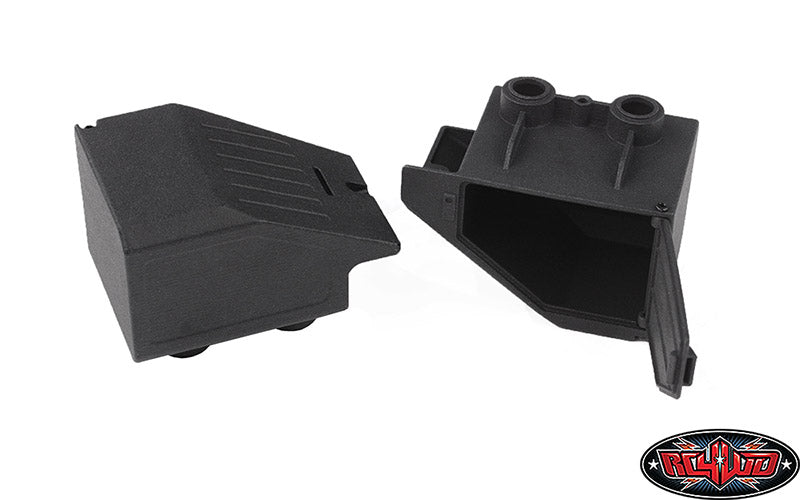

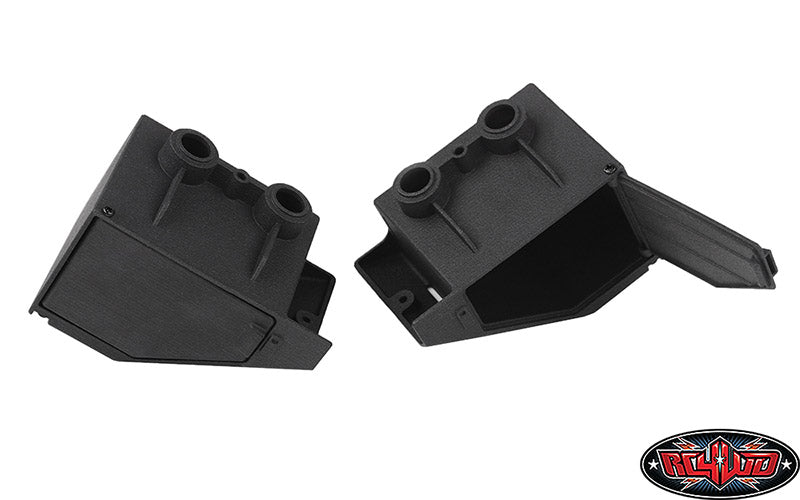

INTEGRATED TOOL BOXES

The package includes two tool boxes integrated into the hauler-bed layout. They reinforce the full-size recovery-truck appearance and give the rear assembly a much more complete equipment-hauler profile than a plain flat deck.

WHEEL STOPS FOR VEHICLE POSITIONING

RC4WD includes two nylon wheel stoppers. On a scale hauler, these establish a visual and mechanical reference for positioning the transported vehicle on the deck. They should not be treated as a substitute for proper tie-downs when carrying a model during aggressive driving, but they help locate the load and reinforce the functional hauler design.

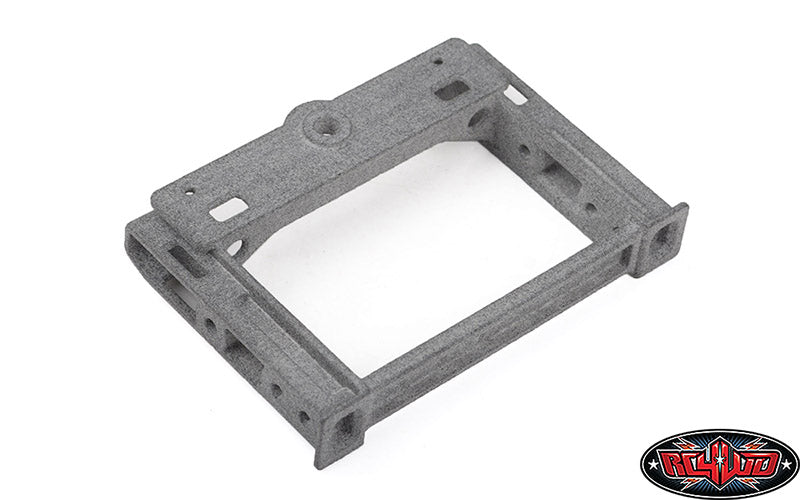

SPARE-TIRE HOLDER

The bed also includes a nylon spare-tire holder with dedicated M4 hardware. A spare mounted at the rear adds useful scale detail, but it also adds mass at the far end of the chassis, so wheel/tire choice can affect rear overhang loading and overall balance.

REAR LIGHTING DETAIL

RC4WD includes one set of taillights with the rear bed. Plan any LED wiring before final installation so the harness can be routed cleanly through the bed structure and kept away from moving suspension components, driveline parts and sharp metal edges.

1.57KG OF REAR-BODY MASS

At 1570g / 55.3oz, this bed is a major chassis-level modification. The assembly adds substantial sprung mass over and behind the rear axle group before a transported RC vehicle, spare tire or additional accessories are added.

After installation, re-check rear suspension sag, spring preload, damping and chassis attitude. A loaded hauler can become significantly rear-biased, especially if the transported vehicle sits far aft on the deck. Keep the carried vehicle as low and as far forward as the bed geometry allows while maintaining safe cab clearance.

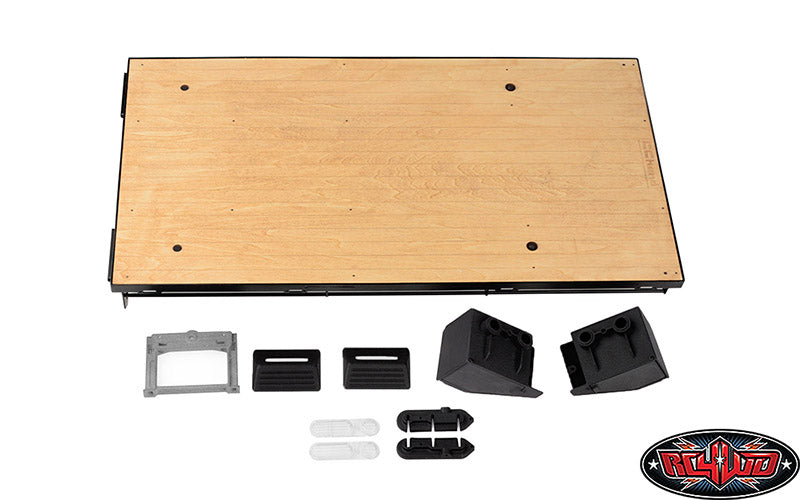

WHAT'S INCLUDED

• 1x Wood Rear Bed
• 2x Tool Boxes
• 2x Nylon Wheel Stoppers
• 1x Nylon Spare Tire Holder
• 1x Set of Taillights
• 6x M2 x 6mm Cross Head Cap Self Tapping Screws
• 4x M2 x 8mm Cross Head Cap Self Tapping Screws
• 2x M3 x 6mm Steel Button Head Cap Screws
• 4x M3 x 20mm Steel Button Head Cap Screws
• 1x M4 x 30mm Steel Button Head Cap Screw
• 4x Nylock Nuts M3 Black – Z-S0629
• 1x Nylock Nut M4 Black
• 1x Wing Nut M4

TRX-6 ULTIMATE RC HAULER-SPECIFIC FITMENT

RC4WD explicitly lists VVV-C1445 as fitting the Traxxas TRX-6 Ultimate RC Hauler. The bed is proportioned around that specific platform; universal fitment to other TRX-6 variants or custom 6x6 chassis should not be assumed without checking chassis width, mounting points, wheelbase and rear-body clearance.

ACCESSORIES SHOWN IN MANUFACTURER PHOTOS

RC4WD shows this bed installed on a heavily accessorized TRX-6 Ultimate RC Hauler with items such as the Diamondback grille, light buckets, hood vents, wipers, side steps, door handles, grip bars, exhaust stacks, mirrors, roof rack, side tool boxes, Prowler front bumper, rear wheel guards and headache-rack cabinet. Those surrounding accessories and the complete TRX-6 vehicle are shown for application reference and are not included with VVV-C1445 unless specifically listed above.

INSTALLATION & SETUP CHECKLIST

• Dry-fit the bed before final tightening.
• Confirm the bed sits square to the TRX-6 chassis and clears the rear tires through full suspension travel.
• Route taillight wiring before access becomes restricted.
• Check rear suspension sag after adding the 1.57kg bed.
• Re-evaluate rear spring preload and damping before carrying another RC vehicle.
• Keep transported vehicle mass low and as far forward as practical on the deck.
• Use appropriate restraint/tie-down methods when transporting a vehicle dynamically.
• Inspect the M2/M3/M4 hardware after the first driving sessions.
• Keep the wooden deck clean and dry after wet or muddy use.
• Inspect powder-coated steel edges and welded joints periodically for trail damage.

WHY THIS BED CHANGES THE TRUCK

VVV-C1445 is more than a scale accessory. The 464mm deck, 1.57kg assembly mass, tool boxes, wheel stops, spare-tire mount and taillight detail turn the TRX-6 Ultimate RC Hauler into a much more convincing working transporter. The tradeoff is real chassis mass, so suspension setup and load placement become part of the installation.

GASHEAD RC NOTE: Treat the empty bed as the baseline, not the finished load. Once another RC vehicle and a spare are on the deck, rear axle and suspension load rise quickly. Set the truck up around its loaded configuration if the hauler will actually be used to transport another model.
