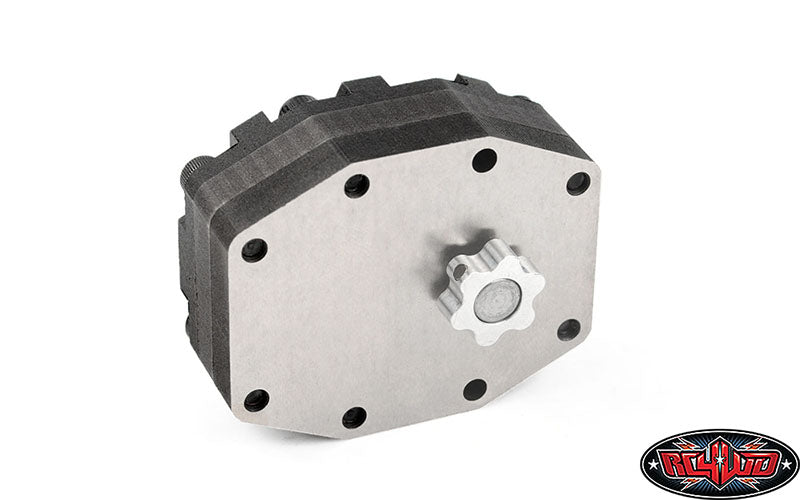

RC4WD Earth Digger 4200XL Oil Pump

RC4WD EARTH DIGGER 4200XL OIL PUMP – VVV-S0005

This replacement hydraulic oil pump is built for the RC4WD Earth Digger 4200XL system and engineered for high-pressure operation in scale heavy-equipment applications. Its hardened internal construction and zero-gap pump design are intended to maintain strong hydraulic pressure while working with the dedicated RC4WD brushless pump drive system.

CONSTRUCTION & FEATURES

• SKD11 Japanese tool-steel internal construction
• Heat-treated components for strength and wear resistance
• Zero-gap pump design intended to maximize pressure performance
• Integrated booster tank
• Four ball bearings
• Designed for use with the RC4WD custom brushless hydraulic system

TECHNICAL SPECIFICATIONS

• Manufacturer: RC4WD
• Part number / SKU: VVV-S0005

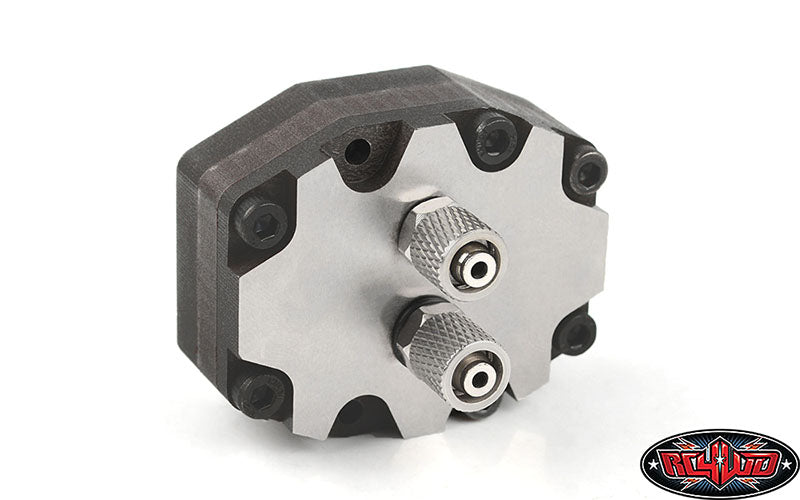

• Hydraulic input: 6 mm
• Hydraulic output: 4 mm
• Maximum oil pressure: 80 bar / 1160 psi
• Bearings: 4 ball bearings

COMPATIBILITY

Designed for the RC4WD Earth Digger 4200XL hydraulic excavator system.

RC4WD specifies that this pump is designed to work with its custom Earth Digger 4200XL Brushless Motor system, VVV-S0010. The 4200XL V2.0 platform also uses the Large Oil Pump Connecting Plate VVV-S0250 with this pump/motor combination.

WHAT'S INCLUDED

• 1x Earth Digger 4200XL Oil Pump

INSTALLATION & HYDRAULIC NOTES

• Confirm hose size, fitting type and hydraulic routing before installation.
• Do not run the pump dry.
• Use suitable hydraulic fluid for the machine.
• Inspect fittings and hoses for leaks before operating at full pressure.
• Depressurize the hydraulic system before service.

GASHEAD RC SERVICE NOTE

This is a high-pressure hydraulic component rated up to 80 bar / 1160 psi. Verify every fitting, hose and clamp before powering the pump, and keep the system depressurized whenever servicing hydraulic components.
