RC4WD 1/14 SCALE DXR2 HYDRAULIC EARTH DOZER LIGHT SYSTEM – VVV-S0173

RC4WD 1/14 SCALE DXR2 HYDRAULIC EARTH DOZER LIGHT SYSTEM – VVV-S0173

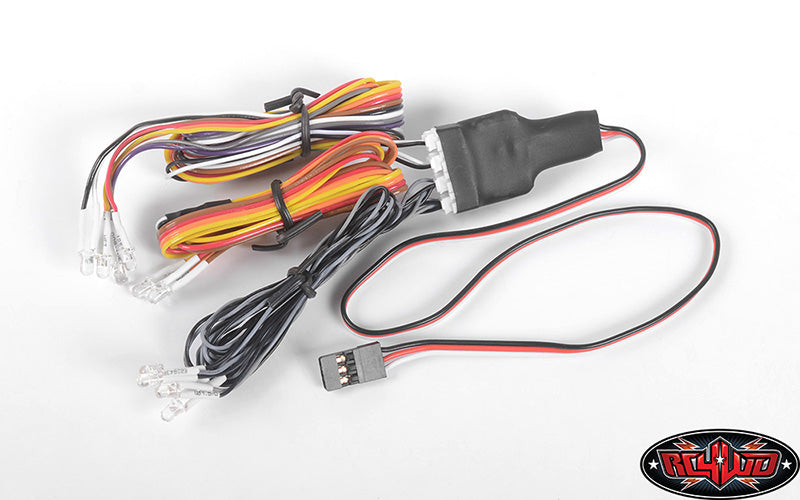

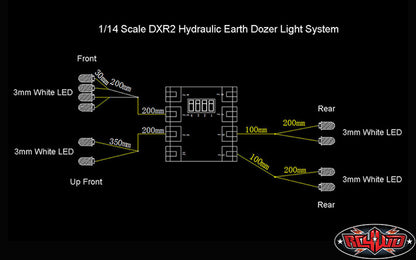

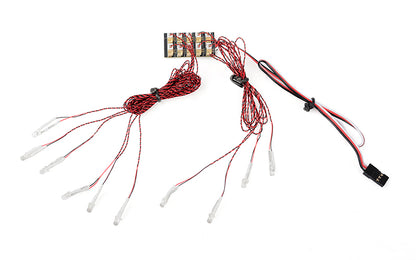

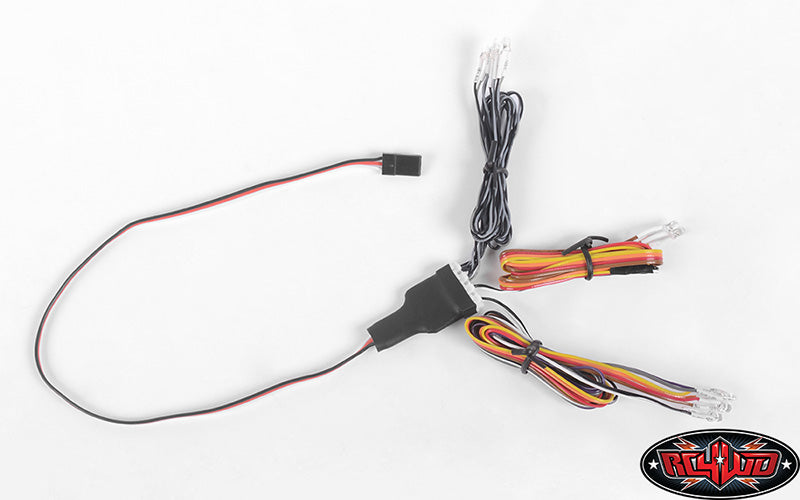

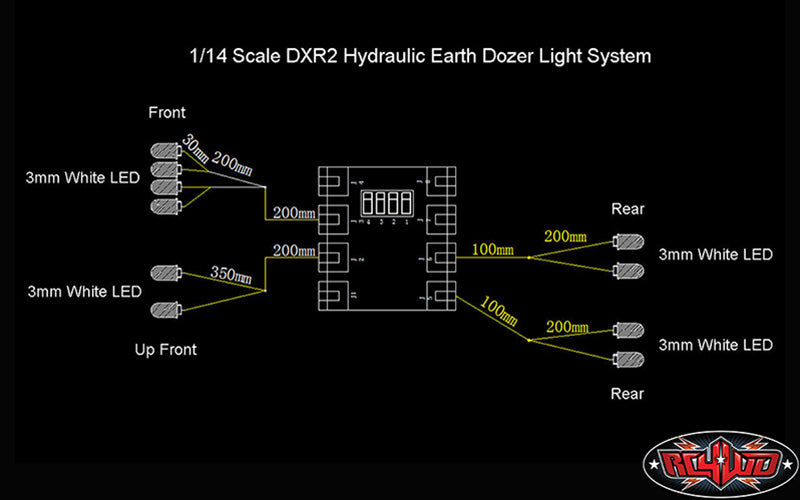

The RC4WD DXR2 Hydraulic Earth Dozer Light System is the dedicated lighting kit for the 1/14-scale DXR2 Hydraulic Earth Dozer. It uses 3 mm white LEDs and a Futaba-style male connector for a direct, scale-focused lighting upgrade on the compatible machine.

SPECIFICATIONS

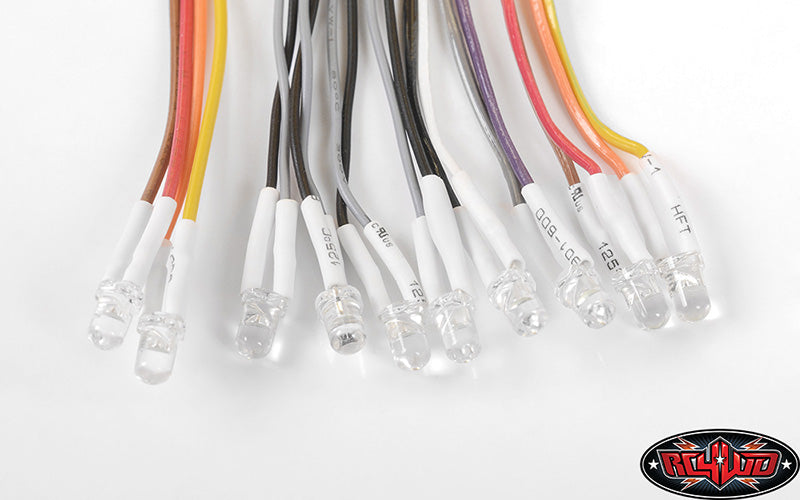

• LED size: 3 mm
• LED color: White

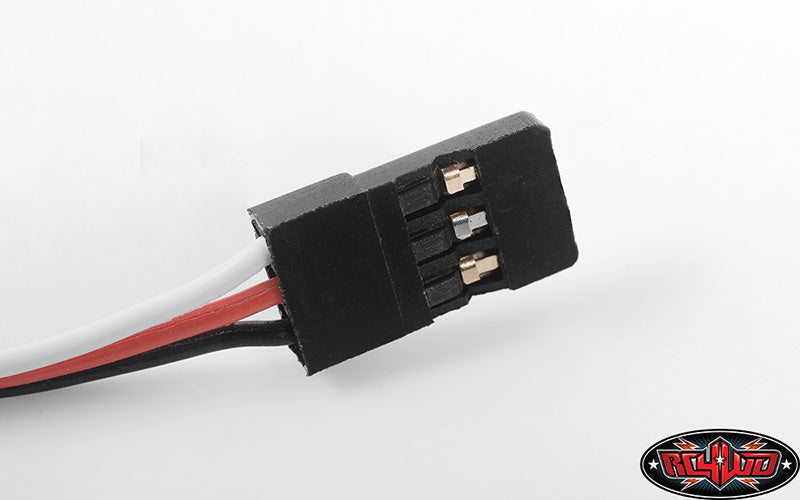

• Connector: Futaba male style
• Operating voltage: 5V
• Weight: 1.05 oz / 30 g

FITMENT

• Designed specifically for the RC4WD 1/14 Scale DXR2 Hydraulic Earth Dozer
• Compatible model: VV-JD00015

WHAT'S INCLUDED

• 1x RC4WD 1/14 Scale DXR2 Hydraulic Earth Dozer Light System

INSTALLATION & ELECTRICAL NOTES

• Use only a compatible 5V lighting supply.
• Verify connector orientation before applying power.
• Route wiring away from hydraulic lines, moving linkages, blade mechanisms and track components.
• Secure excess wiring so it cannot be pinched during articulation or service access.
• This is a model-specific light system; do not assume fitment on other RC4WD heavy-equipment platforms.

GASHEAD RC INSTALLATION NOTE

On hydraulic machinery, clean wire routing matters as much as the light output. Keep the harness clear of the blade lift geometry and hydraulic plumbing, leave enough slack for normal movement, and avoid tight bends at the connector or LED leads.

SKU: VVV-S0173
