RC4WD 1/14 Faux Fuel/Air Tank Assembly

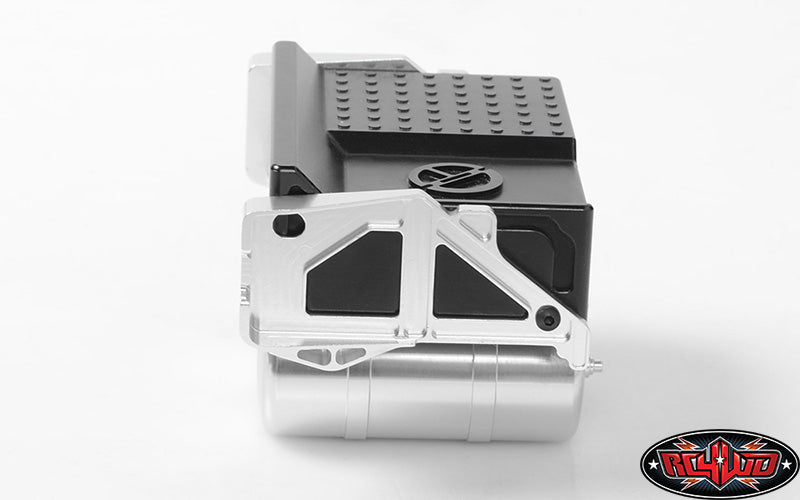

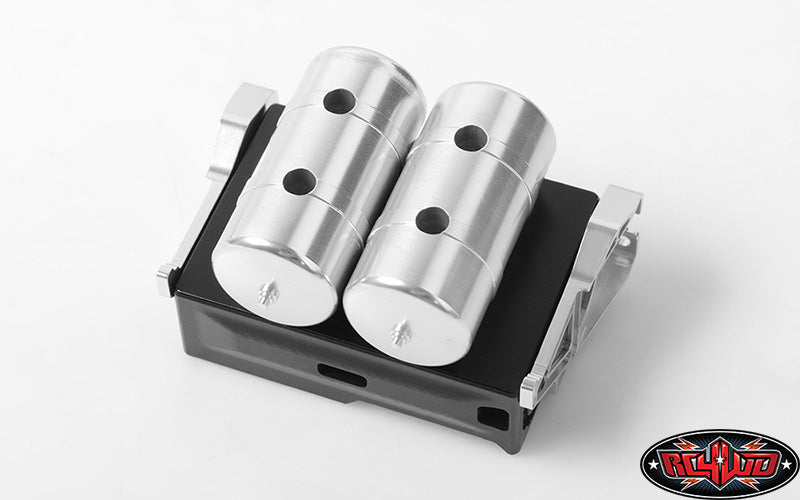

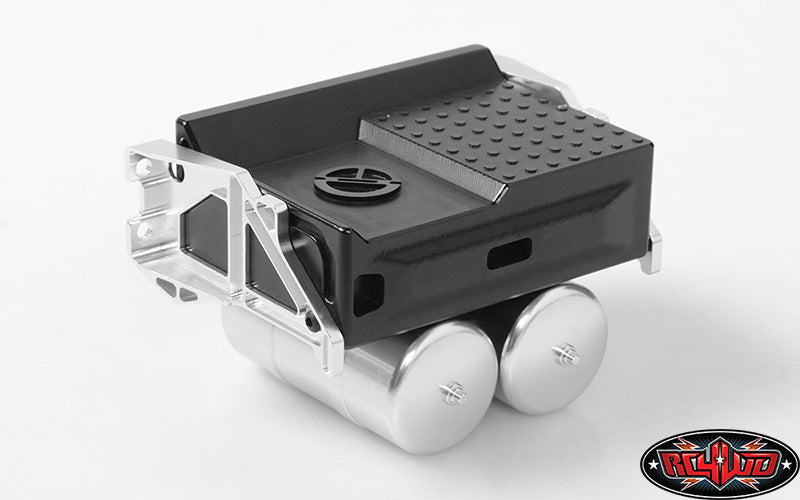

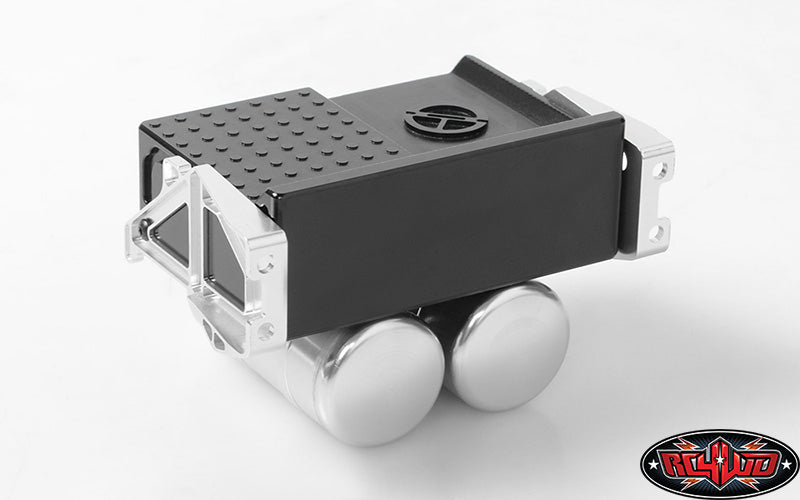

This billet-aluminum faux fuel/air tank assembly adds a highly detailed commercial-truck style tank and battery-box package to compatible 1/14 scale construction builds. RC4WD designed it specifically for the 1/14 8x8 Armageddon Hydraulic Dump Truck (FMX), where it adds substantial metal scale detail along the chassis.
Construction & Finish
- Billet aluminum construction
- Black anodized tank finish
- Silver battery boxes and mounting parts
- Corrosion-resistant metal construction
- High-detail commercial-truck appearance
Dimensions & Weight
- Total length: 3.31 in / 84.1 mm
- Total width: 2.29 in / 58.3 mm
- Total height: 2.04 in / 52.0 mm
- Weight: 12.2 oz / 346 g

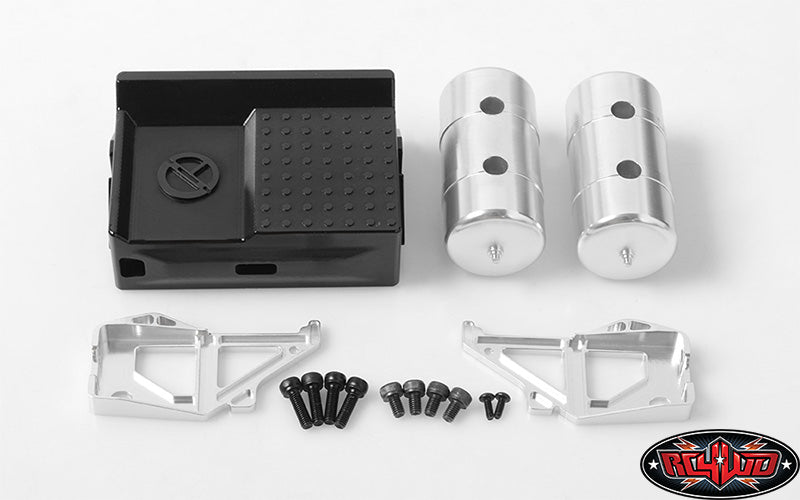

What's Included
- 1x black fuel tank
- 2x silver battery boxes
- 2x silver mounting parts
- 4x M3 x 5 mm black socket-head cap screws
- 4x M3 x 10 mm black socket-head cap screws — Z-S0976
- 2x M2 x 5 mm black button-head cap screws
Compatibility
Fits the RC4WD 1/14 8x8 Armageddon Hydraulic Dump Truck (FMX) — VV-JD00017.
Installation Note
RC4WD specifies that installation requires drilling several M3 threaded holes. Test-fit and mark the assembly before drilling so the tank, battery boxes and mounts align cleanly with the chassis.
GASHEAD RC Installation Note
This is a substantial 346 g metal accessory, not a lightweight cosmetic piece. Check chassis clearance, wiring, suspension movement and weight distribution before final installation. Use the correct drill size for the required M3 threaded holes and keep the assembly square to the frame rails before tightening the hardware.
SKU: VVV-S0175
