RC4WD 1/14 Earth Digger 360L Light System
RC4WD 1/14 Earth Digger 360L Light System
SKU:VVV-S0182
Low stock
Couldn't load pickup availability
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
RC4WD 1/14 EARTH DIGGER 360L LIGHT SYSTEM – VVV-S0182

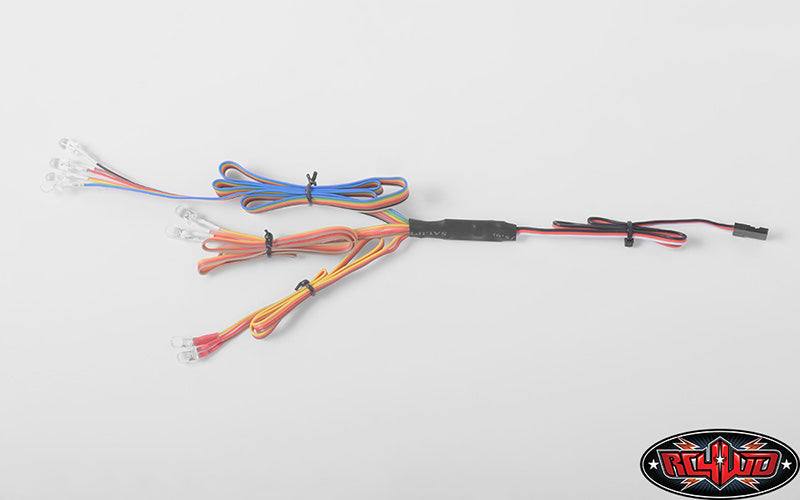

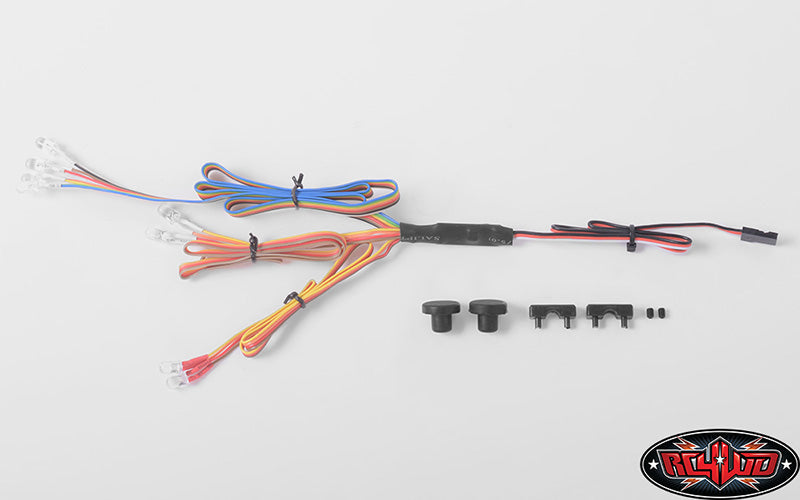

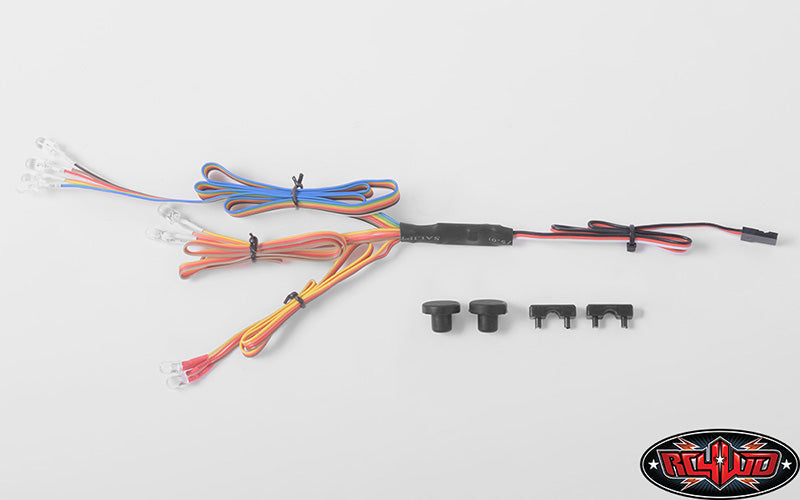

Add a complete scale lighting setup to the RC4WD Earth Digger 360L with this dedicated LED harness. The system combines four white work lights and two red rear lights on a long pre-wired harness designed specifically around the excavator's cab and body layout.
LIGHTING CONFIGURATION

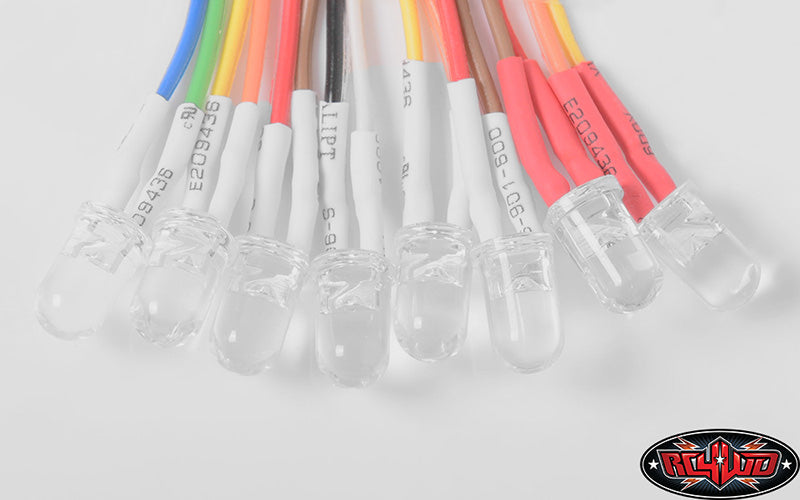

- 4x 5 mm white LEDs
- 2x 5 mm red LEDs
- Pre-wired harness for model-specific installation
- Compatible with 6.0V and 12.0V power systems
TECHNICAL SPECIFICATIONS
- Manufacturer: RC4WD
- Part number / SKU: VVV-S0182
- Scale: 1/14
- LED diameter: 0.19 in / 5 mm
- Wire length: 37.4 in / 950 mm
- Operating compatibility: 6.0V and 12.0V
- Weight: 0.80 oz / 23 g
COMPATIBILITY
Designed specifically for the RC4WD 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow), VV-JD00016. RC4WD lists this light system for that model only; it should not be assumed to be a universal heavy-equipment lighting harness.
WHAT'S INCLUDED
- 1x RC4WD 1/14 Earth Digger 360L Light System
INSTALLATION NOTES
- Confirm the intended power source before connection.
- Route wiring away from hydraulic lines, pump components, rotating parts and pinch points.
- Secure excess wiring so it cannot contact moving boom, cab or track components.
- Verify polarity before powering the harness.
GASHEAD RC ELECTRICAL NOTE
Although RC4WD lists both 6V and 12V compatibility, verify the machine's exact connection point before applying power. Keep the 950 mm harness secured along the cab/body structure so it cannot be pinched by moving components.
