RC4WD Narrow Digging Bucket for 1/14 Earth Digger 360L Hydraulic Excavator

RC4WD NARROW DIGGING BUCKET FOR 1/14 EARTH DIGGER 360L – VVV-S0219

Give the Earth Digger 360L a more focused trenching attachment with this heavy-duty narrow bucket. Its compact 52.3 mm working width concentrates digging force into a smaller area, making it better suited to narrow trenches, channels and precision excavation than the wider general-purpose buckets.

CONSTRUCTION & FEATURES

• Heavy-duty carbon-steel construction
• Gray powder-coated finish

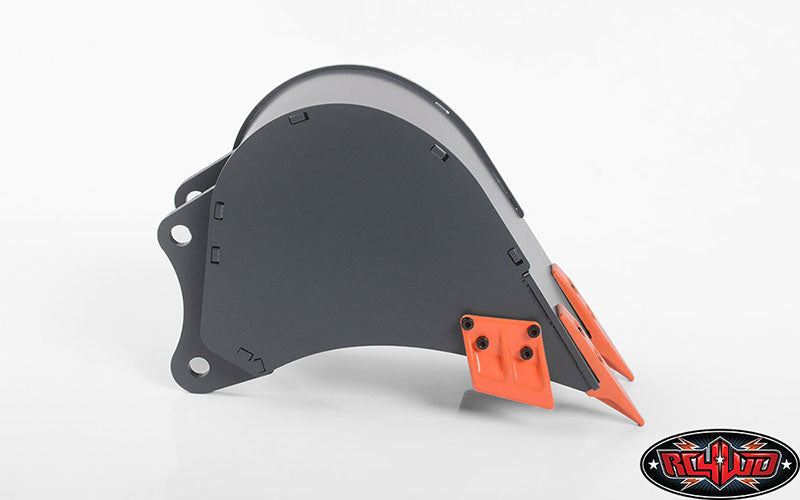

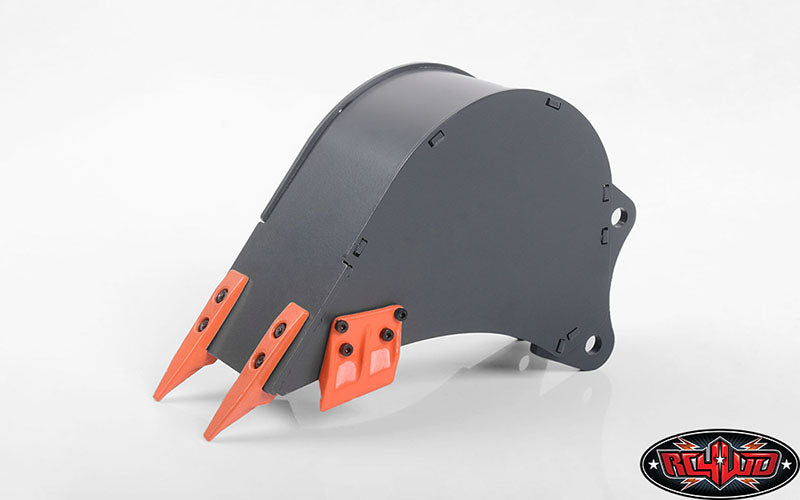

• Two orange bucket teeth included and pre-installed
• Two orange side cutters included and pre-installed
• Two attachment pins included
• Purpose-built for the RC4WD Earth Digger 360L attachment system

TECHNICAL SPECIFICATIONS

• Manufacturer: RC4WD
• Part number / SKU: VVV-S0219
• Scale: 1/14
• Bucket width: 2.06 in / 52.3 mm
• Inside ear width: 1.22 in / 30.9 mm
• Attachment pin diameter: 0.23 in / 6.0 mm
• Attachment pin length: 1.64 in / 41.8 mm
• Pin-hole spacing, center to center: 1.67 in / 42.4 mm
• Weight: 16.77 oz / 475.3 g

COMPATIBILITY

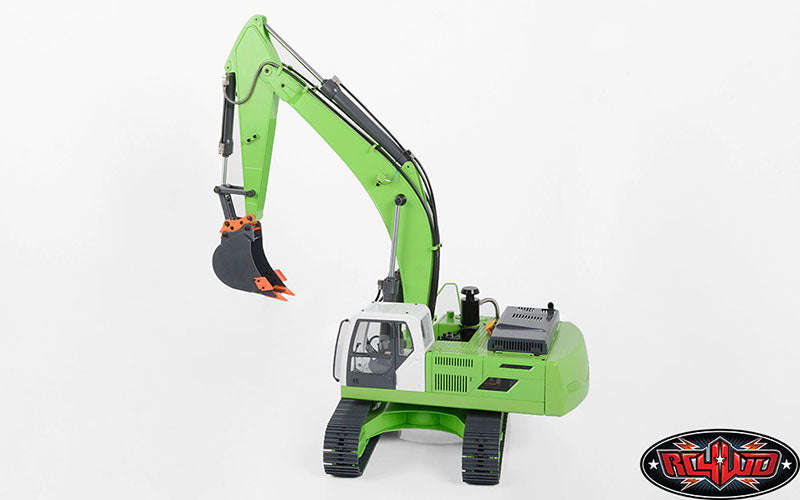

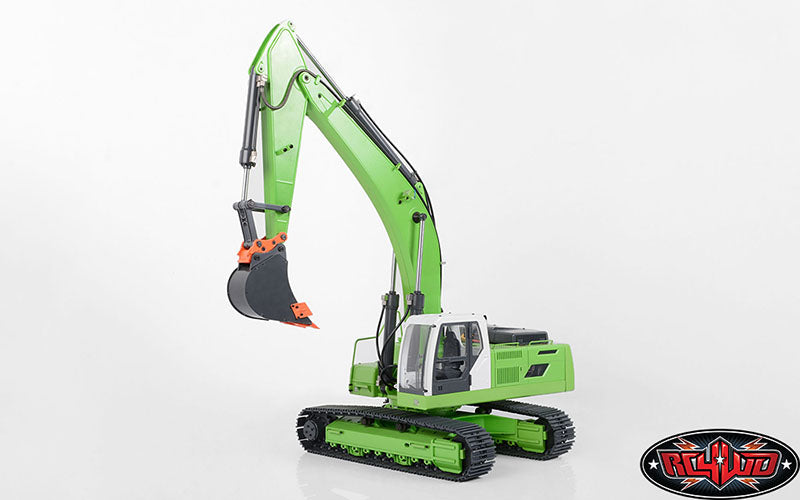

Fits the RC4WD 1/14 Scale RTR Earth Digger 360L Hydraulic Excavator (Yellow), VV-JD00016.

Required: RC4WD specifies that the Quick Connect for Earth Digger 360L, VVV-S0220 must be installed before fitting this bucket.

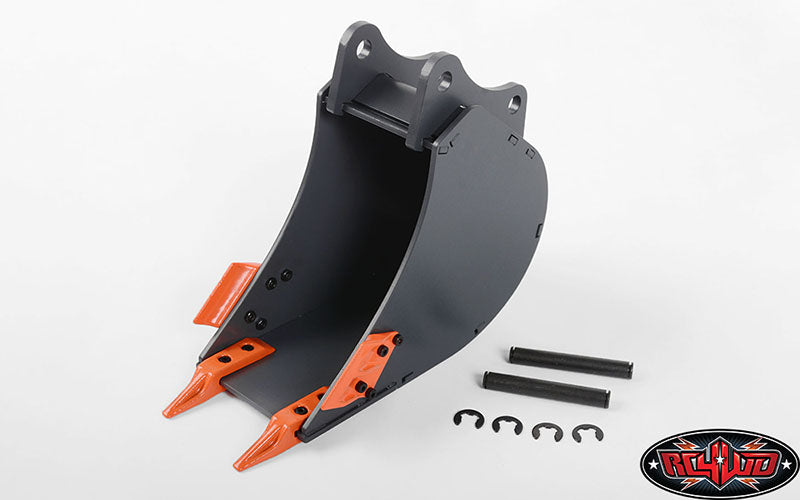

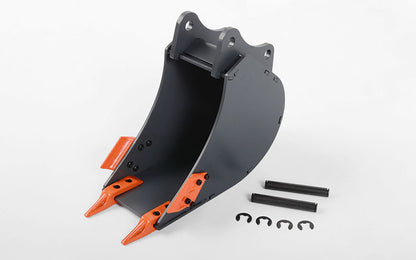

WHAT'S INCLUDED

• 1x Narrow Digging Bucket

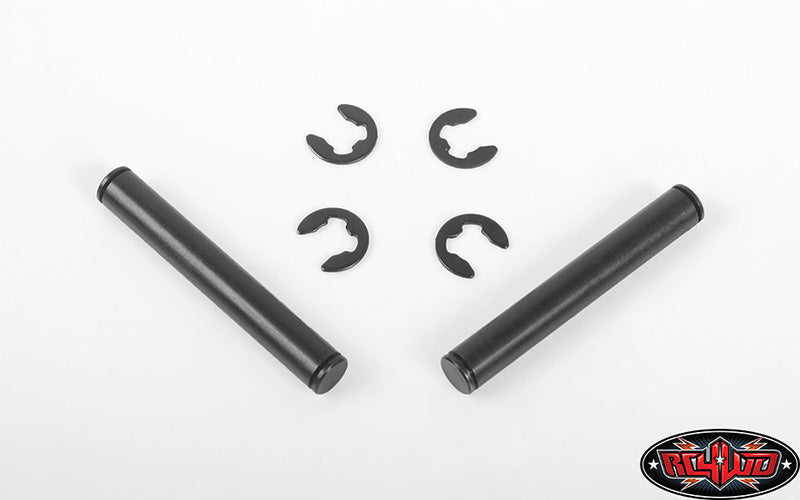

• 2x Black attachment pins
• 4x M4.5 E-clips

RELATED 360L BUCKETS

Other compatible RC4WD attachments include the Skeleton Bucket VVV-S0217, Wide Bucket VVV-S0218 and standard Digging Bucket VVV-S0221.

GASHEAD RC OPERATING NOTE

This attachment is optimized for concentrated digging rather than maximum volume. Check the quick-connect pins, E-clips, bucket teeth and side cutters regularly when working in abrasive dirt or aggregate.
