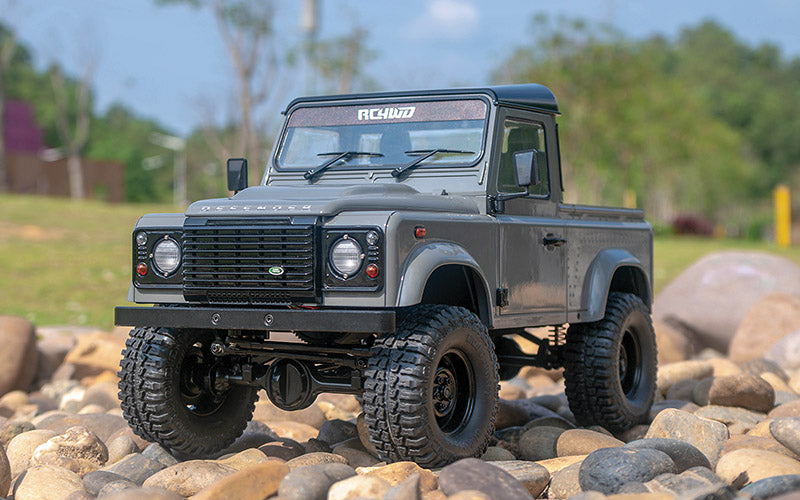

RC4WD GELANDE II RTR W/ 2015 LAND ROVER DEFENDER D90 BODY SET (GREY)

RC4WD GELANDE II RTR W/ 2015 LAND ROVER DEFENDER D90 BODY SET – GREY

The RC4WD Gelande II RTR with officially licensed 2015 Land Rover Defender D90 body combines a highly detailed hard-body scale replica with RC4WD's proven Gelande II trail chassis. This is a complete 1/10-scale RTR package built for realistic trail driving, technical crawling and scale display, with a molded engine bay, full interior, opening body panels, pre-installed lighting and a durable all-metal-oriented drivetrain underneath.

OFFICIALLY LICENSED DEFENDER D90 HARD BODY

• Officially licensed 2015 Land Rover Defender D90 body set
• Gloss grey painted finish with installed decals
• Opening hood, side doors and rear tailgate
• Full molded interior with seats, detailed dashboard and opening center console
• Scale mirrors, door handles, vents, grille and color-lens signal lights
• Detailed molded TDI-style engine bay
• Pre-installed basic lighting system
• Inner fender set for a more finished scale appearance

GELANDE II CHASSIS & DRIVETRAIN

• Machined billet-aluminum ladder-frame chassis
• All-link suspension design
• Adjustable scale shock hoops
• Hard-body mounting points
• R3 single-speed transmission
• Center-mounted Hammer transfer case
• Yota II Ultimate Scale Cast Axles V2 with XVD front shafts
• Heavy-duty universal-joint driveshafts with steel yokes
• 540-size 45T brushed crawler motor

TRANSMISSION, TRANSFER CASE & AXLES

• Hammer transfer case ratio: 1.47:1
• Wide 0.8 Mod hardened-steel transfer-case gears
• 8-bearing Hammer transfer case with cast housing
• R3 pinion/spur ratio: 14/64 = 4.57:1
• R3 internal ratio: 1.78:1
• Wide 0.8 Mod steel transmission gears, Delrin spur and slipper clutch
• Yota II axle ratio: 15/40 = 2.67:1
• Axle width at hex: 178.2 mm using 4 mm TF2 hexes
• Overall final drive ratio: 31.93:1

SUSPENSION, WHEELS & TIRES

• Dual Spring Scale Black Shocks 80 mm V3
• Rebuildable aluminum shocks with dual springs
• Titanium-nitride-coated shock shafts
• Landies Vintage 1.9-inch stamped-steel beadlock wheels
• 12 mm hex wheel mounting
• Wheel width: 22.9 mm / 0.90 in
• Wheel outer diameter: 52.5 mm / 2.06 in
• Dick Cepek 1.9-inch Mud Country scale tires in RC4WD X3 compound

ELECTRONICS

• RC4WD XR3 3-channel 2.4GHz transmitter/receiver radio system
• RC4WD Outcry III waterproof brushed ESC with built-in drag brake
• RC4WD Twister high-torque metal-gear digital steering servo
• RC4WD 540 Crawler Brushed Motor 45T
• Third radio channel available for compatible accessories such as a winch

DIMENSIONS

• Scale: 1/10
• Wheelbase: 275 mm / 10.83 in
• Width: 215 mm / 8.46 in
• Height: 247 mm / 9.72 in
• Ground clearance: 50 mm

RTR PACKAGE

• RC4WD Gelande II RTR with 2015 Land Rover Defender D90 Body Set – Grey
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak battery charger
• XR3 3-channel 2.4GHz transmitter/receiver radio system
• Exclusive decal sheet

SETUP & OWNERSHIP NOTES

• Inspect installed hardware before the first trail session and periodically thereafter.
• Apply thread lock sparingly to appropriate metal-to-metal fasteners.
• Keep the hard-body hinges, mirrors and opening panels protected during rollovers; this body carries substantially more scale detail than a lightweight Lexan shell.
• The pre-installed lighting system can be expanded with compatible scale accessories, but additional lights or winch hardware are not included unless specifically listed.
• The third radio channel is useful for accessory control, but verify electrical compatibility before adding any winch or lighting controller.

GASHEAD RC SCALE TRAIL NOTE

The Gelande II D90 is built around scale realism first. Its hard body, detailed interior and engine bay add visual authenticity and weight, while the R3 transmission, Hammer transfer case, Yota II axles and 45T brushed motor provide the low-speed drivetrain needed for realistic trail work. For the best experience, drive it like a scale truck: choose lines deliberately, control body roll and protect the detailed Defender bodywork from unnecessary impacts.

SKU: Z-RTR0065
