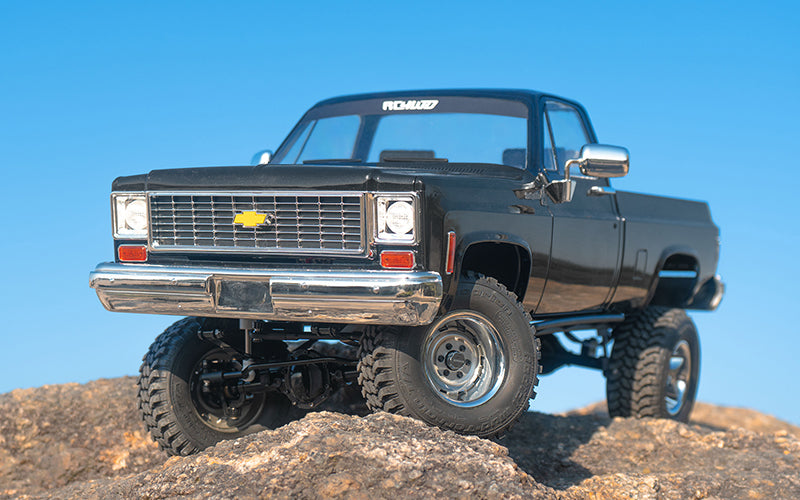

RC4WD TRAIL FINDER 2 LWB CHEVROLET K10 SCOTTSDALE 1/10 RTR – BLACK

RC4WD TRAIL FINDER 2 LWB RTR W/ CHEVROLET K10 SCOTTSDALE HARD BODY SET – BLACK

The RC4WD Trail Finder 2 LWB Chevrolet K10 Scottsdale combines a licensed 1/10-scale hard-plastic Chevrolet pickup body with RC4WD's 12.3-inch-wheelbase TF2 LWB chassis. The Black edition features a molded drop bed, functional tailgate, opening hood, detailed interior, interchangeable grille options and a dressed small-block V8 engine bay over a leaf-sprung, metal-geared scale drivetrain.

LICENSED CHEVROLET K10 SCOTTSDALE HARD BODY

• 1/10 Chevrolet K10 Scottsdale hard body complete set
• Durable molded hard-plastic construction
• Realistic molded drop bed
• Functional opening tailgate and opening hood
• Two interchangeable grille options
• Small Block V8 engine bay with dress-up kit
• Improved dashboard with pre-installed scale interior decals and door panels
• Chrome-plated trim parts and colored signal-light lenses
• Professionally installed LED lighting system
• Front inner fenders and Marlin Crawler side plastic sliders

TF2 LWB CHASSIS & SUSPENSION

• CNC-machined billet-aluminum ladder frame
• Scale shock hoops, chassis servo mount, transmission and transfer-case mounts
• Super Soft Flex leaf springs with additional tuning leaves supplied
• Super Scale 70mm White Shocks with internal springs
• Multi-purpose molded fuel cell that also serves as an electronics storage box
• Heavy-duty uni-joint metal driveshafts

DRIVETRAIN & GEARING

• 540 45T brushed crawler motor
• R3 single-speed transmission with cast-metal case
• R3 pinion/spur ratio: 14/64 = 4.57:1
• R3 internal ratio: 1.78:1
• Wide 0.8 Mod steel transmission gears, Delrin spur and slipper clutch
• Center-mounted Hammer transfer case
• Hammer transfer-case ratio: 1.47:1
• Wide 0.8 Mod hardened-steel transfer gears, eight bearings and cast housing
• K44 Ultimate Scale Cast Axles with XVD front shafts
• K44 axle ratio: 2.67:1
• K44 hex-to-hex width: 177 mm / 6.96 in
• Overall final drive ratio: 31.9:1

WHEELS & TIRES

• Rally 1.9-inch stamped-steel beadlock wheels in silver with chrome beauty rings
• 12 mm hex
• Wheel width: 33.0 mm / 1.29 in
• Wheel OD: 54.0 mm / 2.14 in
• RC4WD BFGoodrich Mud Terrain KM 1.9-inch scale tires
• X2 soft/sticky compound
• Tire OD: 100.0 mm / 3.9 in
• Tire width: 42.0 mm / 1.65 in
• Tire ID: 48 mm / 1.89 in

ELECTRONICS & RTR EQUIPMENT

• XR3 3-channel 2.4GHz transmitter/receiver radio
• Outcry III waterproof brushed ESC with built-in drag brake
• Twister High Torque Metal Gear Digital Servo
• Published steering-servo torque: 277.6 oz-in @ 6V
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak battery charger
• Professionally installed LED light set

DIMENSIONS

• Scale: 1/10
• Wheelbase: 312 mm / 12.3 in
• Width: 220 mm / 8.7 in
• Height: 238 mm / 9.4 in
• Ground clearance: 61.6 mm / 2.4 in
• Final drive ratio: 31.9:1

WHAT'S INCLUDED

• 1x RC4WD Trail Finder 2 LWB RTR with Chevrolet K10 Scottsdale Hard Body Set – Black
• XR3 3-channel radio system
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak charger
• Installed electronics and LED system
• Additional leaf-spring components for suspension tuning

SETUP & OWNER NOTES

• Inspect installed hardware before the first trail run and periodically thereafter.
• Use thread lock sparingly on appropriate metal-to-metal fasteners.
• The hard body, detailed engine bay and scale accessories add mass compared with a lightweight Lexan body; use controlled driving on steep side hills.
• Fine-tune leaf-spring rate gradually with the supplied spring components rather than removing scale hardware solely for articulation.
• Keep lighting and engine-bay wiring clear of steering, driveshaft and suspension movement.

GASHEAD RC SCALE-TRAIL NOTE

The K10 Scottsdale is a scale truck first: a 12.3-inch LWB chassis, leaf springs, K44 axles and hard Chevrolet body give it the stance and driving character of a classic full-size pickup. The 45T motor, R3/Hammer drivetrain and 31.9:1 final ratio are geared toward controlled trail work rather than outright speed.

SKU: Z-RTR0067
