RC4WD TRAIL FINDER 2 CHEVROLET BLAZER 1/10 RTR – MIDNIGHT EDITION

RC4WD TRAIL FINDER 2 RTR W/ CHEVROLET BLAZER BODY SET – MIDNIGHT EDITION

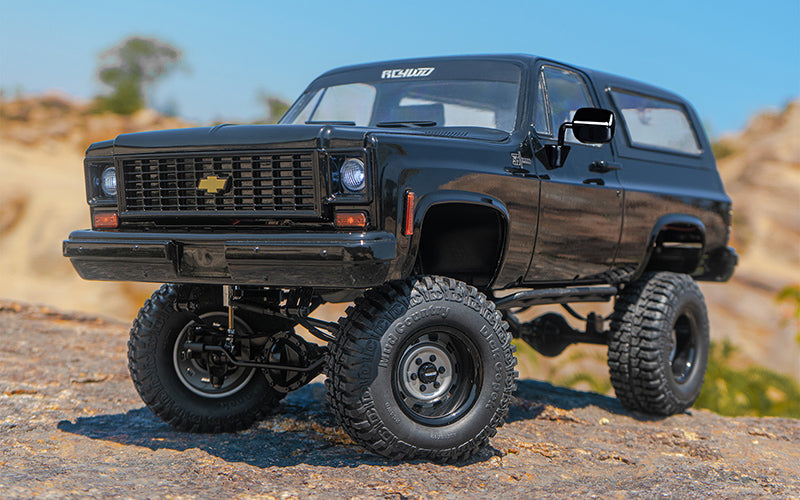

The RC4WD Trail Finder 2 Chevrolet Blazer Midnight Edition combines a blacked-out, officially licensed Chevrolet hard body with RC4WD’s proven TF2 scale-trail chassis. Gloss black bodywork, a removable matte topper, blacked-out trim and grille, a detailed small-block V8 engine bay and concealed LED lighting give this Blazer a distinctive full-scale-inspired presence while the leaf-sprung drivetrain remains tuned for low-speed trail work.

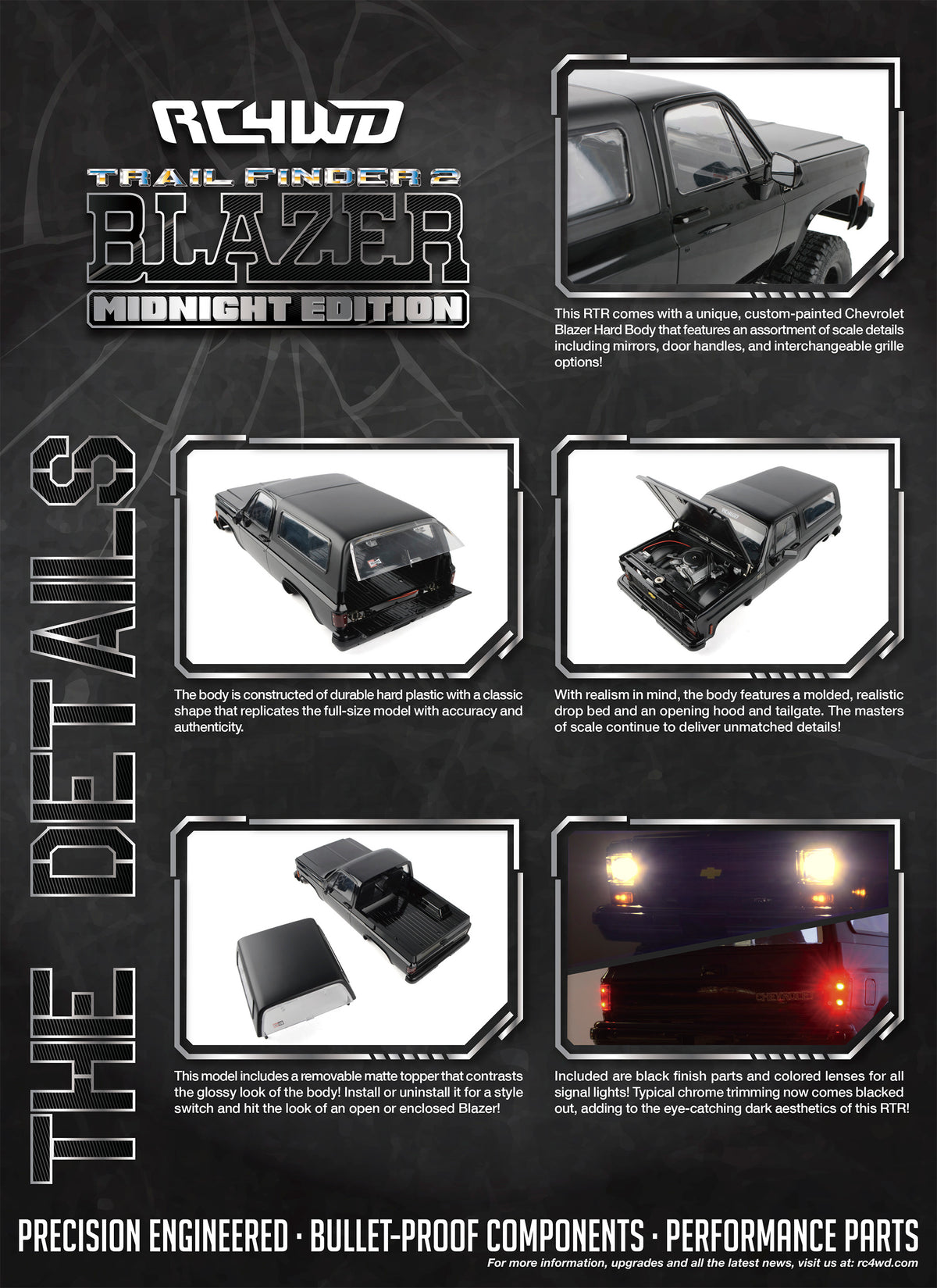

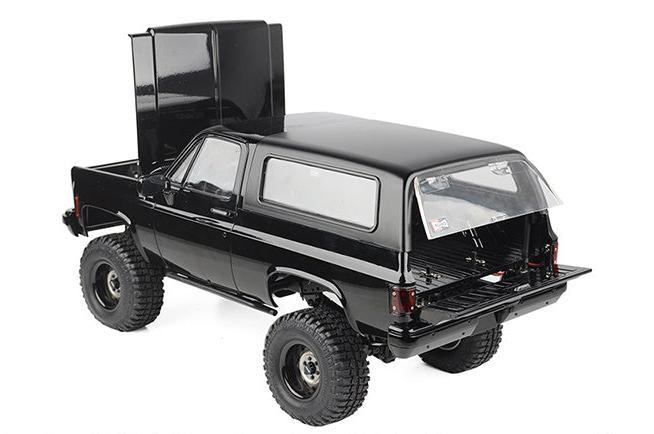

CHEVROLET BLAZER MIDNIGHT HARD BODY

• Durable hard-plastic Chevrolet Blazer body
• Gloss black body finish with matte removable topper
• Opening hood and tailgate
• Molded realistic cargo/drop-bed area
• Interchangeable grille options
• Black-finish exterior trim and accessories

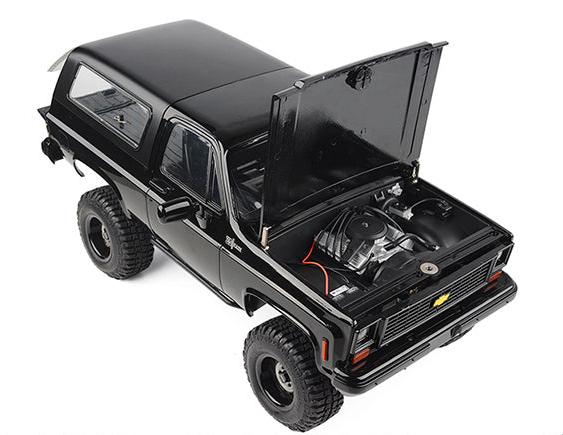

• Detailed Small Block V8 engine bay with dress-up parts
• Mirrors, door handles and colored signal-light lenses
• Professionally installed concealed LED lighting system
• Front inner fenders and Marlin Crawler side plastic sliders

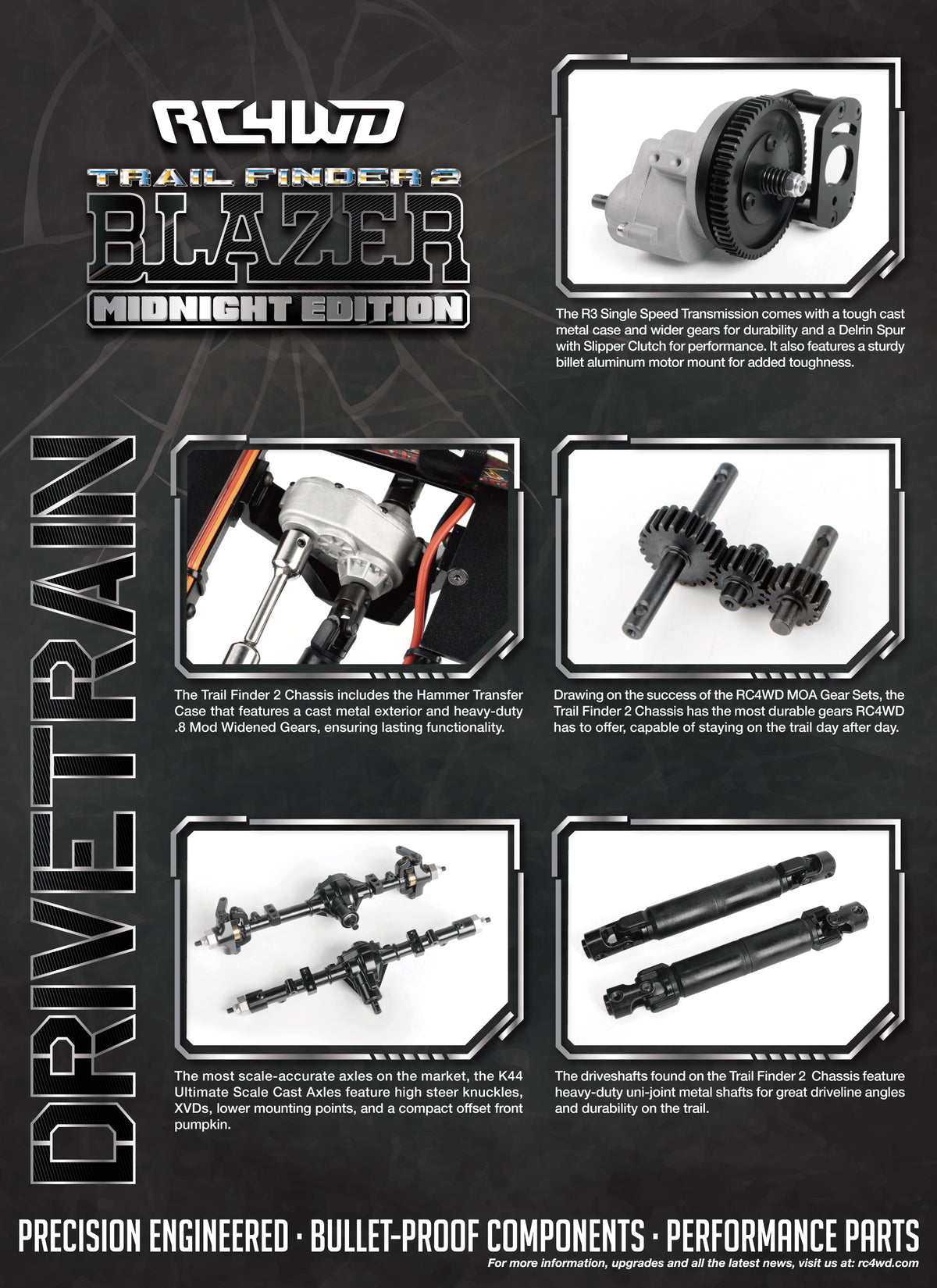

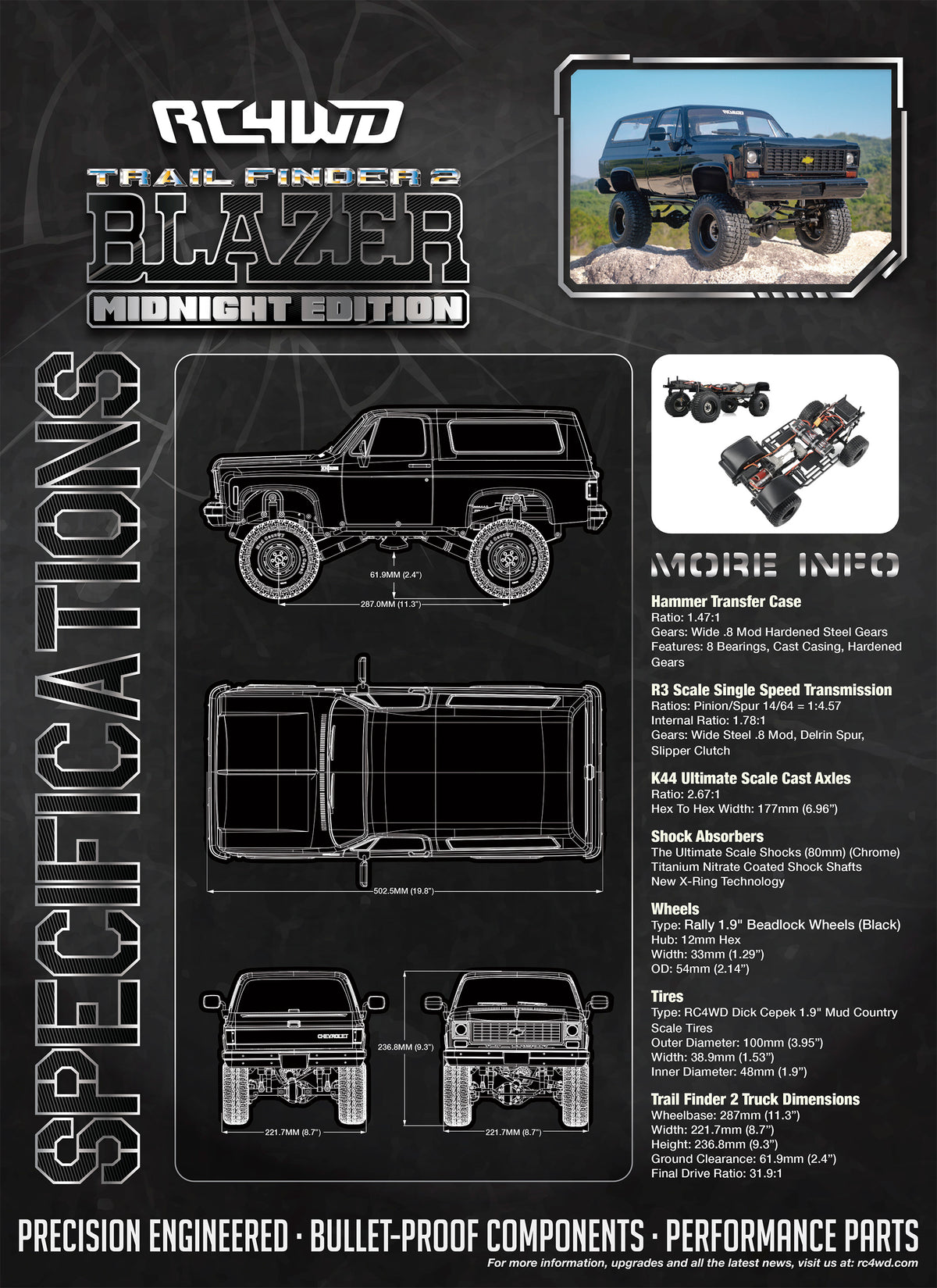

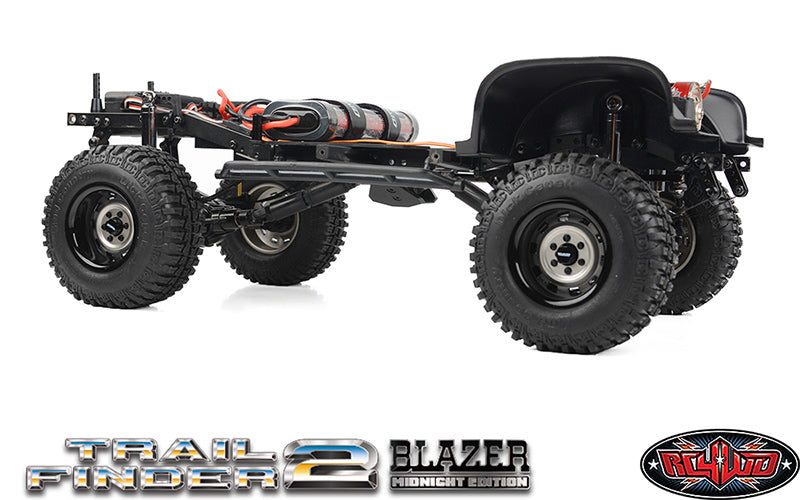

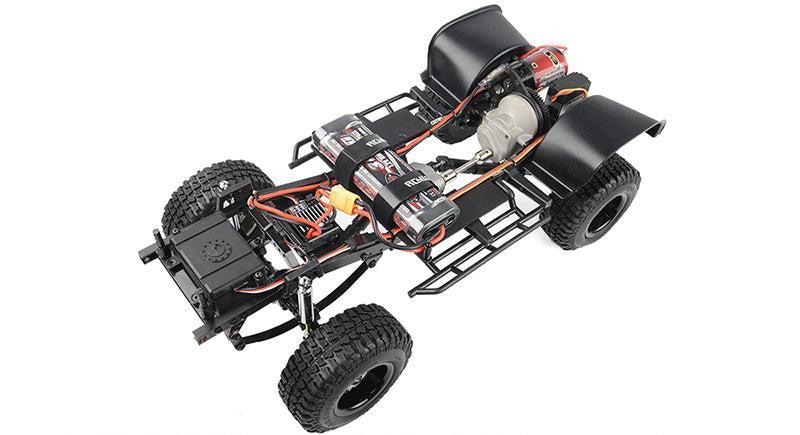

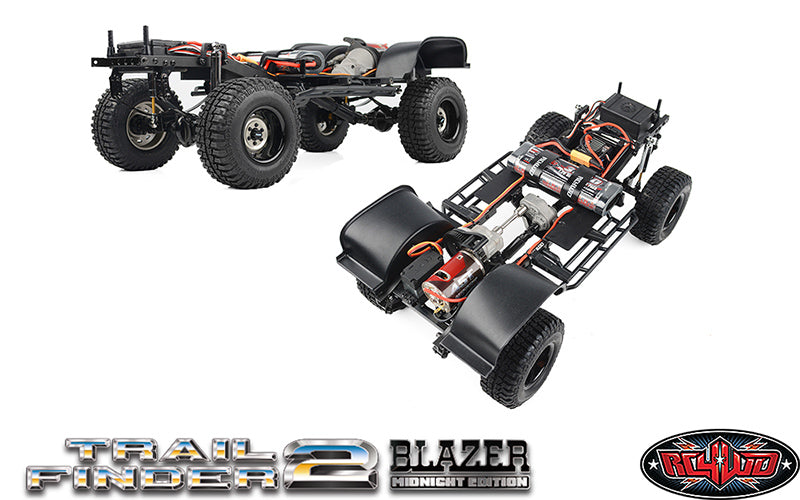

TF2 CHASSIS & DRIVETRAIN

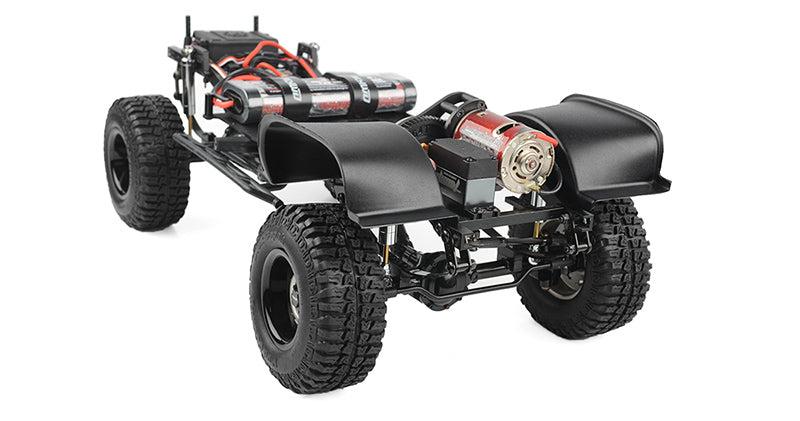

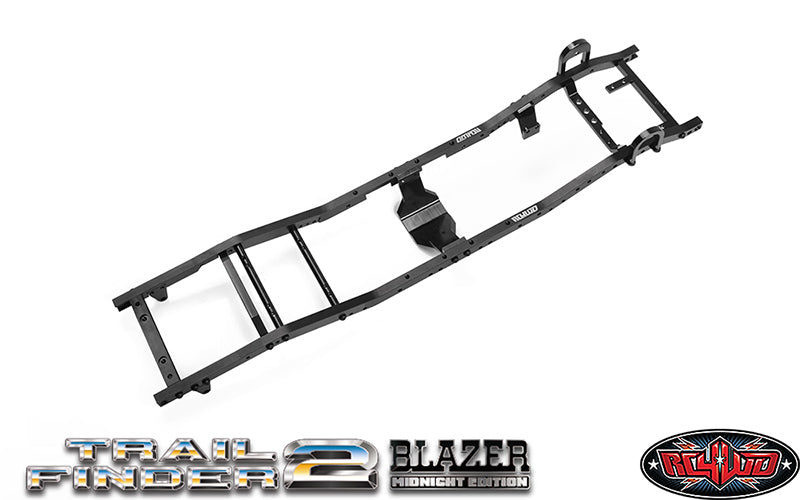

• CNC-machined billet-aluminum ladder frame

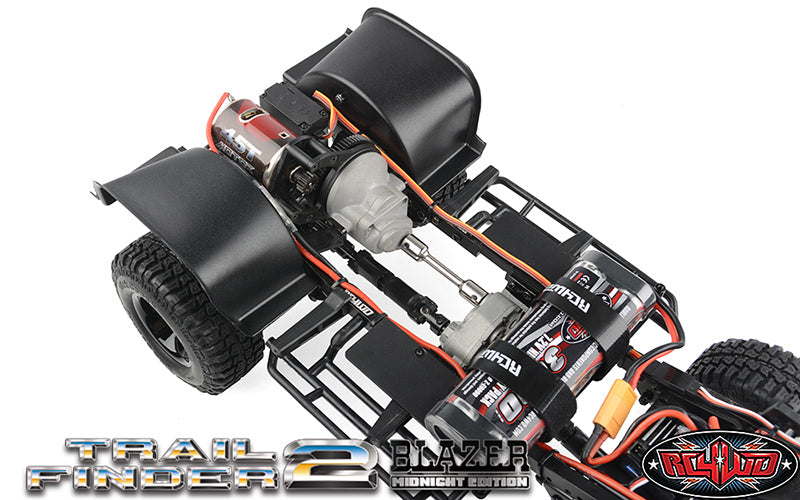

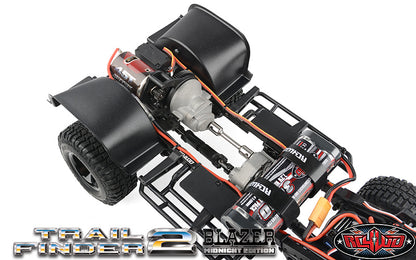

• R3 single-speed transmission with cast-metal case
• R3 pinion/spur ratio: 14/64 = 4.57:1
• R3 internal ratio: 1.78:1
• Wide 0.8 Mod steel gears, Delrin spur and slipper clutch

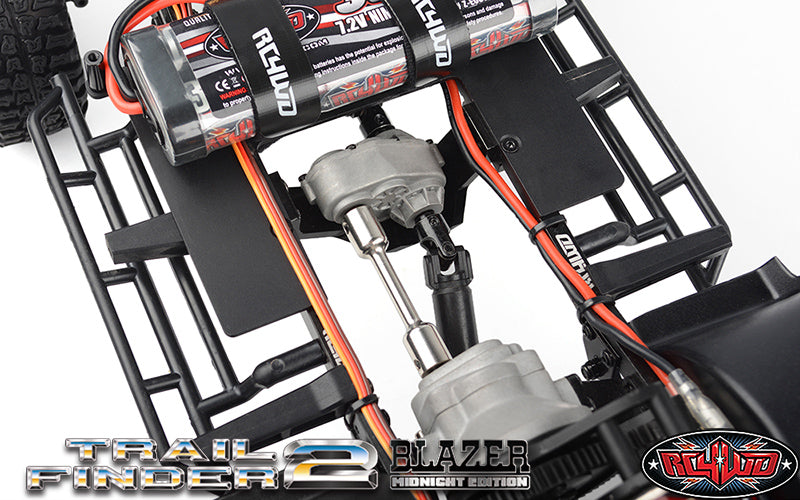

• Center-mounted Hammer transfer case
• Hammer transfer ratio: 1.47:1
• Wide 0.8 Mod hardened-steel transfer gears and 8-bearing construction
• K44 Ultimate Scale Cast Axles with XVD front shafts
• K44 axle ratio: 2.67:1
• K44 hex-to-hex width: 177 mm / 6.96 in
• Heavy-duty uni-joint metal driveshafts
• Final drive ratio: 31.9:1

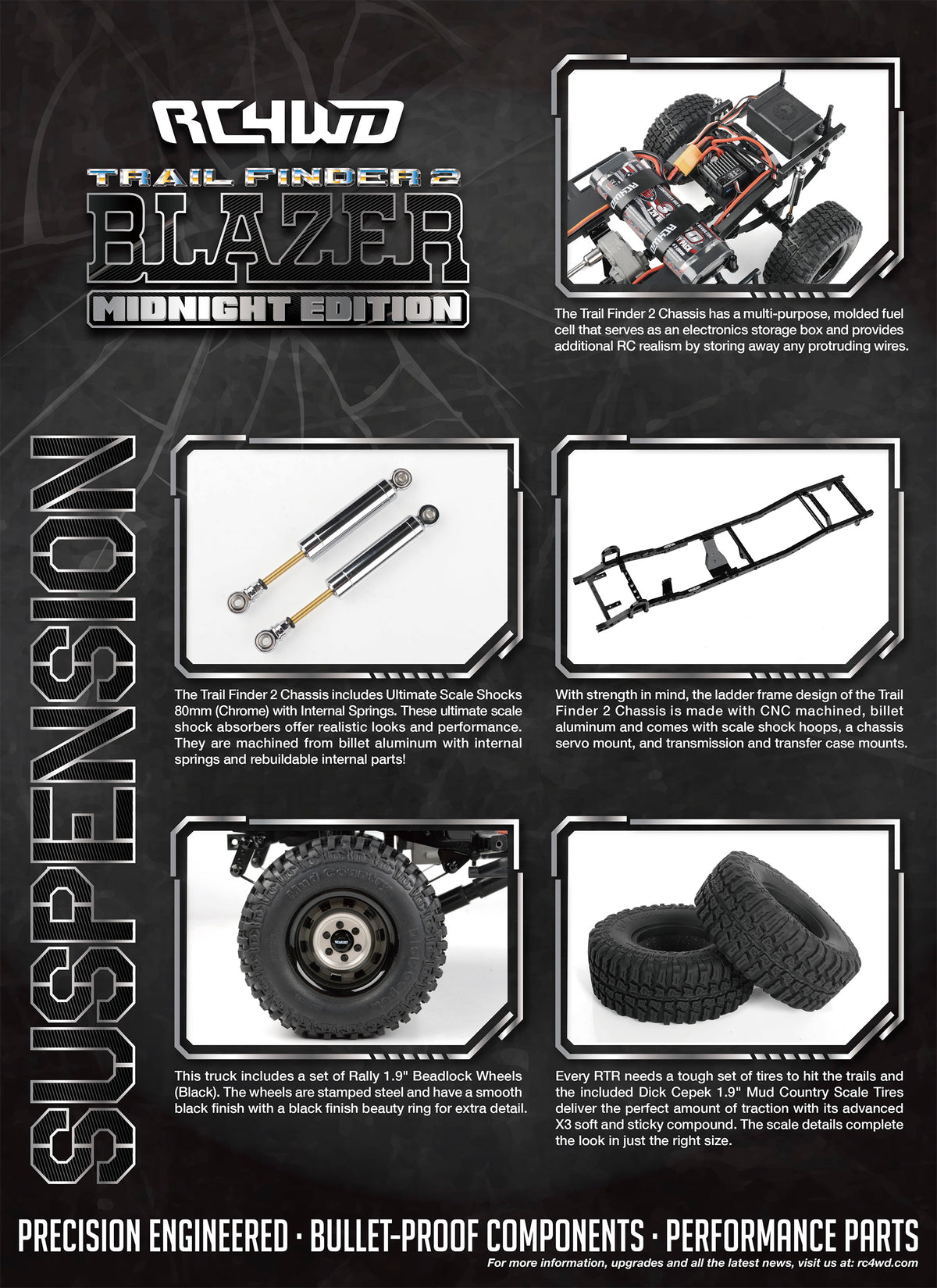

SUSPENSION, WHEELS & TIRES

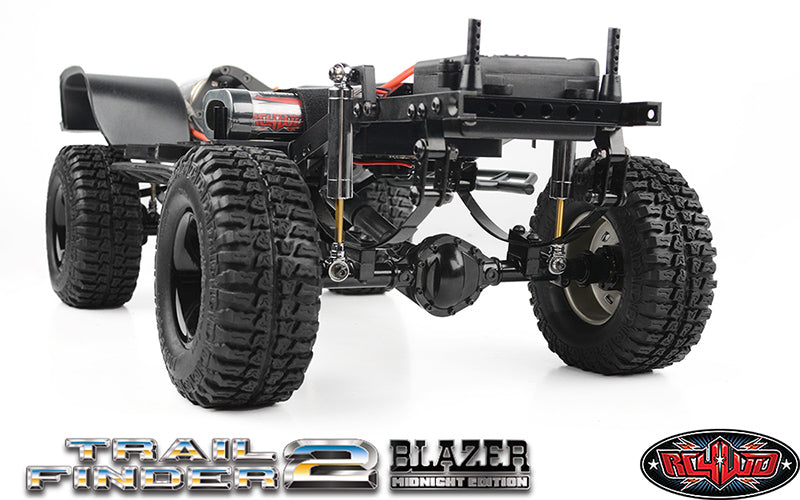

• Super Soft Flex leaf-spring suspension
• Helper leaf springs supplied for tuning
• Ultimate Scale Shocks 80 mm in chrome
• Titanium-nitride-coated shock shafts
• RC4WD X-Ring shock technology

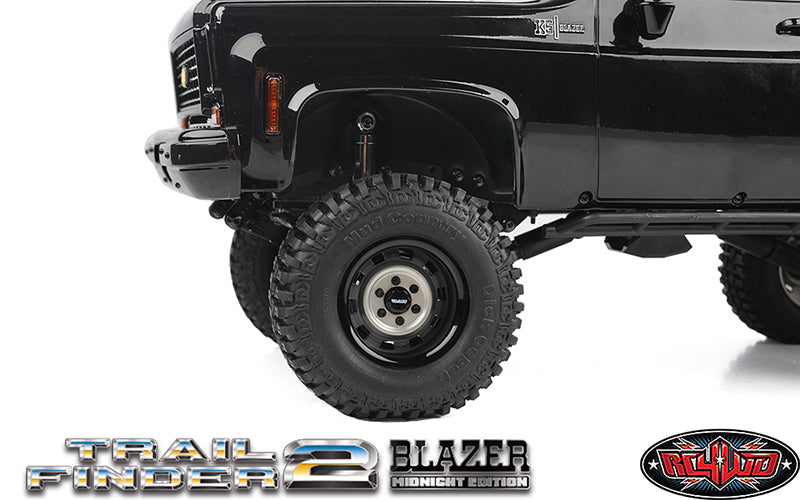

• Rally 1.9-inch stamped-steel beadlock wheels in black
• 12 mm hex
• Wheel width: 33 mm / 1.29 in
• Wheel OD: 54 mm / 2.14 in
• RC4WD Dick Cepek 1.9-inch Mud Country scale tires
• X3 soft/sticky compound
• Tire OD: 100 mm / 3.95 in
• Tire width: 38.9 mm / 1.53 in
• Tire ID: 48 mm / 1.9 in

ELECTRONICS

• 540-size 45T brushed crawler motor
• Outcry III waterproof brushed ESC with built-in drag brake
• Twister High Torque Metal Gear Digital Servo
• Published steering-servo torque: 277.6 oz-in @ 6V
• XR3 3-channel 2.4GHz transmitter/receiver radio
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak battery charger

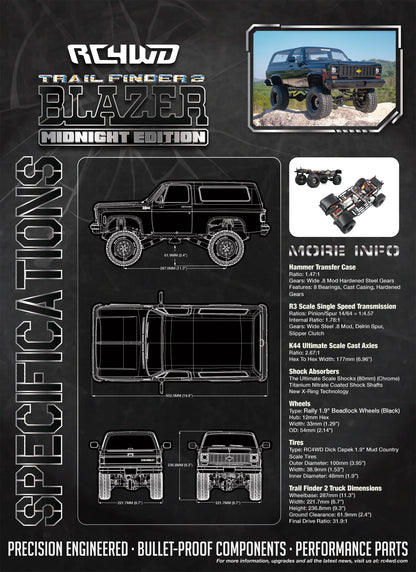

DIMENSIONS

• Scale: 1/10
• Wheelbase: 287 mm / 11.3 in
• Width: 221.7 mm / 8.7 in
• Height: 236.8 mm / 9.3 in
• Ground clearance: 61.9 mm / 2.4 in
• Final drive ratio: 31.9:1

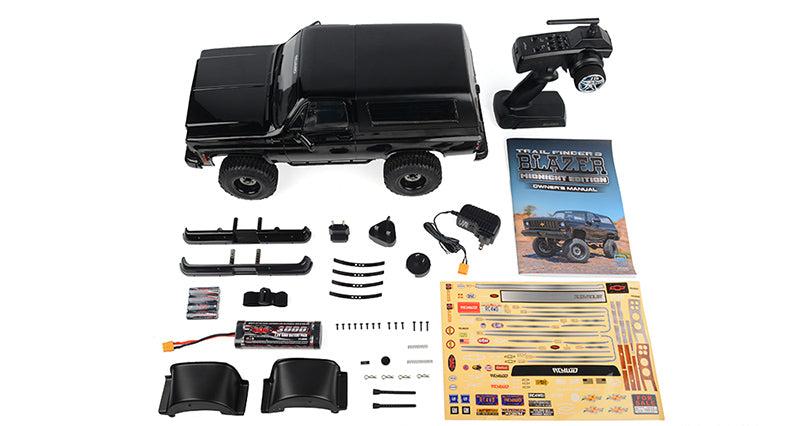

WHAT'S INCLUDED

• 1x RC4WD Trail Finder 2 RTR with Chevrolet Blazer Body Set – Midnight Edition
• Installed electronics and LED lighting system
• XR3 3-channel radio system
• 6-cell 3000mAh NiMH battery with XT60 plug
• Universal NiMH peak charger
• Suspension tuning components supplied by RC4WD

SETUP & OWNER NOTES

• The internal shock springs and helper leaf springs are supplied for tuning and are not necessarily installed out of the box.
• Inspect chassis, suspension and body hardware before the first trail run and periodically thereafter.
• Use thread lock sparingly on appropriate metal-to-metal fasteners.
• The hard body and topper add scale realism and weight; controlled driving is recommended on steep side hills and technical terrain.
• Protect the detailed mirrors, trim, lighting and topper during rollovers.

GASHEAD RC SCALE-TRAIL NOTE

The Midnight Edition is more than a color change. Its blacked-out grille, trim, topper and wheel package give the truck a cohesive custom look, while the R3/Hammer/K44 drivetrain and leaf-spring suspension preserve the distinctive TF2 driving character. It is best suited to deliberate, realistic trail driving rather than high-speed use.

SKU: Z-RTR0068
