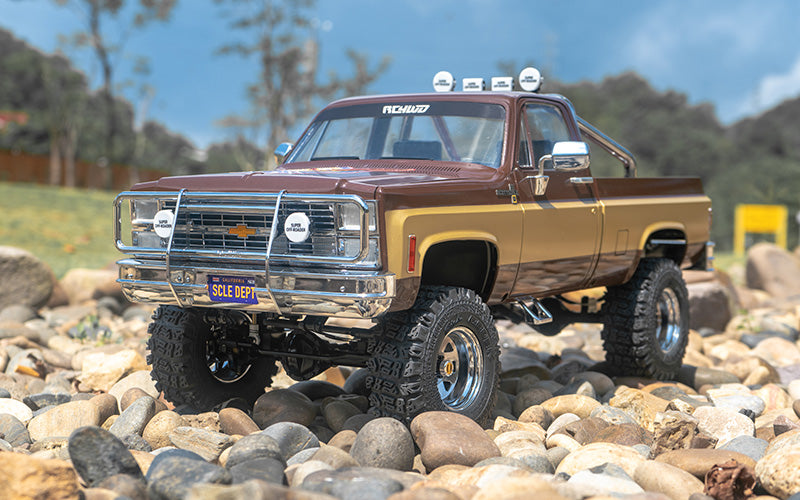

RC4WD TRAIL FINDER 2 LWB CHEVROLET K10 SCOTTSDALE 1/10 RTR – SCALE DEPT. EDITION

RC4WD TRAIL FINDER 2 LWB RTR W/ CHEVROLET K10 SCOTTSDALE HARD BODY SET – SCALE DEPT. EDITION

The RC4WD Trail Finder 2 LWB Chevrolet K10 Scottsdale Scale Dept. Edition takes the 12.3-inch-wheelbase TF2 platform further into period-correct scale detailing. It combines the licensed K10 Scottsdale hard body and dressed small-block V8 engine bay with retro halogen-style lighting, chrome exterior accessories, 8-lug deep-dish stamped-steel wheels and Dick Cepek Fun Country tires.

SCALE DEPT. CHEVROLET K10 DETAILS

• Licensed Chevrolet K10 Scottsdale hard body
• Small Block V8 engine bay with dress-up kit
• Retro halogen-style lights
• Chrome 1980s-style front grille
• Chrome single-tube roll bar and front push bar
• Chrome rear step bumper
• Chrome side steps
• Updated mirrors, door handles and scale trim
• Molded realistic drop bed
• Opening hood and tailgate
• Improved dashboard with pre-installed scale interior decals and door panels
• Professionally installed concealed LED lighting system
• Front inner fenders

TF2 LWB DRIVETRAIN

• 540 45T brushed crawler motor
• R3 single-speed transmission
• R3 pinion/spur ratio: 14/64 = 4.57:1
• R3 internal ratio: 1.78:1
• Wide 0.8 Mod steel gears, Delrin spur and slipper clutch
• Center-mounted Hammer transfer case
• Hammer transfer ratio: 1.47:1
• Wide 0.8 Mod hardened-steel transfer gears, eight bearings and cast housing
• K44 Ultimate Scale Cast Axles with XVD front shafts
• K44 axle ratio: 2.67:1
• K44 hex-to-hex width: 177 mm / 6.96 in
• Heavy-duty uni-joint metal driveshafts
• Final drive ratio: 31.9:1

SUSPENSION, WHEELS & TIRES

• CNC-machined billet-aluminum ladder frame
• X-Ring scale shock absorbers, 70/80 mm
• Scale shock hoops and chassis-mounted drivetrain components
• 8 Lug Deep Dish Wagon 1.9-inch stamped-steel beadlock wheels in chrome
• 12 mm hex
• Wheel width: 32.0 mm / 1.26 in
• Wheel OD: 53.0 mm / 2.08 in
• RC4WD Dick Cepek Fun Country 1.9-inch Scale Tires
• X2S3 compound
• Tire OD: 100 mm / 3.94 in
• Tire width: 38.8 mm / 1.52 in
• Tire ID: 46.0 mm / 1.81 in

ELECTRONICS & RTR EQUIPMENT

• XR3 3-channel 2.4GHz transmitter/receiver radio
• Outcry III waterproof brushed ESC with built-in drag brake
• Twister High Torque Metal Gear Digital Servo
• Published steering-servo torque: 277.6 oz-in @ 6V
• 6-cell 3000mAh NiMH battery pack
• Universal NiMH peak charger
• Professionally installed LED lighting

DIMENSIONS

• Scale: 1/10
• Wheelbase: 312 mm / 12.3 in
• Width: 220 mm / 8.7 in
• Height: 251 mm / 9.9 in
• Ground clearance: 62 mm / 2.4 in
• Final drive ratio: 31.9:1

WHAT'S INCLUDED

• 1x RC4WD Trail Finder 2 LWB RTR with Chevrolet K10 Scottsdale Hard Body Set – Scale Dept. Edition
• Installed drivetrain, electronics and lighting system
• XR3 3-channel radio system
• 6-cell 3000mAh NiMH battery pack
• Universal NiMH peak charger

SETUP & OWNER NOTES

• Inspect installed hardware before the first trail run and periodically thereafter.
• Use thread lock sparingly on appropriate metal-to-metal fasteners.
• Protect the chrome accessories, mirrors and detailed hard body during rollovers.
• Keep lighting and engine-bay wiring clear of steering and drivetrain movement.
• The Scale Dept. wheel/tire package and exterior accessories are integral to this edition's period-correct presentation.

GASHEAD RC SCALE-TRAIL NOTE

This edition is aimed squarely at the builder who wants a finished, highly detailed classic K10 without giving up the mechanical character of the TF2. The chrome 8-lug wheels, retro lighting and exterior hardware distinguish it visually, while the R3/Hammer/K44 drivetrain retains the low-speed, leaf-sprung trail behavior expected from the platform.

SKU: Z-RTR0071
