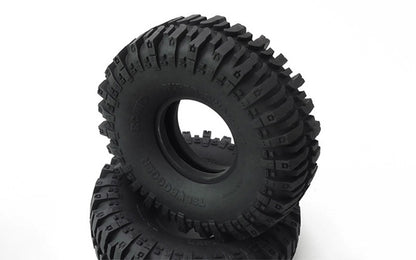

RC4WD INTERCO SUPER SWAMPER 1.9" TSL/BOGGER SCALE TIRES – X3 SOFT (2) – Z-T0046

A towering 121 mm licensed Bogger with a relatively narrow 39.5 mm body and RC4WD's Advanced X3 Soft compound. The RC4WD Interco Super Swamper 1.9" TSL/Bogger is built for scale trucks that need the unmistakable paddle-like tread, tall sidewall, and aggressive presence of the full-size mud tire. This package contains two tires, two foam inserts, and an Interco sticker sheet.

WHY THIS TIRE IS DIFFERENT

• 121 mm / 4.79-inch outer diameter: exceptionally tall for a 1.9" wheel application.
• 39.5 mm / 1.55-inch width: tall without becoming excessively wide.
• Advanced X3 Soft compound: the exact compound specified by RC4WD for this model.
• Official Interco licensing: molded Super Swamper TSL/Bogger branding and recognizable full-size-inspired tread.
• Foam inserts included: one insert for each of the two tires.

OFFICIAL SPECIFICATIONS

RC4WD also notes that the outer diameter is 18 mm larger than its referenced “original tires,” but the manufacturer page does not identify that baseline tire. Use the verified 121 mm measurement—not that comparison—for clearance decisions.

WHAT 121 MM MEANS ON THE TRUCK

Engineering interpretation: this tire can increase axle and differential clearance compared with a smaller tire, but it also requires substantially more room at the fenders, sliders, links, shocks, and inner body. A taller tire also changes effective gearing and adds rotating mass. Final behavior depends on vehicle weight, drivetrain gearing, foam setup, wheel system, surface, and driving style.

Check fitment at full steering lock and full suspension compression. Bench-top clearance at ride height is not enough; the tire may contact the body only when the axle articulates.

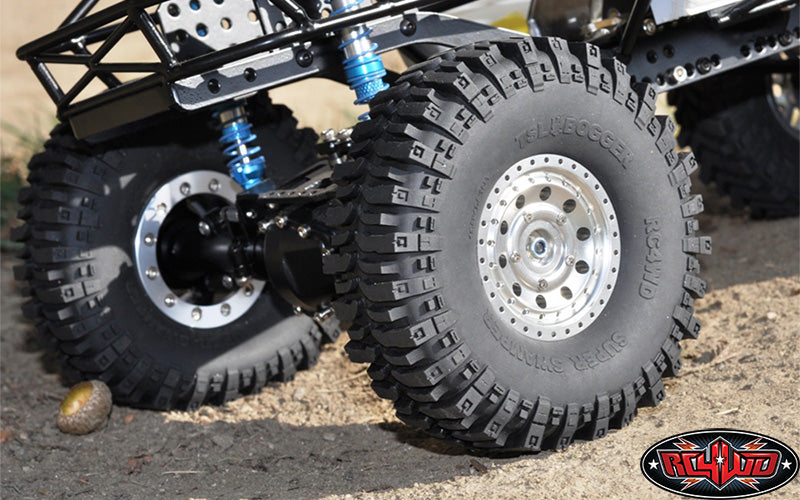

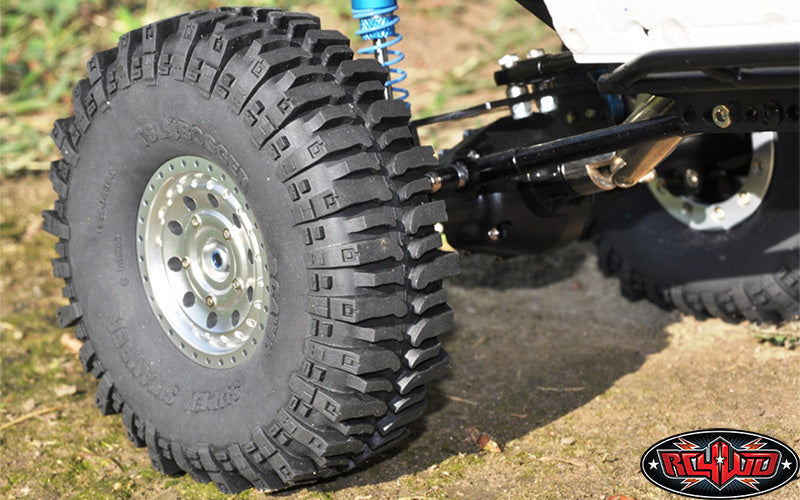

OFFICIAL BOYER / TARANTULA APPLICATION

RC4WD shows Z-T0046 installed on a Boyer truck with Tarantula wheels. The vehicle, wheels, suspension, axles, and accessories are application examples and are not included.

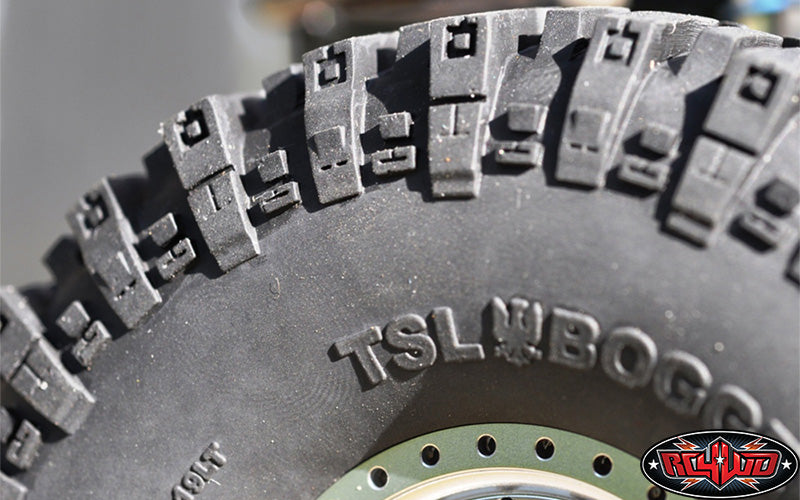

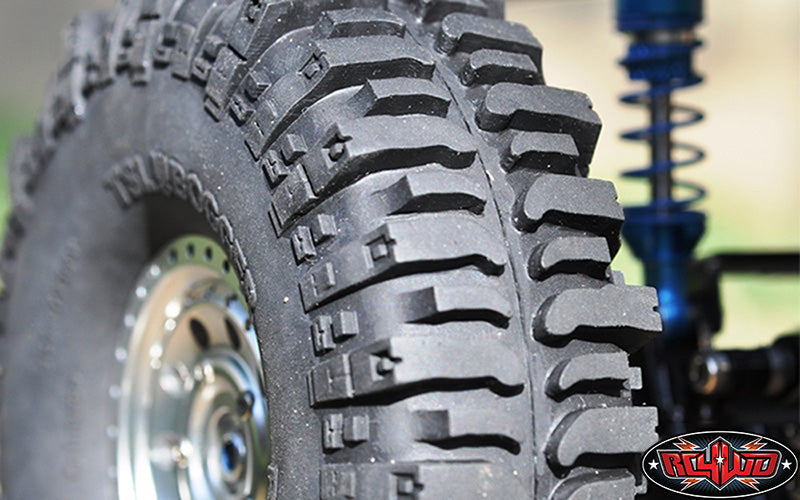

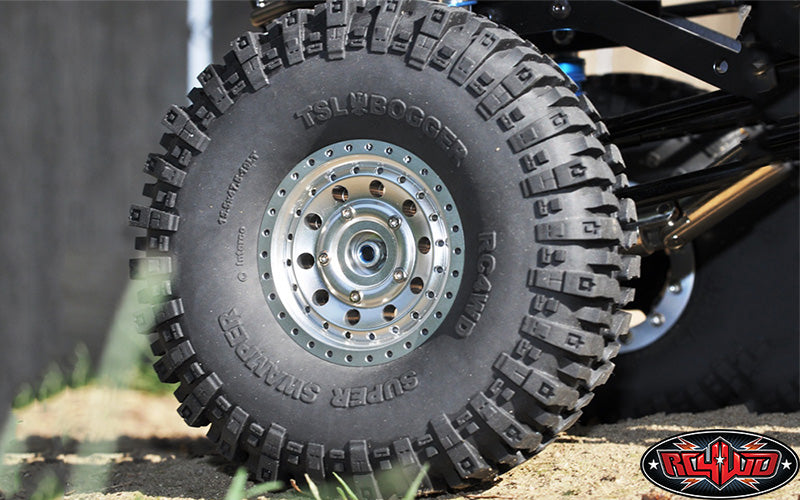

TREAD ARCHITECTURE

The official close-ups show large staggered paddle-like lugs, deep open voids, pronounced shoulder blocks, and molded TSL/Bogger sidewall markings. That layout gives the tire its unmistakable mud-truck appearance. Actual traction and self-cleaning depend on terrain consistency, wheel speed, tire loading, foam support, and compound temperature.

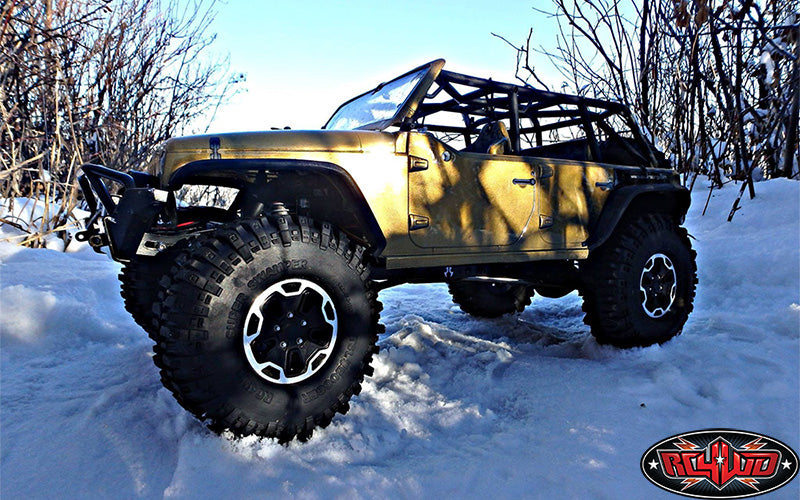

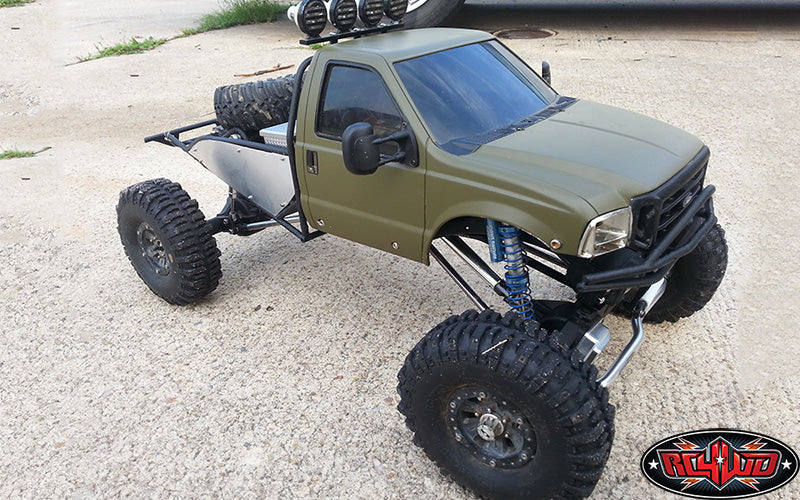

CUSTOMER BUILD EXAMPLES

RC4WD publishes the following customer-submitted installations to demonstrate the tire's proportions on custom crawler builds. These photographs show application only; none of the vehicles, wheels, or accessories is included.

VERIFIED LANDIES Z-W0136 PAIRING

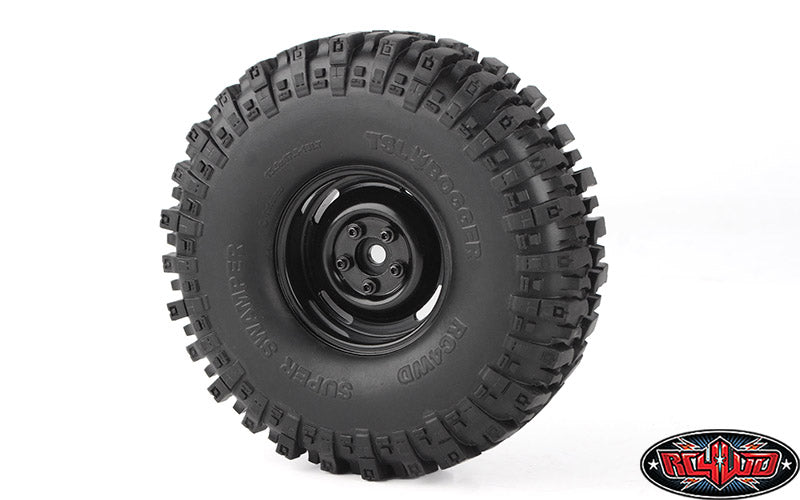

RC4WD specifically shows Z-T0046 mounted on the Landies Vintage 1.9" wheels, Z-W0136. This is the direct wheel pairing completed in the previous catalog phase. The four-wheel Landies set is sold separately.

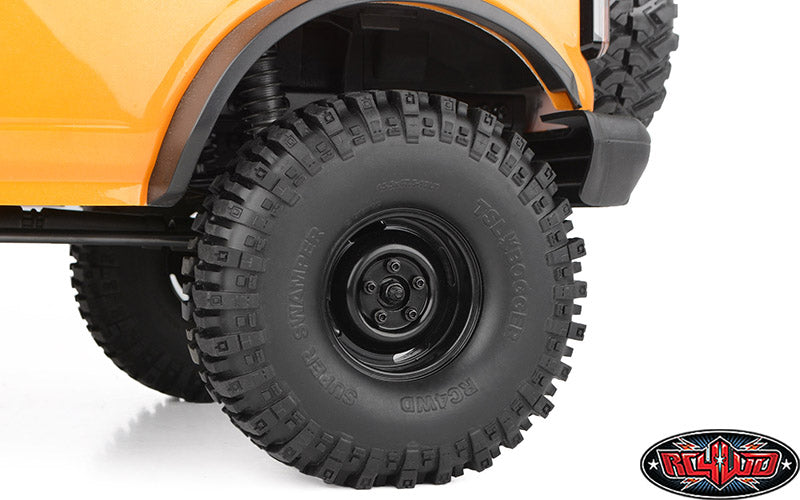

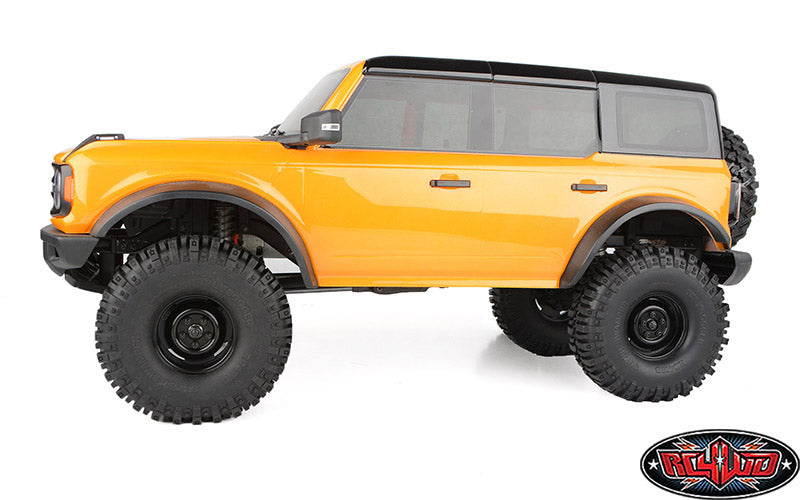

OFFICIAL TRAXXAS TRX-4 BRONCO APPLICATION

The manufacturer also shows the Z-T0046 and Z-W0136 combination on a Traxxas TRX-4 2021 Ford Bronco. This verifies the photographed combination, but each truck should still be checked for body clearance, wheel offset, hub engagement, steering interference, and suspension setup.

PACKAGE CONTENTS

• 2 × RC4WD Interco Super Swamper 1.9" TSL/Bogger Scale Tires
• 2 × Foam inserts
• 1 × Interco sticker sheet

QUANTITY WARNING: SOLD AS A PAIR

One package contains two tires and equips one axle. A normal four-wheel truck requires two packages of Z-T0046. The Landies Z-W0136 wheel package contains four wheels, so the complete combination requires one wheel set and two tire sets.

NOT INCLUDED

• Wheels and beadlock hardware
• RC vehicle, body, axles, suspension, and hubs
• Tarantula wheels and Landies Vintage Z-W0136 wheels shown in examples
• Additional foam tuning components or tire weights

WHEEL-COMPATIBILITY RULE

RC4WD confirms that its own tires and wheels are designed to work together, but it does not guarantee every cross-brand 1.9" combination. Bead thickness, bead profile, wheel channel, foam width, and internal beadlock-ring geometry vary. Confirm the exact wheel SKU and inspect both tire beads around the full 360 degrees during assembly.

INSTALLATION CHECKLIST

1. Confirm the wheel is a compatible 1.9" design and has enough channel width for the tire bead.
2. Center each foam insert without folds, bunching, or twists.
3. Seat both beads evenly and start all beadlock hardware by hand.
4. Tighten gradually in a cross pattern using several light passes.
5. Never force the wheel halves together; resistance usually indicates a pinched bead, displaced foam, or incompatible combination.
6. Test full steering and suspension travel before driving.

GASHEAD RC BUILD NOTE

Choose Z-T0046 when the build can physically support a 121 mm tire and the goal is a tall, narrow, unmistakably aggressive Bogger stance. For the photographed Landies combination, order two Z-T0046 packages and one Z-W0136 wheel set, then verify body clearance before final assembly.

Interco and its logo are registered trademarks of Interco Tire Company and are used by RC4WD under license.
