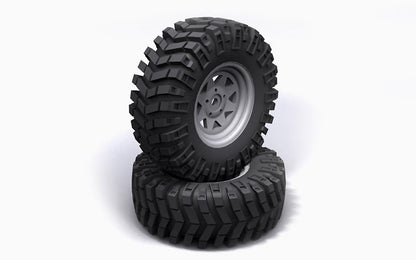

RC4WD PROWLER XS SCALE 1.9" TIRES – X3 SOFT (2) – Z-T0086
RC4WD PROWLER XS SCALE 1.9" TIRES – X3 SOFT (2) – Z-T0086
SKU:Z-T0086
Low stock
Couldn't load pickup availability
Specialty retailer for RC vehicles, parts, accessories, diecast models and collectibles.
Local pickup may be available on eligible orders.
A compact 95.5 mm scale tire with a narrow 36 mm profile and RC4WD's Advanced X3 Soft compound. The Prowler XS 1.9" is aimed at trail trucks and crawlers where realistic proportions, steering clearance, and controlled tire size matter more than simply fitting the tallest rubber available. Each package contains two tires and two foam inserts; a complete four-wheel truck requires two packages.
WHY CHOOSE THE PROWLER XS
- 95.5 mm / 3.76-inch outer diameter: compact enough for scale bodies and builds with limited fender clearance.
- 36 mm / 1.41-inch width: a narrow footprint that helps preserve realistic proportions.
- Advanced X3 Soft compound: the exact compound specified by RC4WD.
- 1.9-inch bead size: intended for compatible 1.9" crawler and trail-truck wheels.
- Matched foams included: one foam insert for each tire in the package.
OFFICIAL SPECIFICATIONS
| Manufacturer | RC4WD |
|---|---|
| Model | Prowler XS Scale 1.9" Tire |
| Part number | Z-T0086 |
| Previous part number | Prowler1.9 |
| Compound | Advanced X3 Soft |
| Wheel size | 1.9" |
| Outer diameter | 95.5 mm / 3.76 in |
| Width | 36.0 mm / 1.41 in |
| Inner diameter | 48 mm / 1.9 in |
| Weight | 56 g / 2 oz per tire |
| Package quantity | 2 tires and 2 foams |
RC4WD notes that this tire's outer diameter is 7.5 mm smaller than its referenced “original tires,” but the current manufacturer page does not identify that baseline. Use the verified 95.5 mm measurement for fitment decisions.
WHAT THE SIZE MEANS IN PRACTICE
Engineering interpretation: compared with a tall 4.5–4.8-inch crawler tire, the Prowler XS places less rubber inside the fender opening and may reduce body contact during steering and articulation. The smaller diameter also changes ground clearance and effective gearing. Final results depend on axle width, wheel offset, suspension travel, body shape, foam support, vehicle weight, and terrain.
Measure the existing tire and compare it directly with the 95.5 × 36 mm envelope. Check clearance at full steering lock and with the suspension fully compressed on each side.

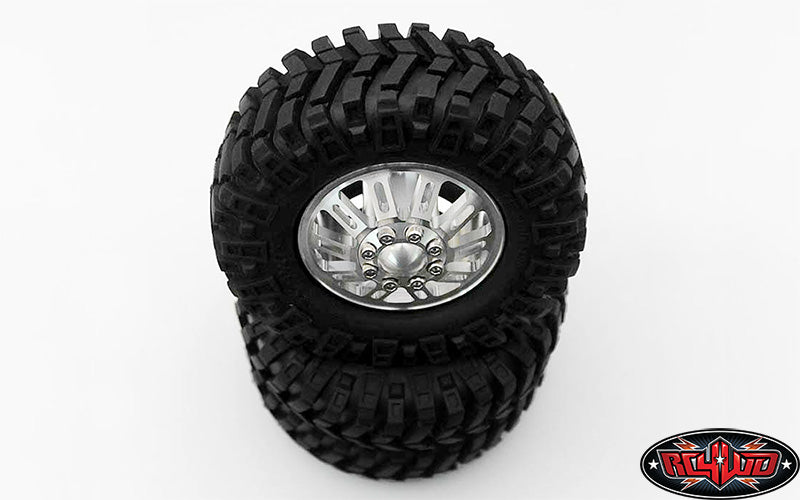

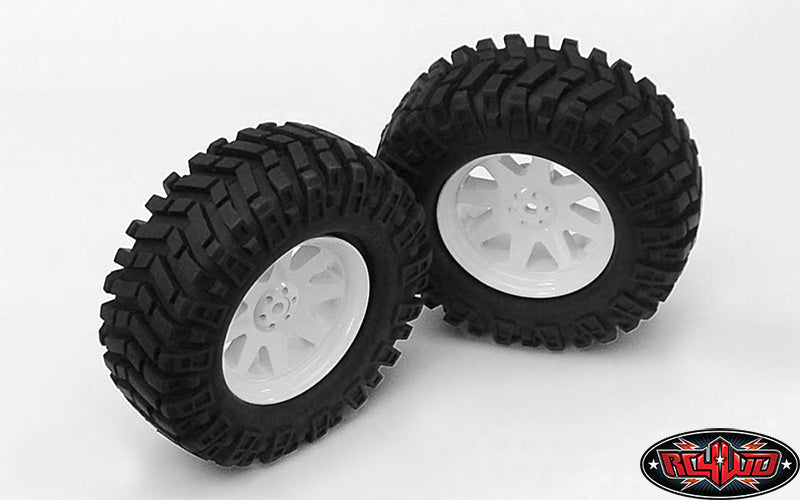

WHEEL AND TREAD PROPORTIONS

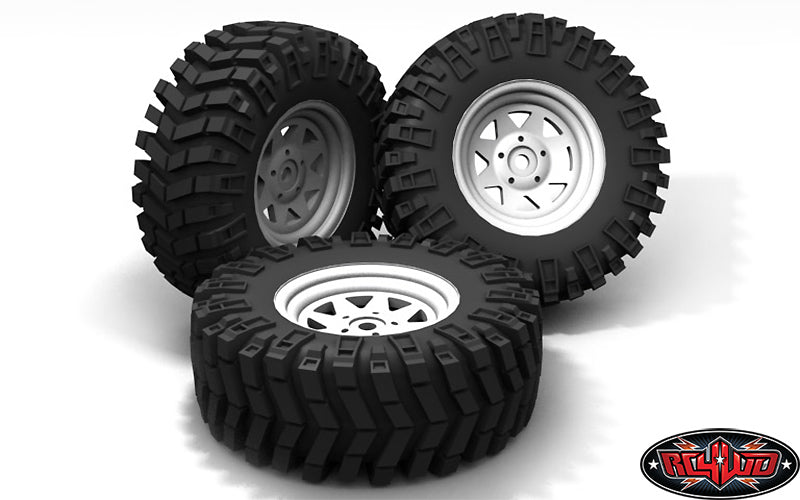

The official studio photographs show the Prowler XS on several 1.9" wheel styles, making its relatively narrow casing and moderate sidewall height easy to compare. Wheels shown in every image are examples only and are not included.
TREAD DESIGN

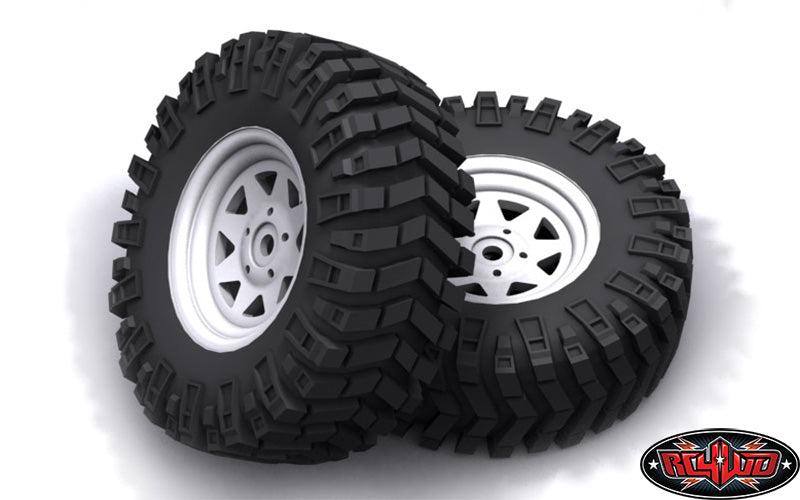

The official images show a directional-looking chevron layout, staggered center blocks, open channels, and pronounced shoulder lugs. Visually, it fits classic trail trucks, military builds, compact crawlers, and scale utility vehicles without the exaggerated height of competition-oriented tires. Actual traction depends on surface, foam setup, vehicle weight, compound temperature, and driving technique.
VEHICLE COMPATIBILITY
RC4WD specifically lists the Gmade Sawback as a fitment application. RC4WD also states that the tire is designed for RC4WD wheels and other manufacturers' 1.9" wheels, while separately warning that cross-brand results cannot be guaranteed because tire-bead and wheel designs vary.
Practical rule: treat 1.9" as the starting point, not the complete answer. Verify bead shape, channel width, internal beadlock-ring geometry, foam placement, and even bead seating before final tightening.

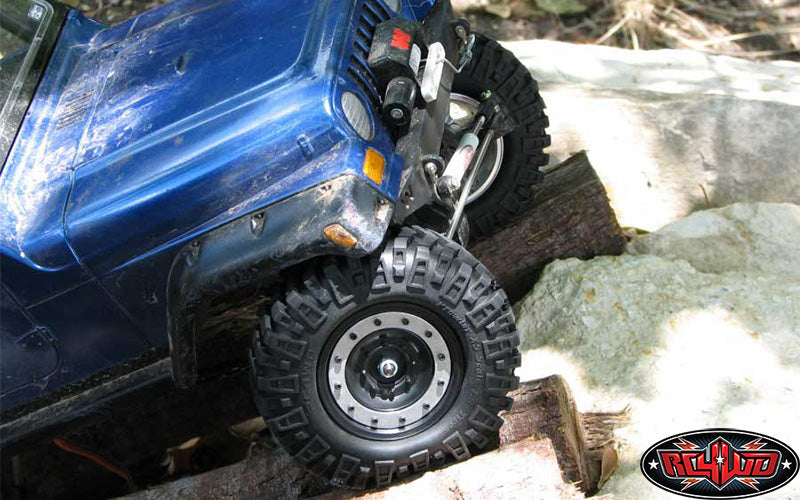

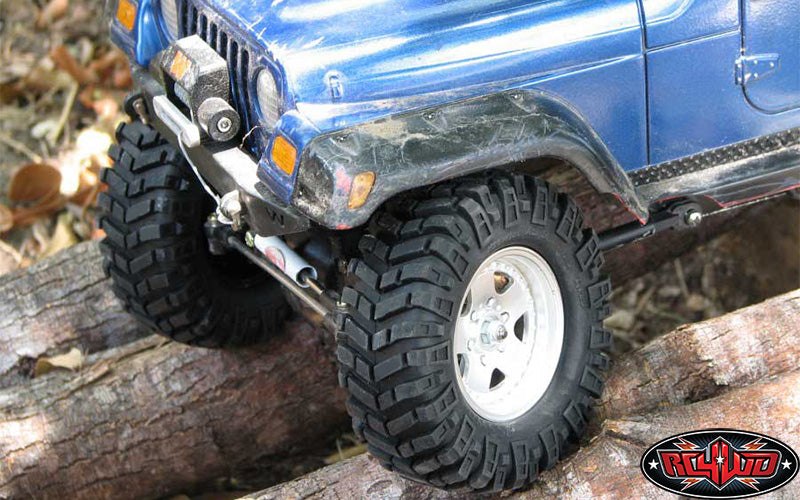

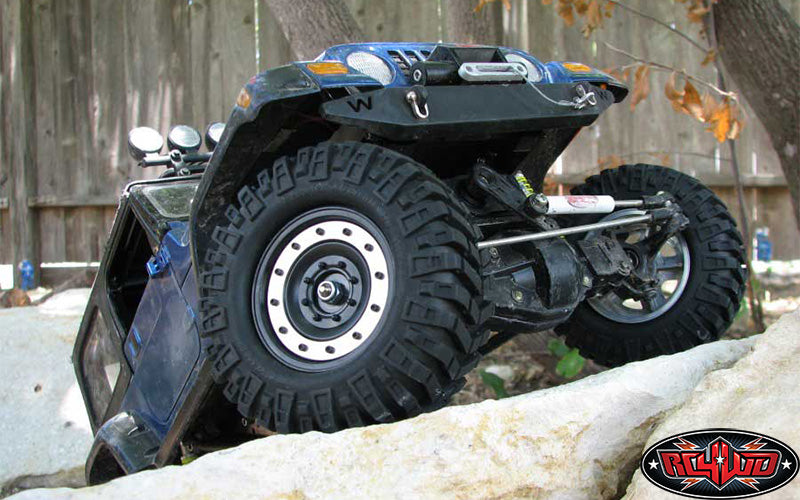

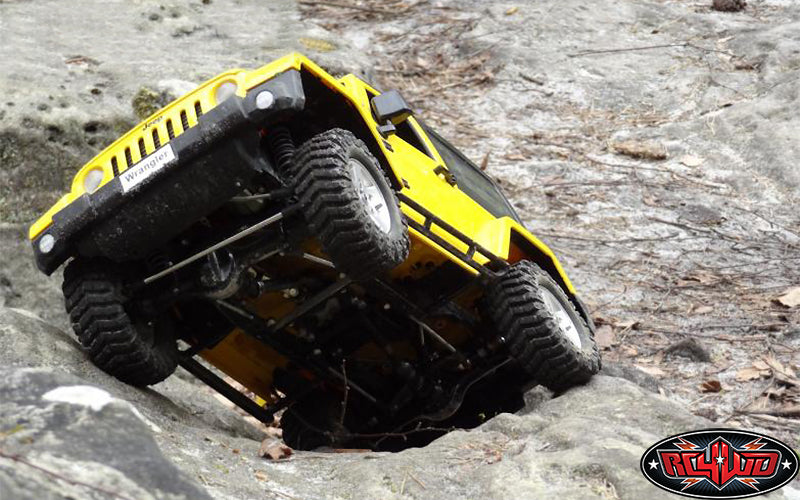

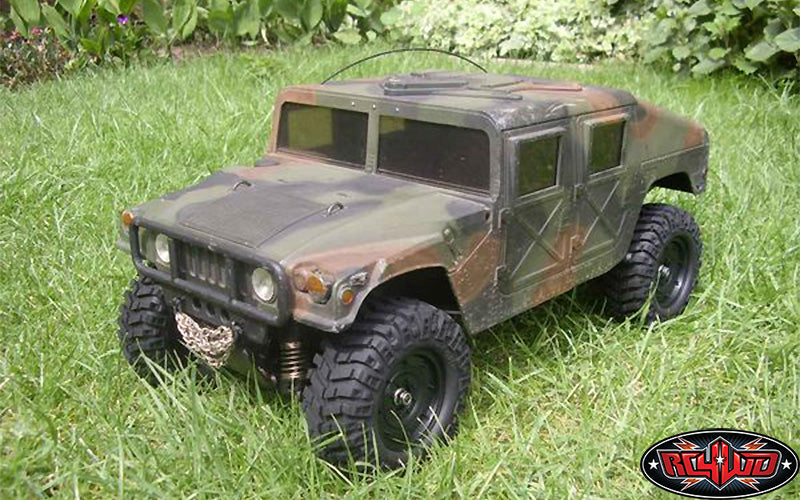

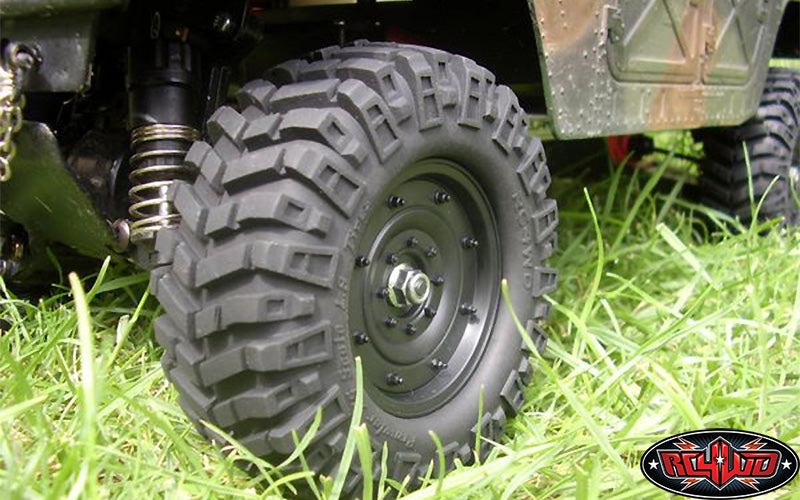

OFFICIAL CUSTOMER-TRUCK EXAMPLES
RC4WD publishes the following application photographs on customer trucks. They demonstrate scale, stance, steering clearance, and articulation; vehicles, wheels, electronics, suspension components, and accessories are not included.
PACKAGE CONTENTS
- 2 × RC4WD Prowler XS Scale 1.9" Tires
- 2 × Foam inserts
QUANTITY WARNING: TWO TIRES PER PACKAGE
One package equips one axle. RC4WD explicitly states that a complete four-wheel truck requires two sets of Z-T0086. Wheels and the vehicles shown in the photographs are not included.
NOT INCLUDED
- Wheels and beadlock hardware
- RC vehicle, body, axles, suspension, and hubs
- Additional foam-tuning components or tire weights
INSTALLATION CHECKLIST
- Confirm the wheel is a compatible 1.9" design.
- Center each included foam inside the tire without folds or twists.
- Seat both tire beads evenly in the wheel channel or beadlock system.
- Start every beadlock fastener by hand and tighten gradually in a cross pattern.
- Inspect both beads around the full 360 degrees before final tightening.
- Verify body, steering, link, shock, and inner-fender clearance through full suspension travel.
GASHEAD RC BUILD NOTE
The Prowler XS is the sensible choice when a build needs a sub-100 mm tire, a narrow scale stance, and the softer X3 compound. Confirm the exact wheel system, then order two packages for a standard four-wheel vehicle. Sometimes the right tire is the one that actually clears the body—revolutionary concept, apparently.
