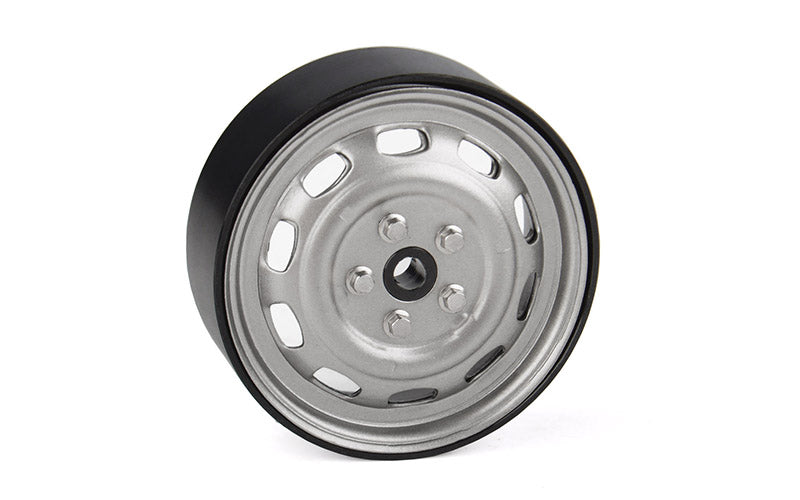

RC4WD STAMPED STEEL 1.7" 10-OVAL HOLE WHEELS – PLAIN – Z-W0312

RC4WD STAMPED STEEL 1.7" 10-OVAL HOLE WHEELS – PLAIN – Z-W0312

Give a scale truck or crawler a narrow-track, vintage steel-wheel look with the genuine RC4WD Stamped Steel 1.7-inch 10-Oval Hole wheel set. Z-W0312 combines CNC-machined components, billet aluminum and steel materials in a plain finish, with compact 1.7-inch proportions intended for smaller scale tires and narrow-track applications.

KEY FEATURES

• Genuine RC4WD 10-oval-hole wheel design
• CNC-machined construction
• Billet aluminum and various steel materials
• Plain finish
• 1.7-inch wheel size
• Narrow design intended to reduce overall track width
• Four-wheel set

MANUFACTURER SPECIFICATIONS

• Part number: Z-W0312
• Wheel size: 1.7 in
• Outer diameter: 1.86 in / 47.3 mm
• Width: 0.79 in / 20.0 mm
• Center-hole diameter: 0.16 in / 4.1 mm
• Manufacturer-listed offset: 0.17 in / 4.25 mm positive
• Weight: 1.62 oz / 46.1 g per wheel

WHAT'S INCLUDED

• 4 × RC4WD Stamped Steel 1.7" 10-Oval Hole Wheels – Plain
• 1 × Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts, 2.5 mm hex

OPTIONAL TOOLS & REPLACEMENT HARDWARE

• Optional tool: RC4WD 4pc Precision Metric Hex/Nut Driver Set – Z-F0030
• Replacement hardware: RC4WD Miniature Scale Hex Bolts M2.5 × 8 mm, Silver – Z-S0418
• Replacement tool: Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts, 2.5 mm hex – Z-S0635
• Recommended axle nut: M4 Low Profile Flanged Lock Nut, Black – Z-S0547, which RC4WD recommends for improved attachment to axle shafts

COMPATIBILITY & FITMENT

RC4WD lists Z-W0312 as fitting the Axial SCX10, Vaterra Ascender and Axial Wraith. The manufacturer states these wheels work best on RC4WD Yota and Yota II axles.

RC4WD shows Z-W0312 installed with Milestar Patagonia A/T 1.7" Tires, part Z-T0181, including examples on a Trail Finder 2 LWB with Mojave II Four Door body and on a Trail Finder 2 with the 1985 Toyota 4Runner hard body. Tires and vehicles are not included.

Clearance note: RC4WD warns that the narrow-track geometry can cause slight rubbing on some axles. It also recommends using smaller tires with this narrow wheel design because larger tires may contact rod ends or steering components. Verify axle, steering and tire clearance before installation.

Tire fitment note: Tire bead and mounting geometry varies by manufacturer. RC4WD confirms its own wheels and tires work together but does not guarantee every third-party combination.

GASHEAD RC NOTE

The current RC4WD product page contains an offset wording inconsistency: the specification list states a positive offset of 0.17 in / 4.25 mm, while the notes describe the wheels as having a large negative offset to create a narrow track width. GASHEAD RC preserves the numerical specification exactly as currently published rather than silently correcting the manufacturer. Confirm the RC4WD dimension drawing and your axle geometry when offset is critical to the build.
